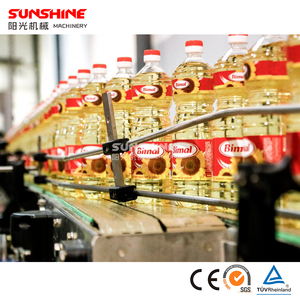

Edible Oil Weighing Filling Machine Line

Lubricating Oil Filling Machine Line

The Lubricating Oil Filling Machine Line is a complete automatic packaging solution designed for lubricating oils, engine oils, gear oils, and other industrial fluids. The system integrates bottle feeding, high-precision filling, capping, labeling, and final packaging into one seamless production process.

Model:
Lubricating Oil Filling Machine Line
Brand:
SUNSHINE
Key Components Brand:
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
Filling Volume:
1-5L,5-30L
Production Capacity:
1000-5000 Bottles/Hour
Application:
Lube Oil,Chemicals,Edible Oil.etc
Warranty:
One Year and Life-Long Technical Support
Machine material:
SUS 304/316
After-sales Service:
Engineers Available to Service Overseas


Availability:



Inquire

Product Description

1-5L Bottle Lubricating Oil Filling Machine Line

5-30L Lubricating Oil Weighing Filling Machine Line

Service & Support

AUTOMATIC LUBRICATING OIL FILLING MACHINE LINE VIDEO

DIAGRAM FOR LUBRICATING OIL FILLING MACHINE LINE

oil filling machine line diagram

Lubricating Oil Filling Machine Line Product Introduction

The Lubricating Oil Filling Machine Line is a complete automatic packaging solution designed for lubricating oils, engine oils, gear oils, and other industrial fluids. The system integrates bottle feeding, high-precision filling, capping, labeling, and final packaging into one seamless production process.

Designed to handle different viscosities and ensure clean filling without dripping, this line improves efficiency, reduces product loss, and delivers consistent packaging quality.

FEATURES OF AUTOMATIC LUBRICATING OIL FILLING MACHINE LINE

lube-oil-factory

Introduction to the 1–5L Lubricating Oil Filling Production Line

A 1–5 liter lubricating oil filling production line is a highly specialized automated system designed for packaging medium-volume liquid products such as engine oil, industrial lubricants, transmission fluids, hydraulic oils, and related chemical products. The system is engineered to handle containers ranging from 1 liter to 5 liters in capacity, ensuring efficiency, accuracy, and safety during the filling and packaging process. Below is a detailed description of the equipment used, the overall production process, and the main features of such a line.

The edible oil filling machine line equipments includes:

A complete Edible oil weighing filling machine line generally includes:
Bottle unscrambler/ Feeding System → Lubricating Oil Filling Machine → Cap Sorting and Feeding System → Automatic Capping Machine → Testing Induction Sealing Machine → Labeling Machine → Inkjet or Laser Coding Machine (Optional) → Palletizing System (Optional) , all connected by a conveyor system for continuous operation.
1.Bottle Unscrambler / Feeding System: Automatically arranges and conveys empty plastic or tin containers (5–30 liters) into the line.
2.Lubricating Oil Filling Machine:Core equipment of the line, designed to fill edible oil by weight for accuracy.

3.Cap Sorting and Feeding System:Automatically sorts screw caps and delivers them to the capping station.

4.Capping Machine:Automatically screw caps，Torque control to avoid leakage or damage to the cap.
5.Induction Sealing Machine:To provide tamper-evidence and leak-proof protection by sealing aluminum foil liners onto bottle mouths.
6.Labeling Machine:High-speed labeling with accurate positioning, supporting barcodes, QR codes, and brand labels.
7.Inkjet Printer / Laser Coding Machine:To print production date, batch number, and other traceability information.
8.Cartoning / Case Packing Machine:Automatically group bottles into cartons or shrink-wrap film for transport.
9.Conveyor System:Transports bottles through each stage of the production line.
10.Palletizing System (Optional):To stack cartons onto pallets for storage and distribution.

TECHNICAL PARAMETERS OF LUBRICATING OIL FILLING MACHINE LINE

Item	Parameter
Model	Lubricating Oil Filling Machine Line
Filling Range	0.5L – 5L (customizable up to 20L)
Filling Speed	1,000 – 6,000 bottles/hour (depending on volume & viscosity)
Accuracy	≤ ±0.0-0.2%
Bottle Type	Plastic / Glass Bottles, Jars, Cans
Bottle Size	Diameter: 50–120mm; Height: 150–350mm (customizable)
Conveyor Speed	0–12 m/min, adjustable
Control System	PLC + Touch Screen (Siemens / Schneider optional)
Filling Method	Servo Piston / Pump /Weighing type (as per oil type)
No. of Filling Heads	4 / 6 / 8 / 12 / 16 /20 heads (optional)
Cap Feeding System	Automatic sorting & feeding
Capping Type	Screw Cap / Press Cap / Special Caps
Power Supply	AC 220V / 380V, 50Hz / 60Hz
Air Supply	0.6–0.8 MPa, clean compressed air
Main Material	SUS304 / SUS316L Stainless Steel
Lubricating Oil Viscosity Range	10 – 10,000 cP
Machine Dimensions	Approx. 2500 × 1500 × 2200 mm (per unit, customizable)
Weight	1200 – 3000 kg (depending on configuration)
Optional Devices	Bottle Unscrambler, Cap Elevator, Labeling Machine, Inkjet Printer, Carton Packing Machine

FEATURES OF THE LRBRICATING OIL FILLING MACHINE LINE

High Filling Accuracy	Advanced flowmeter or piston systems ensure each bottle receives the exact volume required. Typical filling accuracy is within ±0.5% or better.
Versatility	Suitable for a wide range of bottle sizes (1L to 5L). Quick-change parts allow fast adjustments when switching between container formats.
Automation and Efficiency	Integrated PLC control with touch-screen operation for easy monitoring. High output capacity, often reaching 1,200–3,000 bottles per hour depending on configuration.
Hygienic and Durable Construction	Made of stainless steel, resistant to corrosion and easy to clean. Designed to comply with GMP and food-grade safety requirements (important for chemical safety as well).
Flexibility in Product Handling	Can handle different viscosities of lubricating oil, from light synthetic oils to heavier industrial lubricants. Adjustable filling speeds prevent foaming or spillage.
Safety and Reliability	Equipped with no-bottle-no-fill, no-cap-no-seal, and emergency stop systems. Fault detection and automatic shutdown reduce risks of product loss or accidents.
Traceability and Compliance	Integrated coding, labeling, and data management support regulatory compliance.
Labor Saving	Full automation significantly reduces labor costs. Operators mainly perform supervision, material replenishment, and routine maintenance.

APPLICATION OF AUTOMATIC EDIBLE OIL WEIGHING FILLING MACHINE LINE

Lubricating oil

Edible oil

Food & Sacue

DIFFERENT CAPACITY FOR LUBRICATING OIL FILLING MACHINE LINE

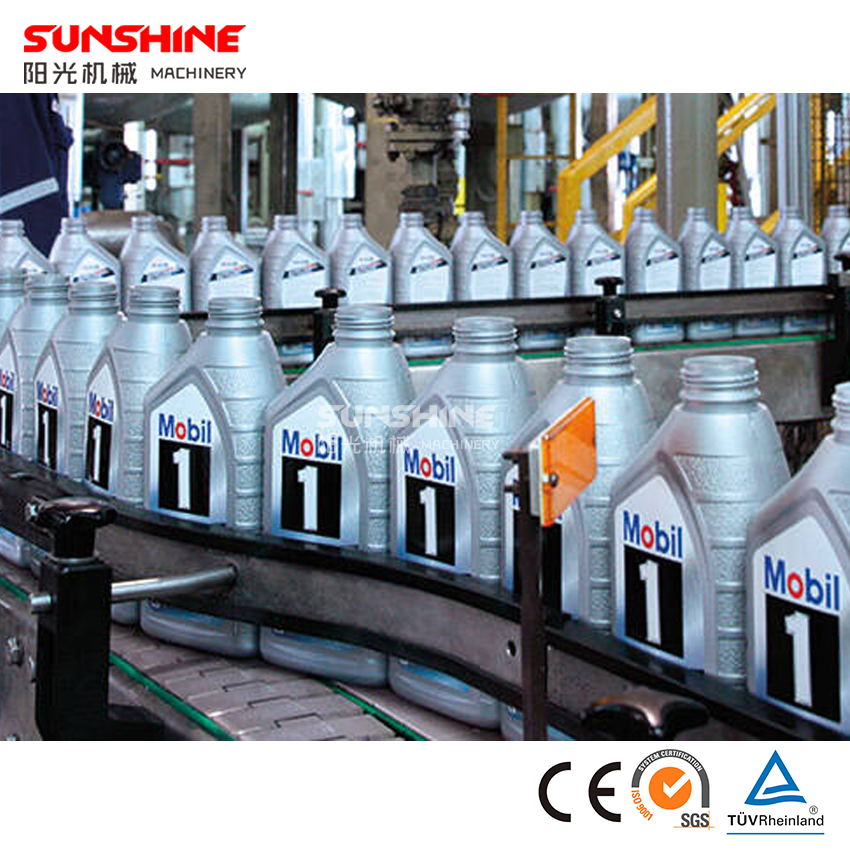

1-5L BOTTLE LUBRICATING OIL FILLING MACHINE LINE

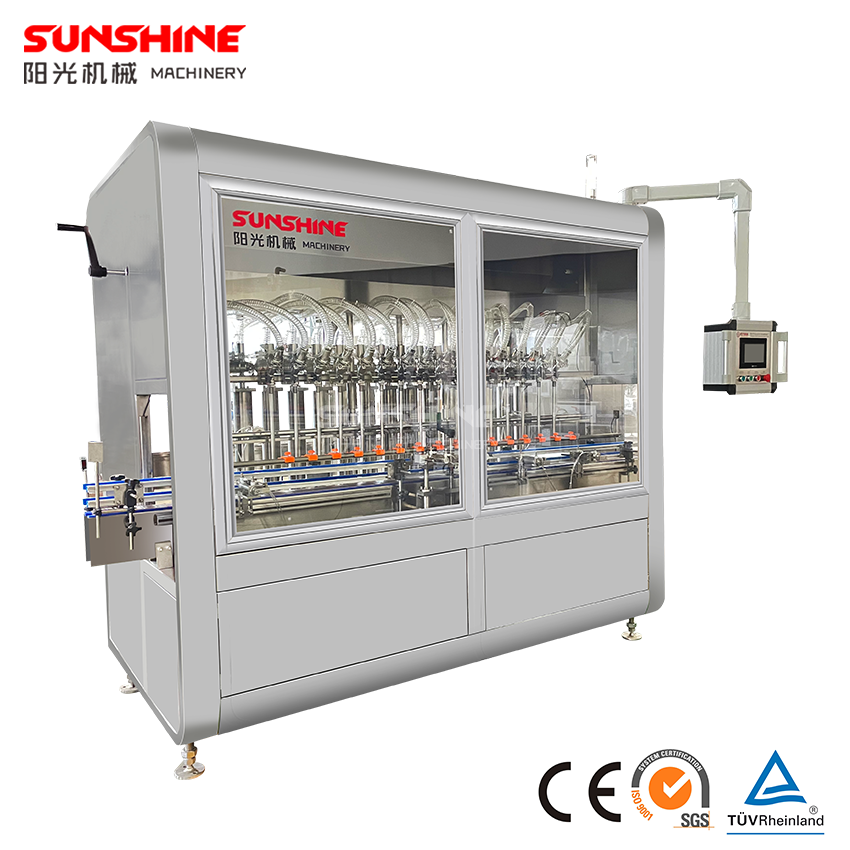

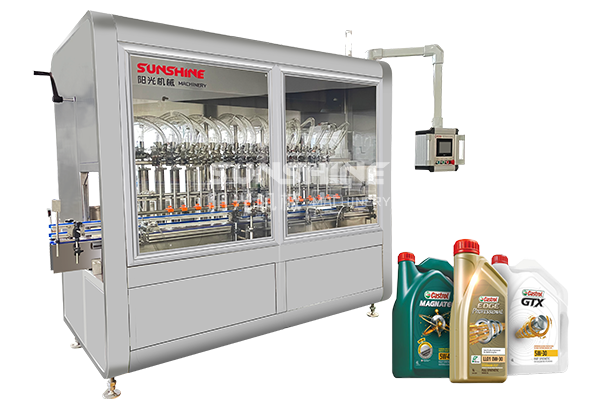

Lubricating Oil Filling Machine

The lubricating oil filling machine may employ various filling methods, including servo pistons, rotor pumps, and magnetic drive pumps., designed for precise and hygienic filling of oils into bottles. It can handle volumes ranging from small 100 ml bottles to large 5L containers.
1.No-drip nozzles to prevent oil leakage.
2.Servo motor control for precise volume adjustment.
3.Stainless steel construction to meet food safety standards.
4.Easy to adjust for multiple bottle sizes.High-speed filling, up to 1,000–5,000 bottles/hour depending on configuration.

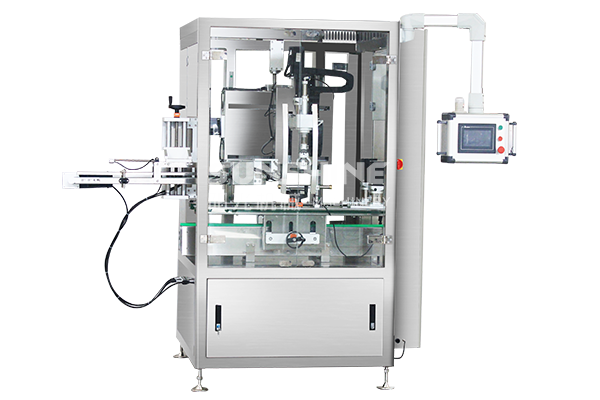

Servo Capping machine

The single head servo capping machine is used for sealing bottles with caps in an efficient and precise way. It is driven by servo motors to control torque and positioning, ensuring tight and consistent sealing.
1.Automatic cap sorting and feeding system.
2.High precision torque control for reliable sealing.
3.Simple structure with easy changeover.
4.Stable, smooth operation with low noise.

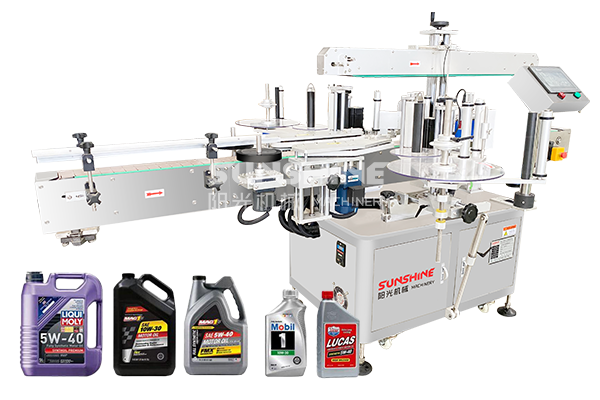

Automatic Labeling Machine

The double labeling machine is specially designed for squre and flat bottles. It ensures labels are applied smoothly and securely, even on curved or uneven surfaces.
1.Suitable for various 1-5L bottles label sizes and bottle types.
2.High labeling speed and accuracy.
3.Easy to adjust and operate.
4.Improves packaging efficiency and product image.
Carton Packing Machine

The carton packing machine is the final step in the oil filling line, responsible for automatically packing filled and sealed bottles into cartons or cases for storage, transport, and distribution. It ensures safe handling and efficient logistics.
1.Automatic carton opening, filling, and sealing.
2.Adjustable for different bottle sizes and carton dimensions.
3.Integration with labeling and coding systems for barcodes or batch numbers.
4.Optional robotic arm or pick-and-place system for precise bottle arrangement.

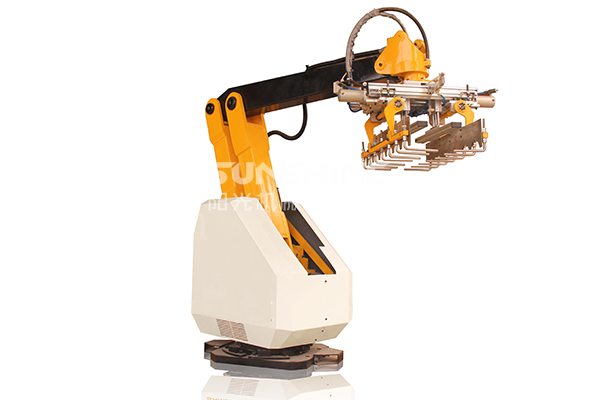

Robotic palletiser

A robotic palletiser is an advanced automation system used for stacking boxes, bags, drums, or other packaged goods onto pallets in a precise and efficient manner. It is widely applied in food, beverage, chemical, and logistics industries to streamline the end-of-line packaging process. The robotic arm can be programmed for different stacking patterns and product sizes, offering great flexibility for modern production lines.
Roller Conveyor System

A roller conveyor system is a material handling solution designed to transport cartons, boxes, drums, and other goods smoothly along a production or packaging line. It uses multiple rollers powered by gravity or motors to move products efficiently between different processing stages. Roller conveyors are widely used in warehouses, factories, and logistics centers.

18-30L LUBRICATING OIL WEIGHING FILLING MACHINE LINE

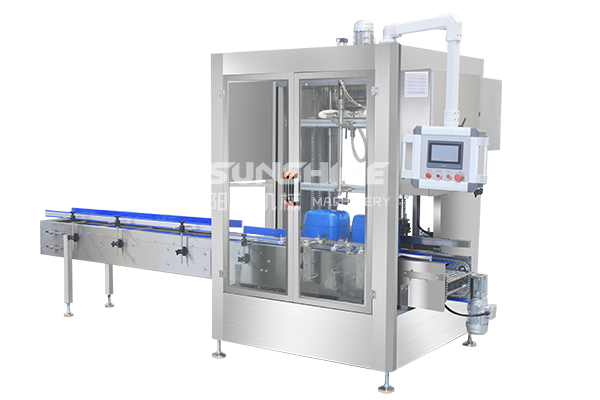

Lubricating Oil
Weighing Filling Machine

Precisely fills each container with edible oil based on weight (not just volume), ensuring accuracy within ±0.2-0.3%.
1.Electronic weighing system with load cells.
2.Drip-proof nozzles to prevent oil spillage.
3.Automatic tare adjustment.
4.Multi-head filling options for higher output.

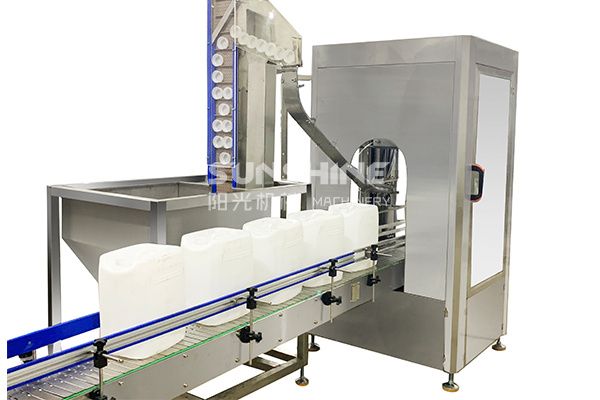

Servo Capping Machine

The single head servo capping machine is used for sealing bottles with caps in an efficient and precise way. It is driven by a servo motor to control torque,ensuring tight and consistent sealing.
1.Automatic cap sorting and feeding system.
2.High precision torque control for reliable sealing.
3.Simple structure with easy changeover.
4.Stable, smooth operation with low noise.

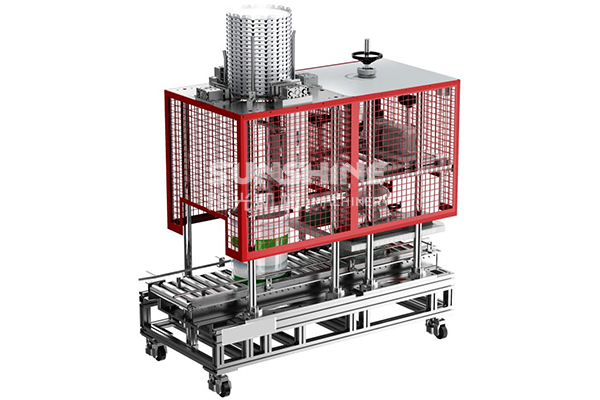

Pail Pressure Capping Machine

The plastic pail pressure capping machine is a specialized equipment designed to seal onto plastic pails.The machine ensures that the lid is pressed evenly and firmly onto the pail rim, guaranteeing a tight seal that prevents leakage, contamination, or accidental opening.
1.Ensures strong lid fit by applying uniform pressure, eliminating risks of loose or uneven sealing.
2.Automated pressing process greatly increases production speed compared to manual capping.
3.Compatible with a wide range of pail sizes and lid types, suitable for multiple industries.

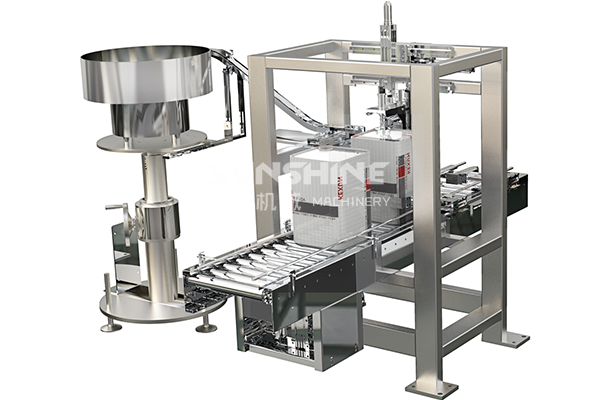

Tin Cans Capping Machine

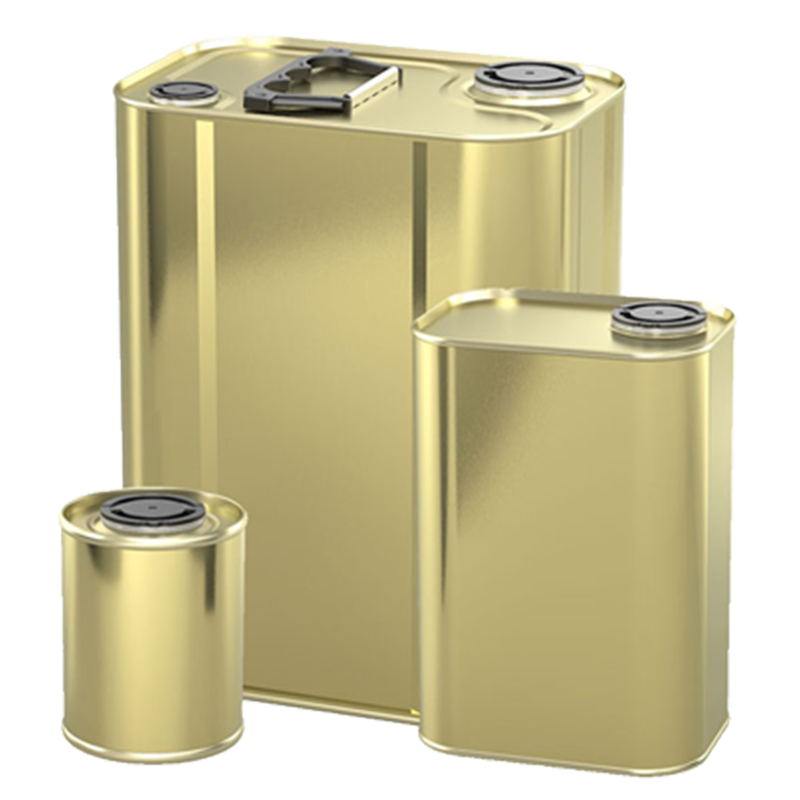

The tin cans capping machine is a specialized equipment designed for sealing large metal cans, typically used for edible oil, paint, lubricants, and chemical products. It ensures secure and consistent capping for 18-liter containers, improving packaging quality and production efficiency.
1.Provides tight and reliable sealing to prevent leakage.
2.Suitable for various 5L-30L tin can types and lid styles.
3.User-friendly controls for quick adjustment and smooth operation.
Robotic palletiser

A robotic palletiser is an advanced automation system used for stacking boxes, bags, drums, or other packaged goods onto pallets in a precise and efficient manner. It is widely applied in food, beverage, chemical, and logistics industries to streamline the end-of-line packaging process. The robotic arm can be programmed for different stacking patterns and product sizes, offering great flexibility for modern production lines.

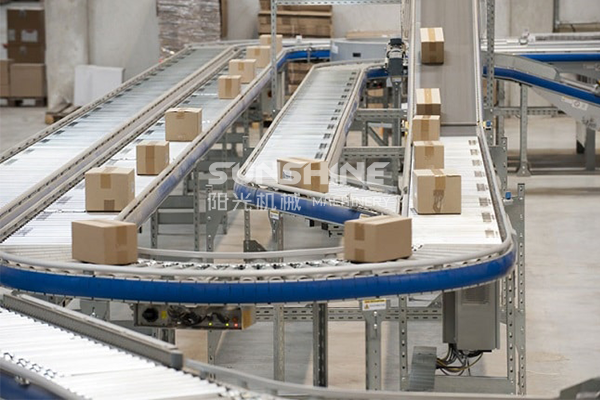

Roller Conveyor System

A roller conveyor system is a material handling solution designed to transport cartons, boxes, drums, and other goods smoothly along a production or packaging line. It uses multiple rollers powered by gravity or motors to move products efficiently between different processing stages. Roller conveyors are widely used in warehouses, factories, and logistics centers.

WHY CHOOSE SUNSHINE MACHINE

5000 +

FIELD
30 +

EMPLOYEES
50 +

COUNTRY

ONE-STOP AFTERSALES SERVICE

FAQ

1. What kinds of oils and liquids can this machine line handle?

The machine line is suitable for edible oils such as sunflower, soybean, peanut, olive, coconut oil, mustard oil, etc., and can also handle other light viscous liquids.
2.What filling volume range is supported?

It supports container sizes in the range of 5-50 kg (or equivalent in liters), depending on the configuration.
3. What is the production capacity?

Depending on container size, shape, oil type, and line configuration, it can fill 100 to 600 drums per hour.
4. Are different container types / sizes / shapes supported?

Yes. The line accommodates various container types (drums, tin cans, plastic/metal containers), shapes, and sizes. It features adjustable filling nozzles, conveyors, and changeover settings.
5. What accuracy can be expected for filling by weight?

The system is equipped with electronic weighing (load cells) and offers high accuracy. Typical tolerance is ±0.2-0.3% (depending on container, oil viscosity, and setup).
6. What materials are used, especially in parts contacting with oil?

Food contact parts are made with stainless steel—SUS 304 or SUS 316—depending on your hygiene and corrosion resistance requirements.
7. Does the line include capping, labeling, and other packaging steps?

Yes. A full line typically includes:
Container unscrambler/feeder → filling machine → cap sorting & feeding → capping machine → (optional) leak detection → labeling → (optional) coding (laser or inkjet) → (optional) palletizing.
9. Can optional stations be added?

Yes. Options include leak-testing stations, induction sealing, coding machines, palletizing, etc. These can be included based on the customer’s requirements.
9. What is the warranty and after-sales support?

The machine line has a one-year warranty and lifelong technical support. Also, engineers are available to service overseas.
10.What is the delivery time?

Delivery typically requires 4-5 weeks from order placement, depending on customization and configuration.
