What is a piston filling machine?
A piston filling machine is a type of volumetric liquid filling equipment that uses a piston-and-cylinder mechanism to measure and dispense accurate amounts of product into containers.
It is especially suitable for viscous liquids, creams, sauces, gels, and other semi-solid products.
By delivering precise fill volumes, piston fillers are widely used in food, beverage, cosmetics, chemical, and pharmaceutical industries.
How does a piston filler work?
The filling cycle begins when the piston retracts, drawing product from a hopper or tank into the cylinder.
When the piston pushes forward, it forces the measured liquid into the container through a nozzle.
This process ensures consistent and repeatable filling accuracy, even with thick or chunky products.
Modern piston filling machines are often controlled by PLC systems for smooth operation.
What products can be filled with a piston filling machine?
Piston fillers are ideal for a wide range of viscous and semi-viscous products.

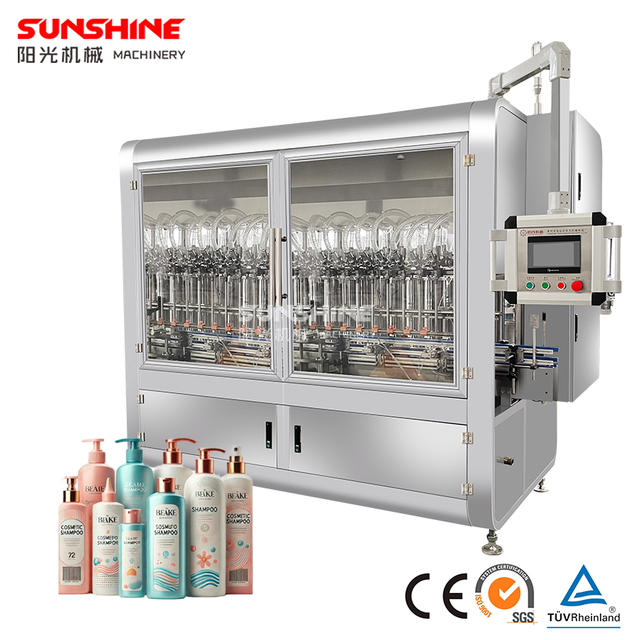

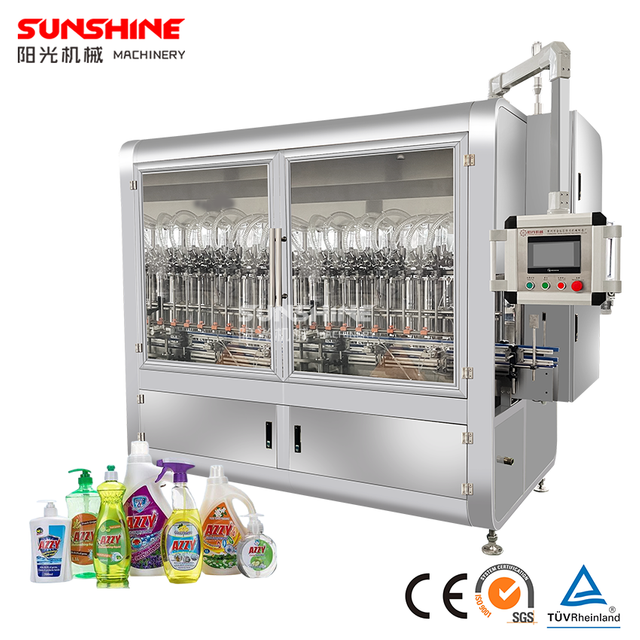

Typical applications include honey, syrups, sauces, salad dressings, lotions, shampoos, detergents, pastes, creams, and cosmetic gels.
They can also handle chunky products like salsa, jams with fruit pieces, and certain pharmaceuticals that require accurate dosing.
What are the advantages of piston filling machines?
The main benefits include high accuracy, reliability, and versatility.
They can handle a broad range of product viscosities, from thin liquids to thick pastes.
Piston fillers are cost-effective, easy to clean, and designed for hygienic operations with stainless steel construction.
They can be configured as manual, semi-automatic, or fully automatic systems to match production needs.
Are piston fillers suitable for food-grade applications?
Yes, piston filling machines are commonly used in food processing industries.
They are built with food-grade stainless steel (SUS304 or SUS316) and comply with GMP and CE standards.
Cleaning-in-place (CIP) systems and sanitary connections ensure hygiene and safety during food or beverage packaging.
How accurate is a piston filling machine?
Piston fillers are known for their high filling precision, typically achieving ±0.5% accuracy depending on the product and container size.
This accuracy helps reduce product waste, maintain consistency, and ensure compliance with industry standards.
Servo-driven piston fillers can further enhance precision and repeatability.
What container types can piston filling machines handle?
These machines can fill bottles, jars, tubs, cans, and other rigid or semi-rigid containers.
Adjustable filling nozzles allow them to accommodate different container sizes and shapes.
Integration with conveyors, capping machines, and labeling systems makes them suitable for complete packaging lines.
What should be considered before buying a piston filling machine?
1. What viscosity is the product?
Thicker products require stronger piston drives and larger nozzle openings.
2. What container sizes will be used?
Evaluate the required filling volume range to choose the correct piston size.
3. What production capacity is needed?
Select between manual, semi-automatic, or fully automatic piston fillers depending on output requirements.
4. Is cleaning and sanitation important?
Food, cosmetic, and pharmaceutical industries should consider CIP systems and stainless-steel designs for hygiene.
How do piston filling machines compare with other filling technologies?
Compared with gravity fillers, piston fillers are more effective for viscous products.
Unlike overflow fillers, which are ideal for clear liquid presentation, piston fillers focus on volumetric accuracy.
They are more versatile than pump fillers when handling semi-solid or chunky products, making them a preferred choice in multiple industries.
Can a piston filler be customized?
Yes, manufacturers offer customized piston filling machines tailored to production requirements.
Options include multiple filling heads, servo-driven controls, anti-drip nozzles, heated hoppers, and quick-change parts.
Customization ensures flexibility, efficiency, and smooth integration into existing packaging lines.
