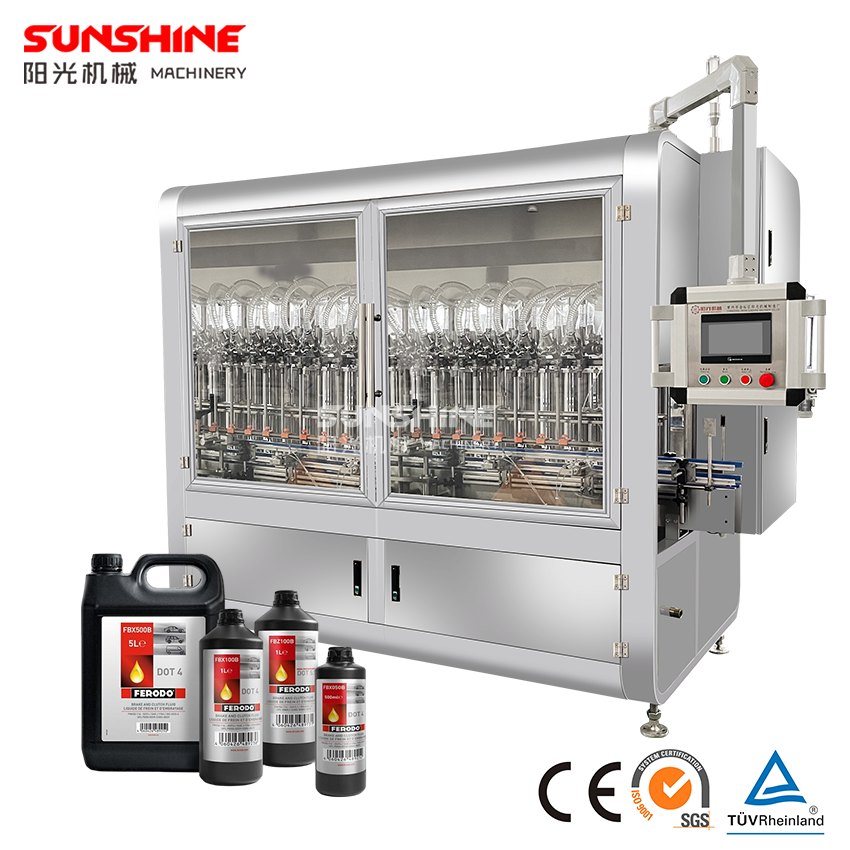

Brake Fluid Filling Machine

Model:
Brake Fluid Filling Machine
Brand:
SUNSHINE
Code:
YG1000-S
Key Components Brand:
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
Filling Volume:
50-5000ml
Production Capacity:
1000-4500 Bottles/Hour
Application:
Brake Fluid,Lubricating Oil,Chemicals liquid
Warranty:
One Year and Life-Long Technical Support
Machine material:
SUS 304/316
After-sales Service:
Engineers Available to Service Overseas


Availability:



Inquire

Product Description

Brake Fluid Filling Line

Service & Support

AUTOMATIC BRAKE FLUID FILLING MACHINE LINE VIDEO

Brake Fluid Filling Machine – Precision, Efficiency, and Reliability

Working Principle：

The Brake Fluid Filling Machine is designed with a piston-type filling system powered by advanced servo motor control. Each filling stroke delivers a precise volume of brake fluid into containers, with an accuracy of ±0.1%. The nozzles are designed with an anti-drip and diving function, ensuring smooth liquid flow and reducing foam or spillage. The entire system is controlled by a PLC with touchscreen HMI, making operation simple, intuitive, and highly reliable.

Key Advantages：

Exceptional Accuracy – Servo-driven piston system guarantees consistent filling with minimal product loss.
High Output – Multi-head design boosts productivity, making it ideal for medium to large-scale production.
Versatile Applications – Handles a wide range of bottle types and filling volumes, adaptable to different production needs.
Smart Operation – PLC with touchscreen control for easy adjustment, monitoring, and fault detection.
Clean & Safe Design – No-drip filling nozzles, CIP cleaning system (optional), and high-grade stainless steel ensure product purity and operator safety.
Durable & Reliable – Equipped with world-renowned electrical and pneumatic components, ensuring long service life and stable performance.
Expandable Production Line – Easily integrated with bottle unscramblers, capping machines, labeling systems, and carton packing solutions to form a complete automatic filling line.

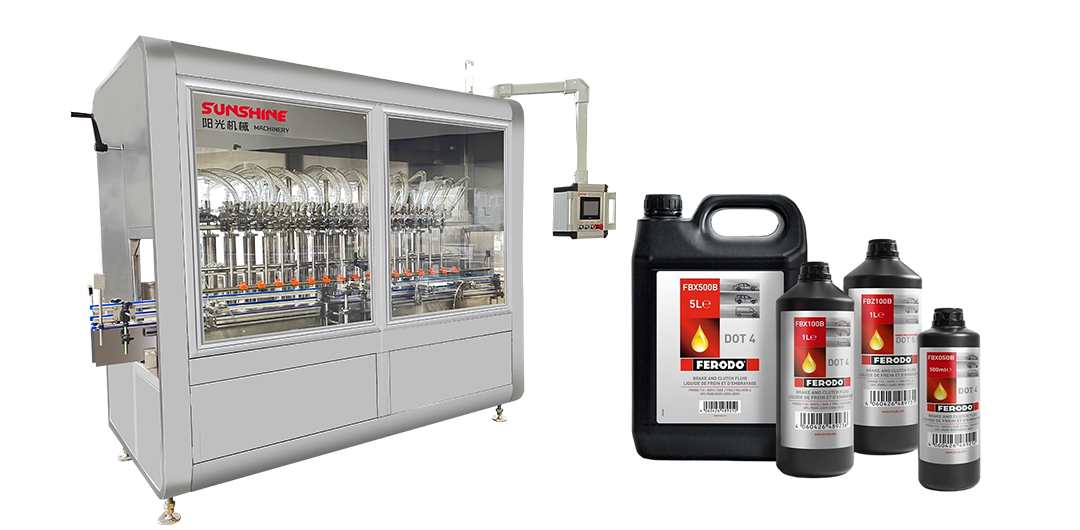

brake-fluid-filling-machine

TECHNICAL PARAMETERS OF BRAKE FLUID FILLING MACHINE

Item	Specification
Filling Volume	50 ml – 5000 ml (customizable)
Filling Heads	4 / 6 / 8 / 12 / 16 / 20 (optional based on capacity needs)
Production Capacity	1,000 – 4,500 bottles/hour (depending on bottle size and number of heads)
Filling Accuracy	≤ ±0.1%
Bottle Types	Round, flat, or square bottles of various materials
Machine Dimensions	1800×1300×2250 mm (4–6 heads) 2800×1500×2250 mm (20 heads)
Power Supply	220V / 380V / 415V, 50/60 Hz (customizable)
Air Supply	0.6 – 0.8 MPa clean compressed air
Material Construction	SUS304 or SUS316 stainless steel, resistant to chemical corrosion
Control System	Siemens / Schneider / Mitsubishi / Delta components (optional)
Warranty	1-year warranty with lifetime technical support

DETAILS PICTURES OF BRAKE FLUID FILLING MACHINE

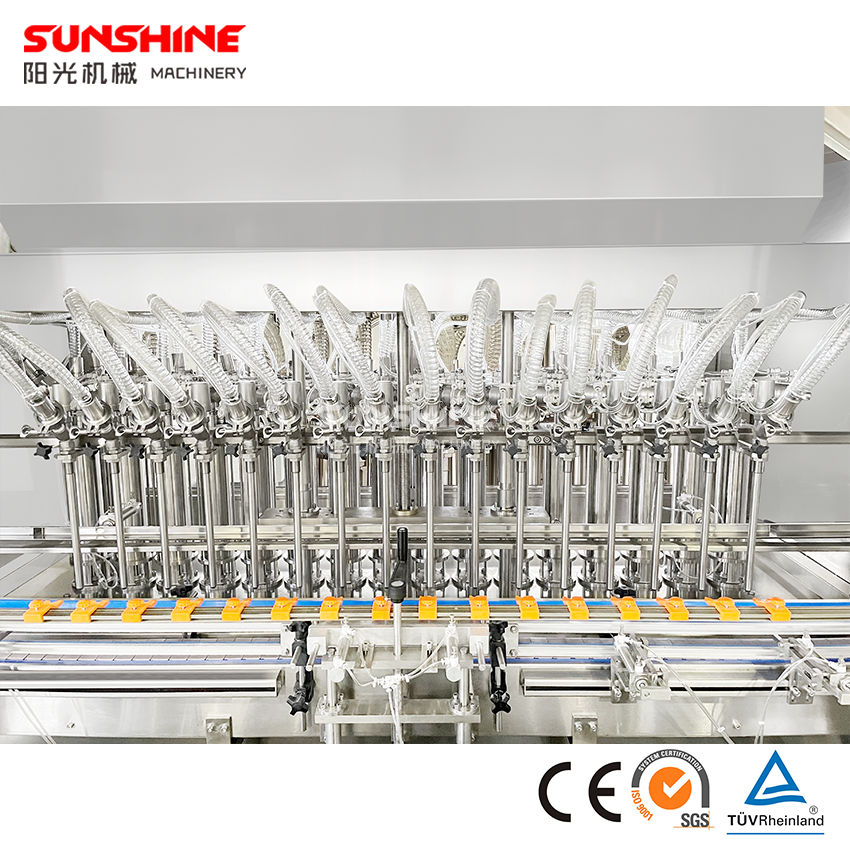

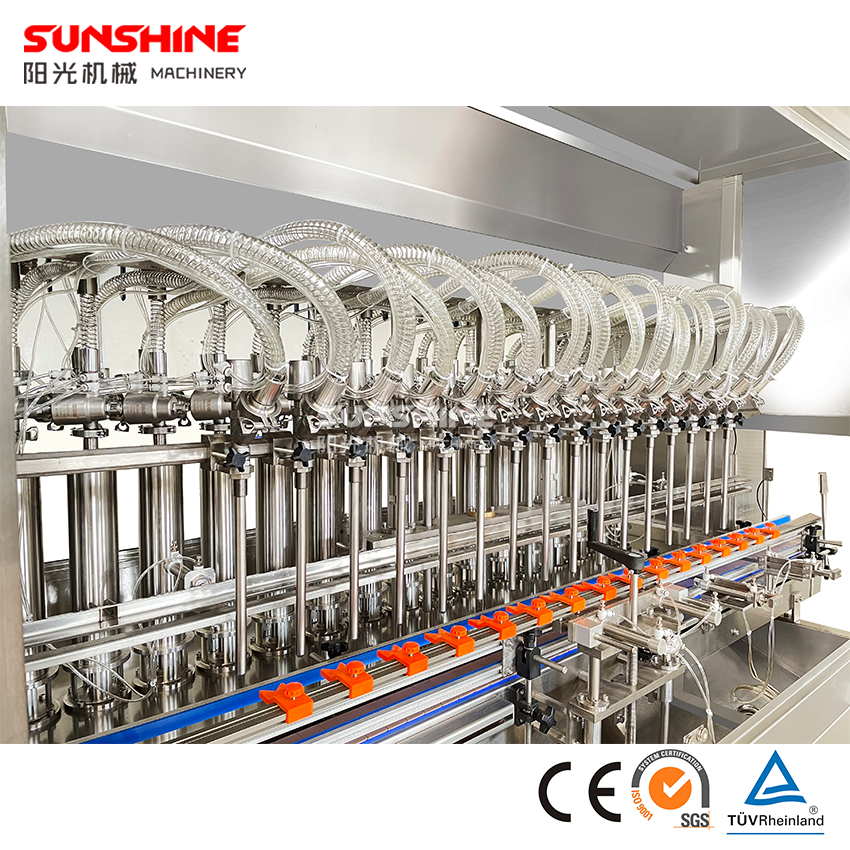

Filling Nozzles

1.The filling nozzels diameter of the edible oil filling machine can be customized accoridng to the size of the bottle mouth.
2.The filling nozzle is installed on the ground floor to prevent the bottle from being contaminated during filling.
3.The filling nozzle can be lifted and lowered by a servo motor to reduce the amount of foaming during filling. It is suitable for filling liquids that are prone to foaming.

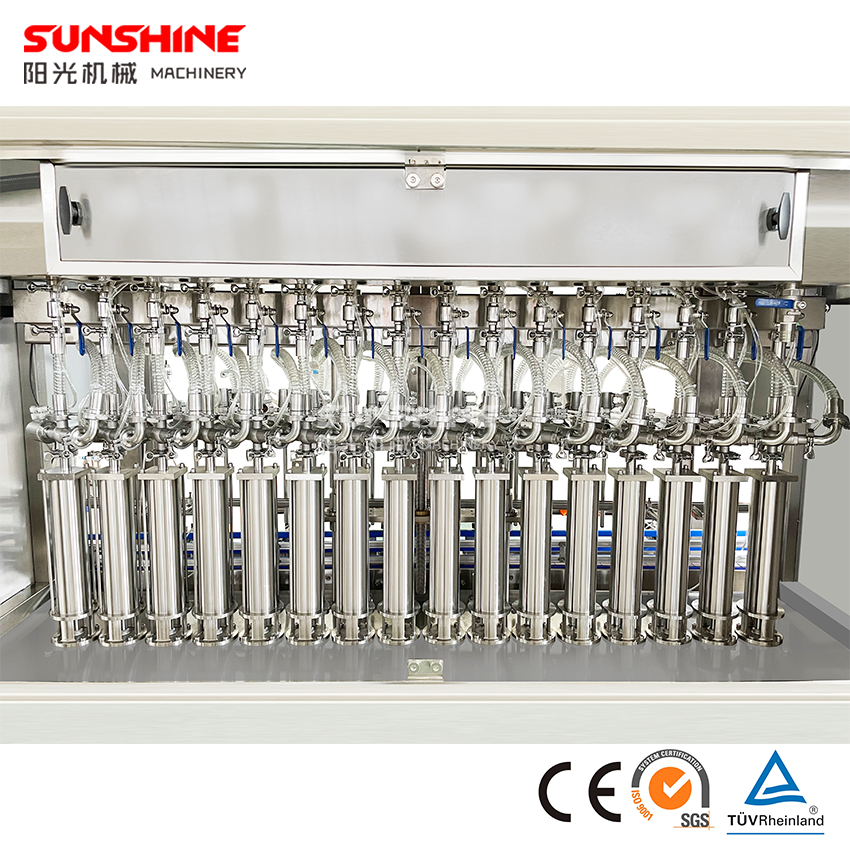

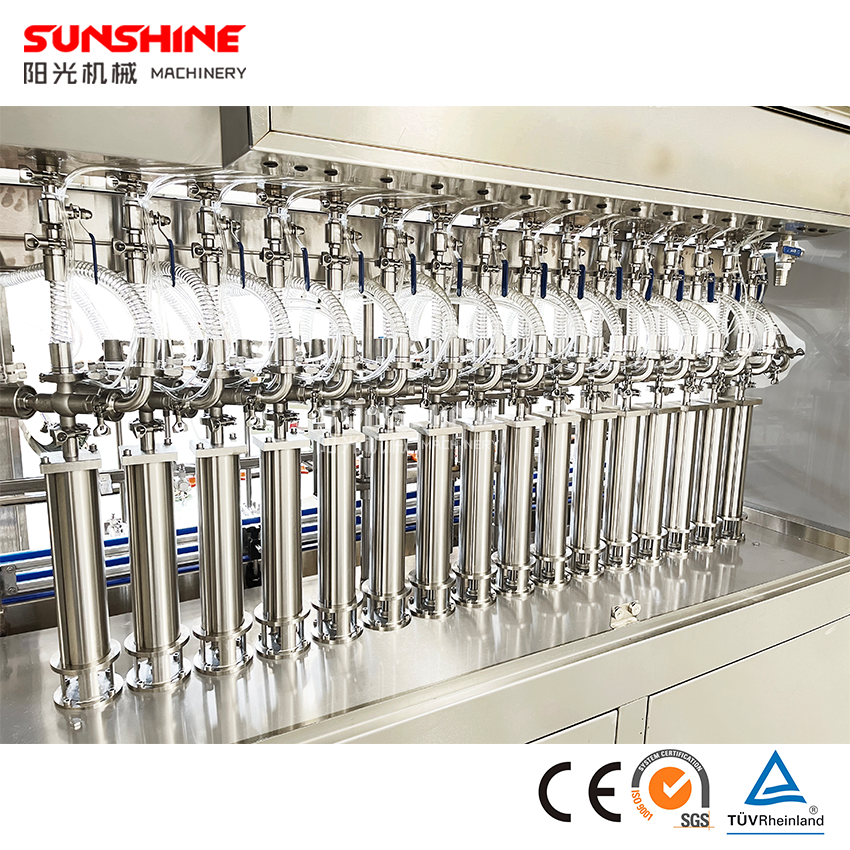

Servo Motro Control Pistons

1.All the pistons are made of SUS304/316 food grade material.The piston ring is also made of food grade material. Wear and corrosion resistant
2.The inner wall of the piston cylinder is smooth, ensuring no residue after filling and high filling accuracy.
3.With cylinder removal function, the piston ring can be lowered out of the piston cylinder for easy cleaning.

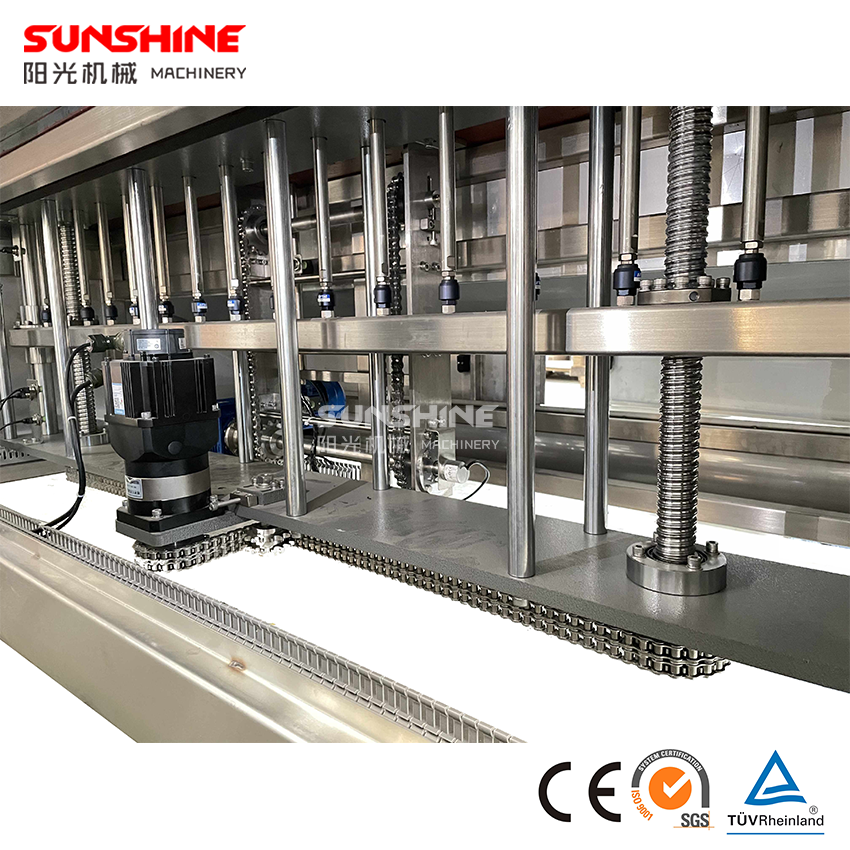

Servo Motor

1.Adopt high-power Panasonic brand servo motor, stable operation and high precision.
2.It adopts double-screw structure and chain drive, which can transmit sufficient power to drive the piston ring, with stable structure and high operation precision.
3.Equipped with high and low position protection to prevent the piston ring from falling out of the piston cylinder, without causing leakage, high safety.

CIP Material Tank

1.Edible oil filling machine can be equipped with CIP tank,The internal pipelines of the filling machine can be perfectly cleaned with CIP cleaning fluid, from the material box to the piston cylinder to the filling nozzle, with no dead angles.
2.The material box can be equipped with heating, stirring, high and low level gauges and other functions, suitable for a variety of different liquids filling.

OPTIONAL CONFIGURATIONS FOR BRKAE FLUID FILLING MACHINE

FDA Certified Food Grade Filling Pipe

Our Edible Oil Filling Machine can used FDA certified food grade filling pipe.
All filling tubes are quick-connect, easy to disassemble and clean.No residue when filling various edible oils, sauces and other liquids.

Servo Motor Diving Nozzle

Servo motor can be used to raise and lower the brake fluid filling machine nozzles, which can rise while filling, so that the liquid is always under the filling nozzle to reduce the generation of bubbles.

CIP Material Tank

The top of the brake fluid filling machine can be replaced with a CIP storage tank, which can be equipped with heating, stirring, high and low liquid level display, CIP interface and other functions

RELATE MACHINES OF BRAKE FLUID FILLING MACHINE

Here are some machines we can working together with brake fluid filling machine.All the equipment can be connected and used together to complete the entire line production of various bottle types.

Unscrambler

Bottle Capping System

Inline Capping Machine

Automatic Bottle Filling And Capping Machine

Double Side Bottle Labeling Machine

Round Bottle Labeling Machine

Carton Packing Machine

Automatic Palletizer Machine

THE LAYOUT DIAGRAM OF BRAKE FLUID FILLING MACHINE LINE

Edible Oil Filling Machine Line Layout

As a high-quality edible oil filling machine manufacturer from China, we can provide customers with one-stop service. We can provide customers with filling machines, capping machines, labeling machines, liquid nitrogen filling machines, and carton unpacking machines. Packing machines, film wrapping machines, palletizers and other equipment. For different bottle types and caps, we have a variety of equipment to choose from, suitable for different products, and connect them into an efficient edible oil production line to achieve safe and stable fully automated production.

MACHINES INCLUDED IN BRAKE FLUID FILLING MAHCINE LINE

Bottle Unscrambler Machine	The bottle unscrambler is for fully automatic arrange the oil bottle according to the direction and send it to the conveyor line.Wide range of applications, can be customized for different sizes and shapes of bottles.
Brake Fluid filling Machine	Servo piston filling machine, weighing filling machine, magnetic pump filling machine, rotor pump filling machine, all kinds of filling machines can meet 100-5000ml, 5L or more of different capacity filling.
Capping Machine	According to the design of different oil bottles, capping machine and capping machine will complete the capping and capping sealing work of various bottles.
Labeling Machine	Suitable for all kinds of round bottles, flat bottles, square bottles, shaped bottles single-sided, double-sided, multi-sided labeling work.
Carton Packing Mahcine	Arrange the filled oil bottles in order, neatly put them in the open carton, and finally seal the box to complete the packaging work.
Robot Palletizing Machine	Through the palletizing robot, the packaged cartons are automatically palletized, improving work efficiency and freeing workers from tired physical work
Conveyor System	We provide custom conveyor systems designed to seamlessly transport containers to and from the filling machine. These systems are engineered for reliability and optimize the flow of your production.

BRAKE FLUID FILLING MACHINE LINE MACHINE PICTURES

Edible Oil Filling Machine

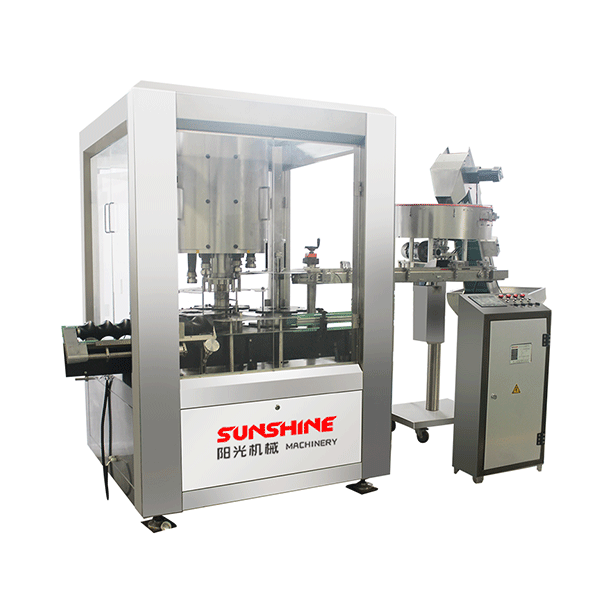

Capping Machine

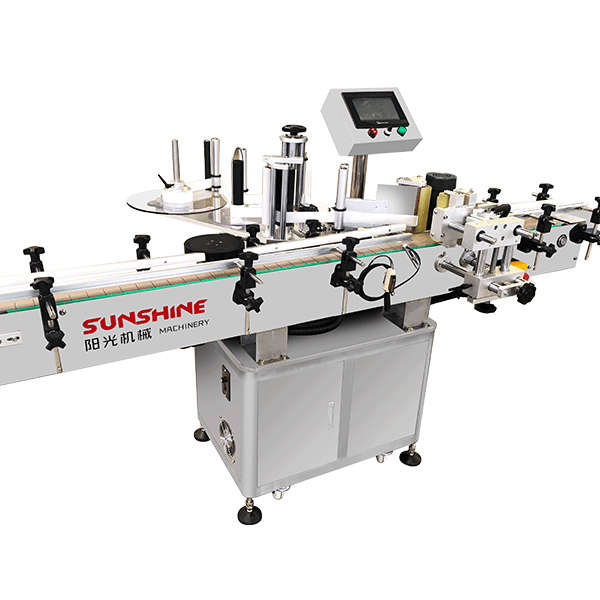

Labeling Machine

Bottle Unscrambler Machine

Carton Packing Machine

Robot Palletizing Machine

WHY CHOOSE SUNSHINE MACHINE

5000 +

FIELD
30 +

EMPLOYEES
50 +

COUNTRY

ONE-STOP AFTERSALES SERVICE

FAQ

What types of bottles can this machine fill?

The machine is designed to handle a wide range of containers, including round, flat, and square bottles, made from plastic, glass, or other materials.
What is the filling range of the machine?

It can fill volumes from 50 ml up to 5000 ml, making it suitable for both small and large containers.
How accurate is the filling process?

The servo-driven piston system ensures a filling accuracy of ≤ ±0.1%, minimizing product loss and ensuring consistency.
What is the production capacity?

Depending on the number of filling heads (4 / 6 / 8 / 12 / 16 / 20) and container size, the machine can achieve 1,000 to 4,500 bottles per hour.
Can the machine be integrated into a full production line?

Yes, it can be connected with bottle unscramblers, capping machines, labeling machines, and carton packing systems to form a complete automated filling line.
What after-sales support do you offer?

We provide installation, training, spare parts, and technical support.
