YG1000-S
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
50-5000ml
1000-4500 Bottles/Hour
Pesticides,Herbicides,Insecticides,Fungicides,Liquid fertilizers,Crop protection chemicals
One Year and Life-Long Technical Support
SUS 304/316
Engineers Available to Service Overseas

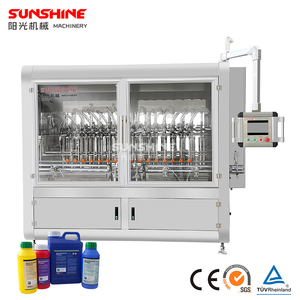

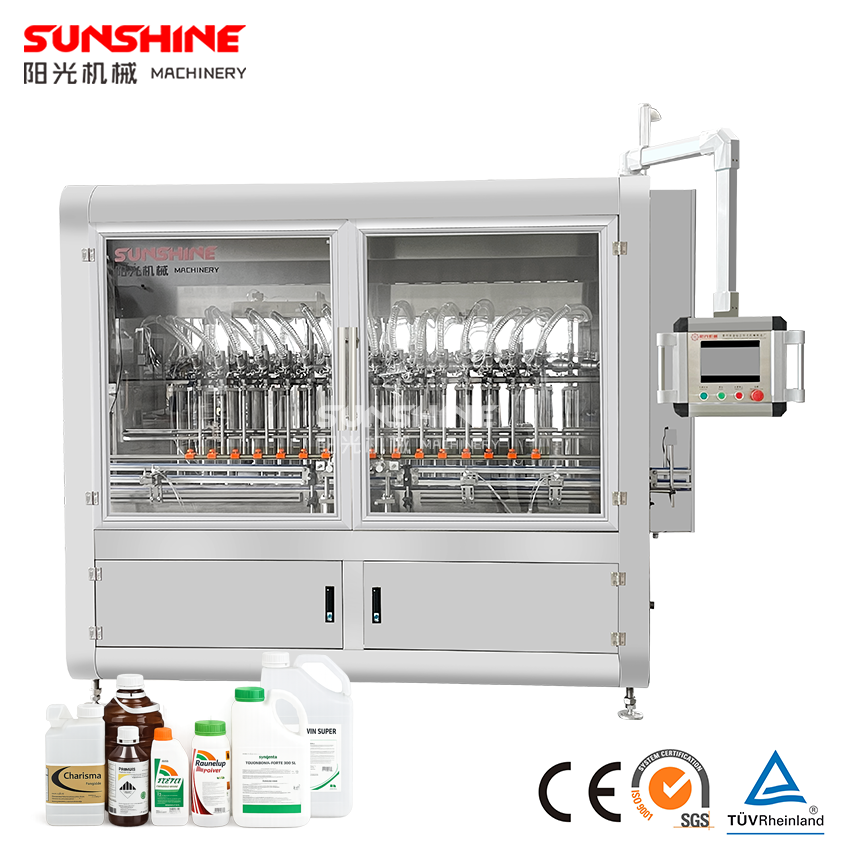

The Insecticide Filling Machine is a specialized solution for filling insecticides, pest-control chemicals, and agricultural treatment liquids. Designed for corrosive and chemical-sensitive products, the machine delivers precise, stable, and clean filling performance.
It is widely used in agrochemical manufacturing plants where filling accuracy, operational safety, chemical compatibility, and packaging quality are critical.
The Insecticide Filling Machine is engineered to meet the demanding requirements of agrochemical production, combining precision, safety, and industrial durability.
All product-contact parts are made from corrosion-resistant materials such as stainless steel, PVC, PP, or PTFE, ensuring compatibility with aggressive insecticide formulations and extending equipment lifespan.
Advanced filling systems provide precise volume control and excellent repeatability, minimizing product waste and ensuring consistent packaging quality.
Special anti-drip nozzles reduce leakage and splashing, ensuring clean containers and improving workplace safety.
Suitable for:
Liquid insecticides
Pest-control chemicals
Agricultural spray liquids
Crop protection products
The machine maintains stable filling performance across different chemical properties and viscosities.
Supports multiple packaging formats including:
Bottles
Jerry cans
Agrochemical containers
Large-capacity packaging
Quick adjustments allow efficient switching between different container sizes.
For volatile or flammable insecticide products, explosion-proof motors, electrical systems, and safety components are available to improve operational safety.
Industrial-grade components and reinforced structure ensure reliable long-term operation in demanding agrochemical production environments.
The machine can be integrated with:
Bottle unscramblers
Capping machines
Labeling machines
Carton packing systems
to form a complete insecticide filling line.
| Item | Specification |
|---|---|
| Filling Volume | 50 ml – 5000 ml (customizable) |
| Filling Heads | 4 / 6 / 8 / 12 / 16 / 20 (optional based on capacity needs) |
| Production Capacity | 1,000 – 4,500 bottles/hour (depending on bottle size and number of heads) |
| Filling Accuracy | ≤ ±0.1% |
| Bottle Types | Round, flat, or square bottles of various materials |
| Machine Dimensions | 1800×1300×2250 mm (4–6 heads) 2800×1500×2250 mm (20 heads) |
| Power Supply | 220V / 380V / 415V, 50/60 Hz (customizable) |
| Air Supply | 0.6 – 0.8 MPa clean compressed air |
| Material Construction | SUS304 or SUS316 stainless steel, resistant to chemical corrosion |
| Control System | Siemens / Schneider / Mitsubishi / Delta components (optional) |
| Warranty | 1-year warranty with lifetime technical support |
FDA Certified Food Grade Filling Pipe
Our Pesticide Filling Machine can used FDA certified food grade filling pipe.
All filling tubes are quick-connect, easy to disassemble and clean.No residue when filling various edible oils, sauces and other liquids.
Servo Motor Diving Nozzle
Servo motor can be used to raise and lower the brake fluid filling machine nozzles, which can rise while filling, so that the liquid is always under the filling nozzle to reduce the generation of bubbles.
CIP Material Tank
The top of the brake fluid filling machine can be replaced with a CIP storage tank, which can be equipped with heating, stirring, high and low liquid level display, CIP interface and other functions
Here are some machines we can working together with Agrochemical Liquid Filling Machine.All the equipment can be connected and used together to complete the entire line production of various bottle types.
Unscrambler
Bottle Capping System
Inline Capping Machine
Automatic Bottle Filling And Capping Machine
Double Side Bottle Labeling Machine
Round Bottle Labeling Machine
Carton Packing Machine
Automatic Palletizer Machine
As a high-quality Insecticide Filling Machine manufacturer from China, we can provide customers with one-stop service. We can provide customers with filling machines, capping machines, labeling machines, liquid nitrogen filling machines, and carton unpacking machines. Packing machines, film wrapping machines, palletizers and other equipment. For different bottle types and caps, we have a variety of equipment to choose from, suitable for different products, and connect them into an efficient engine oil production line to achieve safe and stable fully automated production.
| Bottle Unscrambler Machine | The bottle unscrambler is for fully automatic arrange the oil bottle according to the direction and send it to the conveyor line.Wide range of applications, can be customized for different sizes and shapes of bottles. |
Insecticide Filling Machine | Servo piston filling machine, weighing filling machine, magnetic pump filling machine, rotor pump filling machine, all kinds of filling machines can meet 100-5000ml, 5L or more of different capacity filling. |
| Capping Machine | According to the design of different oil bottles, capping machine and capping machine will complete the capping and capping sealing work of various bottles. |
| Labeling Machine | Suitable for all kinds of round bottles, flat bottles, square bottles, shaped bottles single-sided, double-sided, multi-sided labeling work. |
| Carton Packing Mahcine | Arrange the filled oil bottles in order, neatly put them in the open carton, and finally seal the box to complete the packaging work. |
| Robot Palletizing Machine | Through the palletizing robot, the packaged cartons are automatically palletized, improving work efficiency and freeing workers from tired physical work |
| Conveyor System | We provide custom conveyor systems designed to seamlessly transport containers to and from the filling machine. These systems are engineered for reliability and optimize the flow of your production. |
