Anti-Corrosion Liquid Filling Machine Line

Yes. A custom anti-corrosion liquid filling line can be designed according to workshop space, bottle flow direction, operator position, chemical storage method, ventilation condition, packing method, and future expansion needs. The line can be arranged as a straight-line, L-shape, U-shape, or customized layout.

For corrosive liquid production, layout design should also consider safe material feeding, easy cleaning, drainage, ventilation, and maintenance access. A good layout can improve production efficiency while reducing safety risks.

An anti-corrosion liquid filling line improves production safety through corrosion-resistant materials, stable bottle handling, closed or semi-closed filling structures, anti-leakage design, protected electrical systems, and clean conveying layout.

For volatile or strongly corrosive liquids, additional safety measures can be considered, such as exhaust systems, splash guards, protective covers, emergency stop devices, and separated electrical cabinets. These designs help reduce operator exposure and protect the production environment.

No. Stainless steel is not suitable for all corrosive liquids. Some acids, alkaline solutions, chloride-based products, and oxidizing chemicals can corrode stainless steel contact parts. In these cases, PP, PVC, PTFE, PVDF, or other anti-corrosion materials are usually better choices.

This is why chemical compatibility analysis is important before selecting an anti-corrosion filling machine. The supplier should choose suitable materials based on the actual liquid composition and concentration.

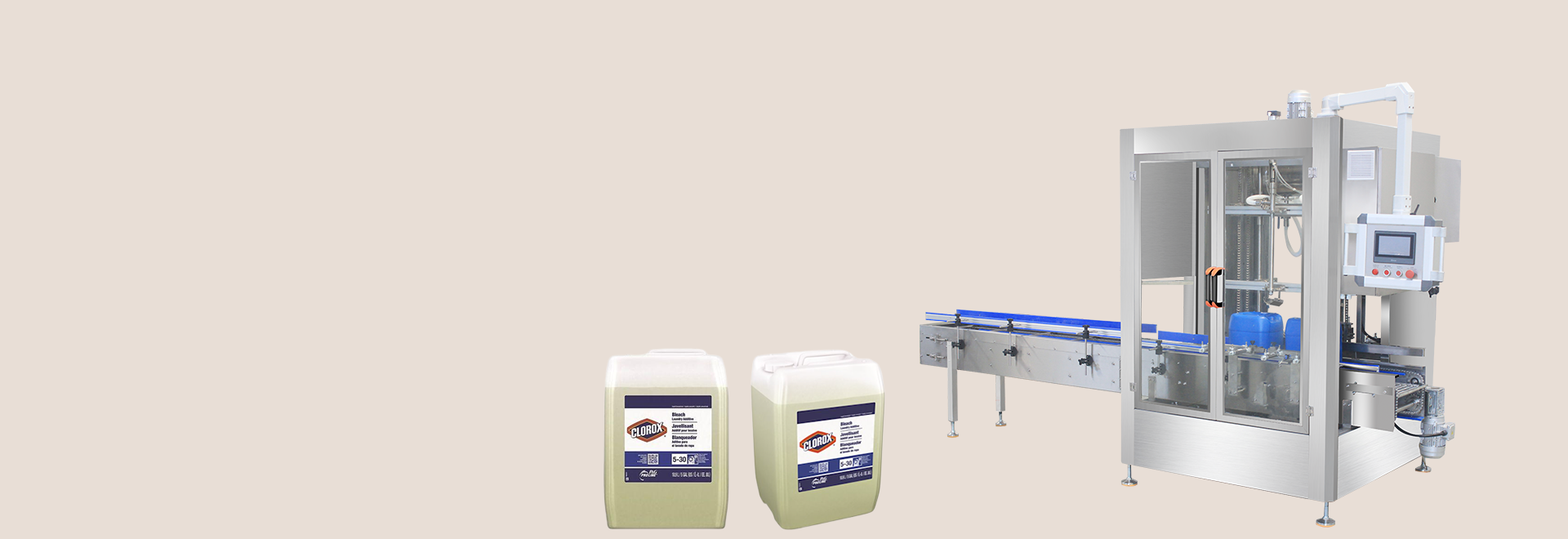

An anti-corrosion liquid filling line can be customized for different container sizes, such as 100ml, 250ml, 500ml, 1L, 2L, 5L, 10L, 20L, 25L, and 30L bottles or jerrycans. For industrial chemicals, the line can also be designed for larger containers depending on the product and filling method.

Small bottles usually require higher filling speed and accurate positioning. Large containers require stronger conveyors, stable container handling, and reliable anti-leakage filling control.

To choose the right anti-corrosion liquid filling machine, customers should confirm the product type, chemical concentration, pH value, viscosity, filling volume, bottle material, cap type, required output, and safety requirements. These details directly affect material selection, filling method, nozzle design, conveyor structure, and automation level.

For example, a bleach filling line may need PP or PVC contact parts and anti-drip nozzles, while a strong acid filling line may require PTFE, PVDF, or fully non-metallic liquid-contact components. A professional supplier should design the filling line based on real chemical properties, not only bottle size and production speed.

Yes, but it depends on the compatibility of materials, cleaning requirements, and chemical properties. If the liquids have similar corrosion levels and do not react with each other, one anti-corrosion filling line can be designed for multiple products.

However, if the products are chemically incompatible, highly concentrated, or require strict contamination control, separate pipelines, independent product tanks, or dedicated filling systems may be recommended. Before machine design, the customer should provide product name, concentration, viscosity, temperature, and safety data information.

A complete anti-corrosion liquid filling line can include:

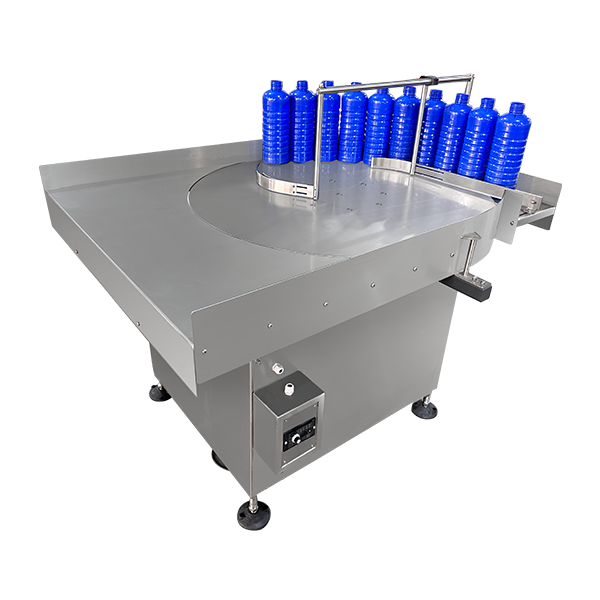

Automatic bottle feeding table or bottle unscrambler

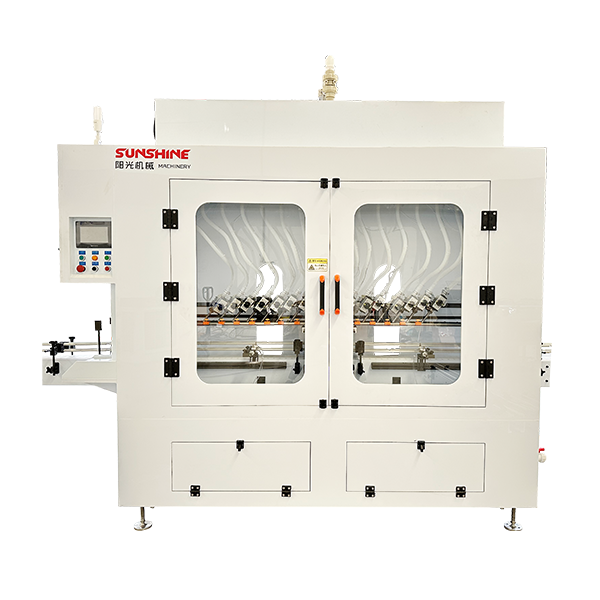

Anti-corrosion liquid filling machine
Chemical-resistant product tank and pipelines
Automatic cap feeding system

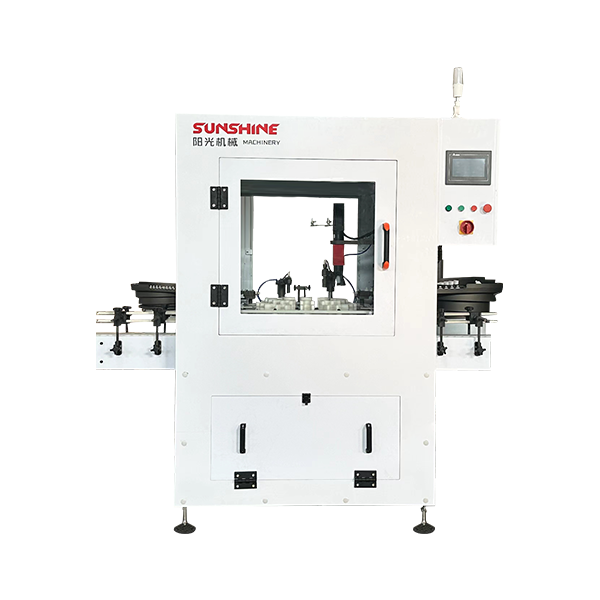

Anti-corrosion capping machine
Induction sealing machine if required
Labeling machine
Inkjet printer or laser coding machine
Corrosion-resistant conveyor system
Case packing machine

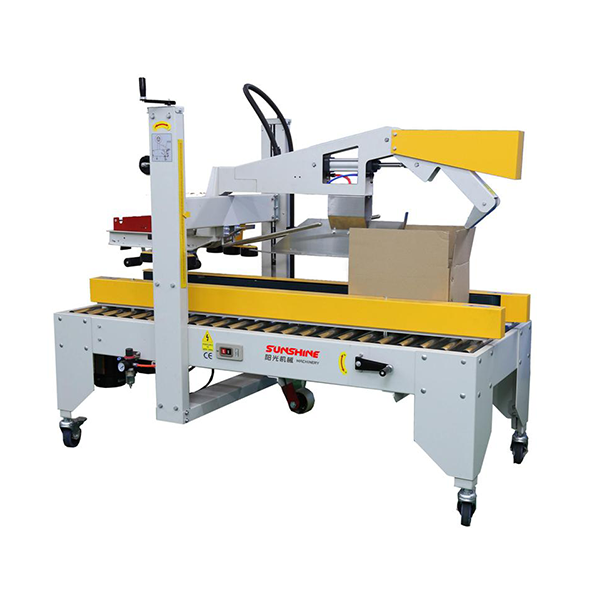

Carton sealing machine

The final configuration depends on product type, bottle size, cap type, filling volume, production capacity, safety requirements, and factory layout.

A professional anti-corrosion liquid filling machine can use anti-drip filling nozzles, suck-back control, closed pipelines, chemical-resistant seals, and precise filling cut-off design to reduce dripping and leakage.

For corrosive liquids, dripping is not only a packaging appearance problem. It may also damage the conveyor, machine frame, floor, and surrounding equipment. Good anti-drip performance helps keep the production line clean, protect operators, and reduce daily maintenance work.

Yes. An anti-corrosion liquid filling line can be specially designed for bleach filling, toilet cleaner filling, disinfectant filling, and acidic cleaner filling. These products often require corrosion-resistant contact parts, anti-drip nozzles, sealed pipelines, and safe exhaust or protection design.

For bleach and toilet cleaner, the equipment should also consider foaming control, bottle cleanliness, cap sealing quality, and operator safety. The filling machine can be customized according to bottle size, product concentration, cap type, label method, and production capacity.

The suitable anti-corrosion filling machine depends on the liquid’s corrosion level, viscosity, foaming behavior, filling volume, and required accuracy. Common filling methods include gravity filling, pneumatic filling, magnetic pump filling, peristaltic pump filling, and flowmeter filling.

For low-viscosity corrosive liquids such as bleach or acid cleaners, gravity filling or magnetic pump filling can be used. For small-volume high-precision chemical filling, peristaltic pump filling may be suitable because the liquid only contacts the tube. For larger containers, a customized anti-corrosion flowmeter or weighing filling system may be recommended.

Material selection depends on the chemical characteristics of the product. Common anti-corrosion materials include PP, PVC, PTFE, PVDF, PFA, HDPE, and other chemical-resistant plastics or fluoropolymer materials. For certain products, stainless steel may still be used for non-contact structural parts, while all liquid-contact parts are made from corrosion-resistant materials.

For highly corrosive acid or alkaline liquids, the machine frame, filling nozzles, pipelines, valves, and product tank can be customized with non-metallic materials to avoid chemical reaction and corrosion damage.

Corrosive liquids can damage ordinary stainless-steel filling machines, especially filling nozzles, pipelines, valves, pumps, sensors, and fasteners. Some chemicals may also produce vapor or cause safety risks during filling.

An anti-corrosion liquid filling machine is designed with corrosion-resistant contact parts, protected electrical components, chemical-resistant pipelines, and suitable filling methods. This helps extend machine service life, reduce maintenance cost, improve production safety, and ensure stable filling performance.

A professional anti-corrosion liquid filling machine line can handle a wide range of corrosive and chemical liquids, such as bleach, toilet cleaner, hydrochloric acid solution, sulfuric acid solution, disinfectant, acidic cleaner, alkaline detergent, chemical solvent, agrochemical liquid, pesticide, insecticide, herbicide, fertilizer liquid, and industrial cleaning liquid.

Different liquids have different levels of corrosion, viscosity, volatility, foaming tendency, and safety requirements. Therefore, the filling system, material selection, pipeline design, and machine protection structure should be customized according to the actual product properties.

An anti-corrosion liquid filling line is a complete packaging system designed for corrosive, acidic, alkaline, or chemically aggressive liquid products. It is commonly used for filling bleach, toilet cleaner, disinfectant, acid liquid, alkaline cleaner, pesticide, chemical reagent, and other corrosive liquid products.

Unlike standard liquid filling equipment, an anti-corrosion filling line uses corrosion-resistant materials and special structural designs to protect the machine from chemical damage. A complete line can include bottle feeding, filling, capping, sealing, labeling, coding, conveying, and carton packing systems.
