FILLING MACHAINE

We provide piston type, tracing type,weighing type and self-flowing type filling machines to meet for oils, beverages,detergents, sauces, pesticides, corrosion liquid.etc production.

SUNSHINE MACHINE

FILLING MACHINE MANUFACTURER

As a professional manufacturer of filling machines in China with more than 23 years of experience.

Customizable

We offer customized machinery for our customers.

High Efficiency

Servo motor control all kinds of filling machine, filling high precision, fast speed, stable operation.

Hygienic Design

The whole machine is made of SUS304/316 stainless steel, easy to clean design, in line with the design of food hygiene and safety.

Smart Control

Touch screen control machine, friendly man-machine interface, easy to operate.

Wide products options

We have developed a variety of high-quality filling machines for filling liquids of different compositions and capacities, and there is always a suitable one for your liquid packaging production.

Global Support

We have provided production line equipment and high quality after-sales service for customers' projects in many countries around the world, professional engineers help customers with installation and commissioning, 24 hours 7 days online after-sales service.

Request a Quick Quote

PRODUCT CENTER

SUNSHINE FILLING MACHINE FOR SALE

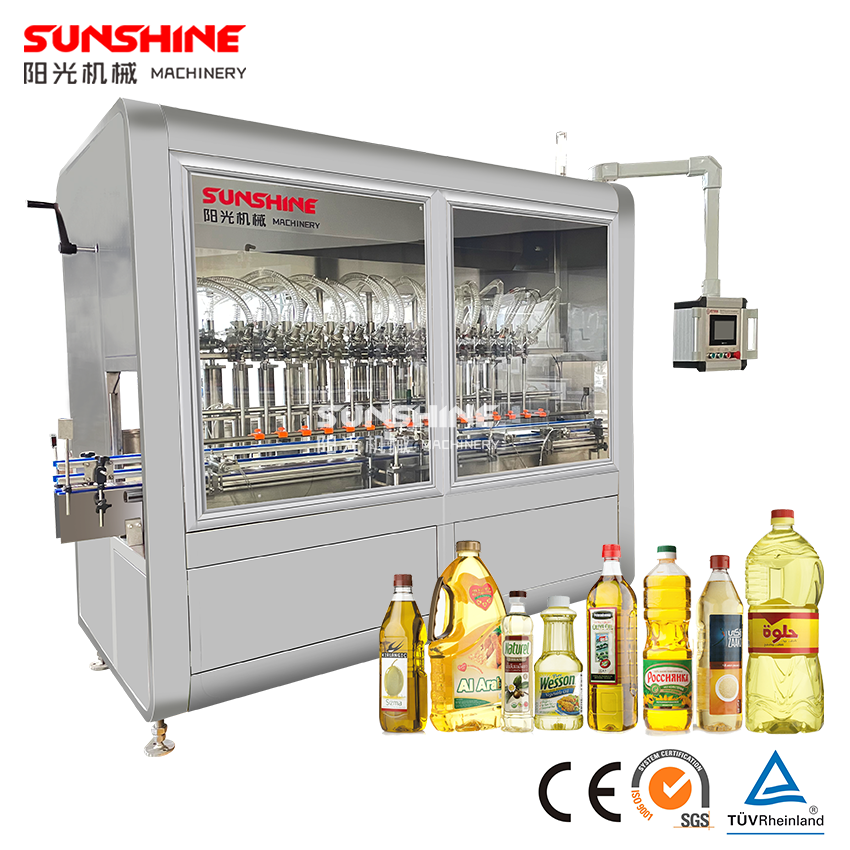

Edible Oil Filling Machine

SUNSHINE Edible oil filling machine designed to cater to the unique requirements of the food industry,Whether you are bottling vegetable oil, olive oil, sunflower oil, or any other type of edible oil, our machines are tailored to meet the demands of modern production facilities.

Anti-corrosion Liquid Filling Machine

SUNSHINE Anti-corrosion liquid filling machine designed to cater to the unique requirements of the corrosion liquid ,Whether you are bottling toilet cleaner,bleaching water,disinfectant water other chemical liquid, our machines are tailored to meet the demands of modern production facilities.

Gravity Liquid Filling Machine

SUNSHINE gravity filling machine designed to cater to the unique requirements of the food and chemical industry,Whether you are bottling water,drinks or disinfectant water and pesticides, our machines are tailored to meet the demands of modern production facilities.

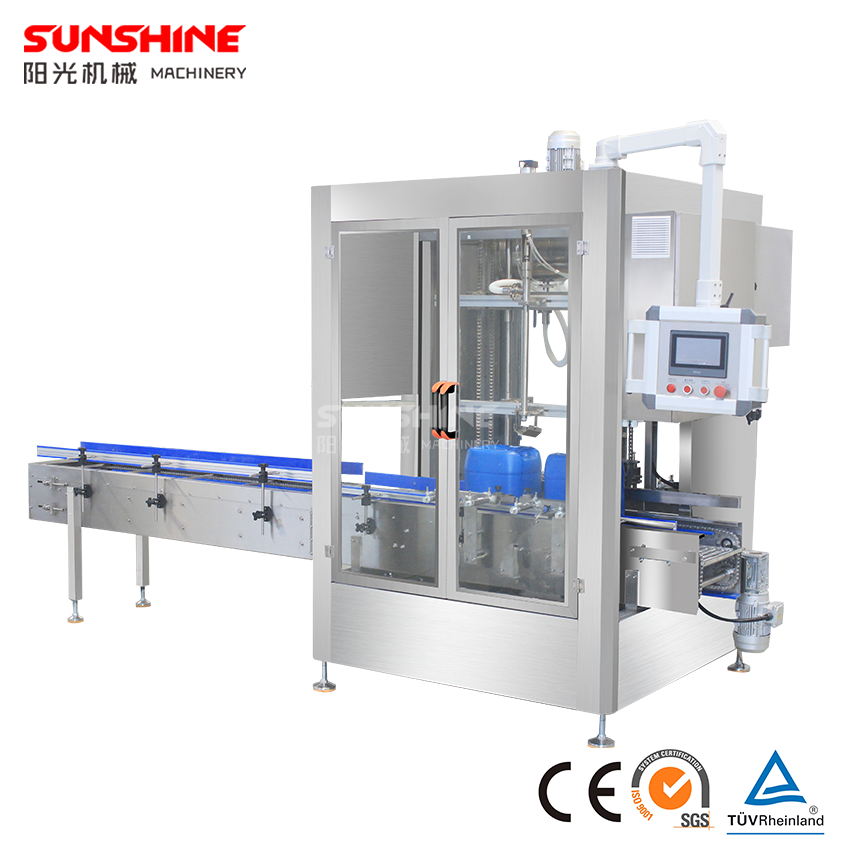

Weighing Filling Machine

SUNSHINE Weighing filling machine designed to cater to the unique requirements of the large capacity liquid filling ,Whether you are bottling edible oil,lube oil,sauce,food or other chemical liquid, our machines are tailored to meet the demands of modern production facilities.

Edible Oil Filling Machine

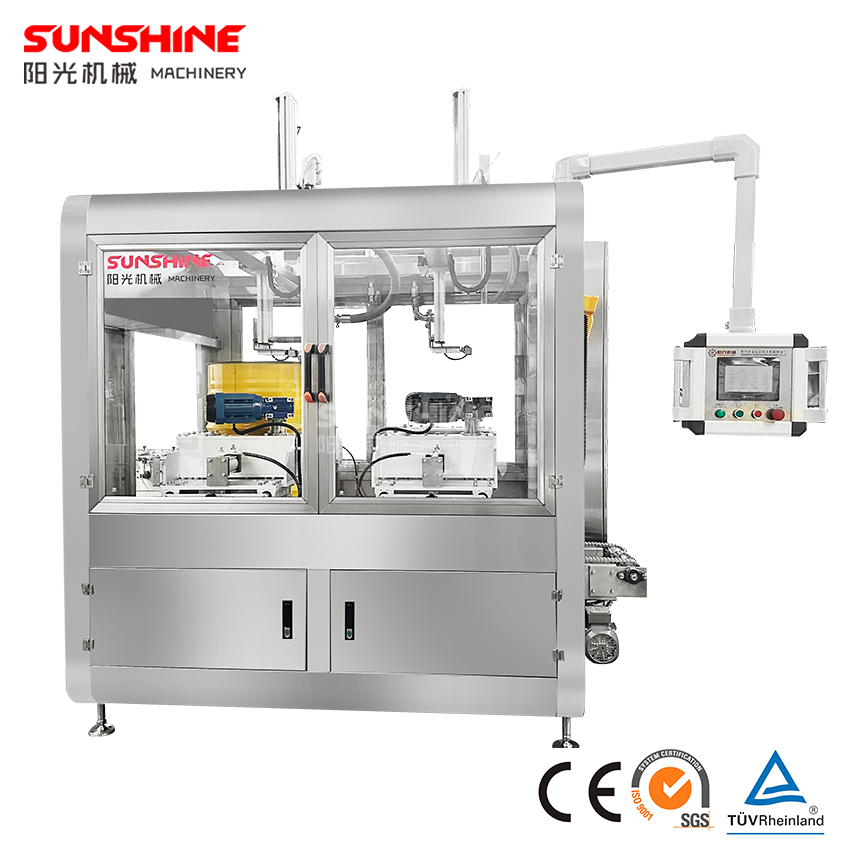

200L Drum Filling Machine

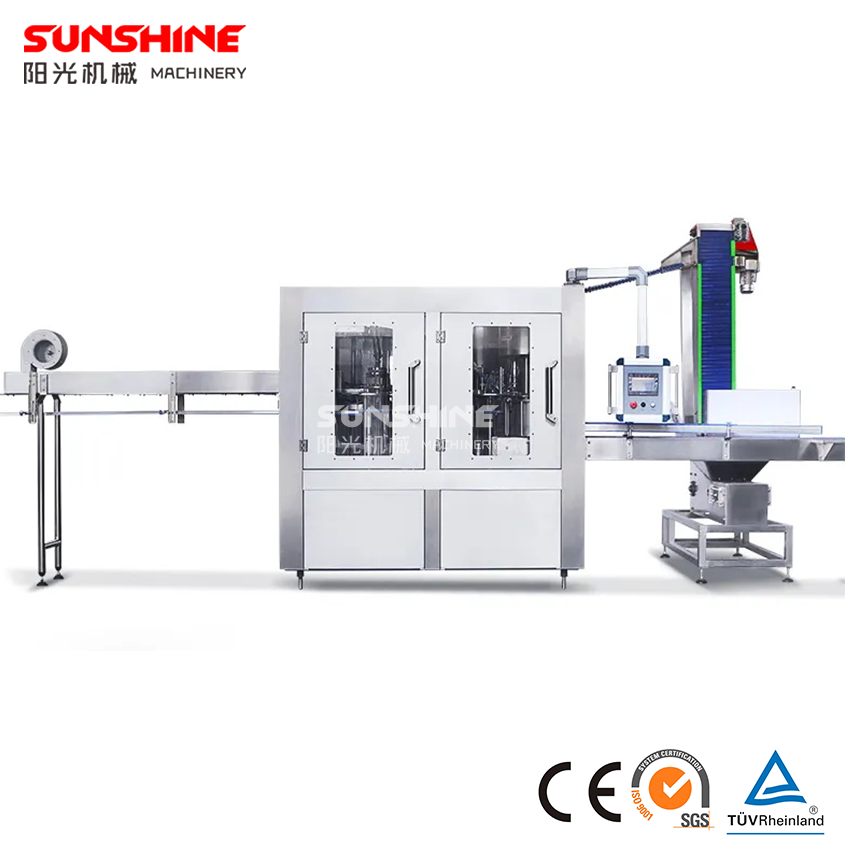

Water Filling Machine

Get The Latest Price Now

PRODUCT DESCRIPTION

WHAT IS FILLING MACHINE?

Filing machines are equipment used to fil pouches, bags, bottles, jars, cans, and other containers witha pre-set amount of products, like food, beverages, cosmetics, pharmaceuticals, etc. The filledcontainers are then capped and sealed using supplemental or additional machines such as cappincand labeling machines.

Filling machine according to the different liquids, you can use different working principles for filling, filling machine according to different working principles can be divided into servo piston filling machine, magnetic pump filling machine, rotor pump filling machine, flow meter filling machine, atmospheric pressure filling machine and other types of filling machine.

Send Us Your Inquiry Today

FILLING MACHINES LEVEL OF AUTOMATION

Depending on the customer's production speed requirements, we offer different fully-automatic or semi-automatic production line solutions.
We produce automatic filling equipment, they can and capping machine labeling machine baling machine and other equipment into a complete automatic production line, greatly reducing the personnel cost at the same time also speed up the production speed.
We also offer semi-automatic machines, which can be considered when you are ready to make a small investment in production. A small stand-alone machine or a bench-top machine will greatly reduce your up-front investment budget, but will still be able to meet your production needs.

Contact Our Support Team

INDUSTRIES WE SERVED

FILLING MACHINE APPLICATIONS

PRINCIPLES OF OPERATION

WORKING PRINCIPLE OF FILLING MACHINE

A filling machine is used in packaging operations to fill containers—such as bottles, cans, or pouches—with liquids, powders, pastes, or granular products. The working principle depends on the type of filling machine and the product being filled. Here’s a general breakdown of how they work, based on the most common types:

Gravity Filling Machine

Used for: Thin, free-flowing liquids like water, juice, or oils.
How it works:
Liquid is held in a tank above the filling nozzles.
When a container is placed under a nozzle, a valve opens.
Gravity pulls the liquid down into the container.
Once the preset fill level is reached, the valve closes.

Servo Piston Filling Machine

Used for: Thick or viscous products like sauces, honey, or creams.
How it works:
A piston draws a specific volume of product into a cylinder.
The piston then pushes the product out through a nozzle into the container.
Volume can be adjusted by changing the piston's stroke length.

Pump Filling Machine

Used for: A wide range of liquids, including foamy or viscous types.
How it works:
A pump (gear, peristaltic, or lobe pump) moves the liquid from a tank to the filling nozzle.
A timing mechanism controls how much product is dispensed.

Overflow Filling Machine

Used for: Thin liquids when a consistent fill level is required (cosmetic bottles, transparent packaging).
How it works:
The liquid is filled until it overflows into a return channel.
Ensures all containers have the same liquid level, not just volume.

Vacuum Filling Machine

Used for: Low-viscosity liquids, often in glass bottles (perfumes, chemicals).
How it works:
A vacuum is created in the container to draw the liquid in.
Filling stops when the liquid reaches a certain level.

Auger Filling Machine

Used for: Dry powders (flour, spices, detergent).
How it works:
A rotating auger screw dispenses a measured amount of powder into containers.
Often used with a funnel for precise direction.

CAN'T FIND IDEAL FILLIIG MACHINE FOR YOUR INDUSTRIES?

Contact SUNSHINE Expert

PRINCIPLES OF OPERATION

HOW FILLING MACHINE WORKS？

A filling machine works by automatically or semi-automatically measuring and delivering a specific amount of product into containers. The process usually follows these steps:

Gravity Filling Machine
Servo Piston Filling Machine
Weighing Filling Machine
4. Container Discharge
5. (Optional) Capping or Sealing

Gravity Filling Machine

A gravity filling machine works by using the natural force of gravity to fill containers with liquid. It’s a simple and efficient method, especially for low to medium viscosity liquids such as water, juice, oil, and other thin, free-flowing fluids.
Filling Valves/Nozzles:
Each nozzle is connected to the tank.
When the valve opens, liquid flows by gravity into the bottle.
Some systems include a vacuum or vent tube to control fill level accurately (common in level-filling machines for clear bottles).
Servo Piston Filling Machine

A servo piston type filling machine is a high-precision liquid filling system that uses servo motors to control the movement of pistons for accurately dispensing liquid into containers. It’s ideal for viscous, semi-viscous, and even foamy liquids, like sauces, creams, detergents, oils, and chemicals.
Servo Motor Controlled Pistons:
Each filling head is connected to a cylinder and piston.
A servo motor precisely drives the piston forward and backward.
Backward stroke draws product into the cylinder (from the tank).
Forward stroke pushes the product out into the container via the nozzle.

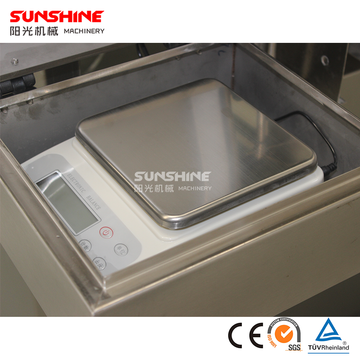

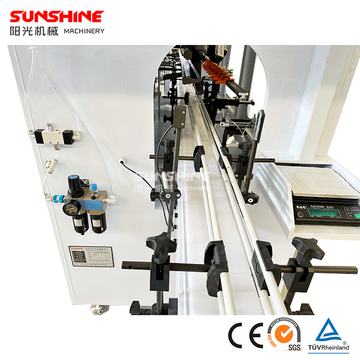

Weighing Filling Machine

Weighing type filling machine (also known as a net weight filling machine) works by measuring the actual weight of the liquid or product being filled into each container. This method ensures high filling accuracy, especially important for products sold by weight, such as cooking oil, chemicals, paints, and detergents.
Filling Process:
The nozzle opens, and product flows into the container.
As the container fills, the load cell continuously monitors the weight
The machine slows down the flow as the target weight is approached (coarse → fine filling).
Once the desired weight is reached, the valve closes automatically.
4. Container Discharge

Once filled, containers are moved to the next station.
This may be a capping machine, sealing machine, or directly to labeling/packing.
Overfill or underfill detection systems may be used for quality control.
5. (Optional) Capping or Sealing

If required, the containers are automatically sealed with a cap, film, or lid.

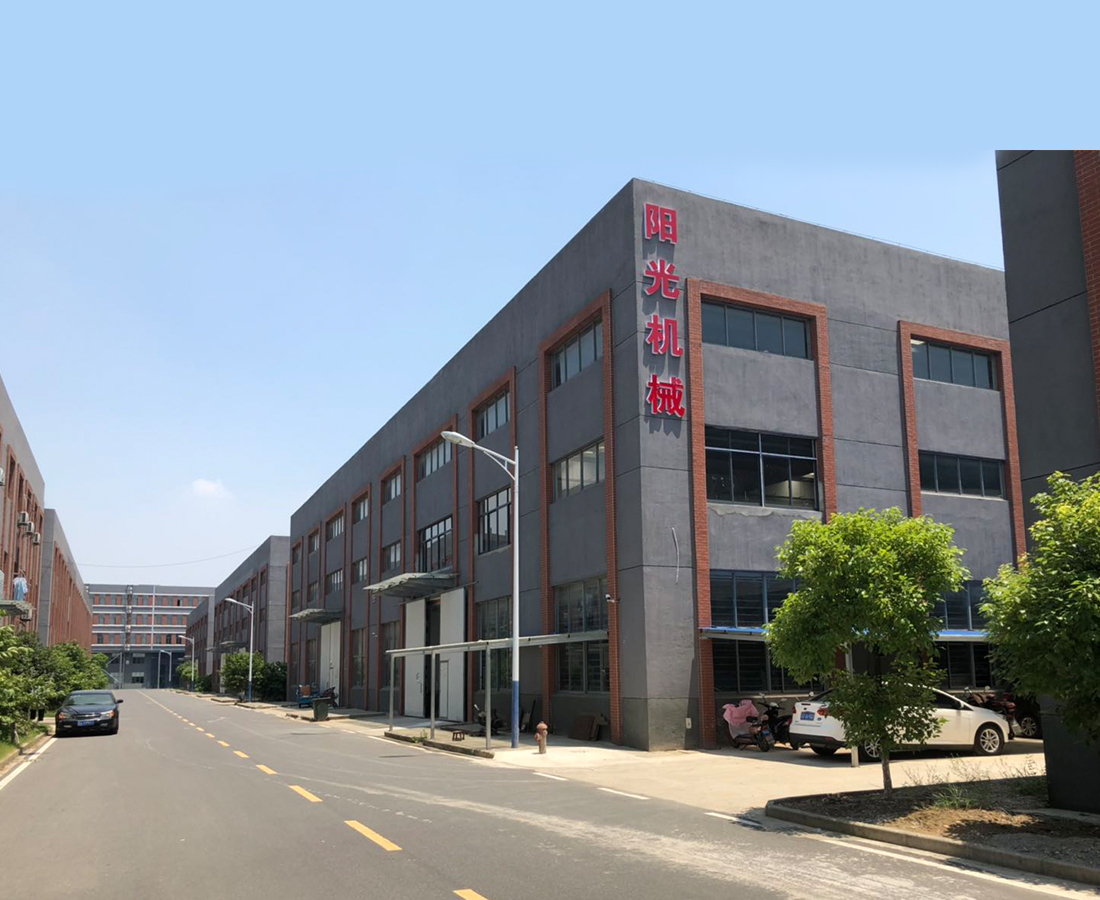

SUNSHINE MACHINE

A LEADING FILLING MACHINE MANUFACTURER

Welcome to SUNSHINE MACHINE! We are delighted to invite you to explore our state-of-the-art filling and packaging solutions. As a trusted manufacturer with years of experience, SUNSHINE MACHINE is committed to delivering high-quality, efficient, and customized machinery for a wide range of industries including food, beverage, cosmetics, and pharmaceuticals. Whether you're looking for reliable equipment or expert support, our team is here to provide the best service and innovative solutions tailored to your production needs.
We manufacture various types of filling machines, capping machines, labelling machines, packing machines, and sealing machines.
Filling machines include: servo piston filling machines, atmospheric pressure liquid filling machines, anti-corrosion liquid filling machines, weighing filling machines, and 100-300L 1000L IBC filling machines.
Capping machines include: Servo tracking capping machines, screw capping machines, and pressure capping machines,vacuum capping machine.
Labelling machines include: Round bottle labelling machines, single-side labelling machines, double-side labelling machines, adhesive labelling machines, and sleeve labelling machines.
We look forward to building a successful partnership with you!

Boost Your Business Now

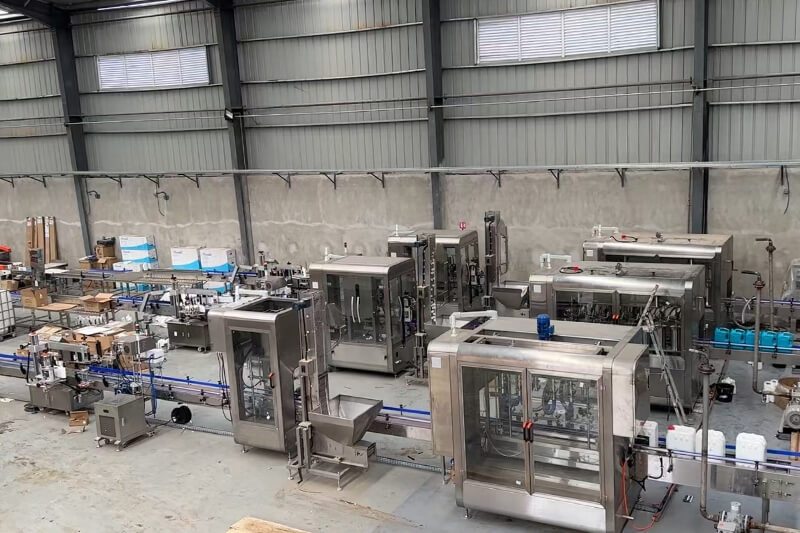

OVERSEAS PROJECTS

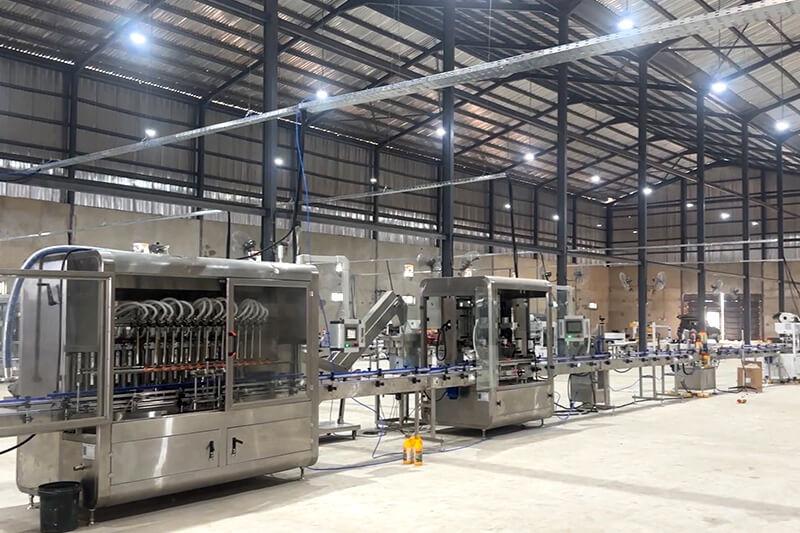

SUNSHINE FILLING MACHINE CASE STUDIES

CASE STUDIES

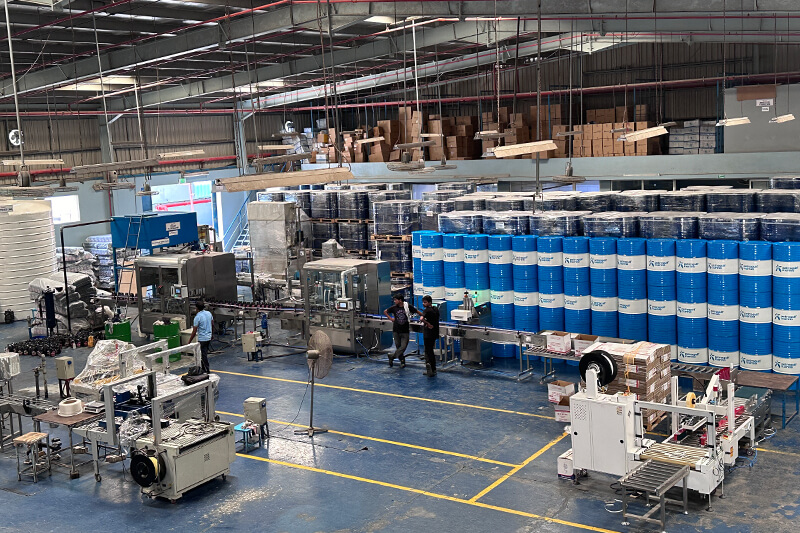

Lubricants Factory Speed Up with Fully Filling Machine Line

Saudi Arabia

CASE STUDIES

Locally Renowned Company Lubricants Enterprise

Cameroon

CASE STUDIES

Establishment of the First Large-scale Pesticide Plant

Nigeria, Africa

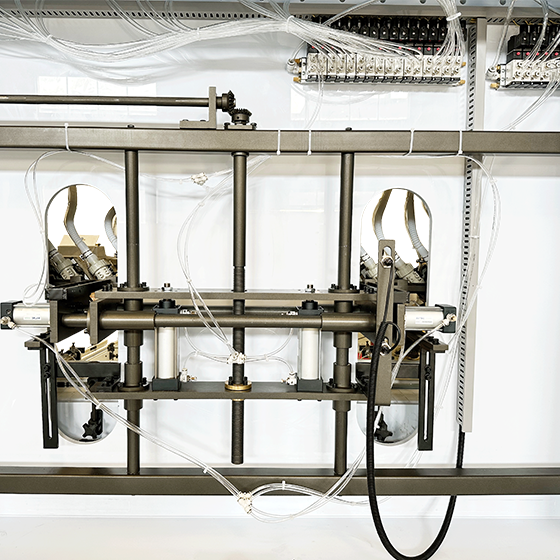

FILLING MACHINE MANUFACTURING

FILLING MACHINE PRODUCTION PROCESS

SERVICE WE PROVIDE

SERVICE OF FILLING MACHINE SOLUTION

As a liquid filling machine manufacturer, we understand that every customer has unique needs and requirements for filling solutions. We offer filling solutions from plant layout design, equipment installation, operator training, maintenance guidance, site selection to budget planning.
We offer comprehensive technical support and training, with several outstation engineers providing after-sales service, training on the operation and maintenance of the equipment to ensure that our customers can operate their filling machines with confidence and ease.
We help our customers to realize the efficient operation of the filling machine and technological innovation and upgrade, and win-win together with our customers.
You can get full support from SUNSHINE MACHINE for all kinds of liquid filling solutions.
