200L Drum Filling Machine
SUNSHINE
YG-CZ
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
200-300KG,1000KG
50-60 Drums/Hour
Edible Oil,Lube oil,Sauce,Chemicals
One Year and Life-Long Technical Support
SUS 304/316
Engineers Available to Service Overseas
200 LITER DRUM FILLING MACHIANE VIDEO

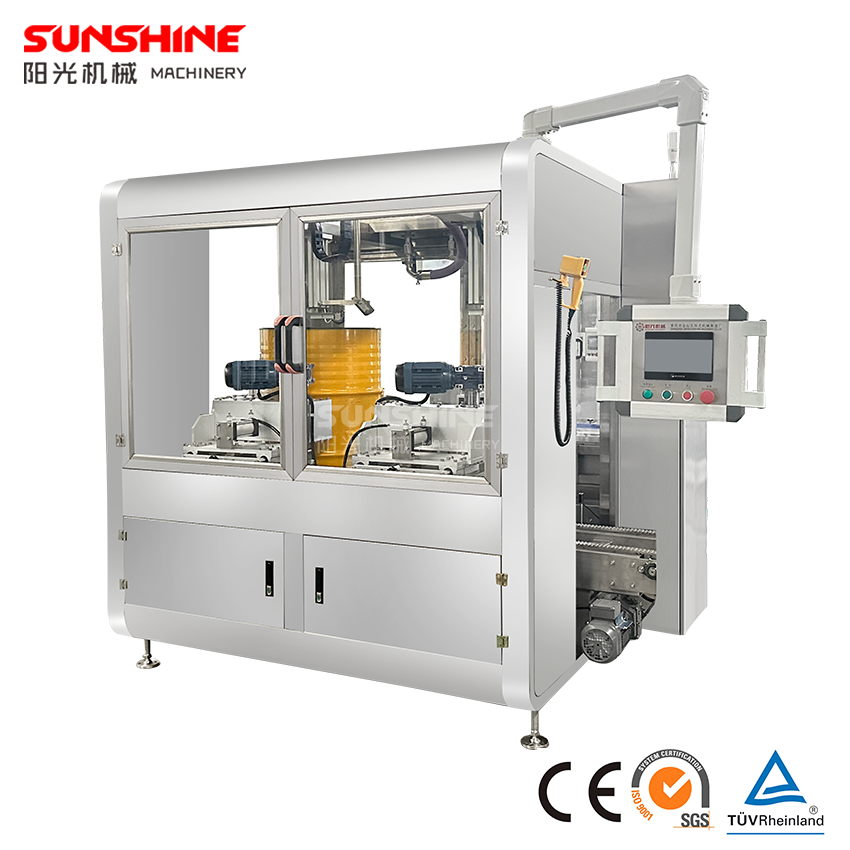

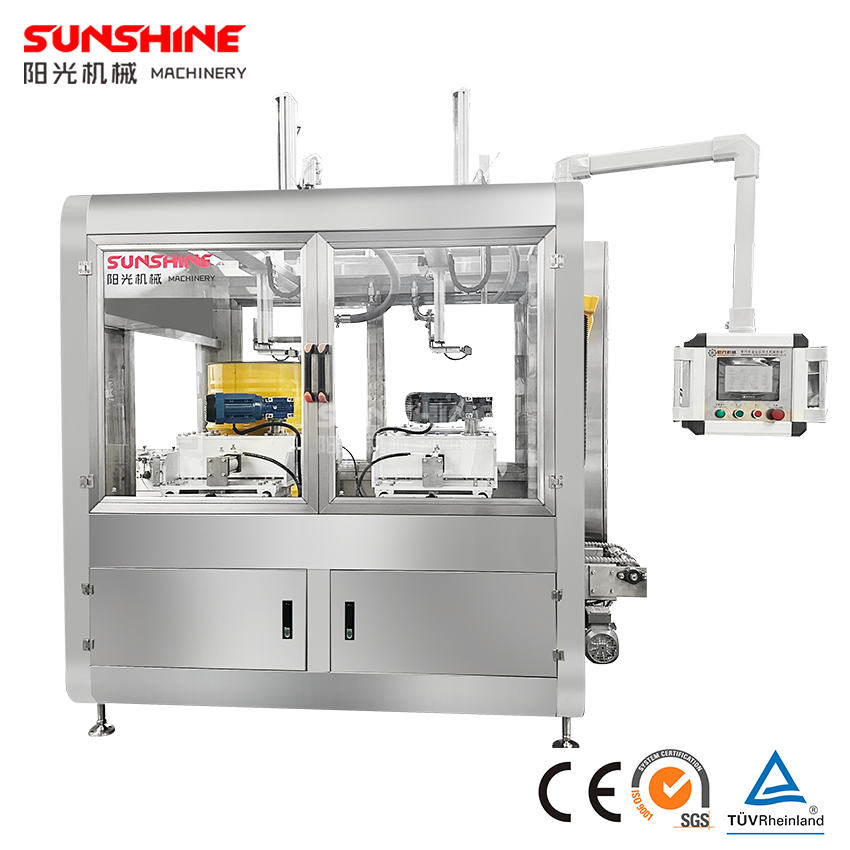

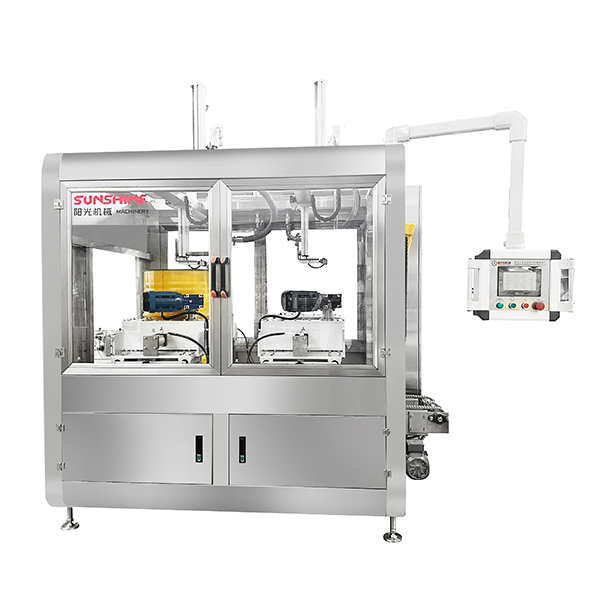

The 200L Drum Filling Machine is a heavy-duty filling solution specifically designed for standard 200-liter drums. Built for industrial applications, this machine ensures precise filling accuracy, safe handling, and reliable performance in demanding production environments.
It is widely used in industries such as chemicals, lubricants, coatings, and food-grade liquids, where bulk packaging efficiency and strict weight control are essential.
The 200L Drum Filling Machine is engineered to meet the needs of large-volume liquid filling with high accuracy and operational safety.

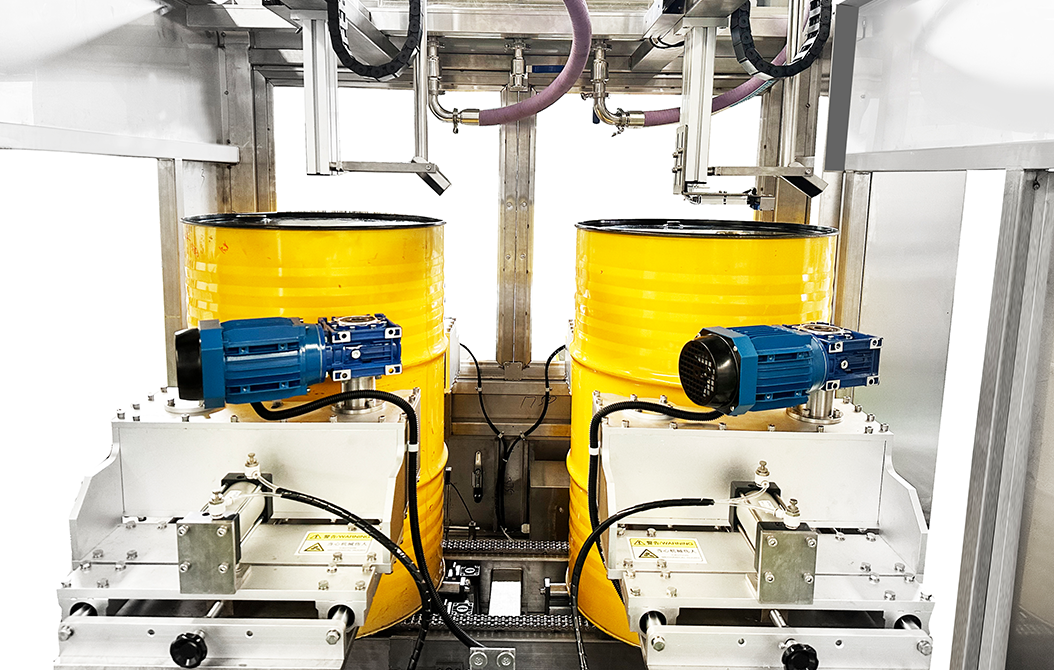

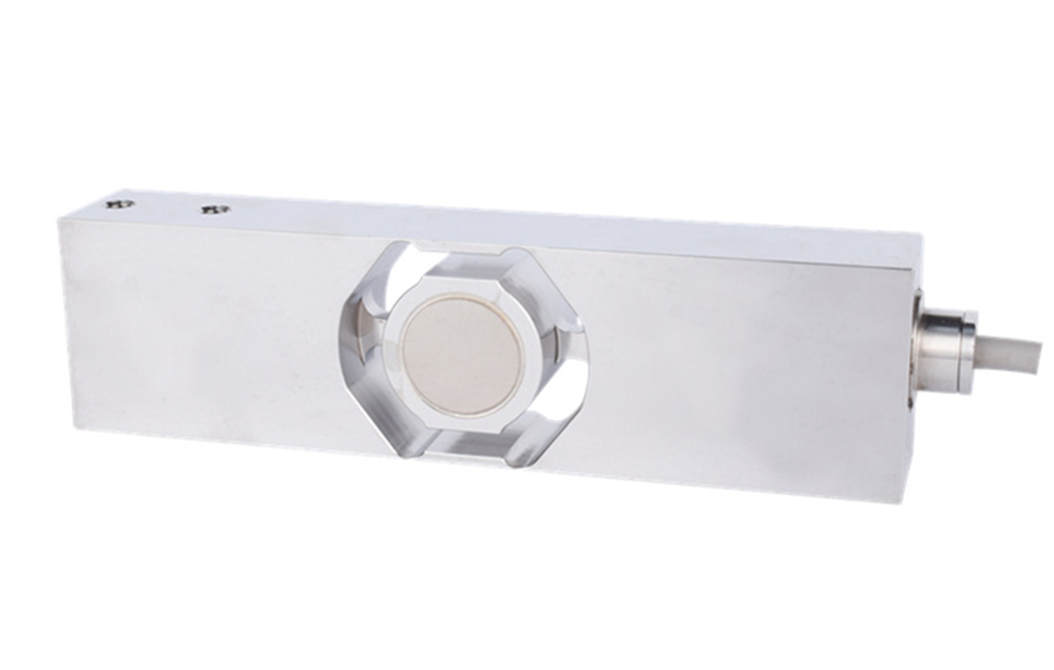

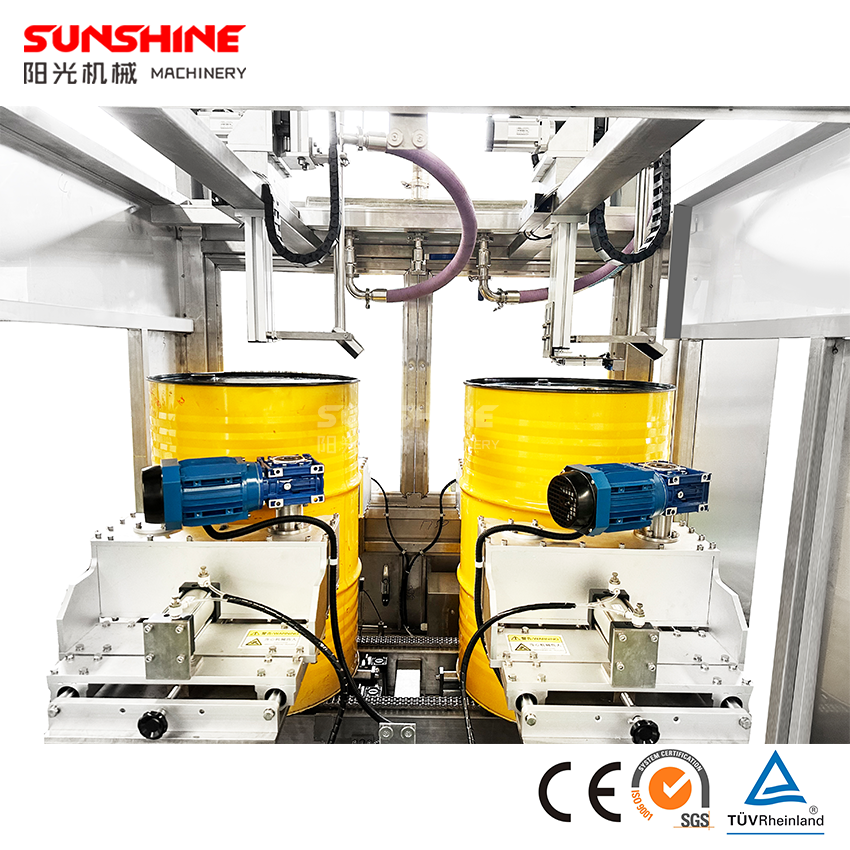

Equipped with precision load cells, the machine monitors the weight of the drum in real time during filling. Once the preset target weight is reached, the filling system automatically stops, ensuring accurate net weight and minimizing product loss.

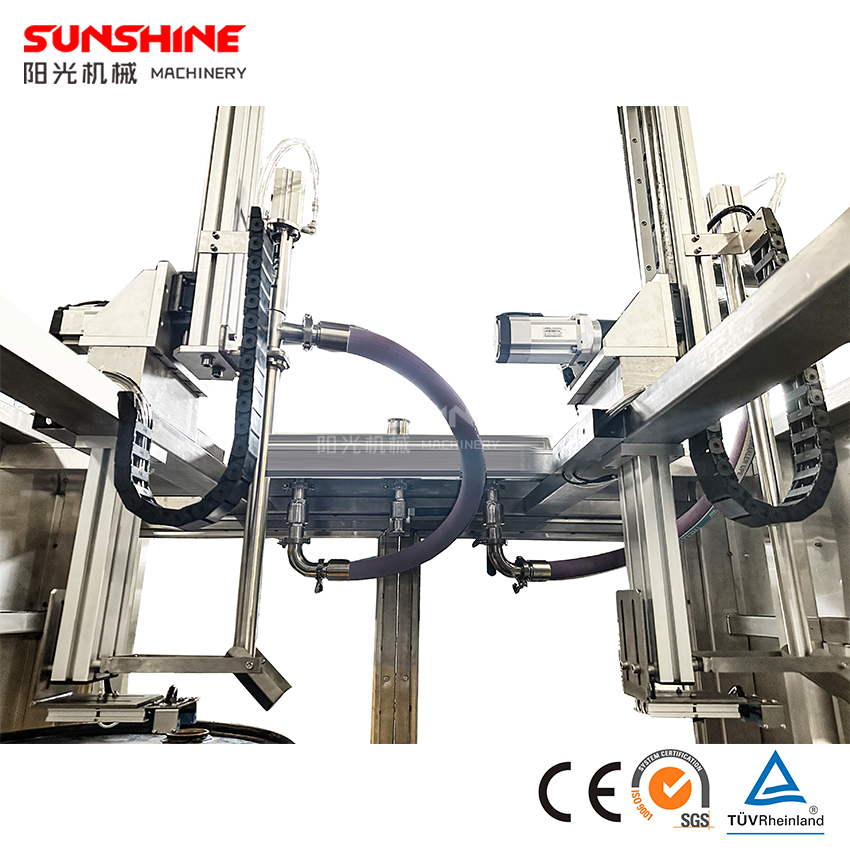

The machine structure is optimized for 200-liter drums, with adjustable nozzle height and positioning to accommodate different drum types and openings.
Specially designed filling nozzles prevent dripping and splashing, maintaining a clean working environment and reducing material waste. Optional diving filling systems are available for foaming liquids.
The reinforced frame and industrial-grade components ensure stable operation when handling heavy drums. The machine is suitable for continuous operation in industrial environments.
Available in:
Semi-automatic configuration (manual drum placement, automatic filling)
Fully automatic system (automatic conveying, positioning, filling, and discharge)
It can be integrated into complete drum filling lines with conveyors, capping, and labeling systems.
Optional safety features include explosion-proof design for flammable liquids, vapor extraction systems, and safety interlocks to ensure operator protection and compliance with industrial standards.
The user-friendly control interface allows operators to set target weights, monitor real-time filling data, and store multiple recipes. The modular design simplifies maintenance and cleaning.
APPLIACTION OF 200 LITER DRUM FILLING MACHINE
Edible oil
Lubricating oil
Food & Sacue
Personal Care & Daily Chemical
Pesticide & Agro Chemical
TECHNICAL PARAMMETERS OF 200 LITER DRUM FILLING MACHINE
| Heads | 1 Heads | 2 Heads |
| Production Speed (Bottles/hour) | 200-300 Liter:25-30 Drums/ Hour | 200-300 Liter:50-60 Drums/ Hour |
| Machine Dimension (Length x Wide x Height)mm | 1700 x 1500 x 2250 mm | 2200 x 1500 x 2250 mm |
| Suitable Bottles | 200-300 Liter Drum/Pallet (Can be customized) | |
| Filling Accuracy | ≤±0.2-0.3% | |
| Filling Volume | 200-300 Liter(Can be customized) | |
| Power Supply | 220 / 380 / 415V ; 50 / 60HZ (Can be customized) | |
| Air Supply | 0.6-0.8Mpa clean air | |

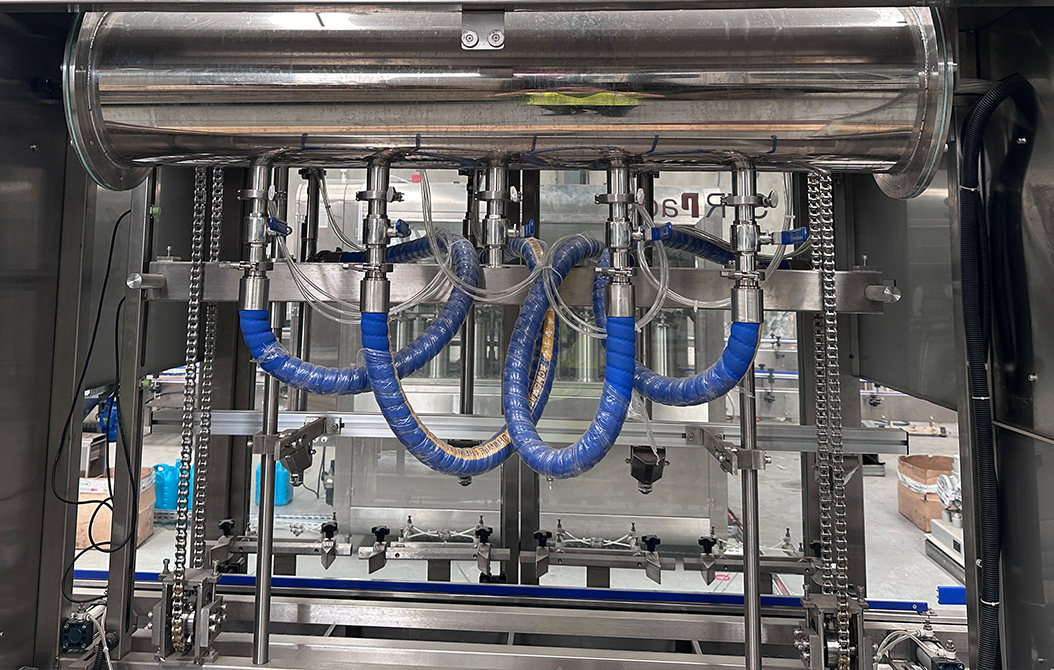

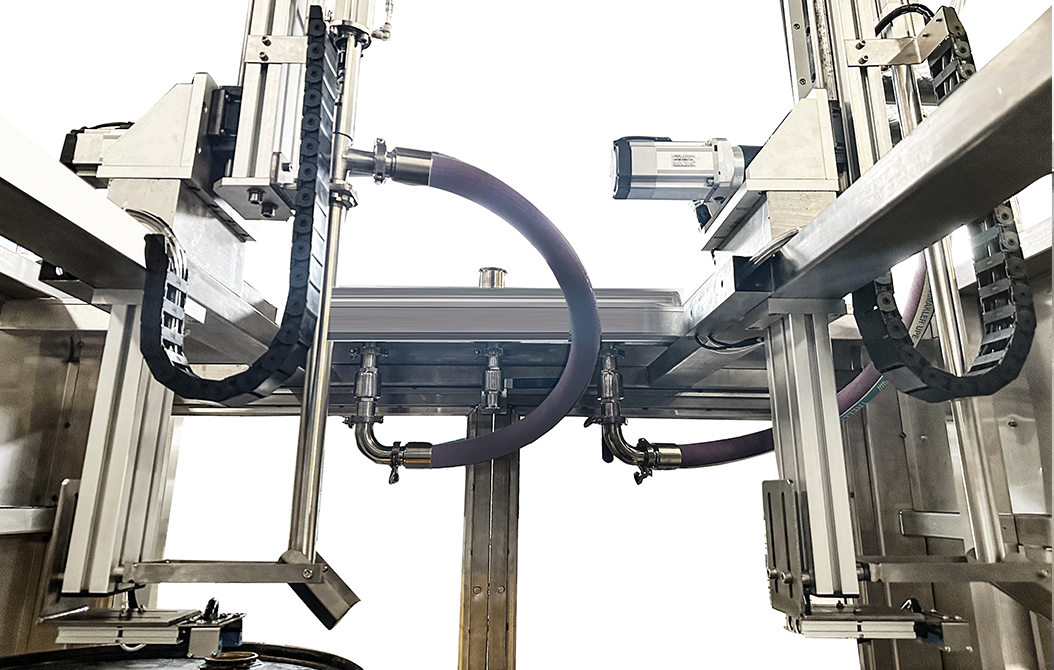

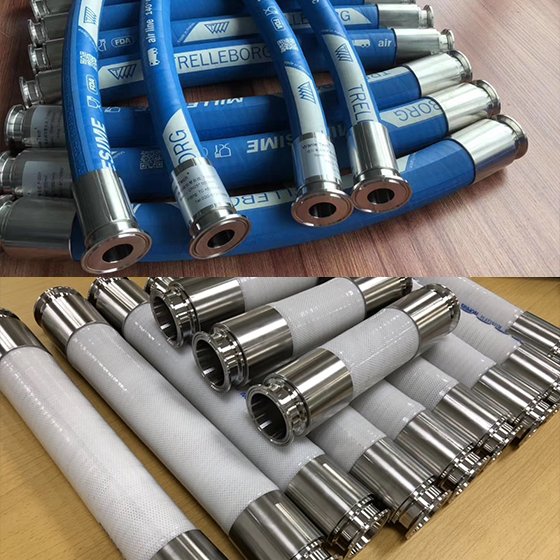

Our weighing and filling machines can be equipped with different grades of connecting hoses, chemical grade, food grade, pharmaceutical grade, depending on the customer's materials.All hoses have quick-connect ports for easy removal and washing.

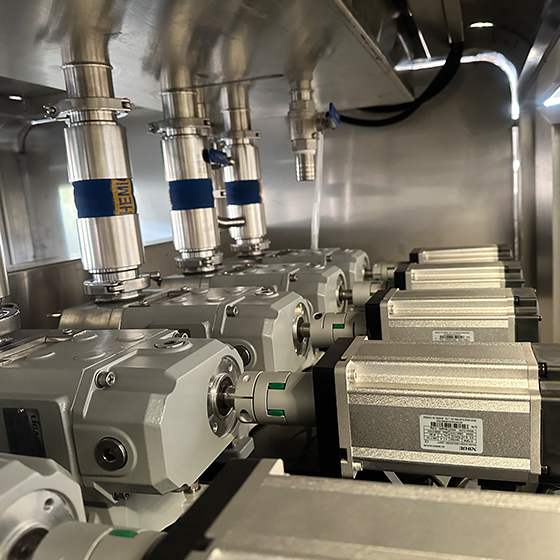

Not only do we have single pump filling, we can also install rotary or magnetic pumps for each filling nozzle. The pump will be controlled by a servo motor to control the speed and number of revolutions, effectively controlling the accuracy to within 0.1%.

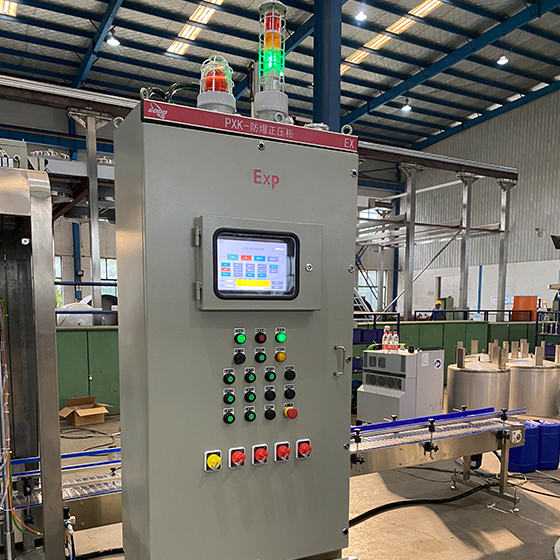

We also have a lot of lubricating oil Chemical industry, there is a requirement for the machine explosion-proof level of customers, we will make the machine explosion-proof. All electrical components are explosion-proof, such as explosion-proof photoelectricity, explosion-proof sensors and so on. At the same time, there is a positive pressure electrical explosion-proof cabinet, all the buttons, switches, touch screen, alarms, etc. to meet the explosion-proof requirements.
Here are some machines we can working together with Weighing filling machine.All the equipment can be connected and used together to complete the entire line production of various pail/drum types.

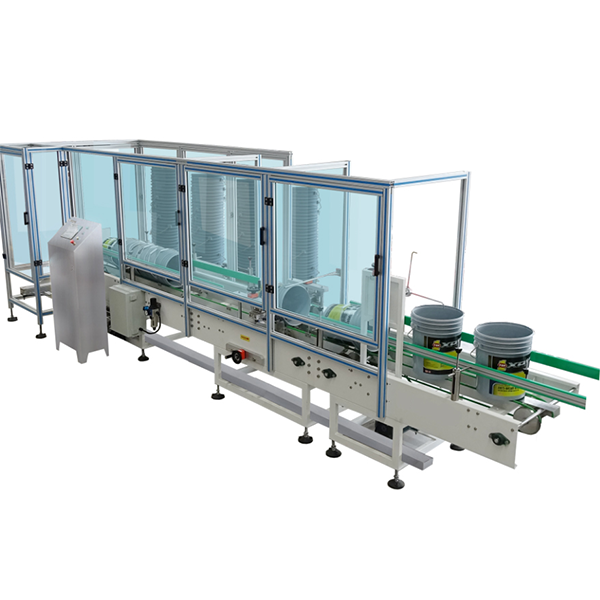

Pail Feeder

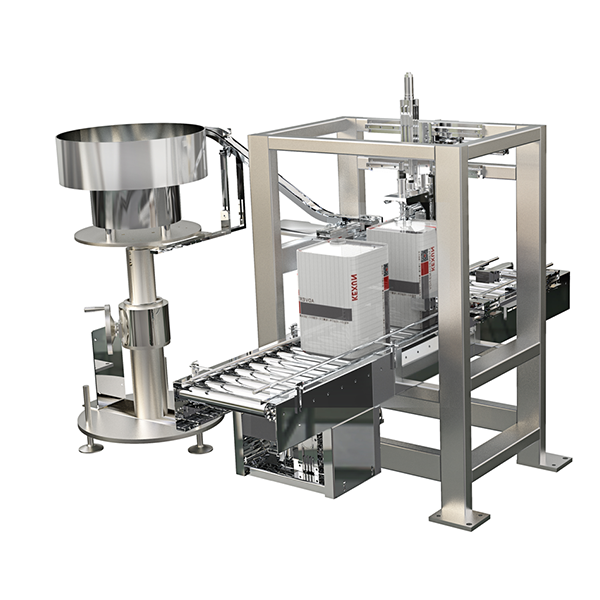

Inliner Capping System

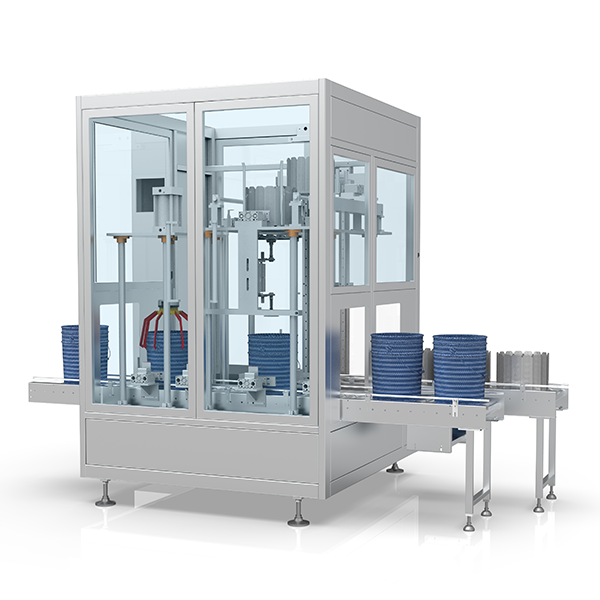

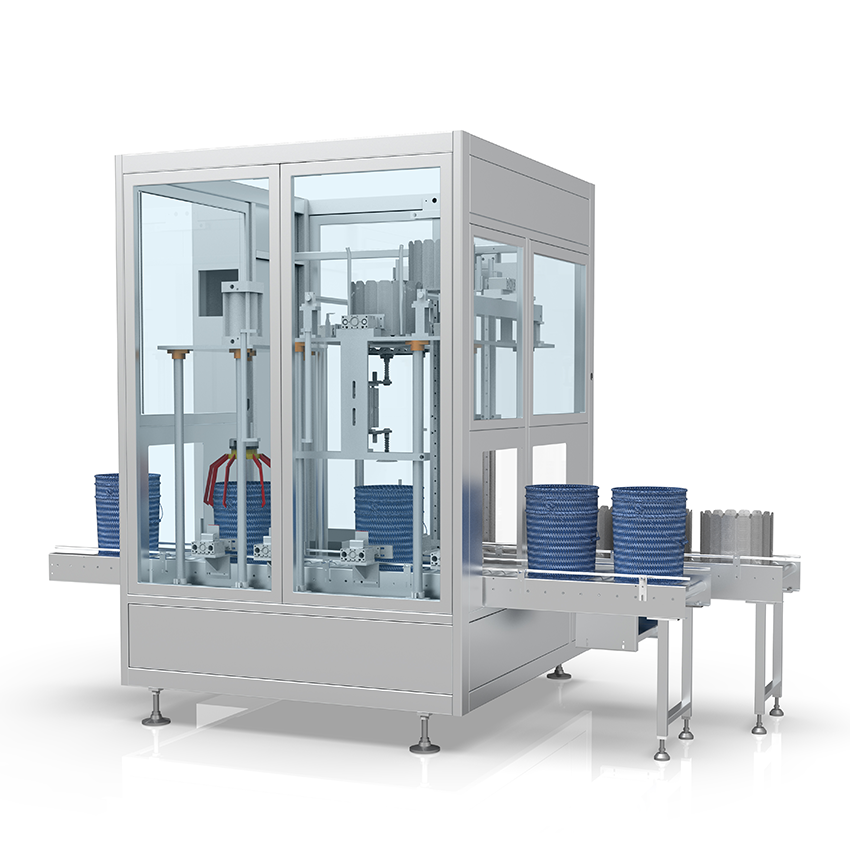

Pail Pressure Capping Machine
Can Capping Machine
200L Weighing Filling Machine

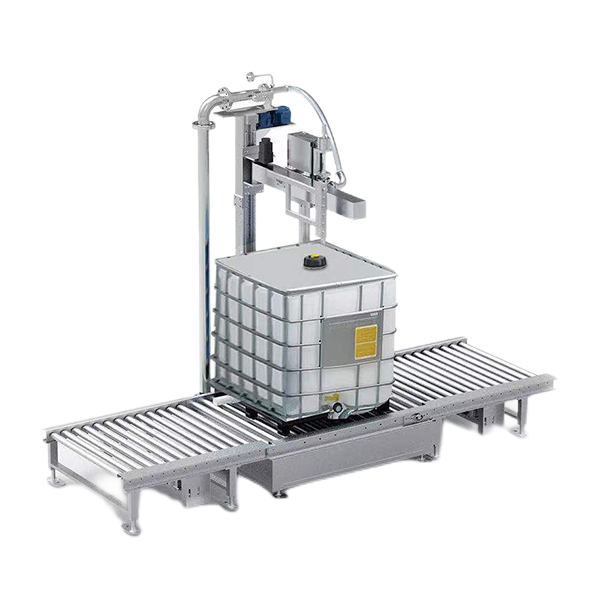

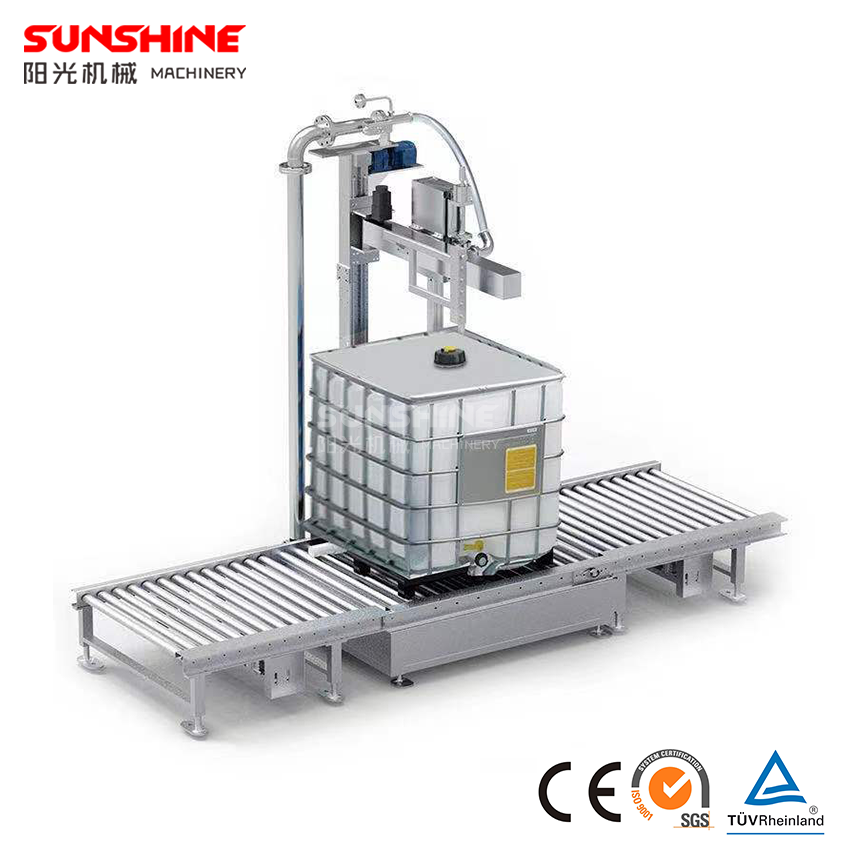

1000L IBC Weighing Filling Machine
Drum/Pail Labeling Machine
Automatic Palletizer Machine

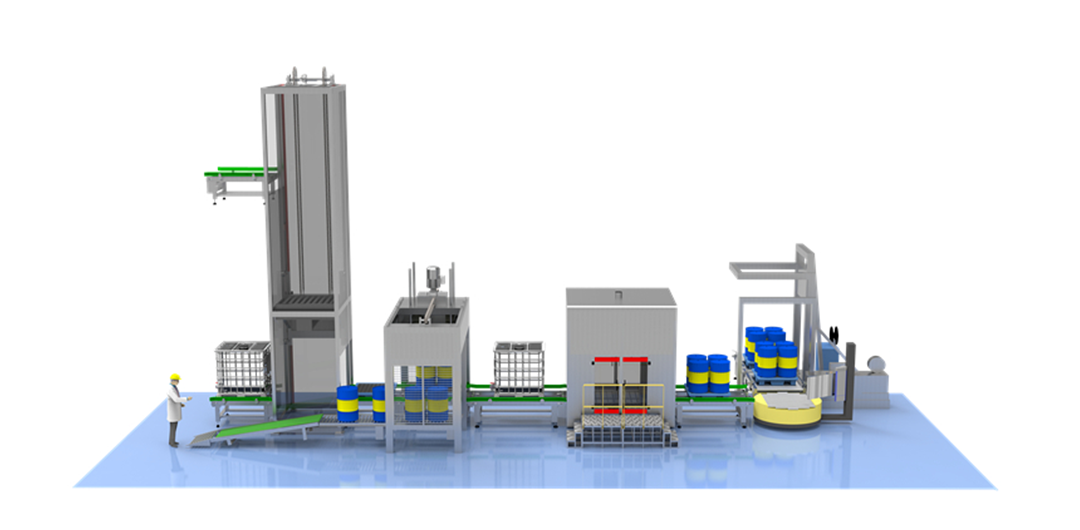

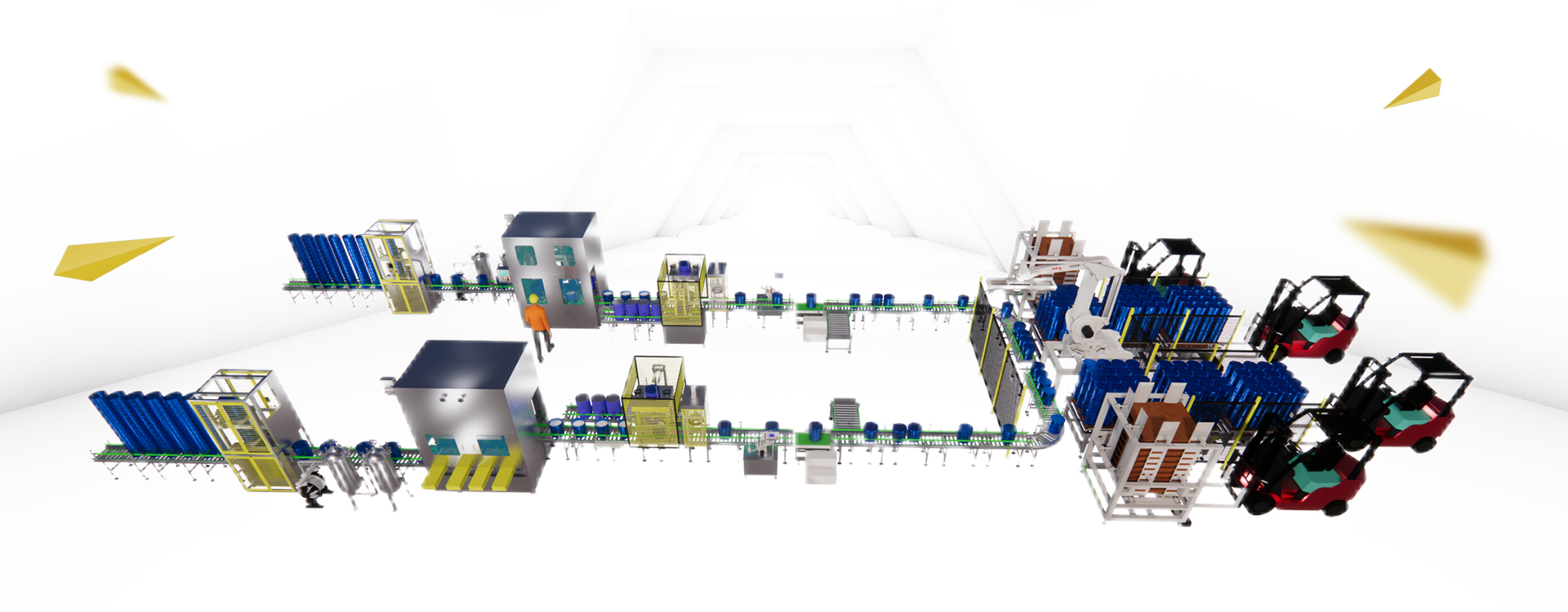

200-1000 Liter Weighing Filling Capping Lableing Palletizer Machine Line
Production Speed:50-60 Drums Per Hour Filling Range:200-1000 Liter
Suitable Liquid: Edible Oil,Lube Oil,Soy Sauce,Daily Chemicals,Grease.etc
As a high-quality Weighing filling machine manufacturer from China, we can provide customers with one-stop service. We can provide customers with filling machines, capping machines, labeling machines, liquid nitrogen filling machines, and carton unpacking machines. Packing machines, film wrapping machines, palletizers and other equipment. For different bottle types and caps, we have a variety of equipment to choose from, suitable for different products, and connect them into an efficient Weighing filling machine production line to achieve safe and stable fully automated production.
| Drum/Pail Feeder | The bottle unscrambler is for fully automatic arrange the oil bottle according to the direction and send it to the conveyor line.Wide range of applications, can be customized for different sizes and shapes of bottles. |
200 Liter filling Machine | Weighing filling machine, magnetic pump filling machine, rotor pump filling machine, all kinds of filling machines can meet 4-50KG,200-300KG,1000KG or more of different capacity filling. |

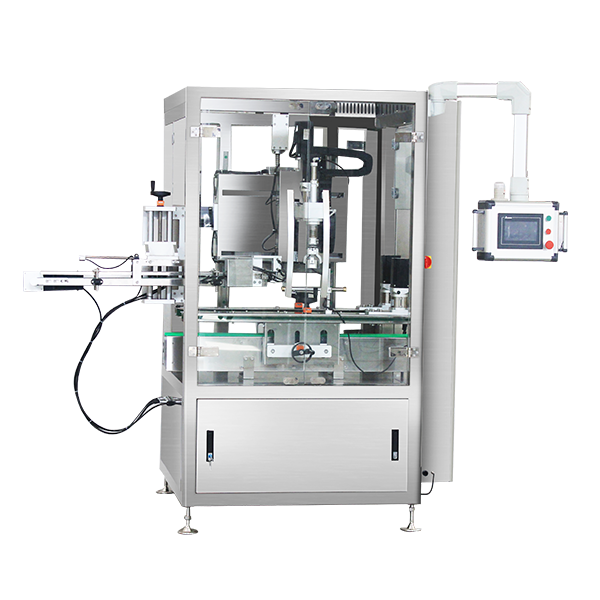

| Capping Machine | According to the design of different oil bottles, capping machine and capping machine will complete the capping and capping sealing work of various bottles. |

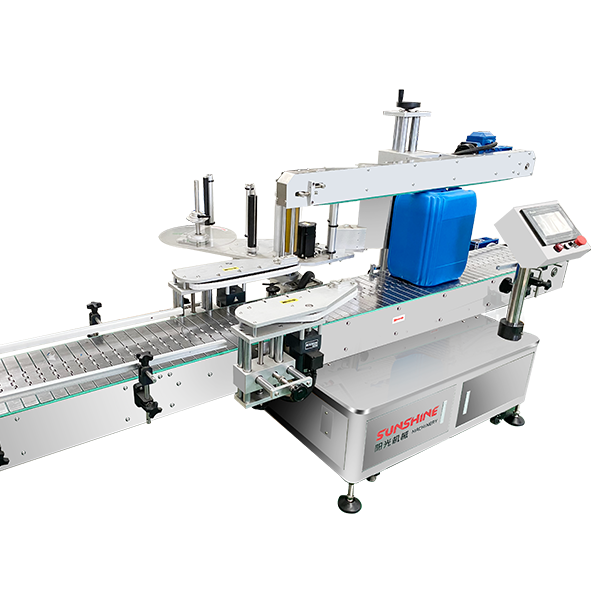

| Labeling Machine | Suitable for all kinds of round bottles, flat bottles, square bottles, shaped bottles single-sided, double-sided, multi-sided labeling work. |

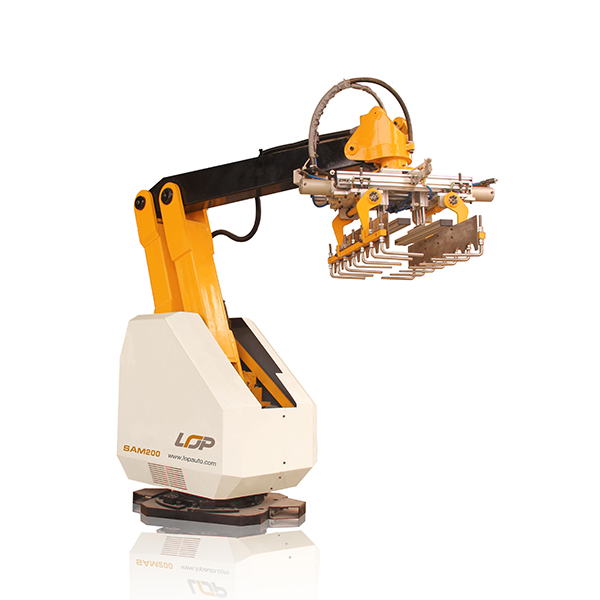

| Robot Palletizing Machine | Through the palletizing robot, the packaged cartons are automatically palletized, improving work efficiency and freeing workers from tired physical work |
| Conveyor System | We provide custom conveyor systems designed to seamlessly transport containers to and from the filling machine. These systems are engineered for reliability and optimize the flow of your production. |
Pail/Drum Feeder

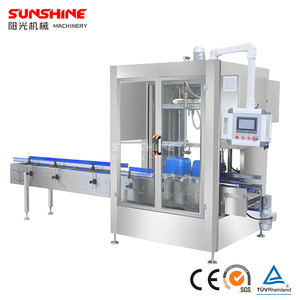

Weighing Filling Machine
Liner Capping Machine
Bottle Unscrambler Machine
Drum/Pail Labeling Machine
Robot Palletizing Machine

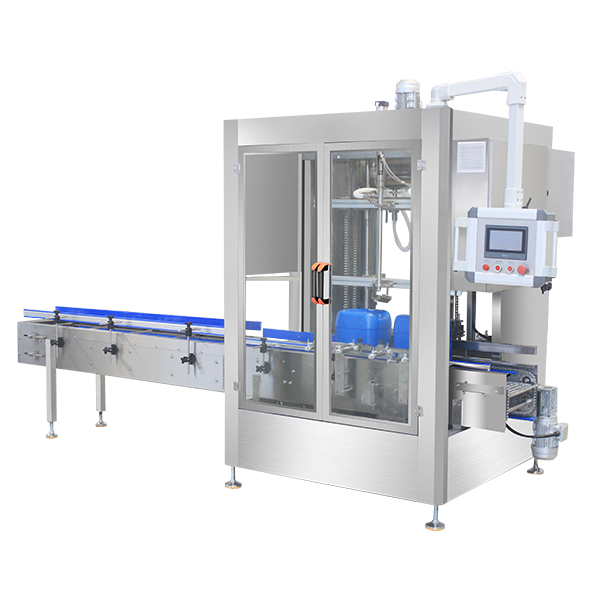

5-20L Weighing filling capping labeling production line
5-50 Liter liquid packaging production line, the whole line includes Weighing filling machine, Capping machine, Carton packing machine, Carton sealing machine and other equipment, suitable for the production of viscosity liquid. Such as edible oil, soy sauce and other condiments 5-50 Liter capacity production.
Prodution Speed: 100-800 Bottles per hour
Filling Range: 4-50Liter

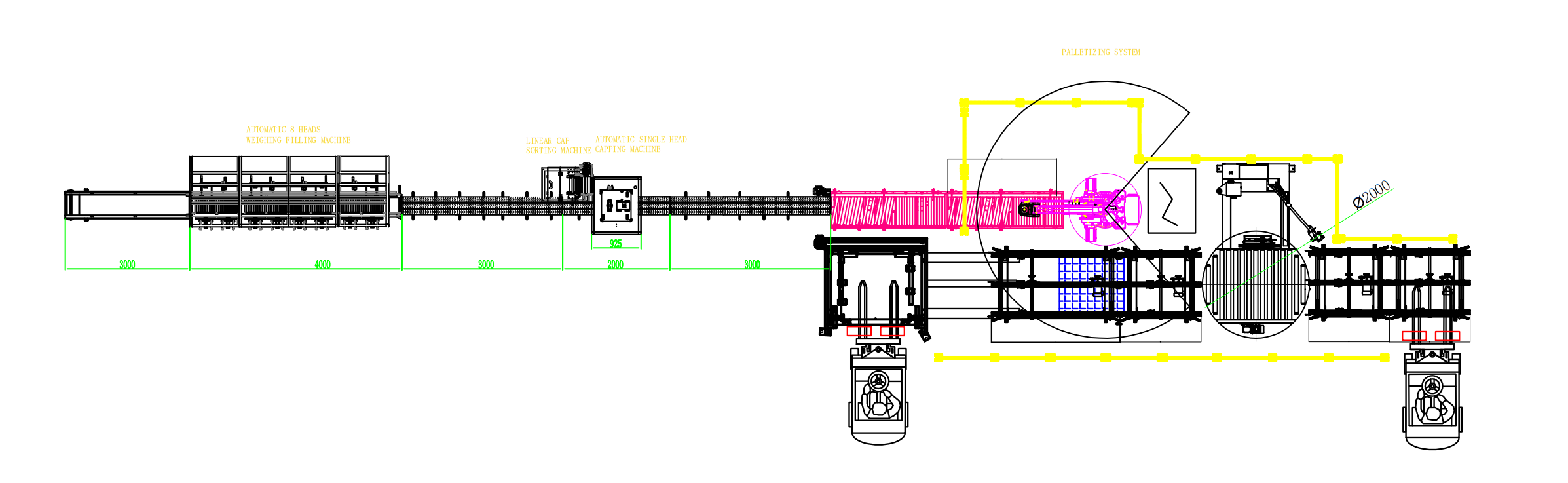

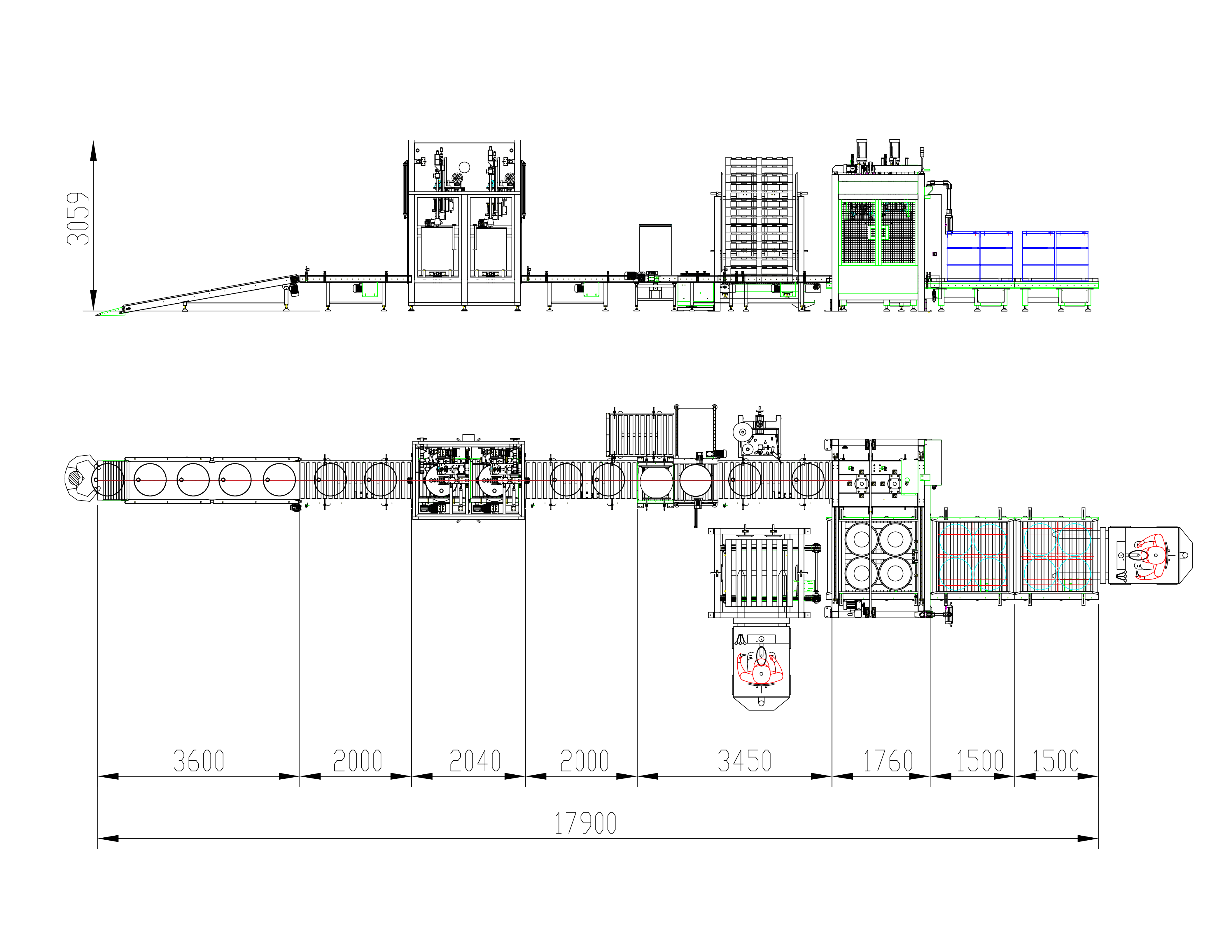

200-1000 Liter Weighing Filling Production Line
200-1000 Liter Fully automatic liquid packaging production line, this production line is for 50-200 Liter Steal and Plastic Drum,and 1000 Liter IBC Drum Filling .
Production Speed: 200Liter:50-52 Drums per hour
1000 Liter:10 Drums per hour
Filling Range: 200-1000Liter
