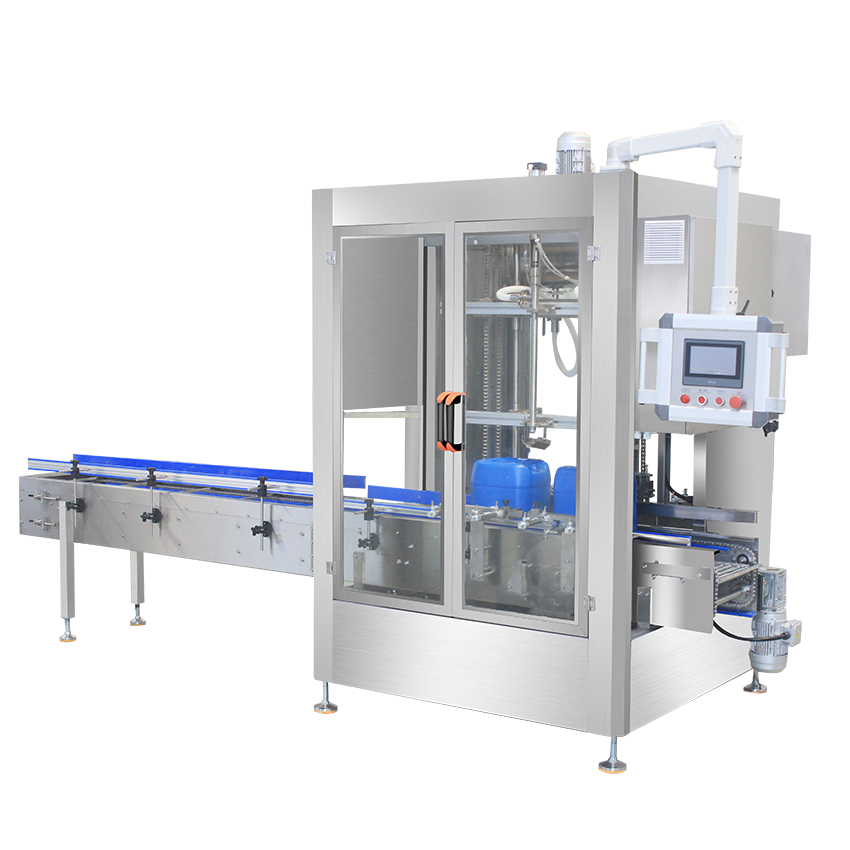

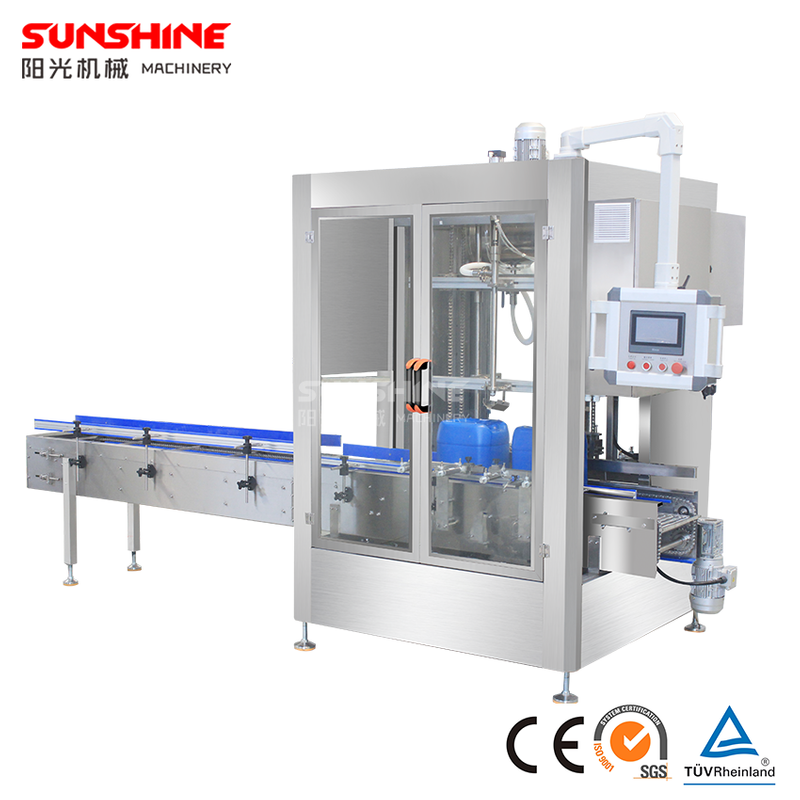

Weighing Filling Machine
SUNSHINE
YG-CZ
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
4-50KG,200-300KG,1000KG
100-800 Drums/Hour
Edible Oil,Lube oil,Sauce,Chemicals
One Year and Life-Long Technical Support
PP Material,Teflon,Aluminum Alloy
Engineers Available to Service Overseas
FEATURES OF WEIGHING FILLING MACHINE
Fully Automatic Weighing Liquid Filling Machine with load cell control filling, suitable for filling liquid 1-1000KG different containers. Weighing filling machine into the field for drum/pallet/pail and other containers filling, the capacity range can be divided into three, 1-50KG,200-300KG,1000KG.For different filling capacity needs, we design different types of filling equipment production line.
Advantages of weighing filling machine:

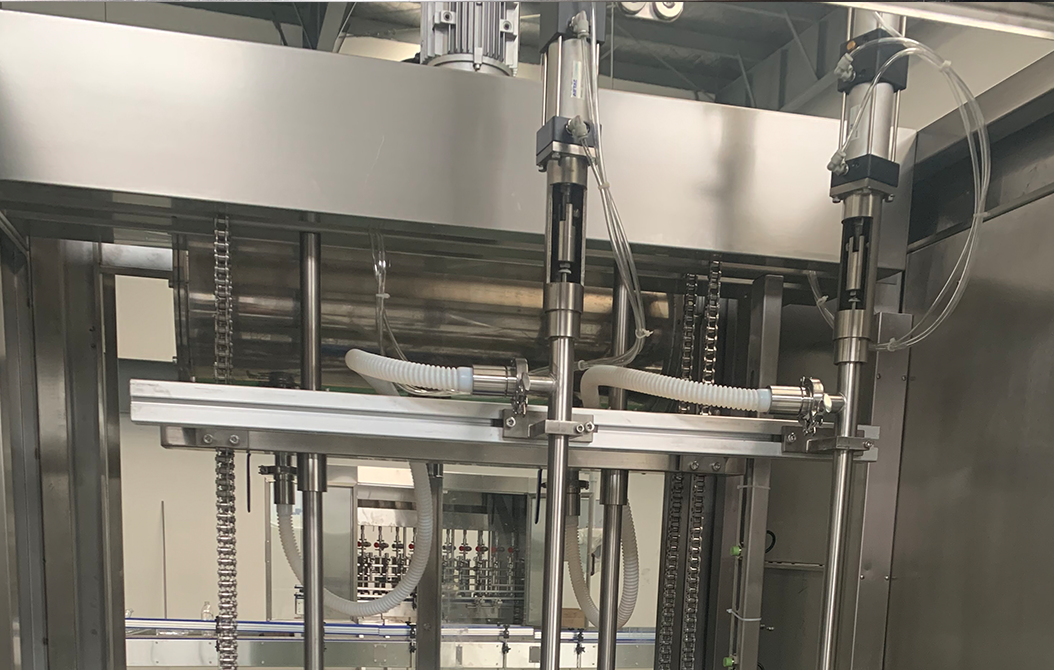

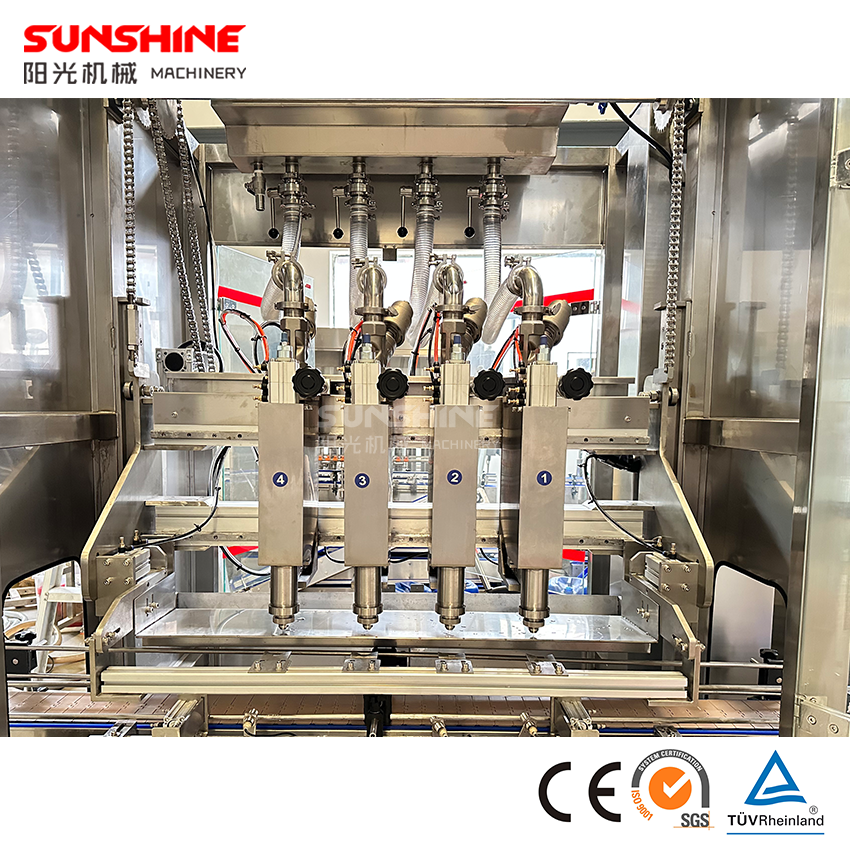

Filling mode adopts large and small valves to switch filling, for all kinds of different liquids with large capacity filling, the precision can be controlled at 0.2%-0.3%, for products with high value, effectively avoiding loss of profit. Filling nozzle lifting filling, the liquid is fan-shaped open, effectively reducing air bubbles, suitable for all kinds of easy to bubble liquid. The whole machine is made of 304 316 stainless steel, to meet the filling requirements of food and chemical industry, no pollution to the customer's materials.
Explosion-proof grade filling requirements:
For the production environment has special requirements for the production situation, we can make the whole machine into explosion-proof grade, all the electrical components are used in explosion-proof electrical appliances, and put in positive pressure electrical explosion-proof cabinets, which greatly increase the safety of the machinery.
Automatic weighing filling machine is active in all kinds of food, chemical, flammable and explosive liquid industries because of its strong versatility and flexibility in applying to different shapes and sizes of containers.
Edible oil
Lubricating oil
Food & Sacue
Personal Care & Daily Chemical
Pesticide & Agro Chemical
| Heads | 2 heads | 4 heads | 6 heads | 8 heads |
| Production Speed (Bottles/hour) | 4-10KG:100-150 BPH | 4-10KG:300-350 BPH | 4-10KG:400-450 BPH | 4-10KG:500-550 BPH |
| Machine Dimension (Length x Wide x Height)mm | 3000 x 1300 x 2250 mm | 4200 x 1300 x 2250 mm | 6200 x 1300 x 2250 mm | 7200 x 1300 x 2250 mm |
| Suitable Bottles | 4-50KG Bottle/Drum/Pail/Pallet (Can be customized) | |||
| Filling Accuracy | ≤±0.2-0.3% | |||
| Filling Volume | 4-50KG(Can be customized) | |||
| Power Supply | 220 / 380 / 415V ; 50 / 60HZ (Can be customized) | |||
| Air Supply | 0.6-0.8Mpa clean air | |||
Certified Chemical/Food/Pharmaceutical Grade Filling Pipe
Our weighing and filling machines can be equipped with different grades of connecting hoses, chemical grade, food grade, pharmaceutical grade, depending on the customer's materials.All hoses have quick-connect ports for easy removal and washing.

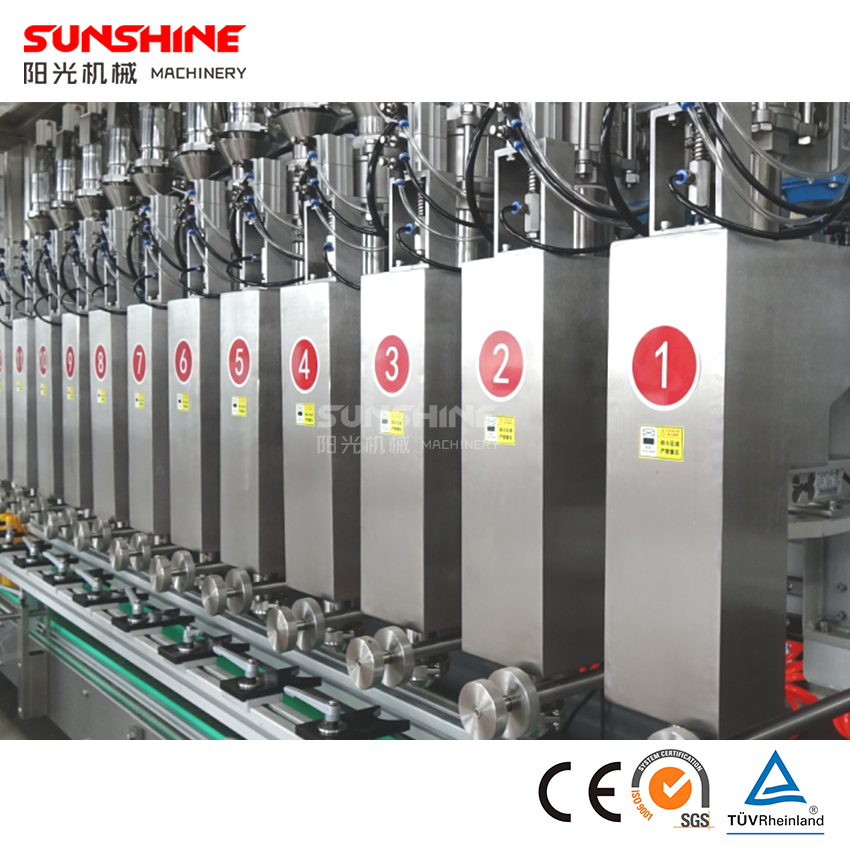

Rotor/Magnetic Pump Filling
Not only do we have single pump filling, we can also install rotary or magnetic pumps for each filling nozzle. The pump will be controlled by a servo motor to control the speed and number of revolutions, effectively controlling the accuracy to within 0.1%.
Explosion-Proof Electrical Control Cabinet
We also have a lot of lubricating oil Chemical industry, there is a requirement for the machine explosion-proof level of customers, we will make the machine explosion-proof. All electrical components are explosion-proof, such as explosion-proof photoelectricity, explosion-proof sensors and so on. At the same time, there is a positive pressure electrical explosion-proof cabinet, all the buttons, switches, touch screen, alarms, etc. to meet the explosion-proof requirements.
Here are some machines we can working together with Weighing filling machine.All the equipment can be connected and used together to complete the entire line production of various pail/drum types.
Pail Feeder
Inliner Capping System
Pail Pressure Capping Machine
Can Capping Machine
200l Weighing Filling Machine
1000L IBC Weighing Filling Machine
Drum/Pail Labeling Machine
Automatic Palletizer Machine
4-50KG Weighing Filling Capping Lableing Palletizer Machine Line
Production Speed:100-800 Bottles Per Hour Filling Range:4-50KG
Suitable Liquid: Edible Oil,Lube Oil,Soy Sauce,Daily Chemicals,Grease.etc
As a high-quality Weighing filling machine manufacturer from China, we can provide customers with one-stop service. We can provide customers with filling machines, capping machines, labeling machines, liquid nitrogen filling machines, and carton unpacking machines. Packing machines, film wrapping machines, palletizers and other equipment. For different bottle types and caps, we have a variety of equipment to choose from, suitable for different products, and connect them into an efficient Weighing filling machine production line to achieve safe and stable fully automated production.
| Drum/Pail Feeder | The bottle unscrambler is for fully automatic arrange the oil bottle according to the direction and send it to the conveyor line.Wide range of applications, can be customized for different sizes and shapes of bottles. |
Weighing filling Machine | Weighing filling machine, magnetic pump filling machine, rotor pump filling machine, all kinds of filling machines can meet 4-50KG,200-300KG,1000KG or more of different capacity filling. |
| Capping Machine | According to the design of different oil bottles, capping machine and capping machine will complete the capping and capping sealing work of various bottles. |
| Labeling Machine | Suitable for all kinds of round bottles, flat bottles, square bottles, shaped bottles single-sided, double-sided, multi-sided labeling work. |
| Robot Palletizing Machine | Through the palletizing robot, the packaged cartons are automatically palletized, improving work efficiency and freeing workers from tired physical work |
| Conveyor System | We provide custom conveyor systems designed to seamlessly transport containers to and from the filling machine. These systems are engineered for reliability and optimize the flow of your production. |
Pail/Drum Feeder
Weighing Filling Machine
Liner Capping Machine
Bottle Unscrambler Machine
Drum/Pail Labeling Machine
Robot Palletizing Machine
5-20L Weighing filling capping labeling production line
5-50 Liter liquid packaging production line, the whole line includes Weighing filling machine, Capping machine, Carton packing machine, Carton sealing machine and other equipment, suitable for the production of viscosity liquid. Such as edible oil, soy sauce and other condiments 5-50 Liter capacity production.
Prodution Speed: 100-800 Bottles per hour
Filling Range: 5-50Liter
200-1000 Liter Weighing Filling Production Line
200-1000 Liter Fully automatic liquid packaging production line, this production line is for 50-200 Liter Steal and Plastic Drum,and 1000 Liter IBC Drum Filling .
Production Speed: 200Liter:50-52 Drums per hour
1000 Liter:10 Drums per hour
Filling Range: 200-1000Liter
