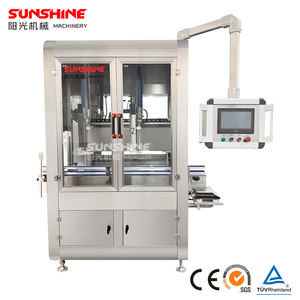

Follow-Up Liquid Filling Machine

The Follow-Up Liquid Filling Machine is an advanced automatic filling solution designed for high-speed and continuous bottle filling operations. By following the movement of bottles during the filling process, the machine eliminates frequent start-and-stop actions, resulting in improved stability, higher output, and better filling accuracy.

Model:
Servo Tracking Filling Machine
Brand:
SUNSHINE
Code:
YG-Z
Key Components Brand:
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
Filling Volume:
50-5000ml(can be customized)
Production Capacity:
1000-4500 Bottles/Hour
Application:
Cosmetic,Chemical,Sauce,Grease.etc
Warranty:
One Year and Life-Long Technical Support
Machine material:
SUS 304/316
After-sales Service:
Engineers Available to Service Overseas


Availability:



Inquire

Product Description

Service & Support

Machine Profile

AUTOMATIC AUTOMATIC SERVO TACKING FILLING MACHINE VIDEO

FEATURES OF AUTOMATIC SERVO TRACKING FILLING MACHINE

Product Introduction：

The Follow-Up Liquid Filling Machine is an advanced automatic filling solution designed for high-speed and continuous bottle filling operations. By following the movement of bottles during the filling process, the machine eliminates frequent start-and-stop actions, resulting in improved stability, higher output, and better filling accuracy.

This machine is ideal for manufacturers looking to optimize production efficiency while maintaining precise filling performance. It is widely used in industries such as chemicals, cosmetics, food, and pharmaceuticals, where consistent filling quality and line stability are essential.

Working Principle：

Unlike traditional filling machines where bottles must stop for filling, the tracking type filling machine adopts a synchronous tracking filling system. The filling nozzles move along with the bottles on the conveyor at the same speed, enabling continuous filling without interruptions. This design significantly reduces downtime, improves line efficiency, and minimizes product spillage.

The process includes:

1.Bottles enter the conveyor and are detected by sensors.

2.The filling nozzles automatically track the bottle movement.

3.Filling is performed precisely while the bottles are in motion.

4.The nozzles return to the starting position for the next cycle.

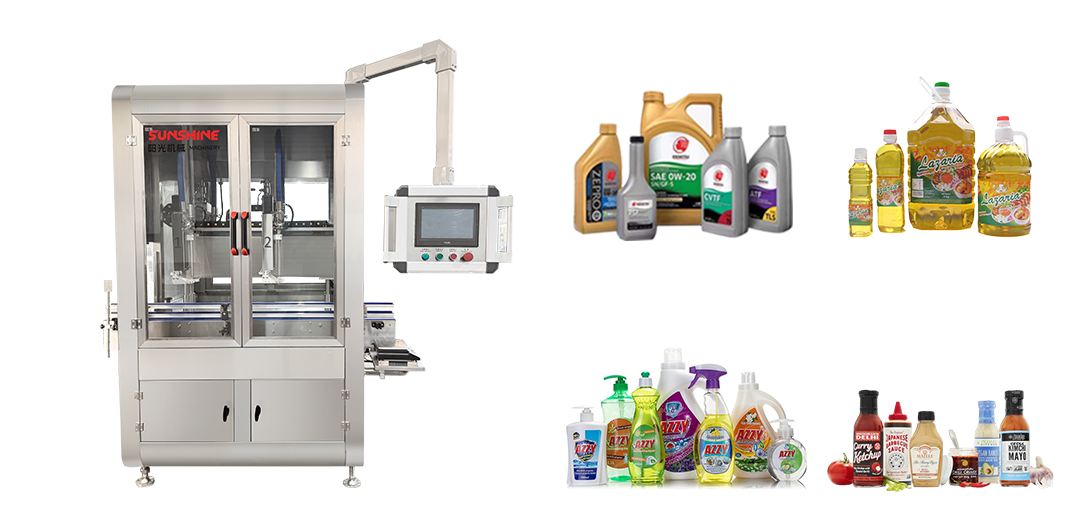

tracking-filling-machine

KEY FEATURES OF AUTOMATIC SERVO TRACKING FILLING MACHINE

High Filling Accuracy	Achieves high volumetric accuracy (±0.2-0.3% or better), even for viscous or heterogeneous liquids.
High Efficiency	Continuous filling without stopping improves overall production speed.
Wide Applicability	Suitable for liquids with different viscosities, from water-like products to thicker solutions.Suitable for sauces, oils, dairy products, pharmaceuticals, lotions, shampoos, adhesives, and chemicals.
Reduced Spillage & Waste	Synchronization of nozzles and bottles guarantees clean and neat filling.
Flexibility	Can be integrated into existing production lines and customized for different bottle sizes and shapes.
Easy Operation & Maintenance	User-friendly interface with automated controls reduces labor intensity.
Cost-Effective	Higher productivity and less product loss mean a faster return on investment.
Automation Ready	Can be integrated with capping, labeling, and packaging machines for a complete filling line.

APPLICATION OF AUTOMATIC SERVO TRACKING FILLING MACHINE

Edible oil

Lubricating oil

Food & Sacue

Personal Care & Daily Chemical

Pesticide & Agro Chemical

TECHNICAL PARAMETERS OF AUTOMATIC SERVO TRACKING FILLING MACHINE

Heads	2 heads	4 heads	6 heads
Production Speed (Bottles/hour)	1L:900-1000 BPH 5L:500-600 BPH	1L:1200-1400 BPH 5L:900-1000 BPH	1L:1600-1800 BPH 5L:1400-1500 BPH
Machine Dimension (Length x Wide x Height)mm	1800 x 1300 x 2250 mm	2400 x 1300 x 2250 mm	2900 x 1300 x 2250 mm
Suitable Bottles	Round Bottles,Falt Bottles,Square Bottles(Can be customized)
Filling Accuracy	≤±0.2-0.3%
Filling Volume	100-5000ml(Can be customized)
Power Supply	220 / 380 / 415V ; 50 / 60HZ (Can be customized)
Air Supply	0.6-0.8Mpa clean air

DETAILS PICTURES OF AUTOMATIC SERVO TRACKING FILLING MACHINE

Easy Adjustment

1.Magnetic pump filling machines are designed for quick and easy bottle changeover. Operators can adjust filling volume, nozzle height, and conveyor guides without complex tools, allowing the machine to handle different bottle shapes and sizes in minutes.
2.This flexibility improves production efficiency and reduces downtime, making it ideal for multi-product or small-batch manufacturing.

Servo Motor Control Magnetic Pump

1.Servo motors offer precise control over pump rotation, ensuring consistent and repeatable filling volumes.
2.Servo-driven systems provide steady torque and smooth motion, reducing splashing and foaming during filling.
3.Filling parameters can be easily adjusted through the control system to match different liquid types and container sizes.
4.Quick and easy changeover between products with different viscosities or filling requirements.

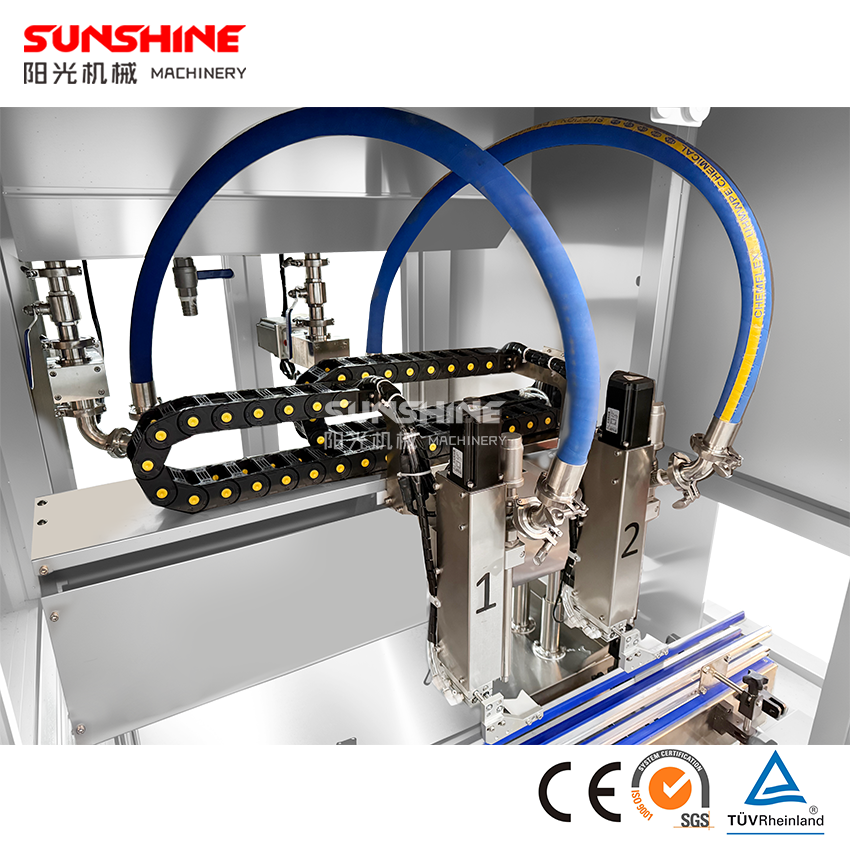

Servo Motor Diving Filling Nozzles

1.The filling nozzle can be lifted and lowered by a servo motor to reduce the amount of foaming during filling. It is suitable for filling liquids that are prone to foaming.
2.The filling nozzle is equipped with an internal plug, which is completely sealed after filling to prevent dripping.
3.The filling nozzle is customised in length and diameter according to different bottle types.

Stainless Steel And Corrosion-resistant magnetic Pump

1.Corrosion-resistant magnetic pumps are widely used in filling lines for aggressive and chemically reactive liquids such as acids, alkalis, solvents, and other corrosive solutions.
2.The wetted parts are made from high-grade corrosion-resistant materials such as PTFE, PVDF, or stainless steel, extending service life even under harsh conditions.

OPTIONAL CONFIGURATIONS FOR AUTOMATIC SERVO TRACKING FILLING MACHINE

FDA Certified Food Grade Filling Pipe

Our Edible Oil Filling Machine can used FDA certified food grade filling pipe.
All filling tubes are quick-connect, easy to disassemble and clean.No residue when filling various edible oils, sauces and other liquids.

Explosion-Proof Electrical Control Cabinet

All electrical components are explosion-proof, such as explosion-proof photoelectricity, explosion-proof sensors and so on. At the same time, there is a positive pressure electrical explosion-proof cabinet, all the buttons, switches, touch screen, alarms, etc. to meet the explosion-proof requirements.

CIP Material Tank

The top of the edble oil filling machine can be replaced with a CIP storage tank, which can be equipped with heating, stirring, high and low liquid level display, CIP interface and other functions

RELATE MACHINES OF AUTOMATIC SERVO TRACKING FILLING MACHINE

Here are some machines we can working together with magnetic pump filling machine.All the equipment can be connected and used together to complete the entire line production of various bottle types.

Unscrambler

Bottle Capping System

Inline Capping Machine

Automatic Bottle Filling And Capping Machine

Double Side Bottle Labeling Machine

Round Bottle Labeling Machine

Carton Packing Machine

Automatic Palletizer Machine

WHY CHOOSE SUNSHINE MACHINE

5000 +

FIELD
30 +

EMPLOYEES
50 +

COUNTRY

ONE-STOP AFTERSALES SERVICE

FAQ

What kind of oils can this machine fill?

It can fill from 100ml to 5000ml capacity(can be customized) for vegetable oils, olive oil, coconut oil, palm oil, mustard oil varous liquid oils.
What is the filling capacity?

The machine can fill 500 to 4500 bottles per hour for 100-5000ml Volume Bottles, depending on bottle size and oil type.
Can it handle different bottle sizes and shapes?

Yes, it accommodates various bottle shapes and sizes with adjustable filling nozzles and conveyors.
Is it compatible with other packaging equipment?

Yes, it integrates with capping, labeling, and other equipment for a complete packaging line.
What are the delivery timelines?

Delivery takes approximately 4 to 5 weeks.
What after-sales support do you offer?

We provide installation, training, spare parts, and technical support.
