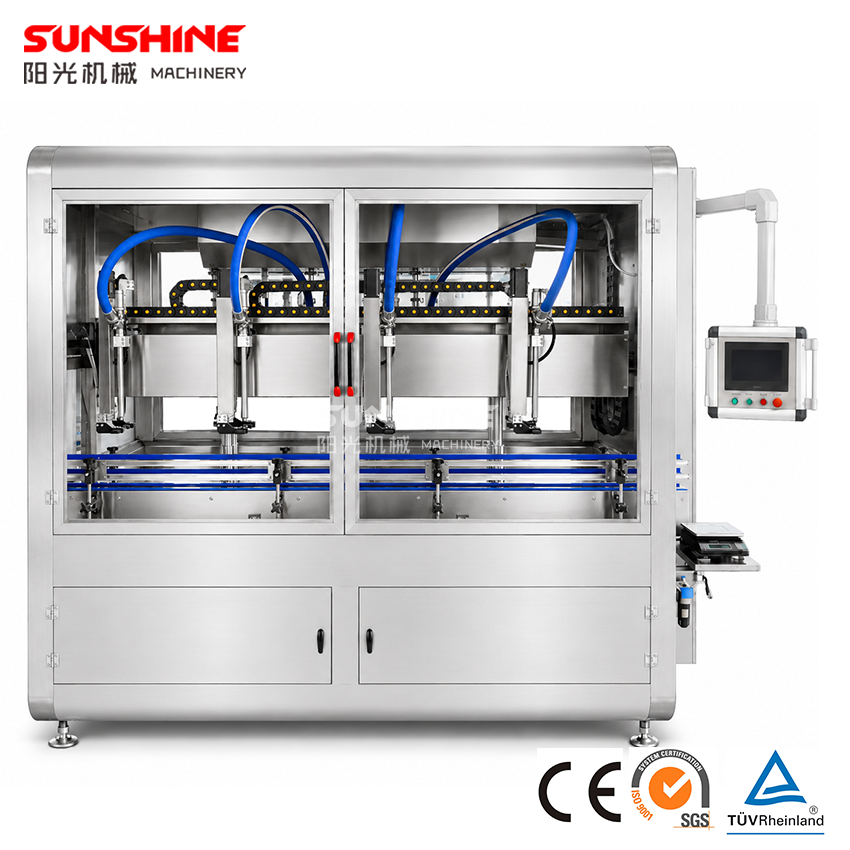

What Is a Servo Tracking Filling Machine?
A Servo Tracking Filling Machine is an advanced automatic liquid filling system designed to fill bottles continuously while they move along the conveyor. Unlike traditional inline filling machines that require bottles to stop during the filling process, a tracking filling machine uses servo-driven filling nozzles that move synchronously with the bottles.
This continuous-motion filling technology significantly improves production speed while maintaining high filling accuracy and stable operation.
The machine is suitable for a wide range of liquid and semi-viscous products, including liquid detergent, shampoo, hand soap, lotion, edible oil, lubricating oil, sauce, disinfectant, chemicals, pesticides, fertilizers, and household cleaning liquids.
It can be integrated with bottle unscramblers, capping machines, labeling machines, inkjet printers, carton packing machines, and palletizing systems to create a fully automatic packaging line.
How Does a Servo Tracking Filling Machine Work?
The working principle of a Servo Tracking Filling Machine combines servo motion control, precision filling technology, bottle detection, and synchronized tracking.
When bottles enter the filling area, photoelectric sensors detect their position and send signals to the PLC control system.
The servo motor then controls the filling nozzles to move at the same speed as the bottles on the conveyor.
During this synchronized movement, the filling nozzles enter or approach the bottle openings and begin filling.
After the preset filling volume is reached, the nozzles stop filling and automatically return to their original position for the next group of bottles.
Because the bottles do not need to stop during filling, the entire process becomes faster and smoother.
Main Features of Servo Tracking Filling Machine
1. Continuous Filling Without Bottle Stopping
One of the biggest advantages of a tracking filling machine is continuous bottle movement.
Traditional filling systems normally require bottles to stop under the filling nozzles. In contrast, a servo tracking filler follows the moving bottles during filling.
This greatly reduces waiting time and increases overall production efficiency.
2. High Filling Accuracy
The filling process is controlled by a PLC and servo system, allowing precise adjustment of filling parameters.
Depending on the filling system and product characteristics, high filling accuracy can be achieved while minimizing product waste.
3. Servo-Controlled Tracking System
The servo tracking mechanism provides accurate synchronization between the filling nozzles and conveyor bottles.
This makes the filling process smooth, stable, and highly repeatable even during high-speed operation.
4. High Production Speed
Because there is no repeated stopping and starting of bottles, tracking filling technology allows significantly higher production speeds compared with many conventional inline filling machines.
The actual production capacity depends on:
5. Flexible Filling Range
Servo Tracking Filling Machines can be customized for different filling volumes.
Typical applications can range from small bottles to large containers depending on machine configuration.
Common ranges include:
100 ml–1 L, 500 ml–5 L, 1–5 L and other customized filling ranges.
6. Suitable for Different Liquid Viscosities
Different filling technologies can be combined with the tracking system according to the product.
For example:
Servo piston filling systems are suitable for viscous and semi-viscous liquids.
Flow meter filling systems are suitable for oils and free-flowing liquids.
Magnetic pump systems can be used for certain low-viscosity liquids.
Corrosion-resistant filling systems can be designed for acidic or alkaline chemical products.
Products Suitable for Servo Tracking Filling Machines
A Servo Tracking Filling Machine can be widely used in different industries.
Daily Chemical Products
The machine is commonly used for:
Liquid detergent
Laundry detergent
Dishwashing liquid
Liquid soap
Hand soap
Shampoo
Hair conditioner
Body wash
Lotion
Hand sanitizer
Household cleaners
Oil Products
Suitable applications include:
Edible oil
Cooking oil
Vegetable oil
Engine oil
Lubricating oil
Gear oil
Hydraulic oil
Automotive fluids
Food Products
With an appropriate filling system, the machine can also handle:
Chemical Products
The machine can be customized for:
Disinfectant
Fertilizer
Pesticide
Herbicide
Insecticide
Cleaning chemicals
Automotive chemicals
Industrial liquids
For corrosive products, product-contact parts can be manufactured from corrosion-resistant materials such as suitable plastics or specially selected stainless-steel components.
8 Technical Advantages of Servo Tracking Filling Machine
High Filling Accuracy
Advanced servo control provides precise filling-volume adjustment and stable repeatability.
Continuous Tracking Filling
The filling nozzles follow bottles during operation, eliminating unnecessary bottle-stop cycles.
High-Speed Production
Continuous bottle movement helps increase production capacity and packaging-line efficiency.
Stable Servo Control
Servo motors provide accurate position, speed, and movement control for the filling mechanism.
Wide Bottle Compatibility
The machine can handle various bottle shapes and sizes after suitable adjustment.
Easy Product Changeover
Filling volume, speed, nozzle movement, and other parameters can be adjusted through the touchscreen.
Reduced Product Dripping
Anti-drip filling nozzles and optimized filling programs help maintain a clean production environment.
Easy Production-Line Integration
The machine can communicate and operate with upstream and downstream packaging equipment.
Servo Tracking Filling Machine vs Traditional Inline Filling Machine
A traditional inline filling machine usually stops bottles underneath the filling heads before starting the filling cycle.
A Servo Tracking Filling Machine, however, allows bottles to continue moving while the filling nozzles track them.
This difference can provide several benefits:
| Feature | Servo Tracking Filling Machine | Traditional Inline Filling Machine |
| Bottle Movement | Continuous | Stop-and-go |
| Filling Speed | Higher | Standard |
| Servo Tracking | Yes | Usually No |
| Production Efficiency | High | Medium |
| Filling Accuracy | High | High |
| Automation Level | High | Standard to High |
| Suitable for High-Speed Lines | Excellent | Good |
For manufacturers that require higher production capacity without significantly increasing production-line length, a tracking filling system can be an excellent solution.

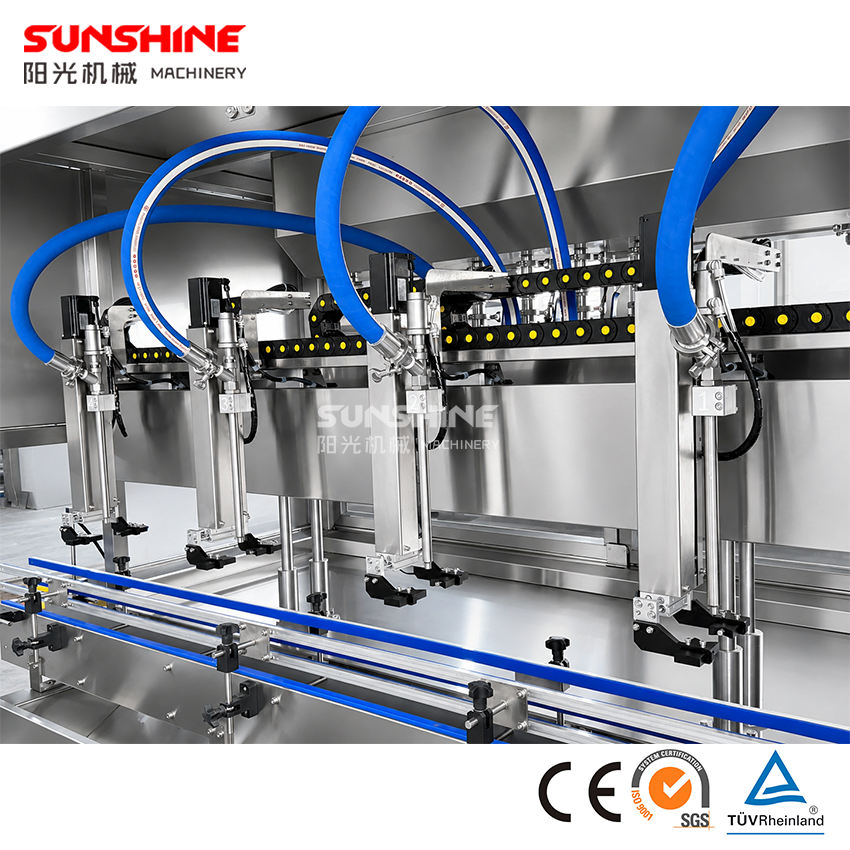

Main Components of a Servo Tracking Filling Machine
A typical machine may include:
Servo Tracking System
Controls the horizontal movement of the filling nozzles and synchronizes them with moving bottles.

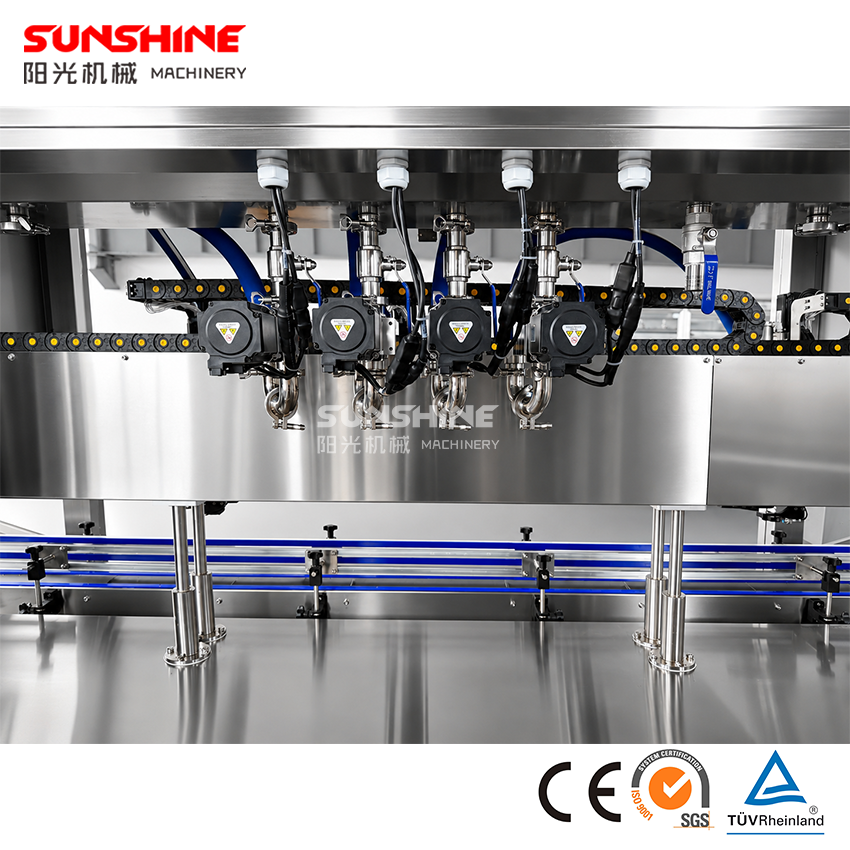

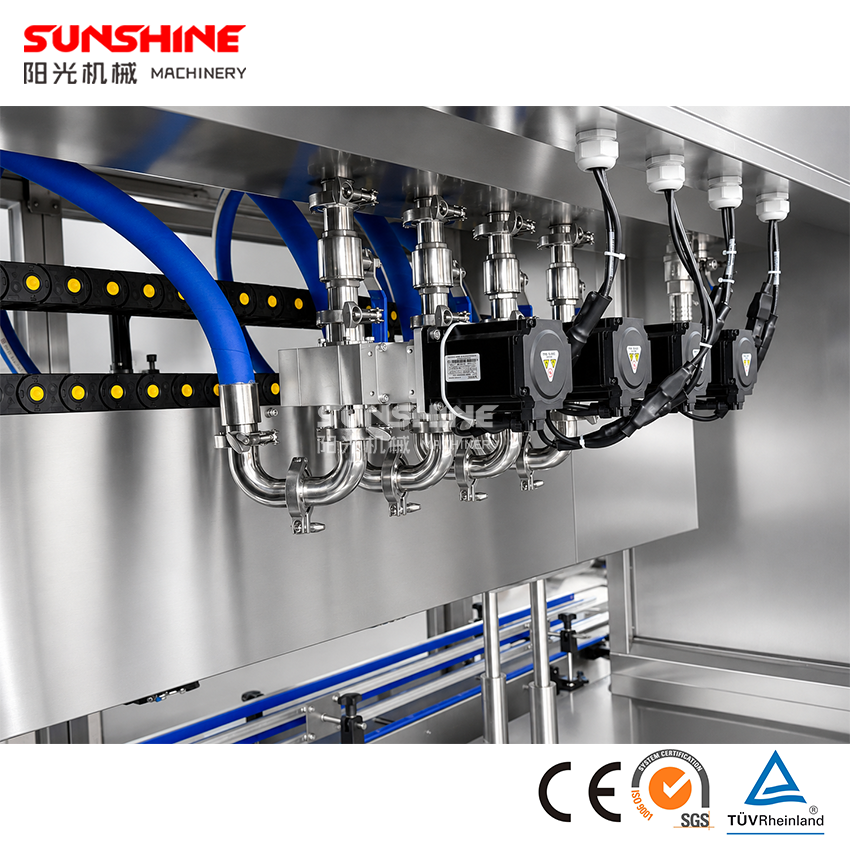

Filling System
Depending on the product, the machine may use piston filling, pump filling, flow meter filling, or another filling method.

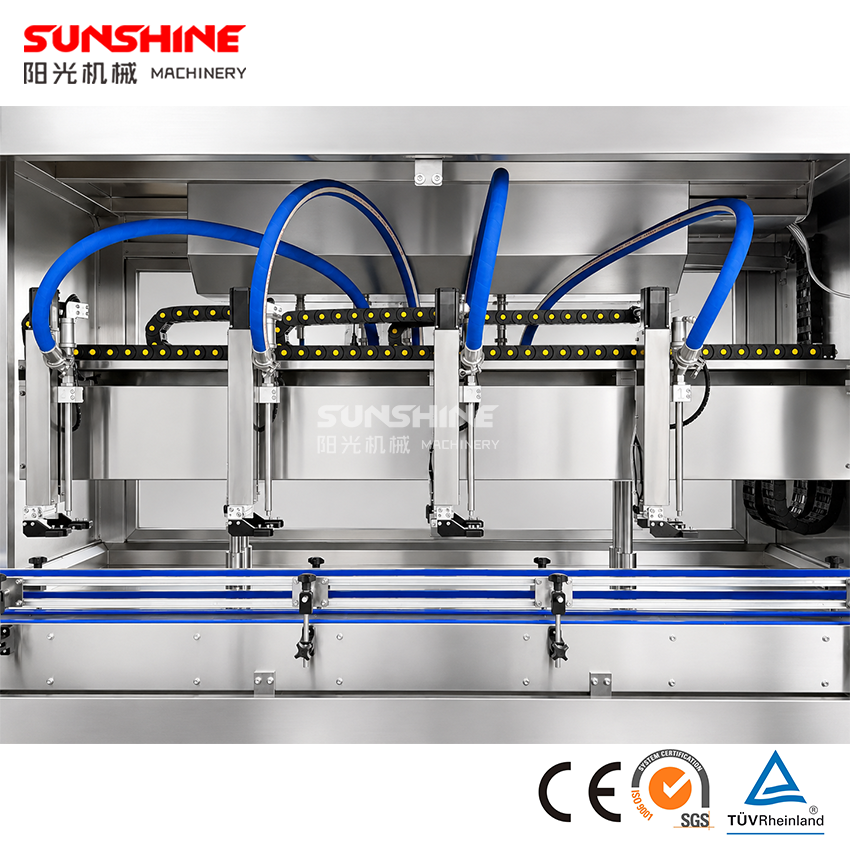

Filling Nozzles
The nozzles can be designed with anti-drip, diving, or bottom-up filling functions depending on the application.
PLC Control System
The PLC manages the complete filling cycle, sensor signals, servo motion, filling parameters, and production settings.
Touchscreen HMI
Operators can adjust parameters such as:
Filling volume
Filling speed
Tracking speed
Conveyor speed
Nozzle position
Production recipes
Conveyor System
The conveyor continuously transports bottles through the filling station.

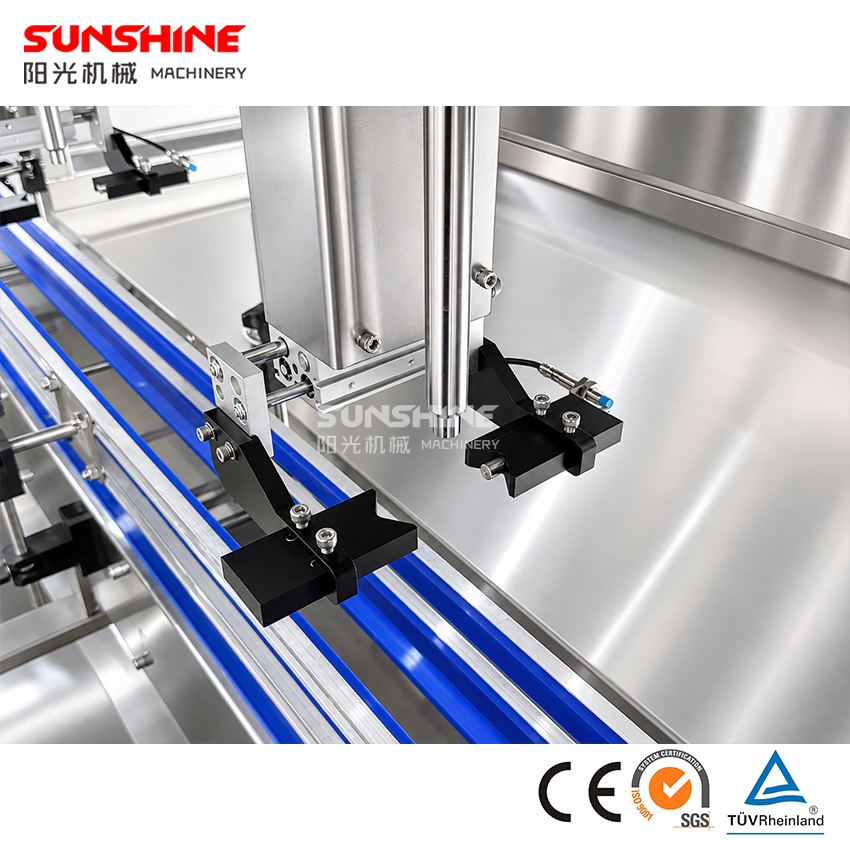

Photoelectric Sensors
Sensors detect bottle position and help synchronize bottle movement with the filling system.
Optional Configurations
Different products require different machine configurations. Optional systems may include:
Diving filling nozzles
Anti-drip nozzles
Foam-control filling
Heated hopper
Mixing hopper
Product-level control
CIP cleaning system
Different numbers of filling heads
Corrosion-resistant components
Explosion-proof electrical systems
Automatic product feeding system
Multiple filling recipes
Bottle positioning system
These options allow the machine to be customized according to the actual production requirements.

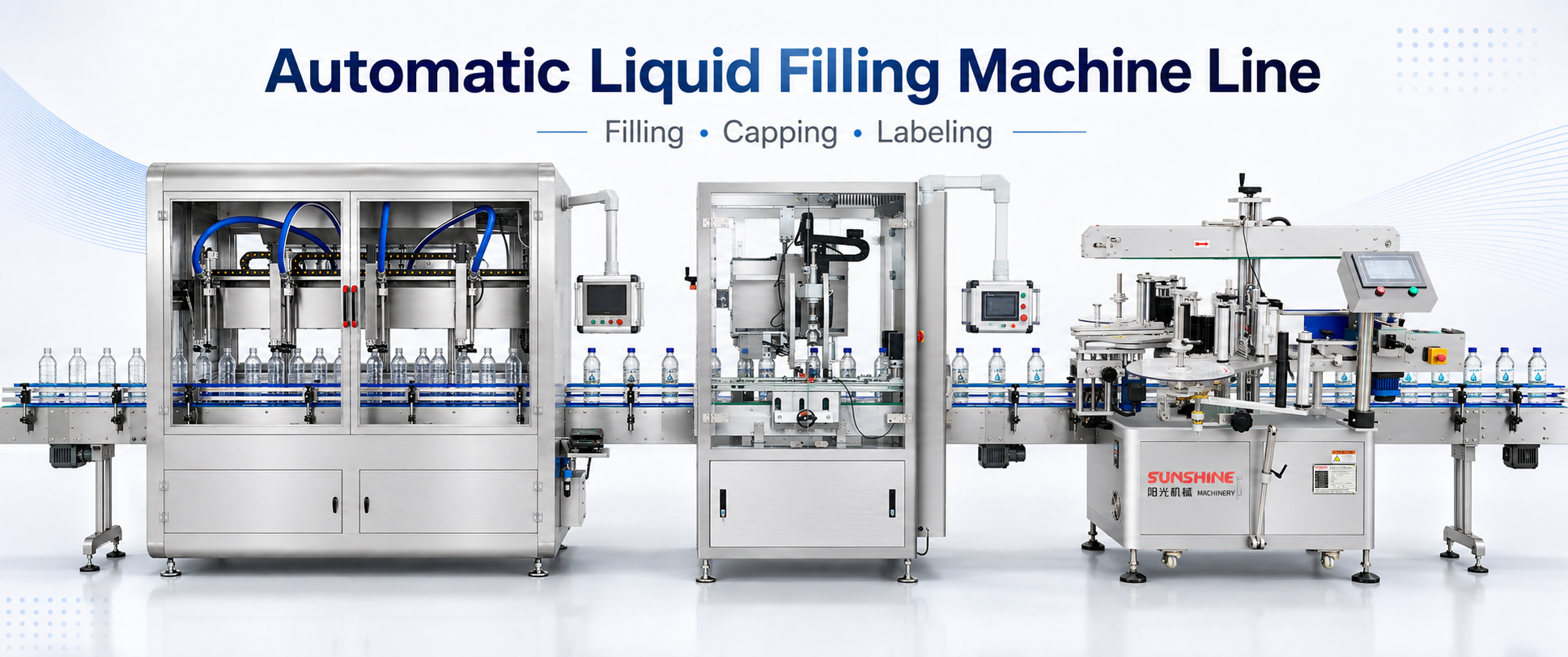

Automatic Servo Tracking Filling Production Line
A Servo Tracking Filling Machine can operate independently or become part of a complete automatic filling and packaging line.
A typical production line may include:
Automatic Bottle Unscrambler → Servo Tracking Filling Machine → Automatic Capping Machine → Aluminum Foil Sealing Machine → Labeling Machine → Inkjet Printer → Case Packer → Carton Sealing Machine → Palletizing System
This type of integrated solution reduces manual labor and provides consistent production from empty bottle feeding to finished carton packaging.
Why Choose a Servo Tracking Filling Machine?
Manufacturers increasingly require packaging equipment with higher speed, greater automation, and better flexibility.
The Servo Tracking Filling Machine provides an effective solution by combining continuous bottle movement, servo synchronization, accurate filling, flexible parameter adjustment, and automatic production-line integration.
It is especially suitable for factories producing multiple bottle sizes or requiring medium- to high-speed liquid filling.
Compared with conventional stop-and-fill machines, tracking filling technology can help manufacturers:
Increase production capacity
Reduce bottle waiting time
Improve line efficiency
Maintain filling accuracy
Reduce labor requirements
Improve production consistency
Support future automation upgrades
How to Choose the Right Servo Tracking Filling Machine
Before selecting a machine, manufacturers should provide several important production details.
Product Information
Specify the product being filled and its viscosity.
Examples include detergent, oil, shampoo, sauce, disinfectant, or chemical liquids.
Filling Volume
Provide the minimum and maximum filling volume, such as:
500 ml–1 L
1–5 L
100 ml–5 L
Bottle Information
Bottle samples or drawings should include:
Bottle dimensions
Bottle shape
Bottle neck diameter
Bottle material
Bottle volume
Required Production Capacity
Specify the desired production speed, such as bottles per minute or bottles per hour.
Filling Accuracy Requirement
Some applications require higher filling accuracy than others.
Production-Line Requirements
If the filling machine needs to connect with capping, labeling, sealing, packing, or palletizing equipment, the entire production line should be considered during machine design.
Industries Using Servo Tracking Filling Machines
Servo Tracking Filling Machines are widely used in:
Daily Chemical Industry
Detergent, shampoo, liquid soap, lotion and household cleaning products.
Food Industry
Sauce, edible oil, honey, syrup and other liquid foods.
Lubricant Industry
Engine oil, lubricating oil, hydraulic oil and automotive fluids.
Chemical Industry
Cleaning chemicals, disinfectants and industrial liquids.
Agrochemical Industry
Pesticides, fertilizers, herbicides and crop-protection liquids.
Frequently Asked Questions
What is a Servo Tracking Filling Machine?
A Servo Tracking Filling Machine is an automatic liquid filler in which the filling nozzles move synchronously with bottles during filling, allowing continuous bottle movement.
What products can a tracking filling machine fill?
It can fill detergent, shampoo, liquid soap, oil, sauce, lotion, disinfectant, chemicals, pesticides and many other liquid or semi-viscous products.
What is the main advantage of tracking filling?
The main advantage is that bottles do not need to stop during filling, helping increase production speed and overall line efficiency.
Is the filling volume adjustable?
Yes. Filling volume and other parameters can normally be adjusted through the PLC touchscreen according to production requirements.
Can it fill viscous products?
Yes. When combined with a servo piston filling system, it is suitable for many viscous and semi-viscous products.
Can it fill foaming liquids?
Yes. Diving filling nozzles and optimized filling-speed control can be used for foaming products such as detergents and liquid soaps.
Can it handle different bottle sizes?
Yes. The machine can be adjusted or customized for different bottle sizes and shapes within its designed operating range.
Can the machine connect with a capping machine?
Yes. It can be connected directly with automatic capping machines, labeling machines, induction sealing machines, printers and packaging equipment.
How many filling heads are available?
The number of filling heads can be customized according to the required production capacity, bottle size, product characteristics and filling volume.
Can you customize a complete filling line?
Yes. A complete automatic production line can be designed according to the bottle, cap, product characteristics, required output and factory layout.
Conclusion
The Servo Tracking Filling Machine is a modern solution for manufacturers seeking faster, more accurate, and more automated liquid filling.
Its servo-controlled tracking technology allows filling nozzles to follow bottles continuously during production, improving efficiency without sacrificing filling stability.
With flexible filling systems, adjustable parameters, multiple nozzle configurations, and easy integration with downstream packaging machines, the Servo Tracking Filling Machine is suitable for a wide variety of industries including detergent, cosmetics, food, edible oil, lubricants, chemicals, and agrochemicals.
For manufacturers planning to upgrade from traditional stop-and-fill equipment to a higher-speed automatic packaging system, a Servo Tracking Filling Machine provides a reliable and scalable solution for modern production.
