Magnetic Pump Filling Machine

The Automatic Magnetic Pump Filling Machine combines high precision, corrosion resistance, and automation to deliver a reliable solution for liquid filling operations. Whether you’re in the chemical, cosmetics, food, or pharmaceutical industry, this machine can help you achieve consistent product quality, reduce waste, and improve production efficiency.

Model:
Magnetic Pump Filling Machine
Brand:
SUNSHINE
Code:
YG1000-Z
Key Components Brand:
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
Filling Volume:
50-5000ml
Production Capacity:
1000-4500 Bottles/Hour
Application:
Edible Oil,Cooking Oil,Sauce,Seasoning Filling
Warranty:
One Year and Life-Long Technical Support
Machine material:
SUS 304/316
After-sales Service:
Engineers Available to Service Overseas


Availability:



Inquire

Product Description

Service & Support

Machine Profile

AUTOMATIC MAGNETIC PUMP FILLING MACHINE LINE VIDEO

FEATURES OF MAGNETIC PUMP FILLING MACHINE

The Automatic Magnetic Pump Filling Machine is a high-precision liquid filling equipment designed for industries that require accurate, clean, and efficient filling of low-viscosity to medium-viscosity liquids. Powered by magnetic drive pumps, this machine ensures precise dosing, zero leakage, and exceptional corrosion resistance, making it ideal for chemicals, cosmetics, pharmaceuticals, beverages, and other specialty liquid products.

Unlike traditional filling systems, a magnetic pump filling machine operates without mechanical seals. The pump is driven magnetically, ensuring leak-proof performance and reducing maintenance costs. Its compact design, combined with advanced automation, enables businesses to increase productivity while maintaining product quality.

Working principle for magenatic pump filling mahcine:

Magnetic Drive – The motor rotates an external magnet, which drives an internal magnet attached to the pump impeller.
Liquid Transfer – As the impeller spins, liquid is drawn in and pushed out with controlled precision.
Filling Accuracy – The pump rotation speed and duration are controlled by a PLC system to ensure exact filling volumes.

This design is especially suitable for corrosive liquids, volatile chemicals, and high-value products where precision and safety are critical.

Edible Oil Filling Machine

Key Features of Automatic Magnetic Pump Filling Machine

High Filling Accuracy	Magnetic pumps deliver consistent and repeatable volumes, with filling accuracy typically within ±0.2-0.3%.
Corrosion Resistance	Contact parts can be made from materials such as PTFE, PVDF, or stainless steel, ensuring durability against acids, alkalis, and solvents.
Leak-Free Operation	Magnetic coupling eliminates shaft seals, preventing leakage and contamination.
Flexible Bottle Compatibility	Quick adjustments allow the machine to handle different bottle shapes and sizes.
User-Friendly Interface	Equipped with a PLC control system and touchscreen for easy parameter setting.
Adjustable Speed & Volume	Operators can customize filling parameters to meet different production requirements.
Low Maintenance	With no mechanical seal wear, maintenance intervals are longer and downtime is reduced.
Compact Design	Space-saving structure suitable for small workshops or large-scale production lines.
Multiple Nozzle Options	Available in 2, 4, 6, 8, or more filling heads to match production capacity.
Automation Ready	Can be integrated with capping, labeling, and packaging machines for a complete filling line.

APPLICATION OF MAGNETIC PUMP FILLING MACHINE

Edible oil

Lubricating oil

Food & Sacue

Personal Care & Daily Chemical

Pesticide & Agro Chemical

TECHNICAL PARAMETERS OF MAGNETIC PUMP FILLING MACHINE

Heads	4 heads	6 heads	8 heads	12 heads	16 heads	20 heads
Production Speed (Bottles/hour)	1L:900-1000 BPH 5L:500-600 BPH	1L:1200-1400 BPH 5L:900-1000 BPH	1L:1600-1800 BPH 5L:1400-1500 BPH	1L:2000-2400 BPH 5L:1800-2000 BPH	1L:3200-3500 BPH	1L:4500-4800 BPH
Machine Dimension (Length x Wide x Height)mm	1800 x 1300 x 2250 mm	1800 x 1300 x 2250 mm	2000 x 1300 x 2250 mm	2400 x 1300 x 2250 mm	2600 x 1500 x 2250 mm	2800 x 1500 x 2250 mm
Suitable Bottles	Round Bottles,Falt Bottles,Square Bottles(Can be customized)
Filling Accuracy	≤±0.1%
Filling Volume	100-5000ml(Can be customized)
Power Supply	220 / 380 / 415V ; 50 / 60HZ (Can be customized)
Air Supply	0.6-0.8Mpa clean air

DETAILS PICTURES OF MAGNETIC PUMP FILLING MACHINE

Easy Adjustment

1.Magnetic pump filling machines are designed for quick and easy bottle changeover. Operators can adjust filling volume, nozzle height, and conveyor guides without complex tools, allowing the machine to handle different bottle shapes and sizes in minutes.
2.This flexibility improves production efficiency and reduces downtime, making it ideal for multi-product or small-batch manufacturing.

Servo Motor Control Magnetic Pump

1.Servo motors offer precise control over pump rotation, ensuring consistent and repeatable filling volumes.
2.Servo-driven systems provide steady torque and smooth motion, reducing splashing and foaming during filling.
3.Filling parameters can be easily adjusted through the control system to match different liquid types and container sizes.
4.Quick and easy changeover between products with different viscosities or filling requirements.

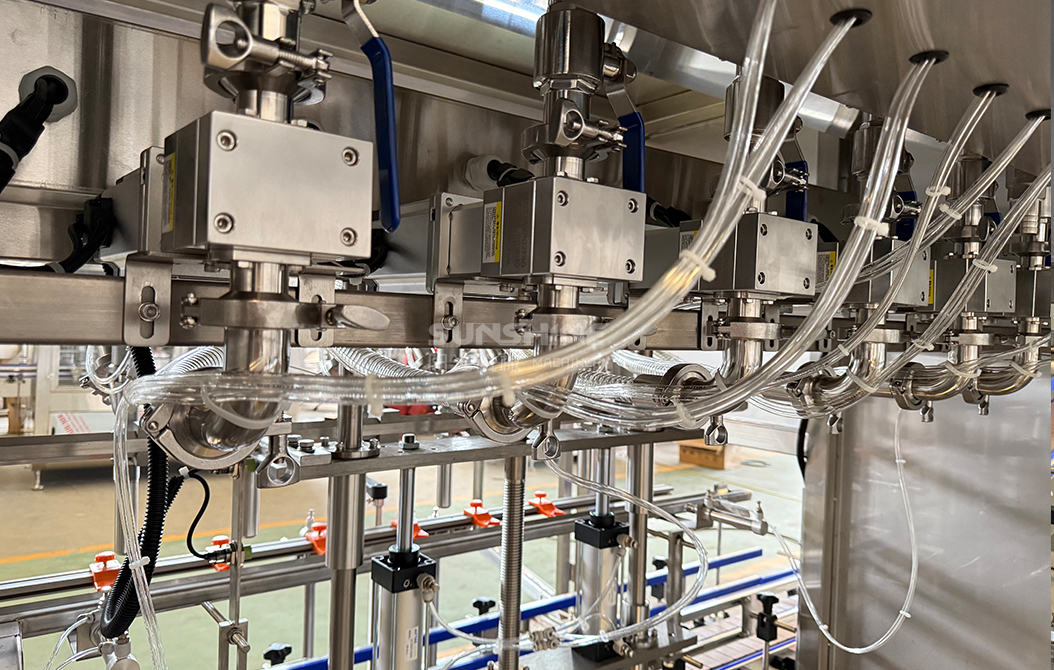

Servo Motor Diving Filling Nozzles

1.The filling nozzle can be lifted and lowered by a servo motor to reduce the amount of foaming during filling. It is suitable for filling liquids that are prone to foaming.
2.The filling nozzle is equipped with an internal plug, which is completely sealed after filling to prevent dripping.
3.The filling nozzle is customised in length and diameter according to different bottle types.

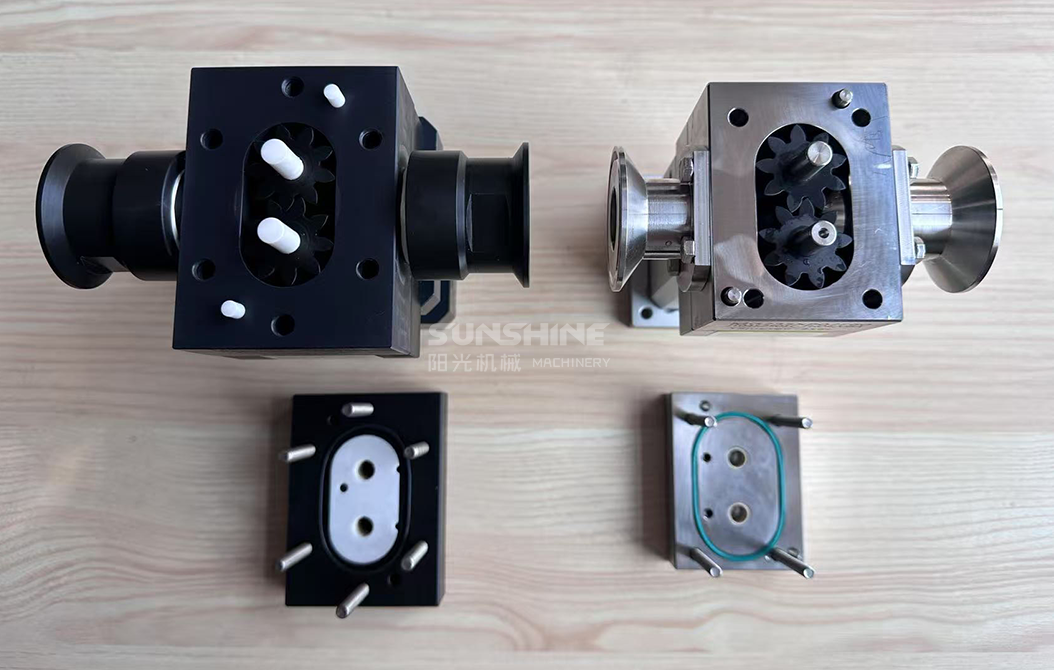

Stainless Steel And Corrosion-resistant magnetic Pump

1.Corrosion-resistant magnetic pumps are widely used in filling lines for aggressive and chemically reactive liquids such as acids, alkalis, solvents, and other corrosive solutions.
The wetted parts are made from high-grade corrosion-resistant materials such as PTFE, PVDF, or stainless steel, extending service life even under harsh conditions.

OPTIONAL CONFIGURATIONS FOR MAGNETIC PUMP FILLING MACHINE

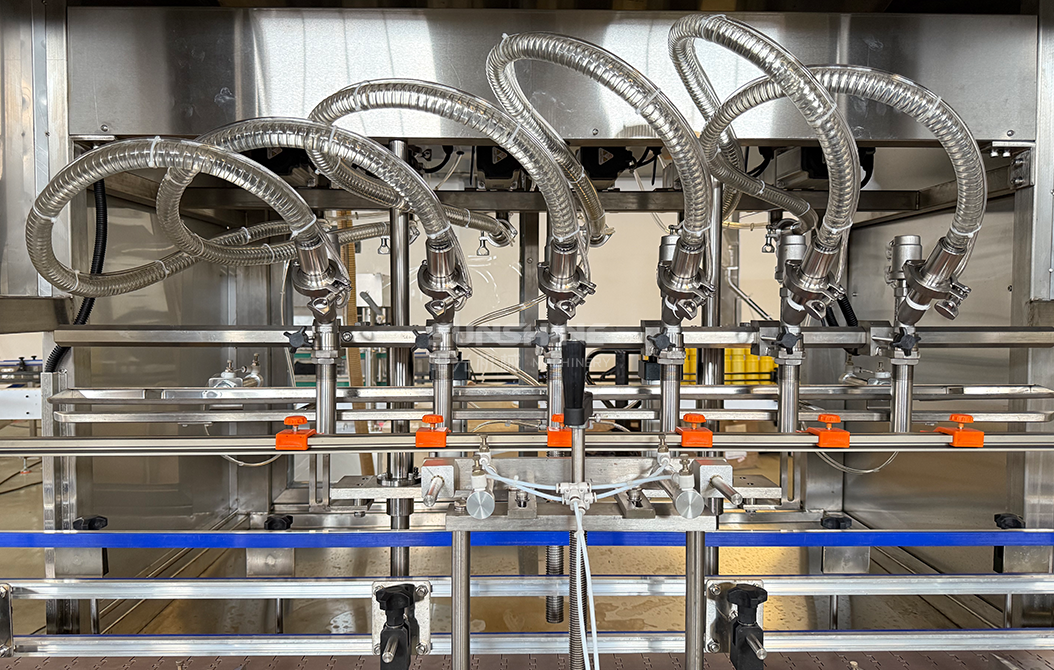

FDA Certified Food Grade Filling Pipe

Our Edible Oil Filling Machine can used FDA certified food grade filling pipe.
All filling tubes are quick-connect, easy to disassemble and clean.No residue when filling various edible oils, sauces and other liquids.

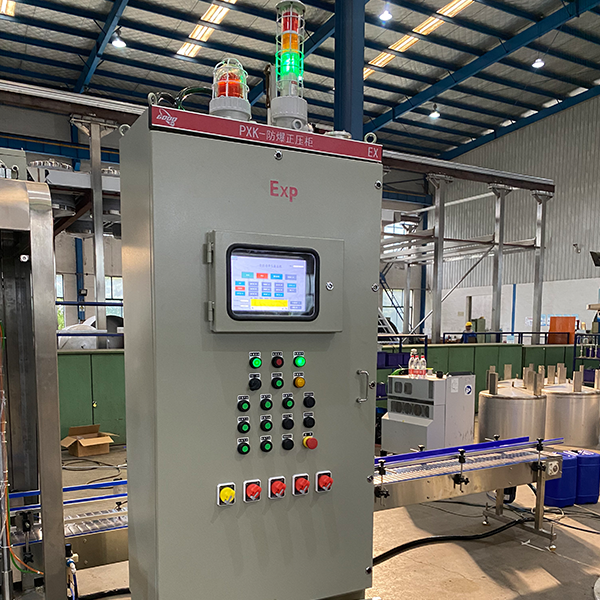

Explosion-Proof Electrical Control Cabinet

All electrical components are explosion-proof, such as explosion-proof photoelectricity, explosion-proof sensors and so on. At the same time, there is a positive pressure electrical explosion-proof cabinet, all the buttons, switches, touch screen, alarms, etc. to meet the explosion-proof requirements.

CIP Material Tank

The top of the edble oil filling machine can be replaced with a CIP storage tank, which can be equipped with heating, stirring, high and low liquid level display, CIP interface and other functions

RELATE MACHINES OF MAGNETIC PUMP FILLING MACHINE

Here are some machines we can working together with magnetic pump filling machine.All the equipment can be connected and used together to complete the entire line production of various bottle types.

Unscrambler

Bottle Capping System

Inline Capping Machine

Automatic Bottle Filling And Capping Machine

Double Side Bottle Labeling Machine

Round Bottle Labeling Machine

Carton Packing Machine

Automatic Palletizer Machine

WHY CHOOSE SUNSHINE MACHINE

5000 +

FIELD
30 +

EMPLOYEES
50 +

COUNTRY

ONE-STOP AFTERSALES SERVICE

FAQ

What is a magnetic pump filling machine?

A magnetic pump filling machine is a liquid filling system that uses corrosion-resistant magnetic pumps to accurately fill small to medium volumes of liquids, especially chemical, pharmaceutical, cosmetic, and food-grade products.
What types of liquids can it fill?

It is suitable for low-viscosity to medium-viscosity liquids, such as perfumes, essential oils, pharmaceutical syrups, solvents, detergents, and corrosive liquids like acids or alkalis.
What are the advantages of a magnetic pump over other filling methods?

1.High precision filling (±0.5% or better)
2.Excellent resistance to corrosion and chemical damage
3.Compact design with easy cleaning and maintenance
4.No contamination, as liquid only contacts the pump and tubing
What container sizes can it handle?

The machine is flexible and can fill small bottles from 5ml up to larger containers of several liters, depending on pump size and configuration.
Is the filling volume adjustable?

Yes, the filling volume, filling speed, and filling time can be easily set through the PLC or control panel. Recipes can also be stored for quick changeovers.
How easy is it to clean the machine?

Cleaning is simple: only the tubing and pump chamber that come into contact with the liquid need rinsing or flushing. Quick-change tubing makes maintenance fast.
What industries use magnetic pump filling machines?

They are widely used in pharmaceuticals, cosmetics, food & beverage, household chemicals, and laboratory applications due to their accuracy and chemical resistance.
