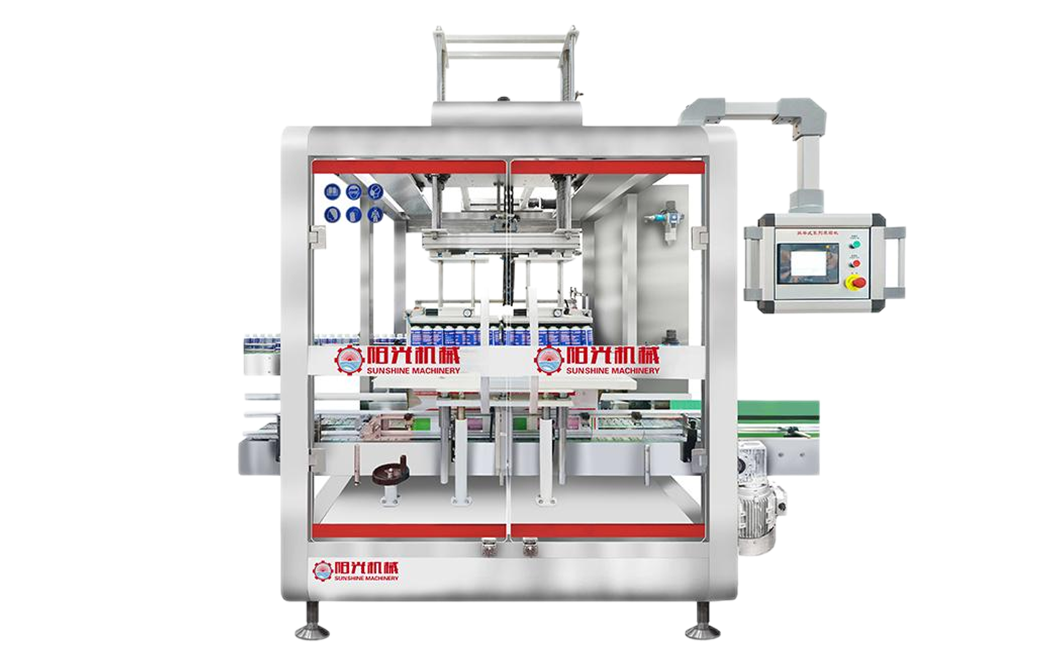

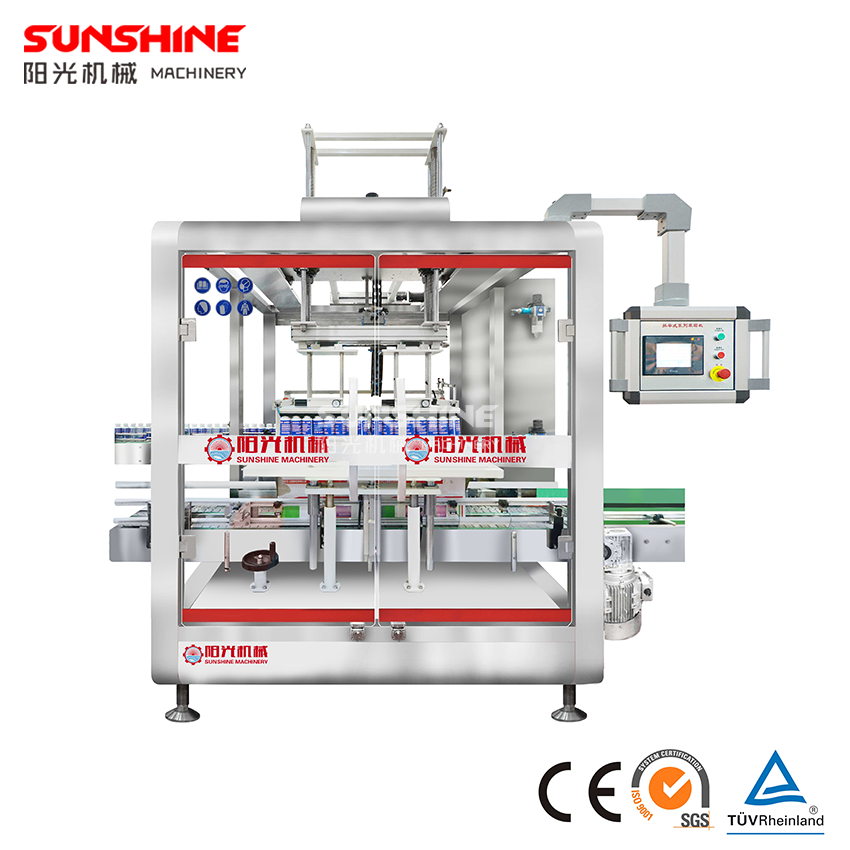

Carton Packing Machine

AUTOMATIC CARTON PACKING MACHINE VIDEOS

FEATURES OF CARTON PACKING MACHINE

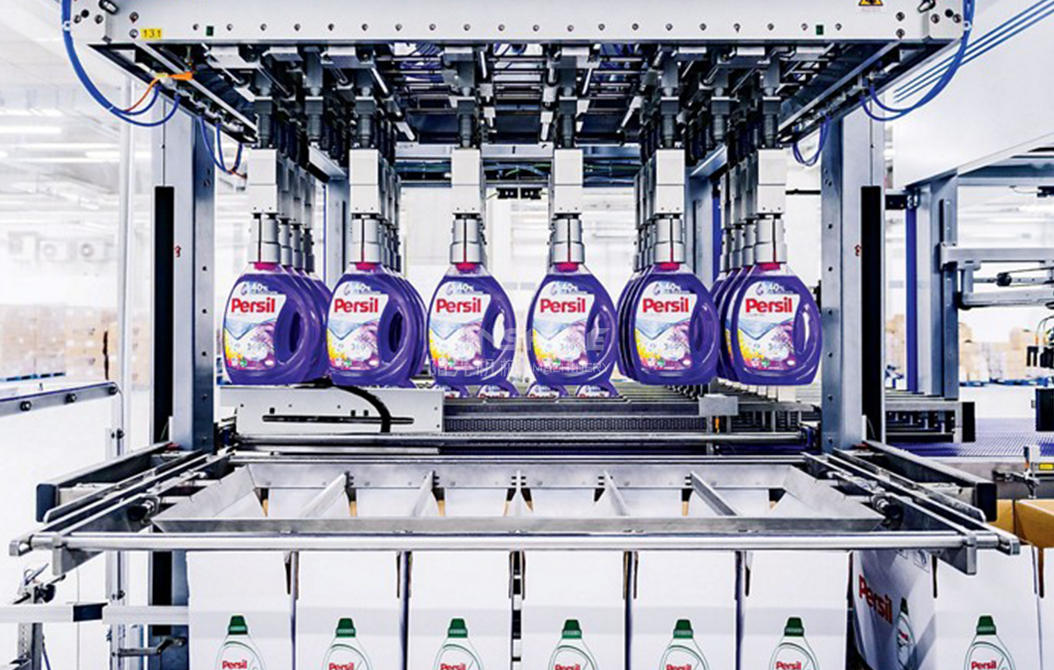

The automatic grabbing cartoning machine can automatically shape and arrange the packaging (PET bottles, glass bottles, paper cans, cans, etc.), and cooperate with the automatic carton opener to load the grabbed materials into the opened carton and cooperate with it.

Simple Operation：
1.It is a computer program, with a simple operation and stable performance. It is with convenient operation, simple design, reducing quantity, and intensity of labor is a piece of indispensable equipment for an automatic production line.

Convenient Adjustment：

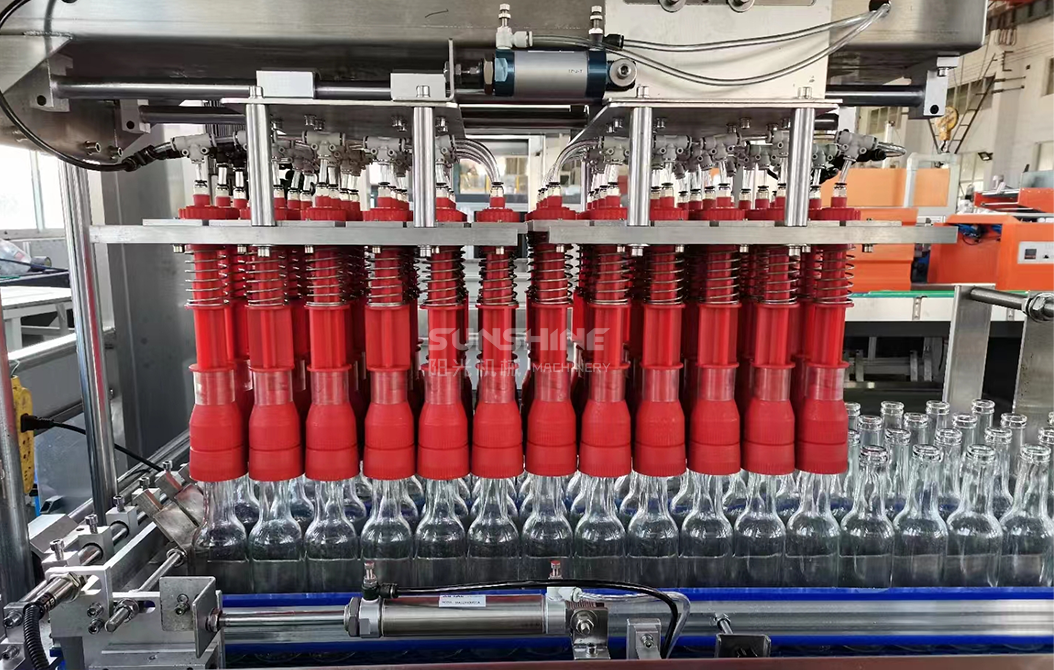

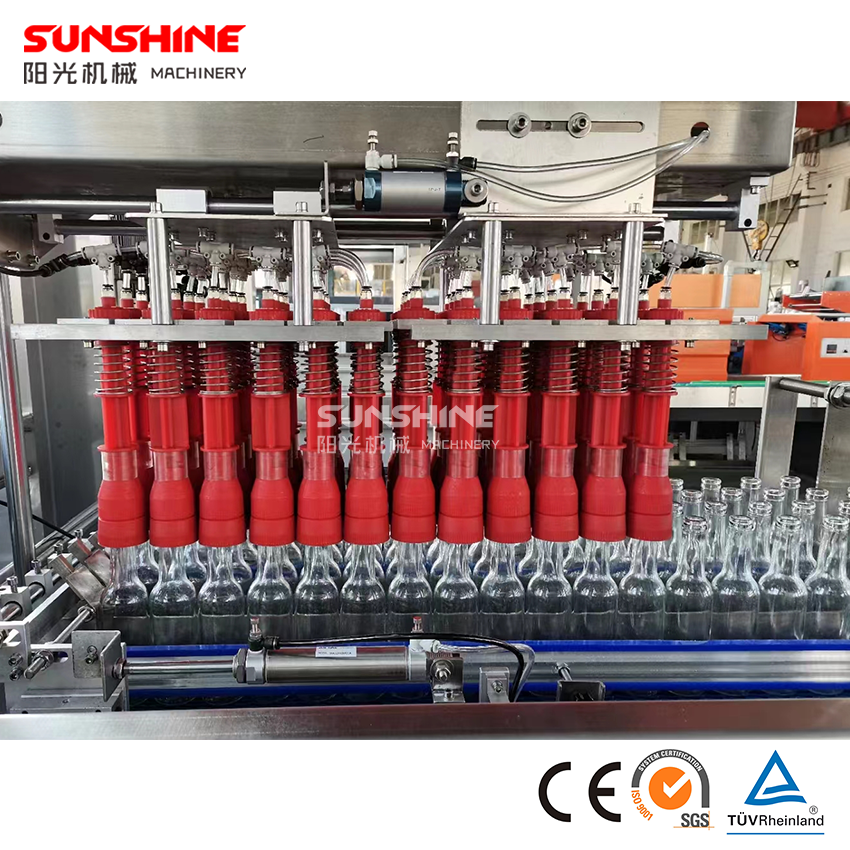

1.According to different bottle shape, bottle grasper is specially designed, airbag style grasper head，no injury to bottles, nobottle falling and low air consumption.
2.Bottler grasping is driven by up-down and side moving servo motors, that means there is designed height difference for bottle grasping area and box filling part for different bottles.
3.Driven by the asynchronous motor, according to different request, use inverter and contactor to control, will apply auto bottle supply, auto bottle arranging, auto carton supply, and auto box out.

Brand Electrical Appliances：

1.All electrical components are international brands, long service life, good quality, can be purchased in the local market accessories
2.Step driving motor to adjust lifting and side moving speed, to achieve grasping and dropping at low speed and moving at middle speed, the speed adjustment to make sure the higher efficiency as well stable performance

Customised services：

Capping machines can be customised according to different production requirements of customers.
1.In order to accommodate a wide range of different types of caps, our capping machines can be equipped with a variety of different cap feeders,Rotary cap sorting machines, Vibratory plate cap sorting machines.

2.If there is a requirement for explosion-proof category, we can use explosion-proof grade electrical components for our motors, photoelectrics, electrical components, etc. We have installed explosion-proof electrical cabinets and explosion-proof buttons to ensure safety.

APPLICATION OF CARTON PACKING MACHINE

Edible oil

Lubricating oil

Food & Sacue

Personal Care & Daily Chemical

Pesticide & Agro Chemical

TECHNICAL PARAMATERS OF CARTON PACKING  MACHINE

DETIALS PICTURES OF CARTON PACKING MACHINE

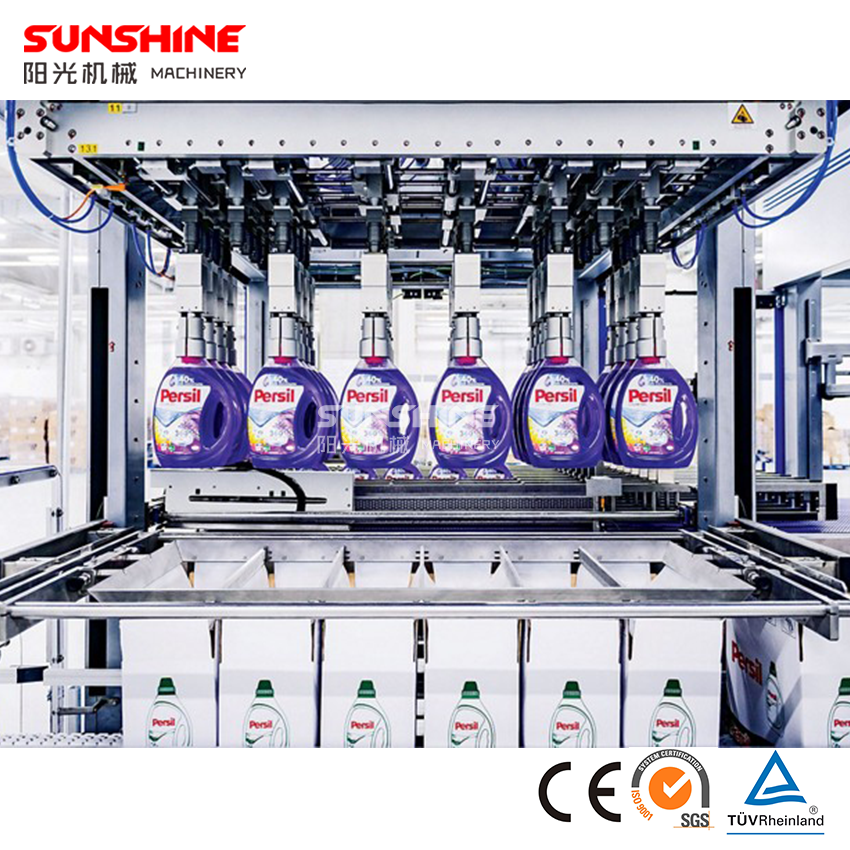

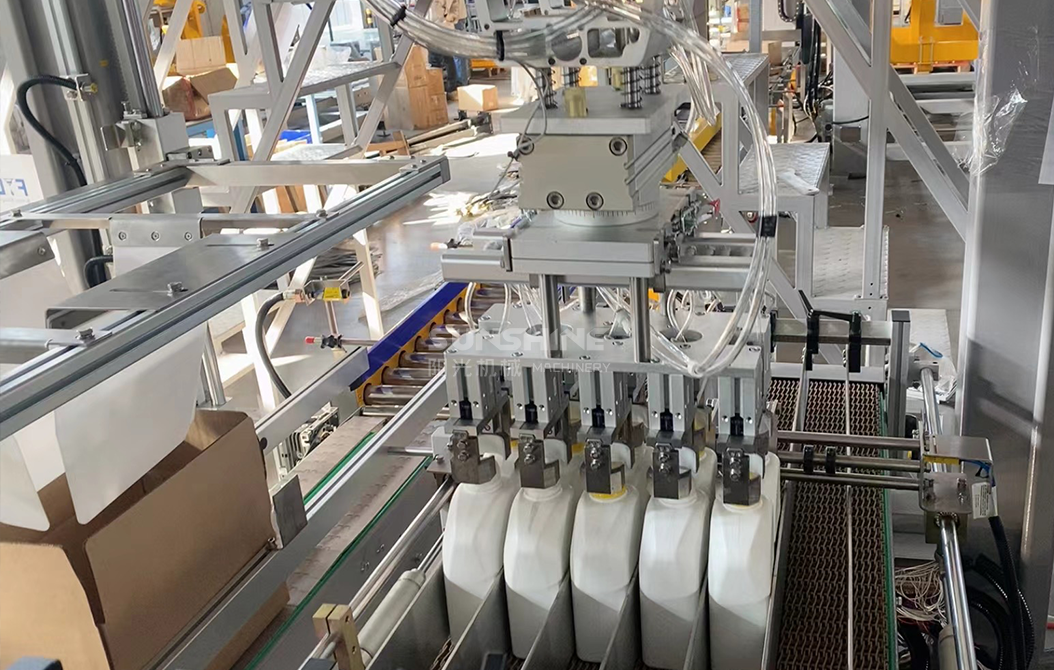

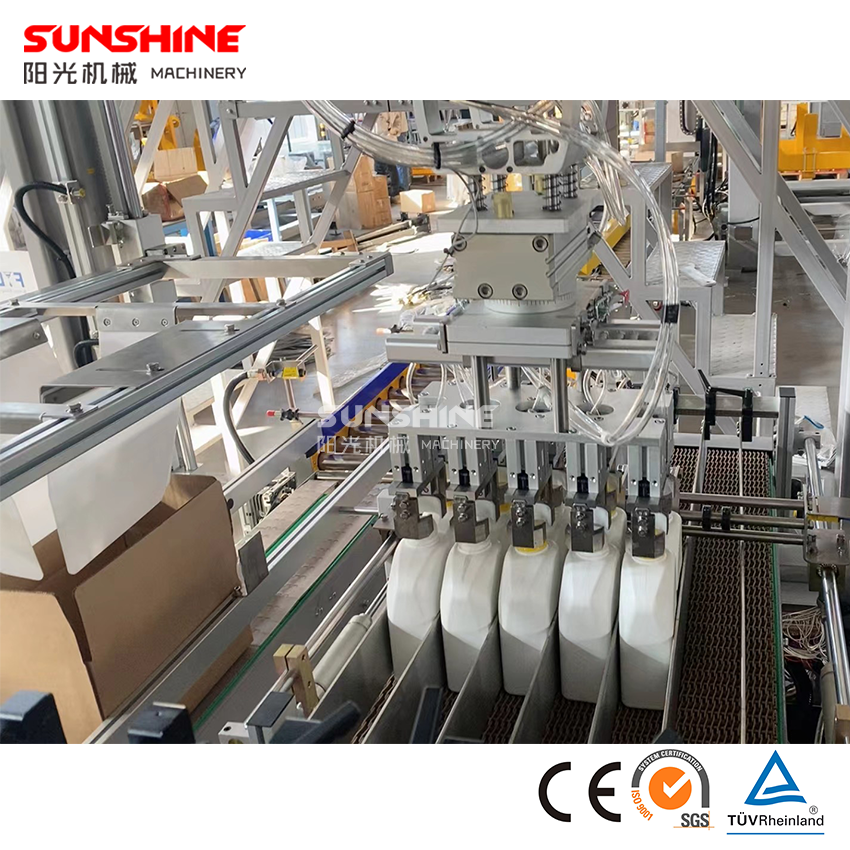

Grasping operation

1.It is equipped with manual operation and automatic operation. With the advantages of Operational safety, small site coverage, and Large operating space. With a variety of protection functions, in case of failure in a timely manner.
2.If the bottle is not full on the incoming belt and bottle transportation platform, the bottle will automatically stop to wait; The machine will automatically shut down when the scratched bottle and cartons are misplaced.

Stable Running

1.The entire packing process is driven by the variable frequency motor to drive different mechanical mechanisms independently to rise, translate, and lower the product, and it is combined with pneumatic, electrical, and light control to achieve automation. Coordinated movements, smooth and accurate movement.
2.Into the box operation with manual into the box, automatic box, and continuous fast into the box and so on.

Simple Adjustment

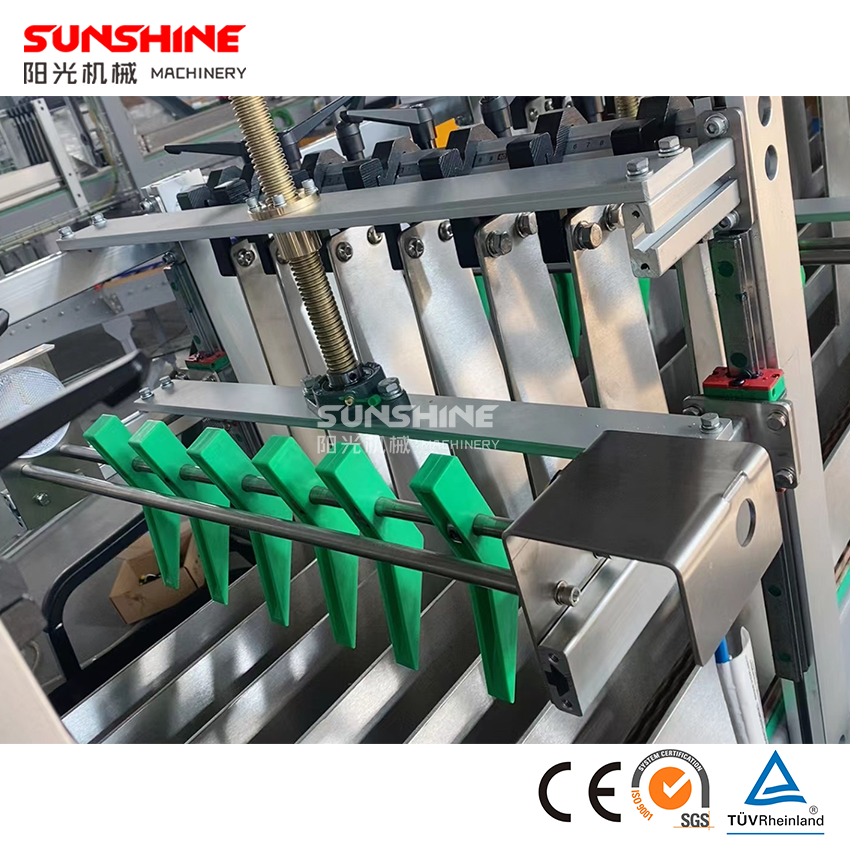

1.The conveyor width can be easily adjusted to accommodate different sizes of bottles, which is suitable for the production work of many different sizes of bottles.
2.Replaceable moulds for claw head, modular replacement of claw head for switching between different bottle types

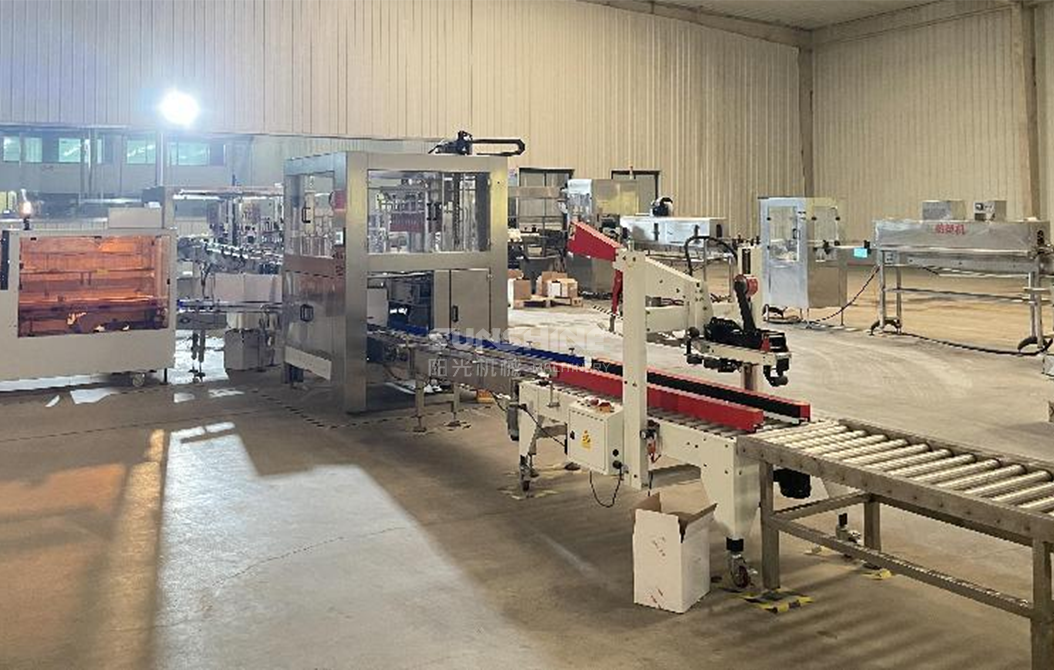

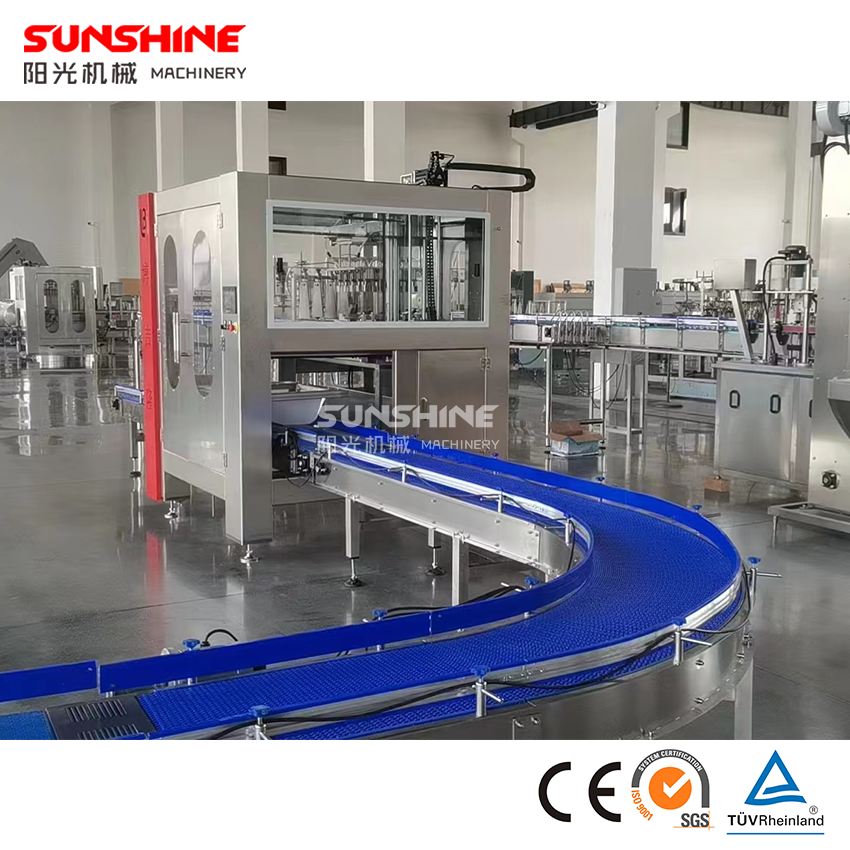

Carton Packing Machine Line

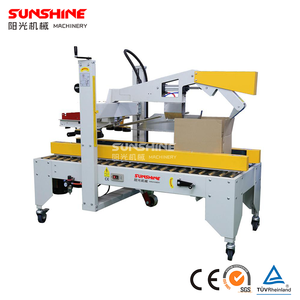

1.Can be combined with case openers, sealers, strapping machines and conveyors to form a complete production line.
