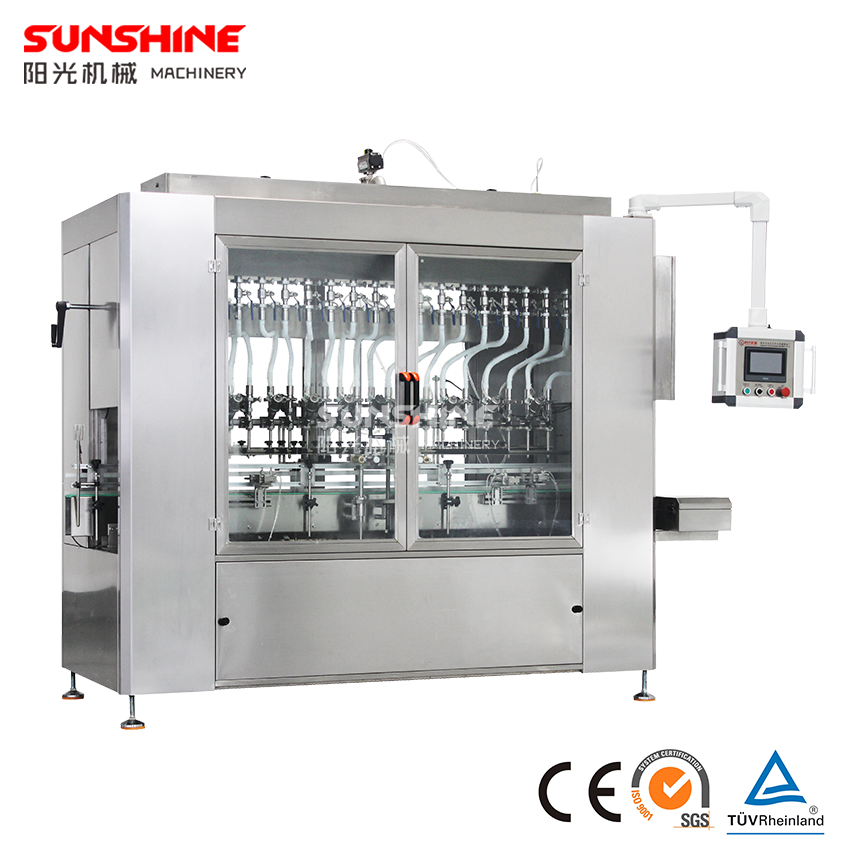

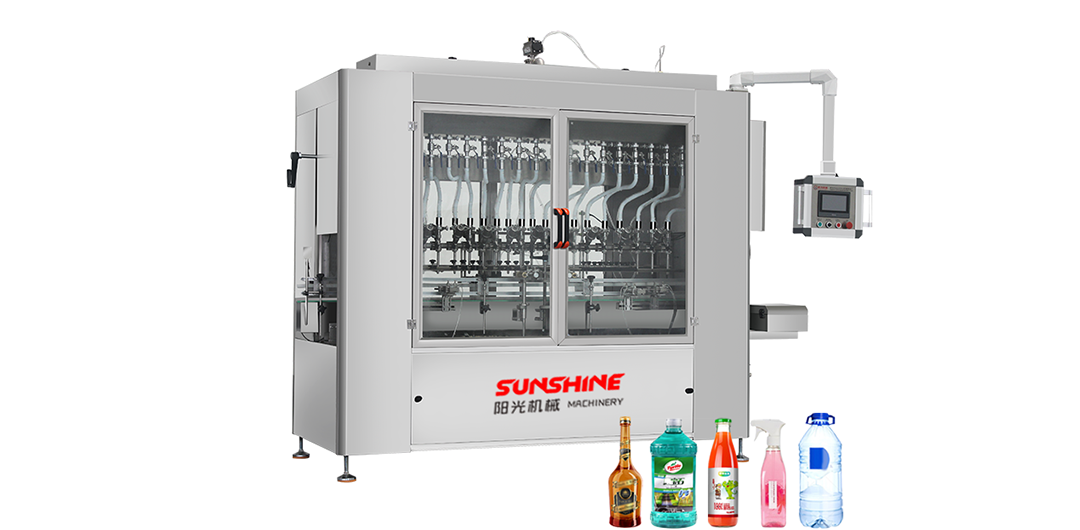

Gravity Liquid Filling Machine

AUTOMATIC GRAVIRY LIQUID FILLING MACHINE VIDEO

FEATURES OF AUTOMATIC GRAVIRY LIQUID FILLING MACHINE

Full-automatic gravity liquid filling machine, with high degree of automation and accurate filling metering, is suitable for plastic bottles, glass bottles and some geometrical shapes of bottles, and quantitatively fills including wine, beverages, condiments and some non-gas-containing liquids.

Advantages of Automatic Gravity Liquid Filling Machine:

1.Filling valve adopts ESG high quality valve, filling without residue.

2.The filling nozzle adopts anti-drip design with high filling precision.

3.The whole machine adopts international brands of electrical components and pneumatic components, such as Siemens, Mitsubishi, Delta and other

Unique Design for Automatic Gravity Liquid Filling Machine:

There is an electronic scale set up, which is connected with PLC, and the filling machine can automatically complete the calibration of filling accuracy with one key by placing the filled bottles on the electronic scale directly. Quick and easy adjustment.

Explosion-proof grade filling requirements:

For the production environment has special requirements for the production situation, we can make the whole machine into explosion-proof grade, all the electrical components are used in explosion-proof electrical appliances, and put in positive pressure electrical explosion-proof cabinets, which greatly increase the safety of the machinery.

Automatic Gravity Liquid Filling Machine is active in all kinds of food, chemical, flammable and explosive liquid industries because of its strong versatility and flexibility in applying to different shapes and sizes of containers.

APPLICATION AUTOMATIC GRAVITY LIQUID FILLING MACHINE

Edible oil

Lubricating oil

Food & Sacue

Personal Care & Daily Chemical

Pesticide & Agro Chemical

TECHNICAL PARAMMETERS AUTOMATIC GRAVITY LIQUID FILLING MACHINE

DETIALS PICTURES OF GRAVITY LIQUID FILLING MACHINE

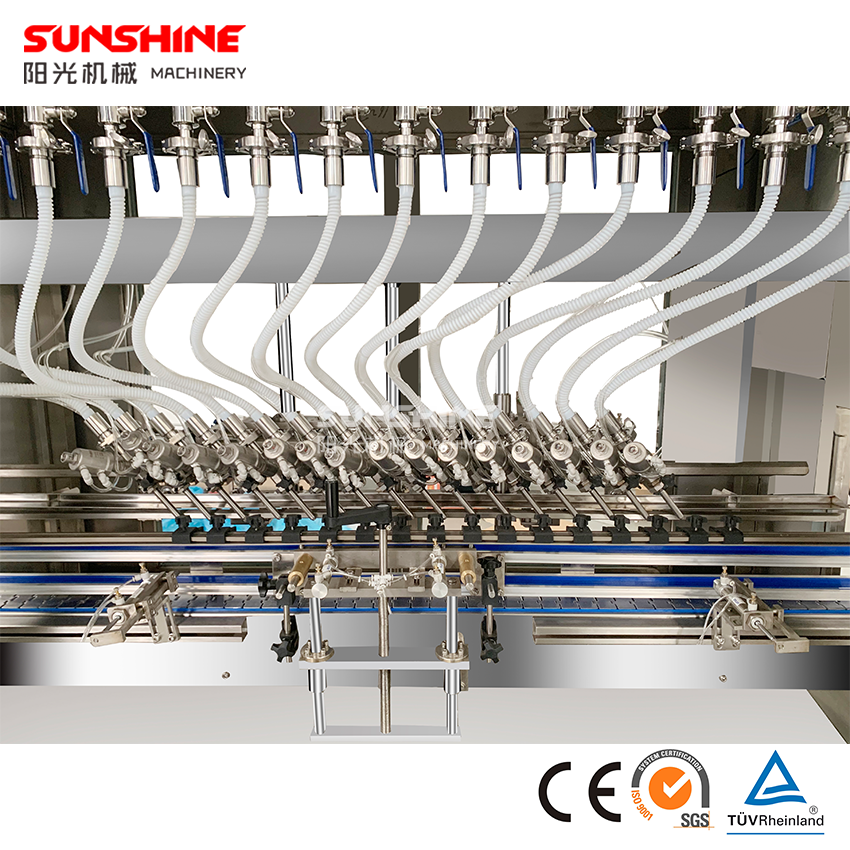

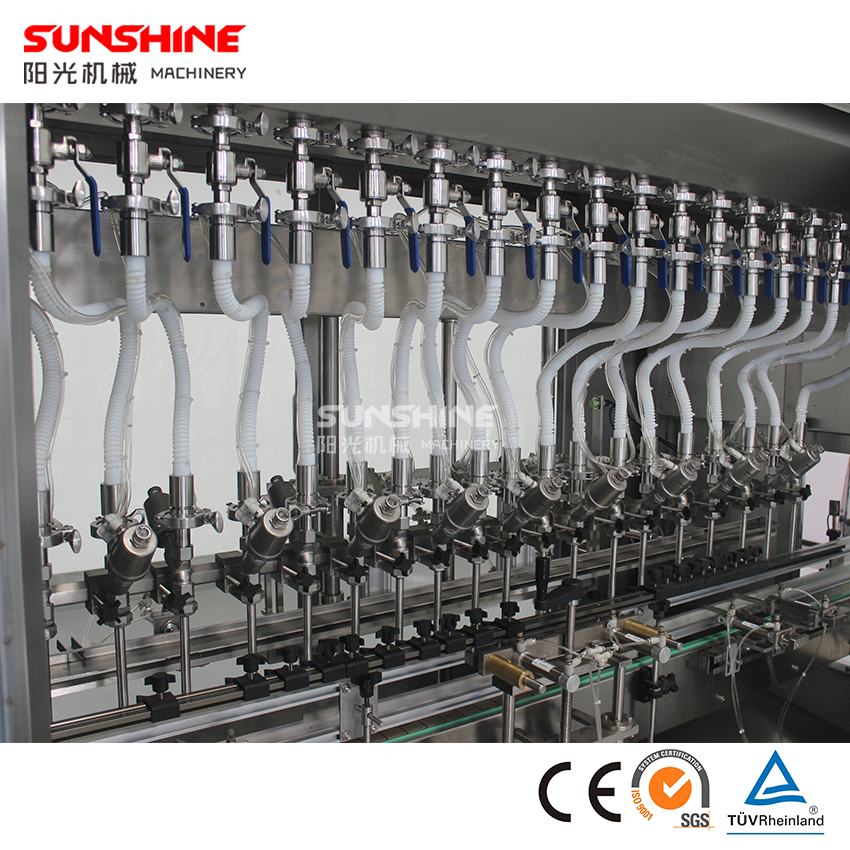

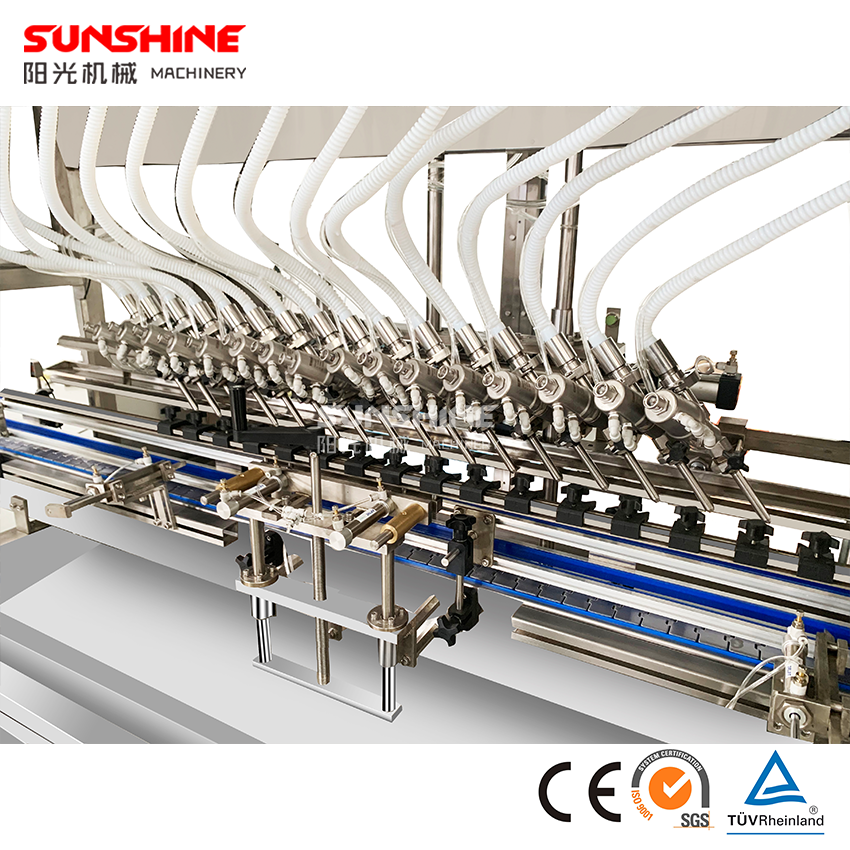

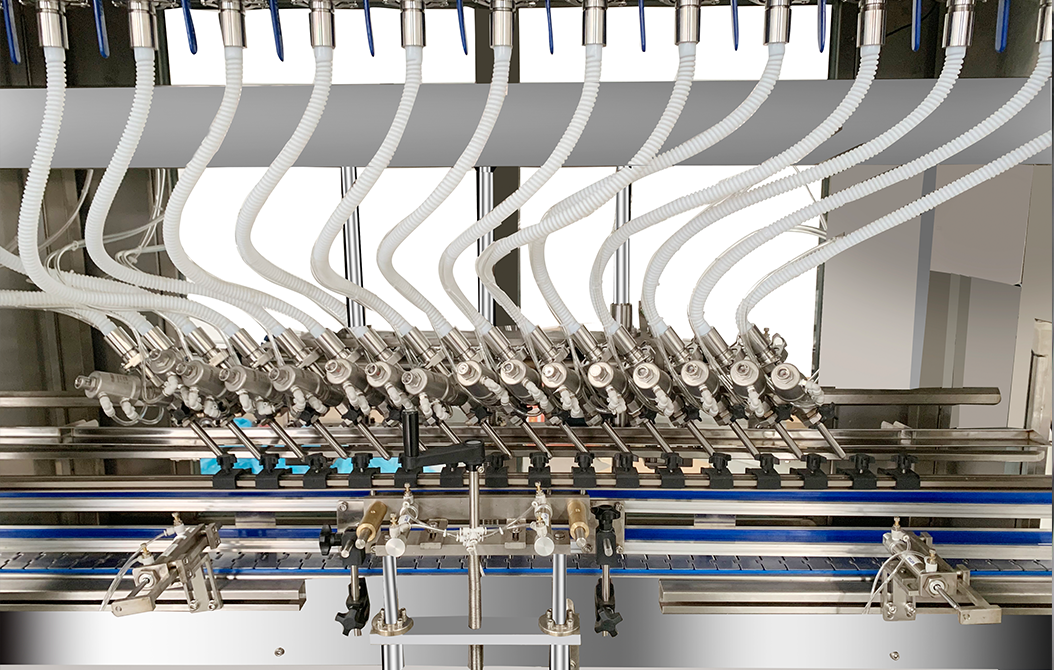

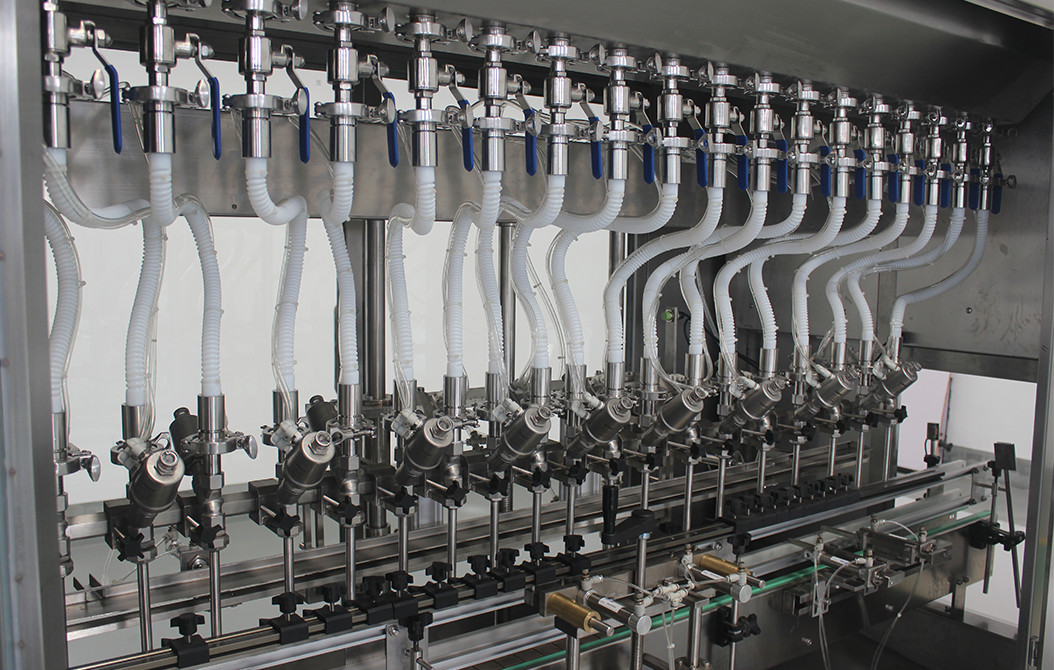

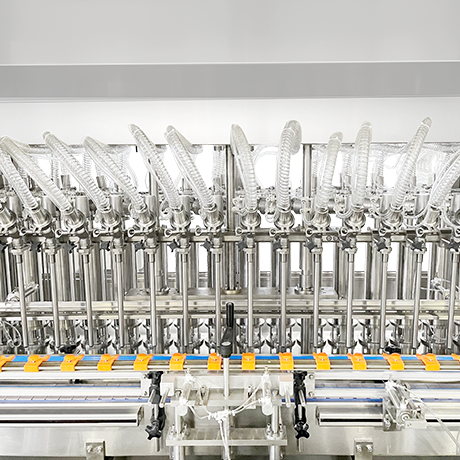

Filling Nozzles

1.The filling nozzels diameter of the edible oil filling machine can be customized accoridng to the size of the bottle mouth.
2.The filling nozzle is installed on the ground floor to prevent the bottle from being contaminated during filling.
3.The filling nozzle can be lifted and lowered by a servo motor to reduce the amount of foaming during filling. It is suitable for filling liquids that are prone to foaming.

Filling Nozzles For Duck Neck

1.For bottles with crooked spouts, special crooked filling spouts can be customised with adjustable angles for different bottle shapes.

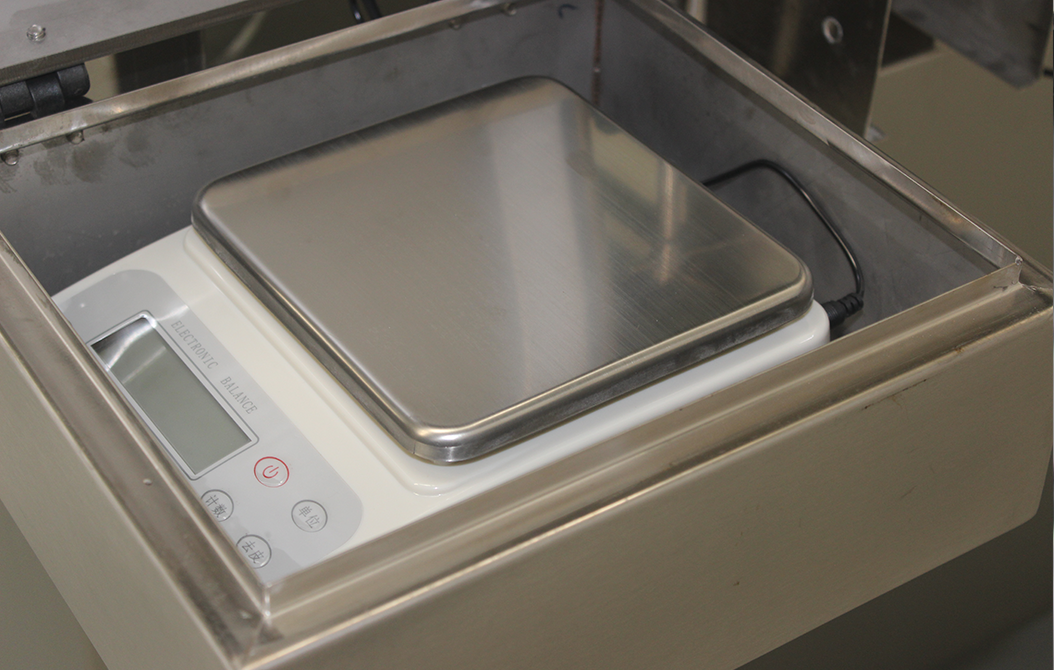

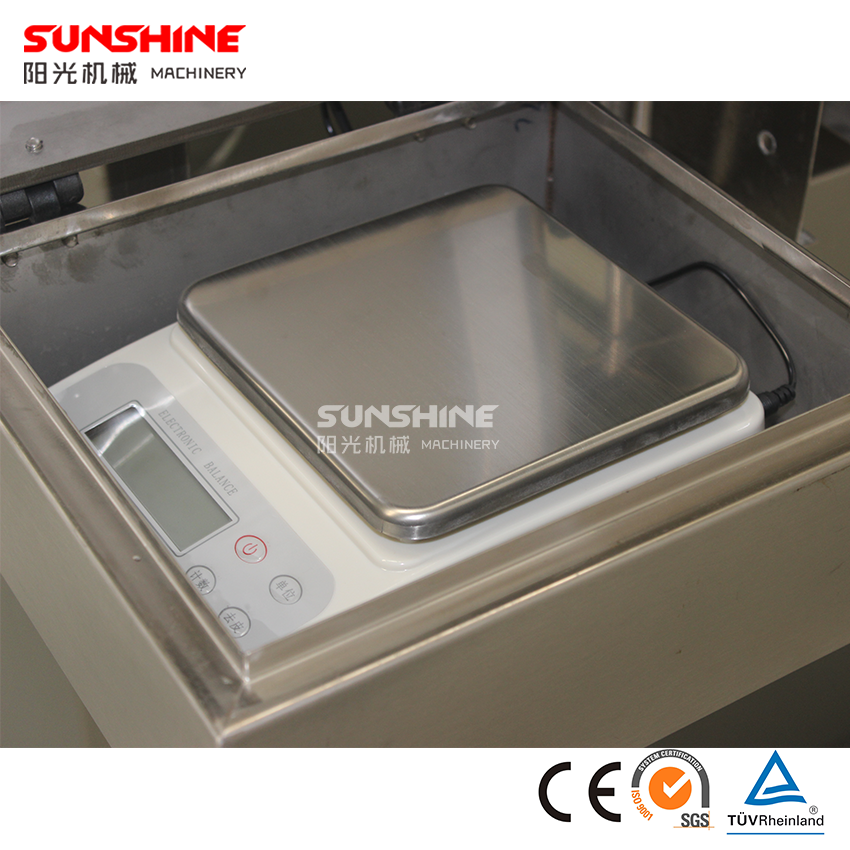

Measuring Cup Calibration

1.Gvavity Filling machine with electronic scales, electronic scales and PLC connection
2.Place the filled bottle on the electronic scale, you can calibrate the filling accuracy with one key in the touch screen, easy to adjust and simple to use.

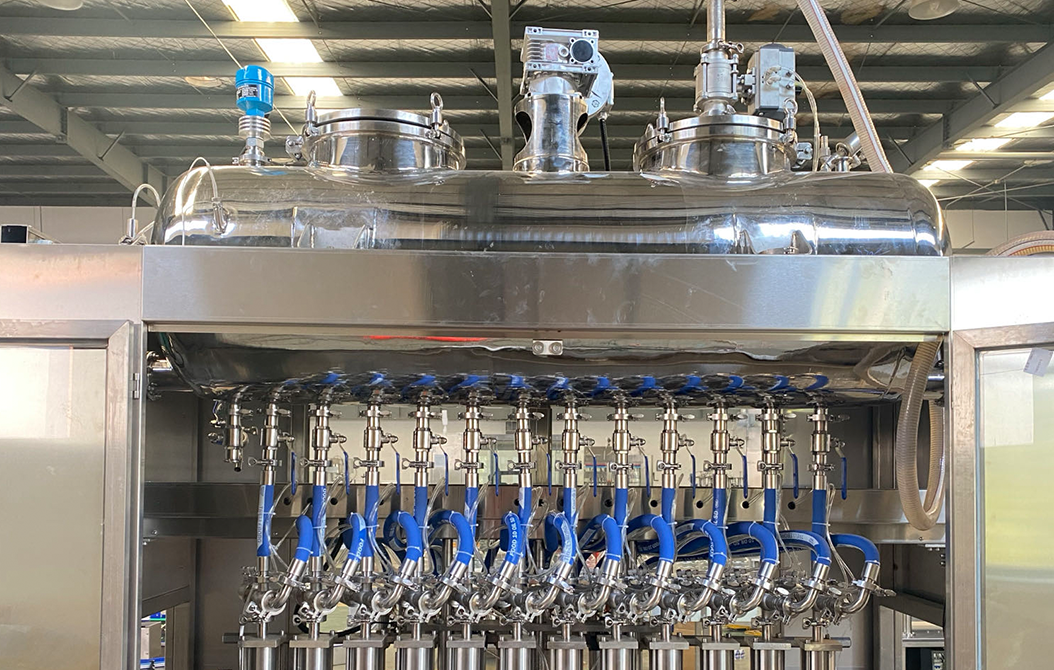

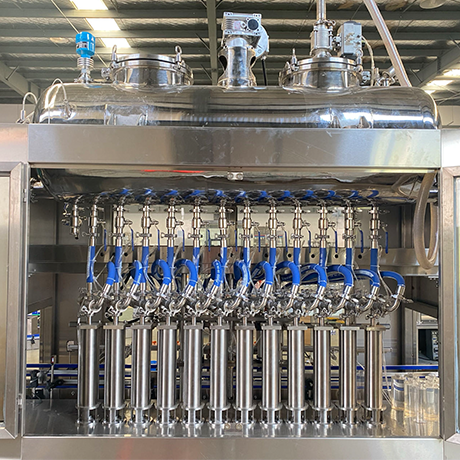

 CIP Material Tank

1.Gravity filling machine can be equipped with CIP tank,The internal pipelines of the filling machine can be perfectly cleaned with CIP cleaning fluid, from the material box to the piston cylinder to the filling nozzle, with no dead angles.
2.The material box can be equipped with heating, stirring, high and low level gauges and other functions, suitable for a variety of different liquids filling.

OPTIONAL MACHINE CONFIGURATIONS FOR GRAVITY LIQUID FILLING MACHINE

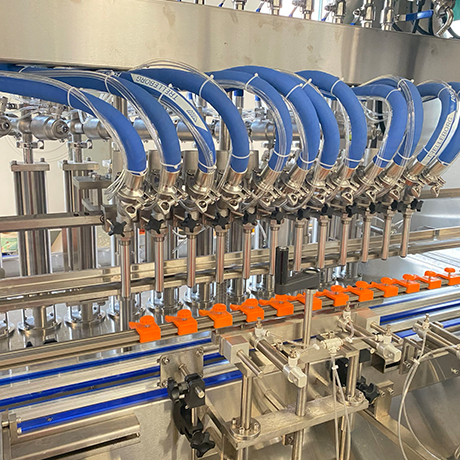

FDA Certified Food Grade Filling Pipe

Our Edible Oil Filling Machine can used FDA certified food grade filling pipe.
All filling tubes are quick-connect, easy to disassemble and clean.No residue when filling various edible oils, sauces and other liquids.

Servo Motor Diving Nozzle

Servo motor can be used to raise and lower the edible oil filling machine nozzles, which can rise while filling, so that the liquid is always under the filling nozzle to reduce the generation of bubbles.

CIP Material Tank

The top of the edble oil filling machine can be replaced with a CIP storage tank, which can be equipped with heating, stirring, high and low liquid level display, CIP interface and other functions

RELATE MACHINES OF GRAVITY LIQUID FILLING MACHINE

Here are some machines we can working together with Edible oil filling machine.All the equipment can be connected and used together to complete the entire line production of various bottle types.

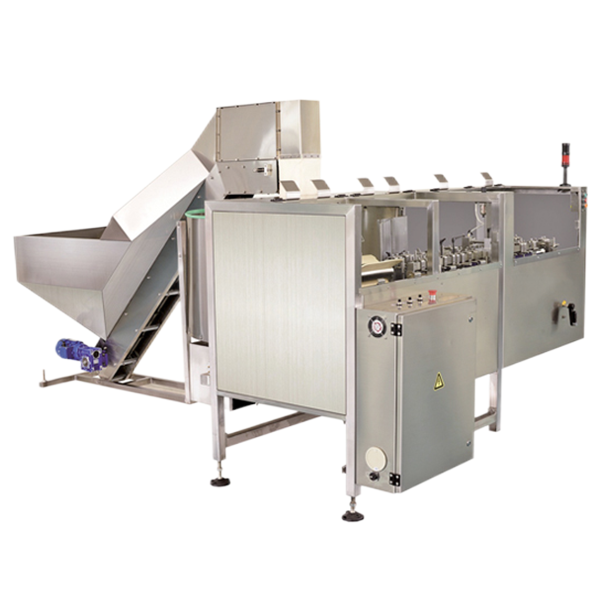

Unscrambler

Bottle Capping System

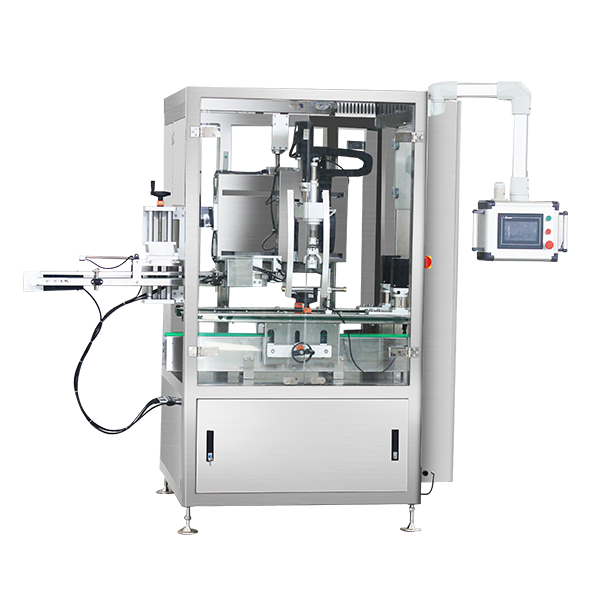

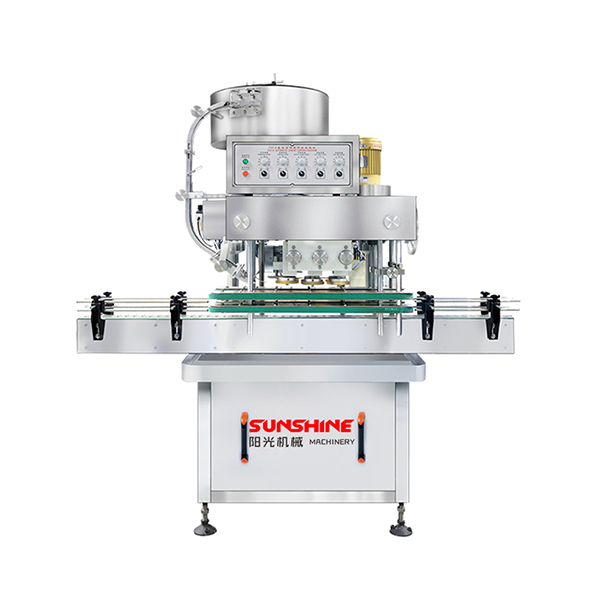

Inline Capping Machine

  Automatic Bottle Filling And Capping Machine

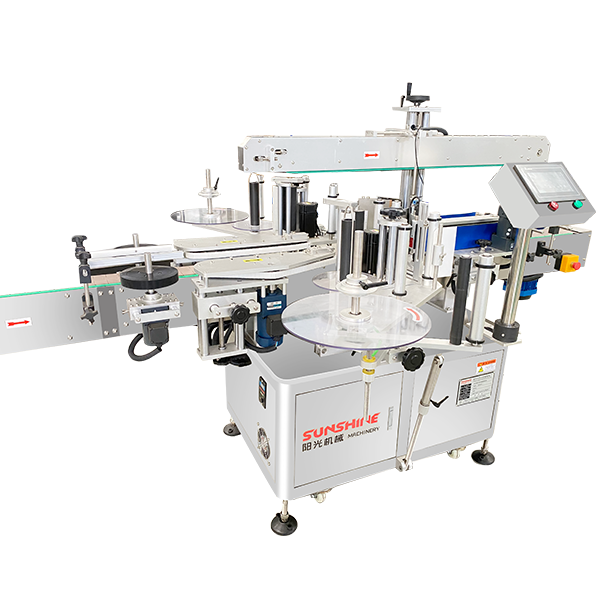

Double Side Bottle Labeling Machine

Round Bottle Labeling Machine

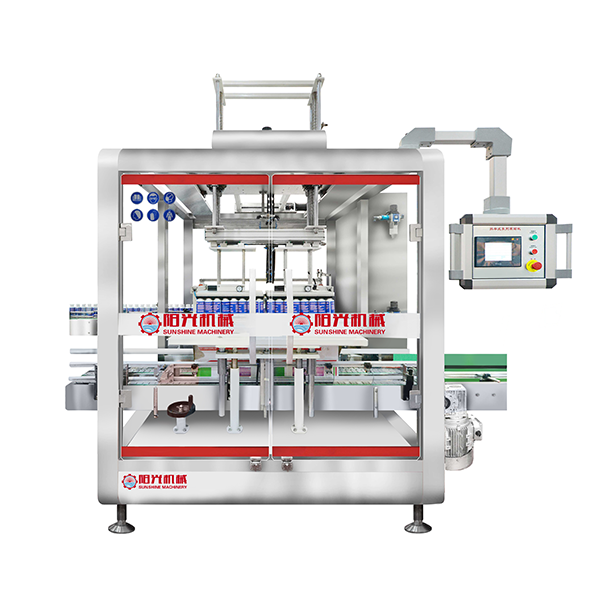

Carton Packing Machine
