Shampoo Filling Machine

AUTOMATIC SHAMPOO FILLING MACHINE LINE VIDEO

SHAMPOO FILLING MACHINE INTRODUCTION

The Shampoo Piston Filling Machine is a high-performance, precision-based filling machine designed for packaging liquid products, particularly shampoos, conditioners, and other viscous liquids. This type of machine operates using a piston mechanism to fill bottles with the desired amount of product accurately and efficiently. It is highly suitable for industries such as cosmetics, personal care, pharmaceuticals, and food.

Working Principle

The Shampoo Filling Machine operates on the piston filling principle, which is ideal for handling both thin and thick liquids, including products with high viscosity like shampoos and body wash. Here's how the machine works:

1. Liquid Reservoir: The liquid to be filled is stored in a reservoir or tank. The liquid can be supplied either from an external source or through a connected pipeline.

2. Piston Mechanism: The core of the machine is the piston. The piston pulls liquid into the filling chamber when it retracts. This ensures a controlled and exact amount of liquid is measured.

3. Filling Cycle:Once the piston chamber is filled, the piston pushes the liquid into the bottles via a nozzle.The piston continues to move forward, delivering a precise, consistent volume of liquid for each filling cycle.

4. Bottle Placement: The bottles are placed under the nozzle and are either manually or automatically moved into position, depending on the machine's configuration.

5. Repeat Cycle: After each filling cycle, the piston resets, drawing in another precise amount of liquid, and the process continues in a seamless and automated loop.

This cycle ensures that every bottle is filled with an identical volume of liquid, ensuring consistency and accuracy throughout production.

Advantages of the Shampoo Filling Machine

1. High Precision and Accuracy:

   The piston mechanism offers precise control over the liquid amount being filled, ensuring each bottle receives exactly the same volume. This reduces product wastage and prevents overfilling or underfilling.

2. Versatility for Viscous Liquids:

   Unlike other filling machines, piston fillers can handle high-viscosity liquids such as shampoos, conditioners, lotions, and other thick liquids. The piston mechanism can easily draw and fill viscous products without clogging or dripping.

3. High-Speed Operation:

   The machine is capable of high-speed filling, making it suitable for large-scale production. The automated filling process significantly increases throughput and reduces labor costs.

4. Flexibility in Volume Adjustment:

   The filling volume can be easily adjusted according to the requirements of different bottle sizes or product formulations. This flexibility makes the machine ideal for diverse product ranges.

5. Automatic Operation:

   Most piston filling machines are fully automated, with integrated control panels for easy operation. This reduces the need for manual labor and minimizes human error, allowing for a smoother production process.

6. Low Maintenance and Durability:

   Piston filling machines are made of durable materials like stainless steel, which makes them resistant to corrosion and wear. The design is simple, reducing the likelihood of malfunction and making maintenance easy and cost-effective.

7. Reduced Product Loss:

   The precise control mechanism ensures minimal spillage or leakage during the filling process. It is particularly beneficial for expensive or high-value liquids, ensuring minimal waste.

8. Hygienic Design:

   The design of the machine ensures that it is easy to clean and maintain, which is crucial for industries such as cosmetics and food. Parts that come into contact with the product are designed for quick and thorough cleaning, ensuring compliance with hygiene standards.

TECHNICAL PARAMETERS OF SHAMPOO FILLING MACHINE

DETAILS PICTURES OF SHAMPOO FILLING MACHINE

Filling Nozzles

1.The filling nozzels diameter of the edible oil filling machine can be customized accoridng to the size of the bottle mouth.
2.The filling nozzle is installed on the ground floor to prevent the bottle from being contaminated during filling.
3.The filling nozzle can be lifted and lowered by a servo motor to reduce the amount of foaming during filling. It is suitable for filling liquids that are prone to foaming.

Servo Motro Control Pistons

1.All the pistons are made of SUS304/316 food grade material.The piston ring is also made of food grade material. Wear and corrosion resistant
2.The inner wall of the piston cylinder is smooth, ensuring no residue after filling and high filling accuracy.
3.With cylinder removal function, the piston ring can be lowered out of the piston cylinder for easy cleaning.

Servo Motor

1.Adopt high-power Panasonic brand servo motor, stable operation and high precision.
2.It adopts double-screw structure and chain drive, which can transmit sufficient power to drive the piston ring, with stable structure and high operation precision.
3.Equipped with high and low position protection to prevent the piston ring from falling out of the piston cylinder, without causing leakage, high safety.

 CIP Material Tank

1.E oil filling machine can be equipped with  tank,The internal pipelines of the filling machine can be perfectly cleaned with CIP cleaning fluid, from the material box to the piston cylinder to the filling nozzle, with no dead angles.
2.The material box can be equipped with heating, stirring, high and low level gauges and other functions, suitable for a variety of different liquids filling.

OPTIONAL CONFIGURATIONS FOR SHAMPOO FILLING MACHINE

FDA Certified Food Grade Filling Pipe

Our Edible Oil Filling Machine can used FDA certified food grade filling pipe.
All filling tubes are quick-connect, easy to disassemble and clean.No residue when filling various edible oils, sauces and other liquids.

Servo Motor Diving Nozzle

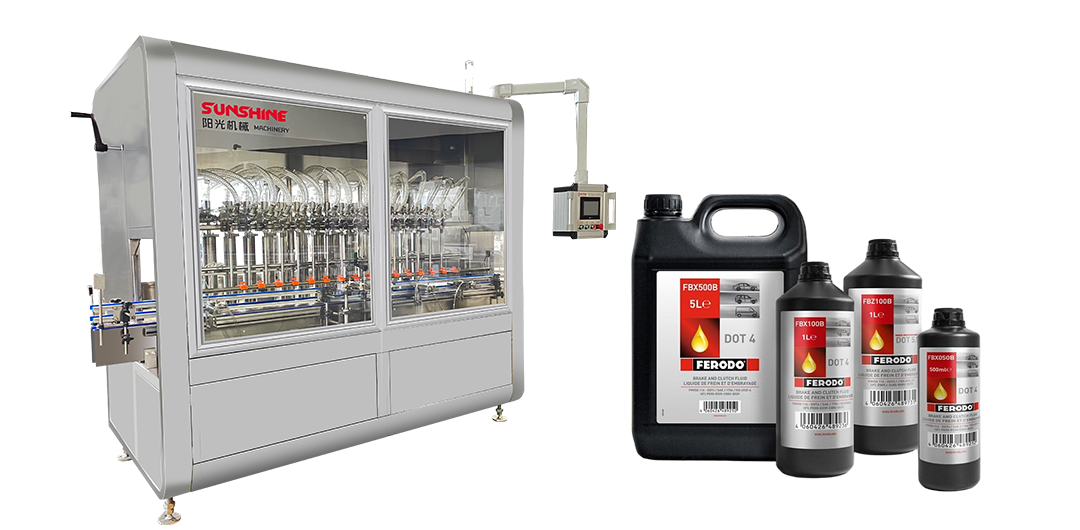

Servo motor can be used to raise and lower the brake fluid filling machine nozzles, which can rise while filling, so that the liquid is always under the filling nozzle to reduce the generation of bubbles.

CIP Material Tank

The top of the brake fluid filling machine can be replaced with a CIP storage tank, which can be equipped with heating, stirring, high and low liquid level display, CIP interface and other functions

RELATE MACHINES OF SHAMPOO FILLING MACHINE

Here are some machines we can working together with brake fluid filling machine.All the equipment can be connected and used together to complete the entire line production of various bottle types.

Unscrambler

Bottle Capping System

Inline Capping Machine

  Automatic Bottle Filling And Capping Machine

Double Side Bottle Labeling Machine

Round Bottle Labeling Machine

Carton Packing Machine

Automatic Palletizer Machine
