Edible Oil Weighing Filling Machine Line

Model:
Edible Oil Weighing Filling Machine Line
Brand:
SUNSHINE
Code:
YG-CZ
Key Components Brand:
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
Filling Volume:
5-50KG
Production Capacity:
100-600 Drums/Hour
Application:
Edible Oil,Lube Oil,Chemicals.etc
Warranty:
One Year and Life-Long Technical Support
Machine material:
SUS 304/316
After-sales Service:
Engineers Available to Service Overseas


Availability:



Inquire

Product Description

Drum Weighing Filling Machine Line

Tin Cans Weighing Filling Machine Line

Service & Support

AUTOMATIC EDIBLE OIL WEIGHING FILLING MACHINE LINE VIDEO

DIAGRAM FOR AUTOMATIC EDIBLE OIL WEIGHING FILLING MACHINE

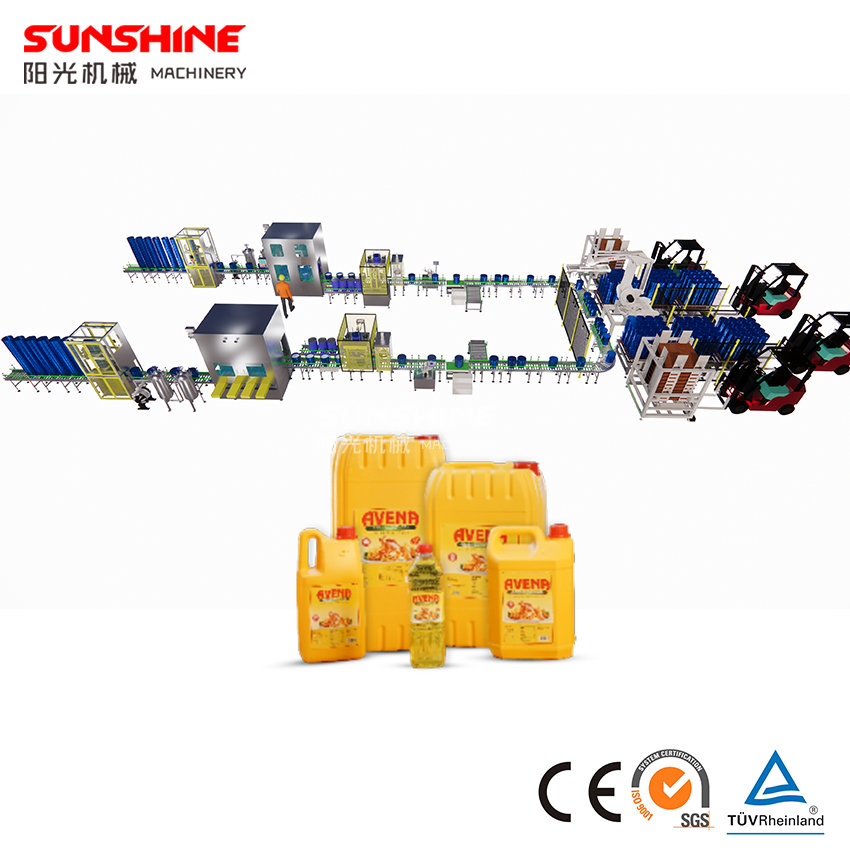

drum filling line layout

FEATURES OF AUTOMATIC EDIBLE OIL WEIGHING FILLING MACHINE LINE

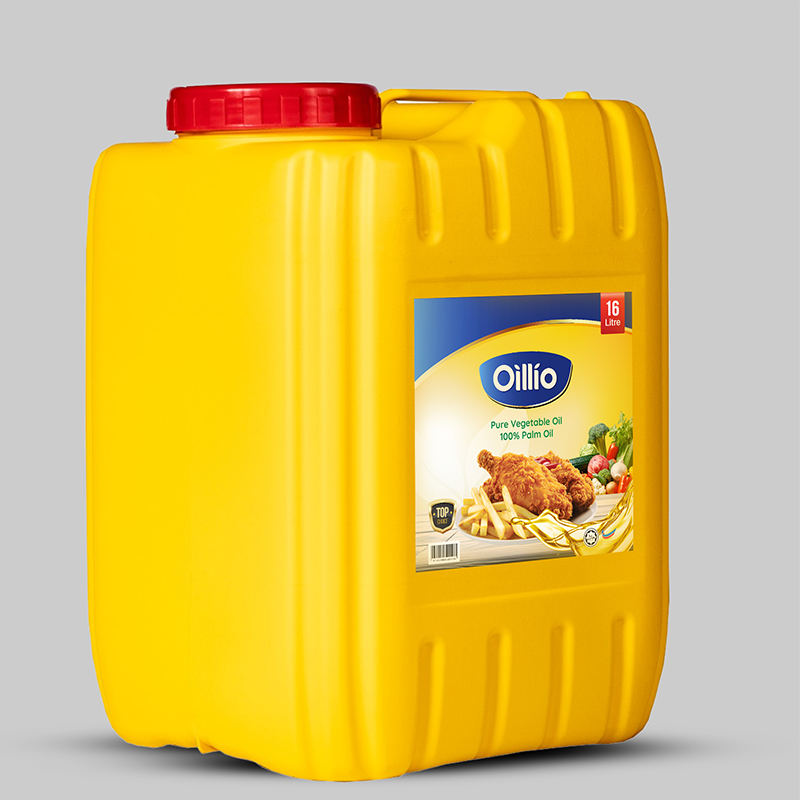

20L

Introduction to the 18–30L Edible Oil Weighing, Filling, Capping, and Labeling Production Line

The 18–30L edible oil weighing and filling production line is a highly automated solution designed for medium-to-large volume packaging. It ensures accuracy, efficiency, and hygiene in the packaging process, which is critical in the food industry. This type of production line integrates several pieces of equipment, each with a specific role in ensuring smooth operations from empty container handling to finished product labeling.

The edible oil weighing filling machine line equipments includes:

A complete Edible oil weighing filling machine line generally includes:
Bottle unscrambler/ Feeding System → Oil Weighing Filling Machine → Cap Sorting and Feeding System → Automatic Capping Machine → Leak Testing Station (Optional) → Labeling Machine → Inkjet or Laser Coding Machine (Optional) → Palletizing System (Optional) , all connected by a conveyor system for continuous operation.
1.Bottle Unscrambler / Feeding System: Automatically arranges and conveys empty plastic or tin containers (5–30 liters) into the line.
2.Oil Filling Machine:Core equipment of the line, designed to fill edible oil by weight for accuracy.

3.Cap Sorting and Feeding System:Automatically sorts screw caps or press caps and delivers them to the capping station.

4.Capping Machine:Automatically sorts screw caps or press caps and delivers them to the capping station.
5.Leak Testing Station (Optional):Detects potential leakage after capping by applying pressure or vacuum tests.
6.Labeling Machine:Applies self-adhesive labels or wrap-around labels on the container body.
7.Induction Sealing Machine (optional):Seals the bottle mouth with an aluminum foil using electromagnetic induction.
8.Packing Machine / Cartoning System:Packs finished bottles into cartons or shrink wraps for easier handling and distribution.
9.Conveyor System:Transports bottles through each stage of the production line.

TECHNICAL PARAMETERS OF EDIBLE OIL WEIGHING FILLING MACHINE LINE

	2 heads	4 heads	6 heads	8 heads
Production Speed (Bottles/hour)	5L-30L:90-100 BPH	5L-30L:180-200 BPH	5L-30L:270-300 BPH	5L-30L:360-400 BPH
Suitbale Liquid	Edible Oil,Vegetable Oil,Sauce,Lube Oil,Chemicals.etc
Filling Capacity	Per container volume (e.g., 5–30L, 18–30L, 5–50kg, or customizable)
Container Type	Drums, tin cans, PET bottles, glass bottles, etc.
Filling Accuracy	±0.2-0.3%
Power Supply	220 / 380 / 415V ; 50 / 60HZ (Can be customized)
Air Supply	0.6-0.8Mpa clean air
Main Components & Brands	PLC,electrical, pneumatic parts (Siemens, Mitsubishi, Delta, Schneider, AirTac, etc.)

APPLICATION OF AUTOMATIC EDIBLE OIL WEIGHING FILLING MACHINE LINE

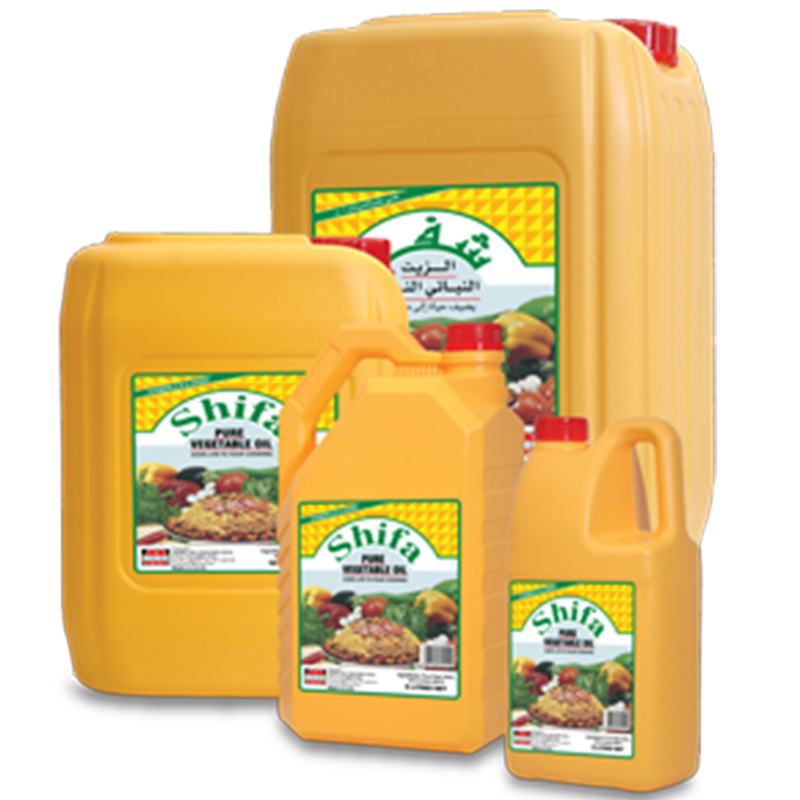

Edible oil

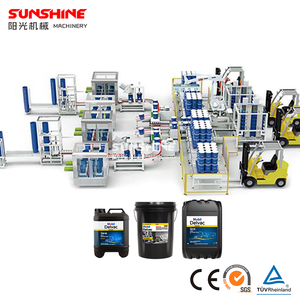

Lubricating oil

Food & Sacue

DIFFERENT PACKAGE FOR EDIBLE OIL WEIGHING FILLING MACHINE LINE

DRUM EDIBLE OIL WEIGHING FILLING MACHINE LINE

Edible Oil Weighing Filling Machine

The edible oil weighing filling machine is designed for accurate and efficient filling of edible oils such as sunflower oil, soybean oil, peanut oil, and other liquid products. It uses a weighing system to ensure each bottle or container receives the exact volume required.
1.Electronic weighing system with load cells.
2.Automatic tare adjustment.
3.Drip-proof nozzles to prevent oil spillage.
4.Multi-head filling options for higher output.
Servo Capping machine

The single head servo capping machine is used for sealing bottles with caps in an efficient and precise way. It is driven by a servo motor to control torque and positioning, ensuring tight and consistent sealing.
1.Automatic cap sorting and feeding system.
2.High precision torque control for reliable sealing.
3.Simple structure with easy changeover.
4.Stable, smooth operation with low noise.
Drum Labeling Machine

The drum labeling machine is specially designed for labeling large containers such as drums, barrels, or buckets. It ensures labels are applied smoothly and securely, even on curved or uneven surfaces.
1.Suitable for various label sizes and drum types.
2.High labeling speed and accuracy.
3.Easy to adjust and operate.
4.Improves packaging efficiency and product image.
Robotic palletiser

A robotic palletiser is an advanced automation system used for stacking boxes, bags, drums, or other packaged goods onto pallets in a precise and efficient manner. It is widely applied in food, beverage, chemical, and logistics industries to streamline the end-of-line packaging process. The robotic arm can be programmed for different stacking patterns and product sizes, offering great flexibility for modern production lines.
Roller Conveyor System

A roller conveyor system is a material handling solution designed to transport cartons, boxes, drums, and other goods smoothly along a production or packaging line. It uses multiple rollers powered by gravity or motors to move products efficiently between different processing stages. Roller conveyors are widely used in warehouses, factories, and logistics centers.

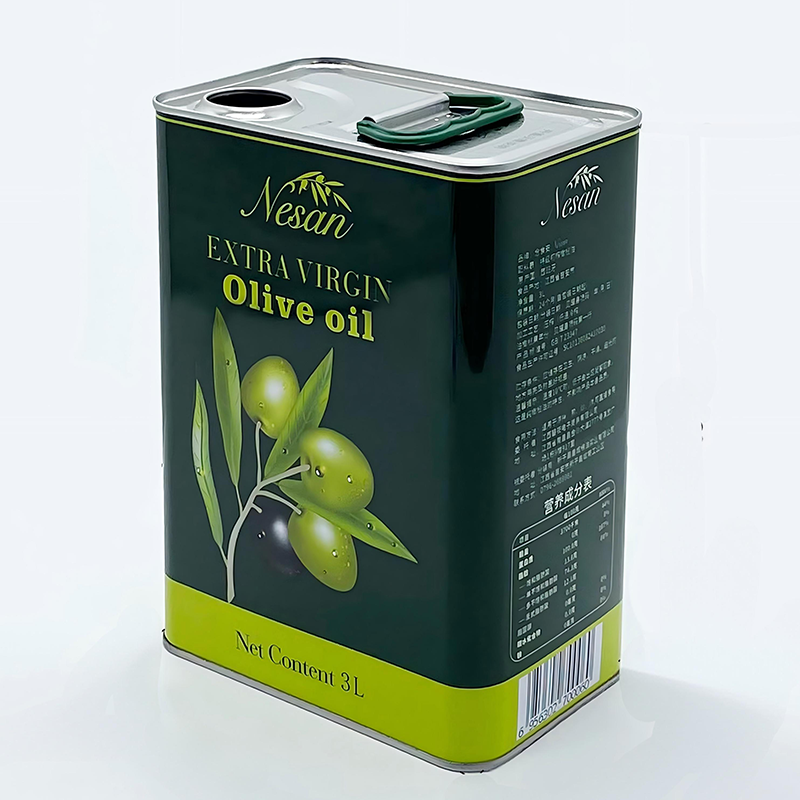

TIN CAN EDIBLE OIL WEIGHING FILLING MACHINE LINE

Edible Oil
Weighing Filling Machine

Precisely fills each container with edible oil based on weight (not just volume), ensuring accuracy within ±0.2-0.3%.
1.Electronic weighing system with load cells.
2.Drip-proof nozzles to prevent oil spillage.
3.Automatic tare adjustment.
4.Multi-head filling options for higher output.
Tin Cans Capping Machine

The tin cans capping machine is a specialized equipment designed for sealing large metal cans, typically used for edible oil, paint, lubricants, and chemical products. It ensures secure and consistent capping for 18-liter containers, improving packaging quality and production efficiency.
1.Provides tight and reliable sealing to prevent leakage.
2.Suitable for various 5L-30L tin can types and lid styles.
3.User-friendly controls for quick adjustment and smooth operation.
Robotic palletiser

A robotic palletiser is an advanced automation system used for stacking boxes, bags, drums, or other packaged goods onto pallets in a precise and efficient manner. It is widely applied in food, beverage, chemical, and logistics industries to streamline the end-of-line packaging process. The robotic arm can be programmed for different stacking patterns and product sizes, offering great flexibility for modern production lines.
Roller Conveyor System

A roller conveyor system is a material handling solution designed to transport cartons, boxes, drums, and other goods smoothly along a production or packaging line. It uses multiple rollers powered by gravity or motors to move products efficiently between different processing stages. Roller conveyors are widely used in warehouses, factories, and logistics centers.

WHY CHOOSE SUNSHINE MACHINE

5000 +

FIELD
30 +

EMPLOYEES
50 +

COUNTRY

ONE-STOP AFTERSALES SERVICE

FAQ

1. What kinds of oils and liquids can this machine line handle?

The machine line is suitable for edible oils such as sunflower, soybean, peanut, olive, coconut oil, mustard oil, etc., and can also handle other light viscous liquids.
2.What filling volume range is supported?

It supports container sizes in the range of 5-50 kg (or equivalent in liters), depending on the configuration.
3. What is the production capacity?

Depending on container size, shape, oil type, and line configuration, it can fill 100 to 600 drums per hour.
4. Are different container types / sizes / shapes supported?

Yes. The line accommodates various container types (drums, tin cans, plastic/metal containers), shapes, and sizes. It features adjustable filling nozzles, conveyors, and changeover settings.
5. What accuracy can be expected for filling by weight?

The system is equipped with electronic weighing (load cells) and offers high accuracy. Typical tolerance is ±0.2-0.3% (depending on container, oil viscosity, and setup).
6. What materials are used, especially in parts contacting with oil?

Food contact parts are made with stainless steel—SUS 304 or SUS 316—depending on your hygiene and corrosion resistance requirements.
7. Does the line include capping, labeling, and other packaging steps?

Yes. A full line typically includes:
Container unscrambler/feeder → filling machine → cap sorting & feeding → capping machine → (optional) leak detection → labeling → (optional) coding (laser or inkjet) → (optional) palletizing.
9. Can optional stations be added?

Yes. Options include leak-testing stations, induction sealing, coding machines, palletizing, etc. These can be included based on the customer’s requirements.
9. What is the warranty and after-sales support?

The machine line has a one-year warranty and lifelong technical support. Also, engineers are available to service overseas.
10.What is the delivery time?

Delivery typically requires 4-5 weeks from order placement, depending on customization and configuration.
