Edible Oil Filling Machine Line

Model:
Edible Oil Filling Machine Line
Brand:
SUNSHINE
Code:
YG-Z
Key Components Brand:
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
Filling Volume:
50-5000ml(can be customized)
Production Capacity:
1000-4500 Bottles/Hour
Application:
Cosmetic,Chemical,Sauce,Grease.etc
Warranty:
One Year and Life-Long Technical Support
Machine material:
SUS 304/316
After-sales Service:
Engineers Available to Service Overseas


Availability:



Inquire

Product Description

Composition Of Edible Oil Filling Machine Line

Service & Support

AUTOMATIC EDIBLE OIL FILLING MACHINE LINE VIDEO

FEATURES OF AUTOMATIC EDIBLE OIL FILLING MACHINE LINE

B3(1)

Product Introduction：

The oil filling machine line is a complete packaging solution designed for efficient and accurate bottling of edible oils, lubricants, and other liquid oils. The line typically includes several key machines working in sequence: a bottle unscrambler to automatically arrange empty bottles, an oil filling machine to precisely dispense the required volume, a capping machine to secure leak-proof closures, and a labeling machine to apply product information and branding. Optional equipment such as an induction sealing machine can be added for tamper-proof packaging, while a packing system handles final cartoning or shrink-wrapping. All components are connected by a conveyor system, ensuring smooth and continuous operation. This integrated setup improves production speed, maintains hygiene, reduces labor costs, and guarantees consistent quality, making it an essential solution for modern oil manufacturers.

The edible oil filling machine line equipments includes:

A complete oil filling machine line generally includes:
Bottle unscrambler → Oil filling machine → Capping machine → Induction sealing (optional) → Labeling machine → Packing system, all connected by a conveyor system for continuous operation.
1.Bottle Unscrambler / Feeding System: Automatically arranges empty bottles and places them onto the conveyor in the correct orientation.
2.Oil Filling Machine:The core machine of the line, designed to accurately fill bottles with a predetermined volume of oil.

3.Capping Machine:Automatically places and tightens caps on filled bottles
4.Labeling Machine:Applies labels to bottles, either on the front, back, or all around (wrap-around).
5.Induction Sealing Machine (optional):Seals the bottle mouth with an aluminum foil using electromagnetic induction.
6.Packing Machine / Cartoning System:Packs finished bottles into cartons or shrink wraps for easier handling and distribution.
7.Conveyor System:Transports bottles through each stage of the production line.

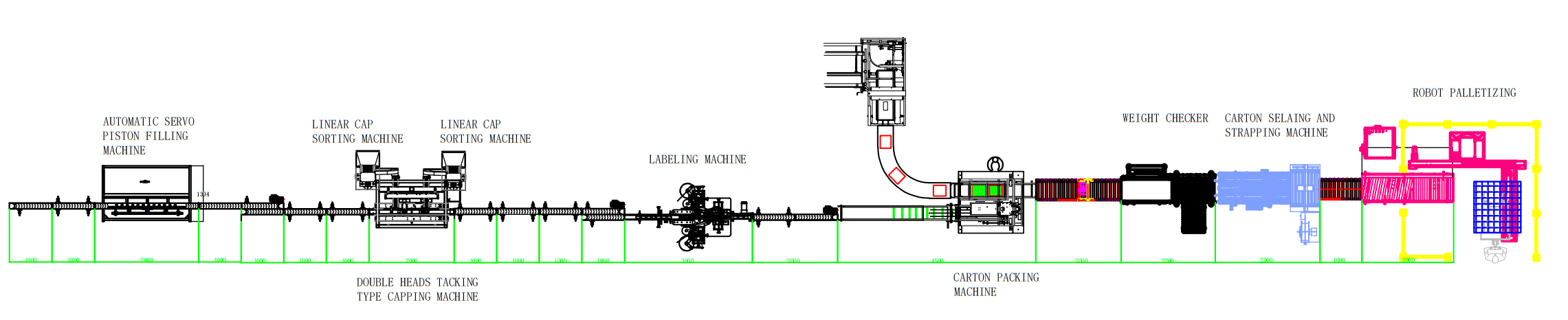

DIAGRAM LAYOUT OF AUTOMATIC EDIBLE OIL FILLING MACHINE LINE

oil filling machine line diagram

TECHNICAL PARAMETERS OF AUTOMATIC EDIBLE OIL FILLING MACHINE LINE

	4 heads	6 heads	8 heads	12 heads	16 heads	20 heads
Production Speed (Bottles/hour)	1L:800-900 BPH 5L:500-600 BPH	1L:1000-1200 BPH 5L:900-1000 BPH	1L:1500-1600 BPH 5L:1400-1500 BPH	1L:2000-2200 BPH 5L:1800-2000 BPH	1L:3000-3200 BPH	1L:4000-4500 BPH
Suitable Liquid	Edible Oil,Vegetable Oil,Sauce,Lube Oil,Chemicals.etc
Suitable Bottles	Round Bottles,Falt Bottles,Square Bottles(Can be customized)
Filling Volume	100-5000ml(Can be customized)
Power Supply	220 / 380 / 415V ; 50 / 60HZ (Can be customized)
Air Supply	0.6-0.8Mpa clean air

APPLICATION OF AUTOMATIC EDIBLE OIL FILLING MACHINE LINE

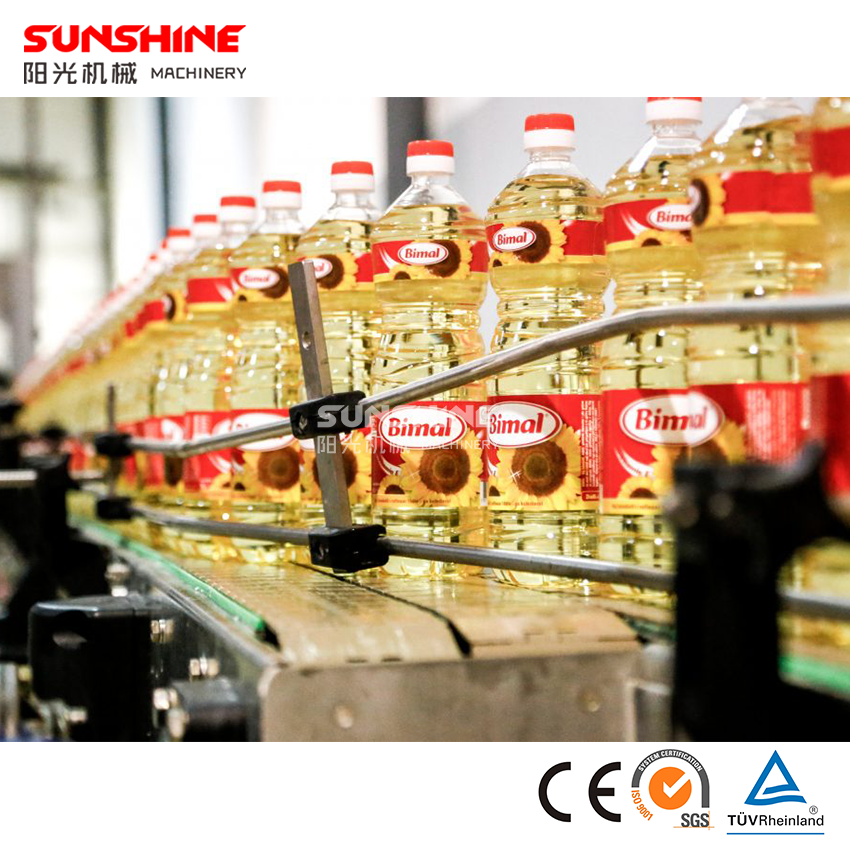

Edible oil

Lubricating oil

Food & Sacue

COMPOSITION OF EDIBLE OIL FILLING MACHINE LINE

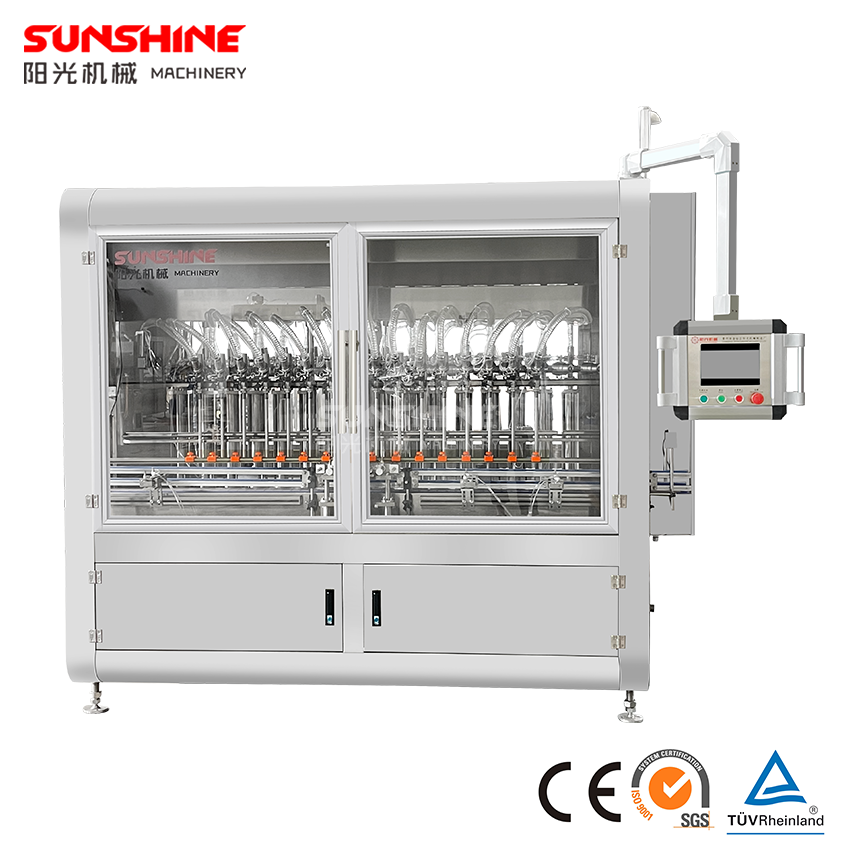

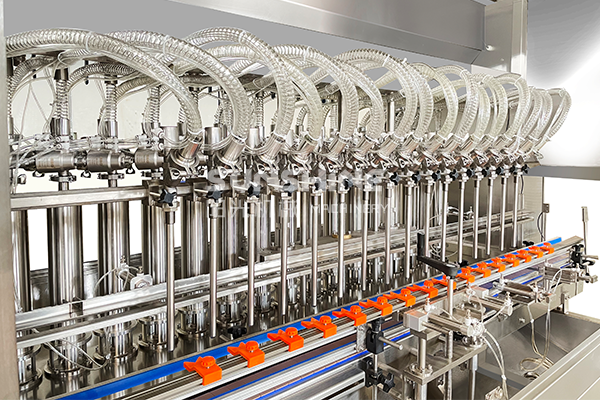

Oil Filling Machine

The oil filling machine is the heart of the line, designed for precise and hygienic filling of oils into bottles. It can handle volumes ranging from small 100 ml bottles to large 5L containers.
1.No-drip nozzles to prevent oil leakage.
2.Servo motor control for precise volume adjustment.
3.Stainless steel construction to meet food safety standards.
4.Easy to adjust for multiple bottle sizes.High-speed filling, up to 1,000–5,000 bottles/hour depending on configuration.

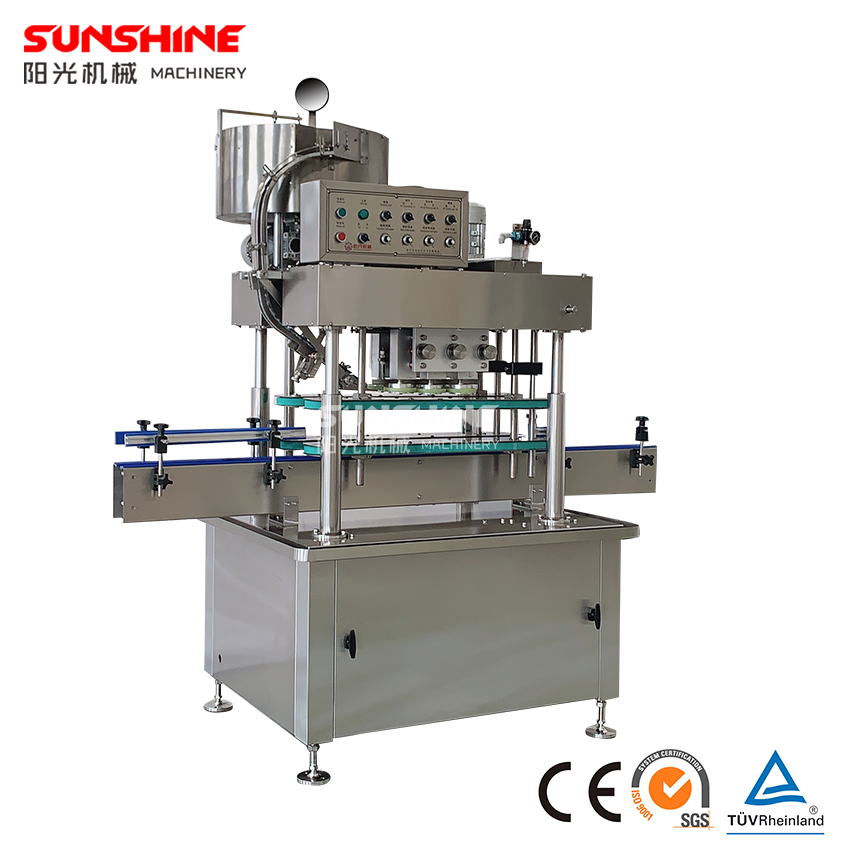

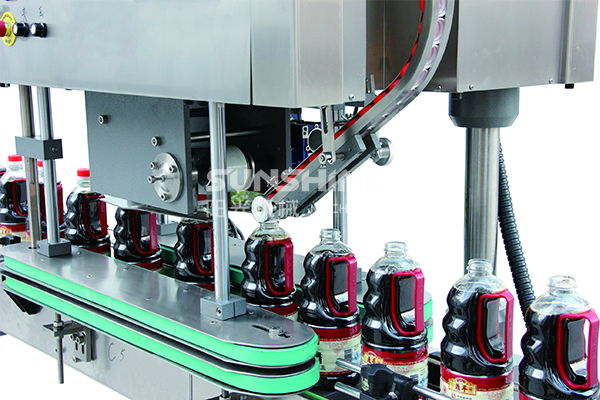

Capping machine

After filling, bottles move to the capping machine, which automatically applies caps and secures them tightly.
1.Automatic cap sorting and feeding system.
2.Leak-proof and consistent sealing.
3.Works at high speed with minimal operator supervision.
4.Ensures product freshness and protects oil quality.

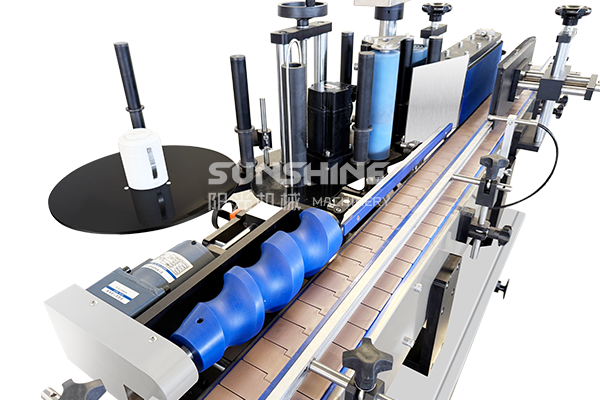

Labeling Machine

Bottles then pass through a labeling system that applies self-adhesive or wrap-around labels. This machine can handle round, square, and irregular bottles.
1.Servo-driven rollers for precision placement.
2.Ability to apply single-sided, double-sided, or 360° wrap-around labels.
3.Can integrate with batch coding or inkjet printers for expiry dates and lot numbers.
4.Ensures compliance with labeling regulations.

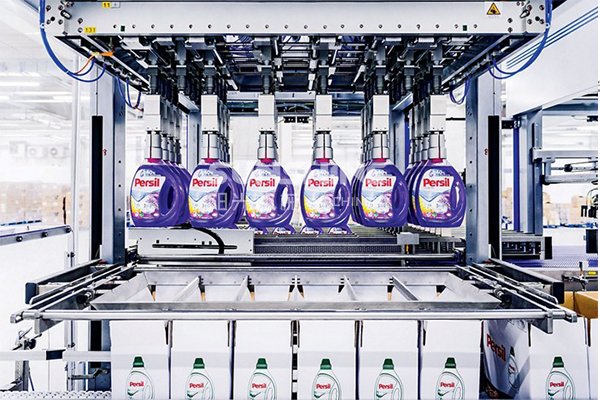

Carton Packing Machine

The carton packing machine is the final step in the oil filling line, responsible for automatically packing filled and sealed bottles into cartons or cases for storage, transport, and distribution. It ensures safe handling and efficient logistics.
1.Automatic carton opening, filling, and sealing.
2.Adjustable for different bottle sizes and carton dimensions.
3.Integration with labeling and coding systems for barcodes or batch numbers.
4.Optional robotic arm or pick-and-place system for precise bottle arrangement.

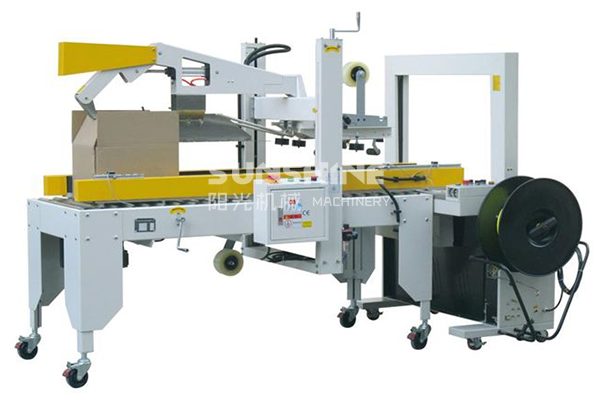

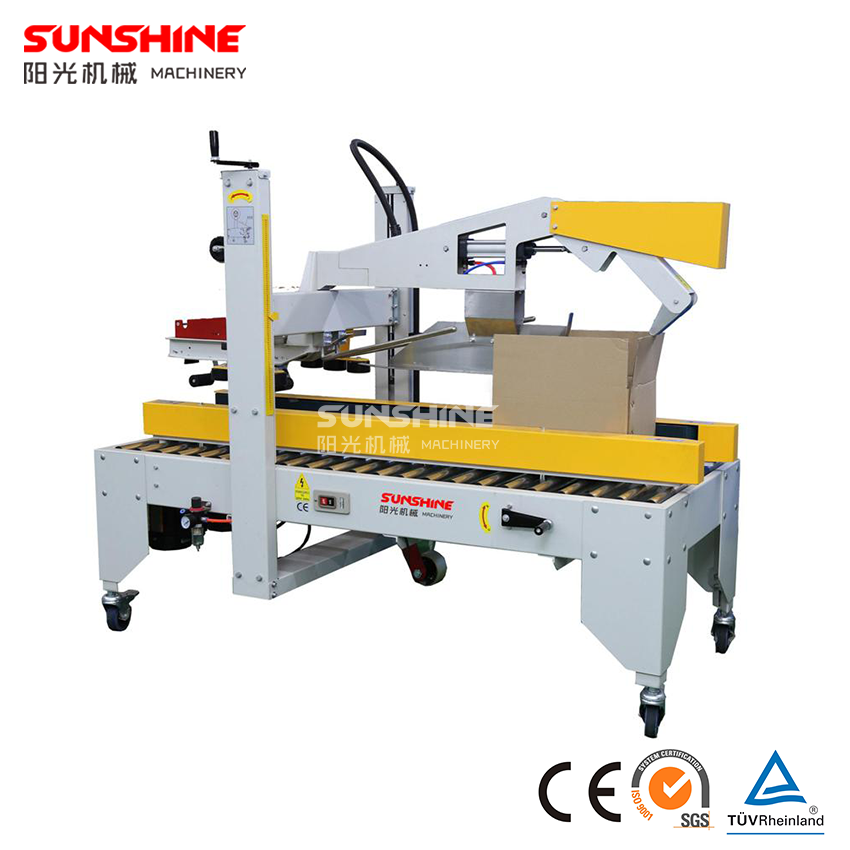

Carton Sealing Machine

The carton sealing machine is used to close and seal filled cartons after bottles have been packed inside. It provides strong, reliable sealing with tape or hot melt glue to ensure cartons remain secure during handling and transportation.
1.Adjustable for different carton sizes and sealing methods.
2.Can be integrated into automatic packing lines.
3.Available in semi-automatic and fully automatic versions.
4.Ensures a neat and professional appearance of finished cartons.

WHY CHOOSE SUNSHINE MACHINE

5000 +

FIELD
30+

EMPLOYEES
50 +

COUNTRY

ONE-STOP AFTERSALES SERVICE

FAQ

What kind of oils can this machine fill?

It can fill from 100ml to 5000ml capacity(can be customized) for vegetable oils, olive oil, coconut oil, palm oil, mustard oil varous liquid oils.
What is the filling capacity?

The machine can fill 500 to 4500 bottles per hour for 100-5000ml Volume Bottles, depending on bottle size and oil type.
Can it handle different bottle sizes and shapes?

Yes, it accommodates various bottle shapes and sizes with adjustable filling nozzles and conveyors.
Is it compatible with other packaging equipment?

Yes, it integrates with capping, labeling, and other equipment for a complete packaging line.
What are the delivery timelines?

Delivery takes approximately 4 to 5 weeks.
What after-sales support do you offer?

We provide installation, training, spare parts, and technical support.
