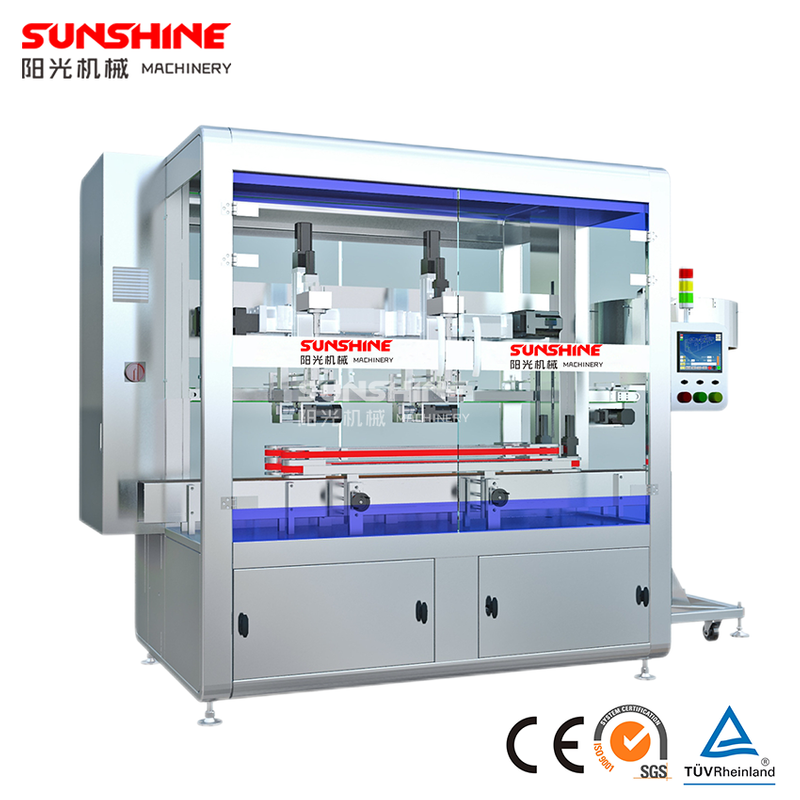

Automatic Double Head Tracking Capping Machine

Sunshine Double Head Tracking Capping Machine is designed for fast, stable, and continuous bottle capping. With two capping heads and servo tracking control, it improves production efficiency and ensures reliable cap tightening for different bottle and cap types.

Code:
FX-02D
Key Components Brand:
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
Voltage:
220/380/415V;50/60HZ
Production Capacity:
4000-4500 Bottles/Hour
Application:
Oil,Sauce,Chemicals bottle capping
Warranty:
One Year and Life-Long Technical Support
Machine material:
SUS 304/316
After-sales Service:
Engineers Available to Service Overseas


Availability:



Inquire

Product Description

Service & Support

Automatic Double Head Tracking Capping Machine Video

Automatic Double Head Tracking Capping Machine Product Introduction

The Double Head Tracking Capping Machine is a high-efficiency automatic capping solution designed for modern liquid packaging production lines. With a dual capping head structure and servo tracking system, the machine follows moving bottles during the capping process, allowing continuous operation without stopping the conveyor.

Compared with traditional stop-and-cap machines, this tracking capping system helps improve production speed, reduce bottle shaking, and ensure stable cap tightening performance. It is especially suitable for medium and high-speed filling lines that require smooth operation, accurate positioning, and consistent capping quality.

This machine can be customized according to bottle shape, cap size, production speed, and line layout. It is widely used for liquid detergent, shampoo, body wash, hand soap, edible oil, lubricating oil, disinfectant, automotive fluids, and chemical liquid products.

Single Head Capping Machine

Application Of Automatic Double Head Tracking Capping Machine

Edible oil

Lubricating oil

Food & Sacue

Personal Care & Daily Chemical

Pesticide & Agro Chemical

Technical Parameters Of Automatic Double Head Tracking Capping Machine

Technical Parameters	Double Head Tracking Capping Machine
Production Speed	60-80 BPM
Machine Dimension	L2500 × W1200 × H2200 mm
Machine Weight	Approx. 1200–1500 kg
Power Supply	220V/380V, 50/60Hz
Suitable Bottles	Round / Square / Flat / Irregular bottles
Suitable Cap Size	20–80 mm screw caps
Air Supply	0.6–0.8 MPa
Operation System	PLC control with touch screen
Capping Type	Double head servo tracking capping
Customization	Available according to bottle and cap samples

Details Pictures Of Automatic Double Head Tracking Capping Machine

Single Head Tracking Capping Machine

1.All parts in contact with liquid are made of stainless steel 304/316.
2.Portable capping head design, just change capping head, can meet the production of new bottle.
3.Belt type cap feeding, can be added the bad and crooked cap elimination device.
4.The bottle clamping belt will be control by servo motor.Stable operation prevents liquid from spilling out of the bottle.

Various Cap Sorting Parts

1.In order to accommodate a wide range of different types of caps, our capping machines can be equipped with a variety of different cap feeders, Linear capping machines, Vibratory plate cap sorting machines.
2.Linear cap sorting machine:Linear capping machine is suitable for capping lubricating oil bottle cap, edible oil bottle cap, sterilized water bottle cap and other caps. By simply adjusting the size of the cap rail, it can be applied to a wide range of bottle caps.
3.Vibratory plate cap sorting machine:Suitable for shaped bottle caps, detergent bottle caps, laundry detergent bottle caps, pesticide caps and other special shaped caps. With customized vibration discs, it can meet the feeding work of many kinds of special caps.

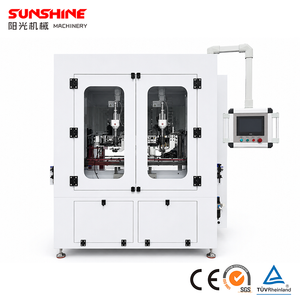

Anti-Corrosion Single Head Capping Machine

Anti-Corrosion Capping Machine

1.The machine can be customized anti-corrosion design, the whole frame is made of PP anti-corrosion material, corrosion resistance.
2.All stainless steel parts that may come into contact with liquids are sprayed with Black Teflon coating to prevent liquid corrosion.

Double Heads Capping Machine

1.We also have Double Heads Tracking Capping Machine,the maximum speed can be 4000-4500 Bottles / hour.

Optional Accessories For Automatic Double Head Tracking Capping Machine

Brand Electronic Component

Electrical components can be used according to customer requirements, using all kinds of international brands, Siemens, Schneider, Delta and so on.

Customizable Cap Feeding Mechanism

1.The cap feeding mechanism can be customized for special shapes of caps to meet the capping work of all kinds of bottle caps.
2.It is easy and convenient to change the bottle shape, only need to change the black mold and capping claw head.

Explosion-Proof Electrical Control Cabinet

We also have a lot of lubricating oil Chemical industry, there is a requirement for the machine explosion-proof level of customers, we will make the machine explosion-proof. All electrical components are explosion-proof, such as explosion-proof photoelectricity, explosion-proof sensors and so on. At the same time, there is a positive pressure electrical explosion-proof cabinet, all the buttons, switches, touch screen, alarms, etc. to meet the explosion-proof requirements.

Relate Machines Of Automatic Double Head Tracking Capping Machine

Here are some machines we can working together with single head capping machine.All the equipment can be connected and used together to complete the entire line production of various bottle and drums types.

Bottle Unscrambler

Anti-Corrosion Filling Machine

Tracking Capping Machine

Screw Capping Machine

Duck-Neck-Capping-Machine

Bottle Labeling Machine

Carton Packing Machine

Automatic Palletizer Machine

WHY CHOOSE SUNSHINE MACHINE

5000 +

FIELD
30 +

EMPLOYEES
50 +

COUNTRY

ONE-STOP AFTERSALES SERVICE

FAQ

Can this capping machine handle different bottle sizes?

Yes, our capping machines have adjustable components to accommodate different bottle sizes and shapes.
What is the speed of a capping machine?

We have single head tracking capping machine and double heads capping machine.
Single head:2200-2400 Bottles/hour
Double heads:4500-5000 Bottles/hour
How do I adjust the torque of tacking capping machine?

Torque settings are adjustable on touch screen parameter.
Is it compatible with other packaging equipment?

Yes, it integrates with filing, labeling, and other equipment for a complete packaging line.
What are the delivery timelines?

Delivery takes approximately 4 to 5 weeks.
What after-sales support do you offer?

We provide installation, training, spare parts, and technical support.
