Vacuum Capping Machine

AUTOMATIC SINGLE HEAD TRACKING VACUUM CAPPING MACHINE VIDEO

FEATURES OF AUTOMATIC SINGLE HEAD TACKING VACUUM CAPPING MACHINE

The automatic following capping machine is composed of a capping conveying mechanism, a grasping capping mechanism, a motion module, a conveying mechanism and a control system. The machine has simple structure, easy adjustment, and is suitable for automatic spinning (pressing) caps of 1-5L bottles. The equipment is the latest development of our company, the product in the process of moving, complete the rotation (pressing) cap action. Different from the conventional spinning (pressing) capping machine, it needs to stop when spinning (pressing) capping, which will make the material sway out of the bottle and pollute the bottle body. The machine rotates (presses) the cap without stopping, effectively avoids the spinning (presses) cap pause shaking liquid, and keeps the bottle clean.

AUTOMATIC SINGLE HEAD CAPPING MACHINE ADVANTAGES：

1.With servo drive and multiple servo motors, the cap can be rotated quickly and accurately without damaging the bottle or the cap.

2.Belt type cap feeding, can be added the bad and crooked cap elimination device.

3.Servo motor control bottle belt, adjustable speed, no liquid overflow or bottle pour phenomenon.

4.Adjustment mechanism is simple and convenient, and equipped with instruments, can be accurately positioned.

5.Portable design, just change the seealing, can meet the production of new bottle.

6.Set up rocker arm type man-machine interface, one button can switch for different parameters, run the machine.And set up sound and light alarm.

Extended Shelf Life Removes air from the container, slowing down oxidation and spoilage.

Improved Product Quality Helps preserve flavor, color, and nutritional value.

Enhanced Sealing Reliability Creates a consistent vacuum seal, reducing leakage and contamination risks.

Increased Production Efficiency Automates the capping process, boosting throughput and reducing labor costs.

Versatility Compatible with various bottle shapes, sizes, and cap types

Hygienic Operation Minimizes human contact, ensuring higher sanitation standards.

Reduced Packaging Waste More precise sealing can reduce the need for additional protective pac

Cost Savings Over Time Longer shelf life and reduced product returns improve profitability.

APPLICATION OF AUTOMATIC SINGLE HEAD TACKING VACUUM CAPPING MACHINE

TECHNICAL PARAMETERS OF AUTOMATIC SINGLE HEAD TRACKING VACUUM CAPPING MACHINE

Number of Head	1 Head	2 Heads
Producton Speed	1600-1800 Bottles per Hour	3400-3600 Bottles per Hour
Machine Diemension	2000 x 1300 x 2250mm	2600 x 1300 x 2250mm
Weight	1000KG	1500KG
Power Supply	220/380/415V ; 50/60HZ
Suitable Bottles	Round Bottles,Falt Bottles,Square Bottles(Can be customized)
Suitable Bottles Size	Bottle Diameter:φ40mm-φ100mm   Cap Diameter:φ10mm-φ50mm
Air Supply	0.6-0.8Mpa Clean Air

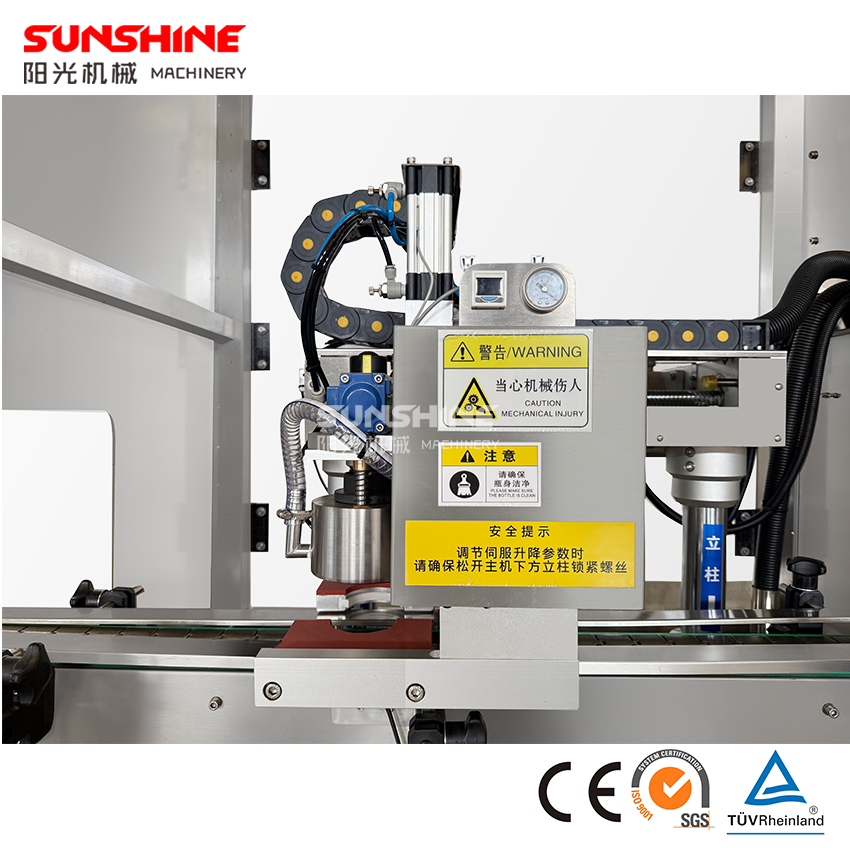

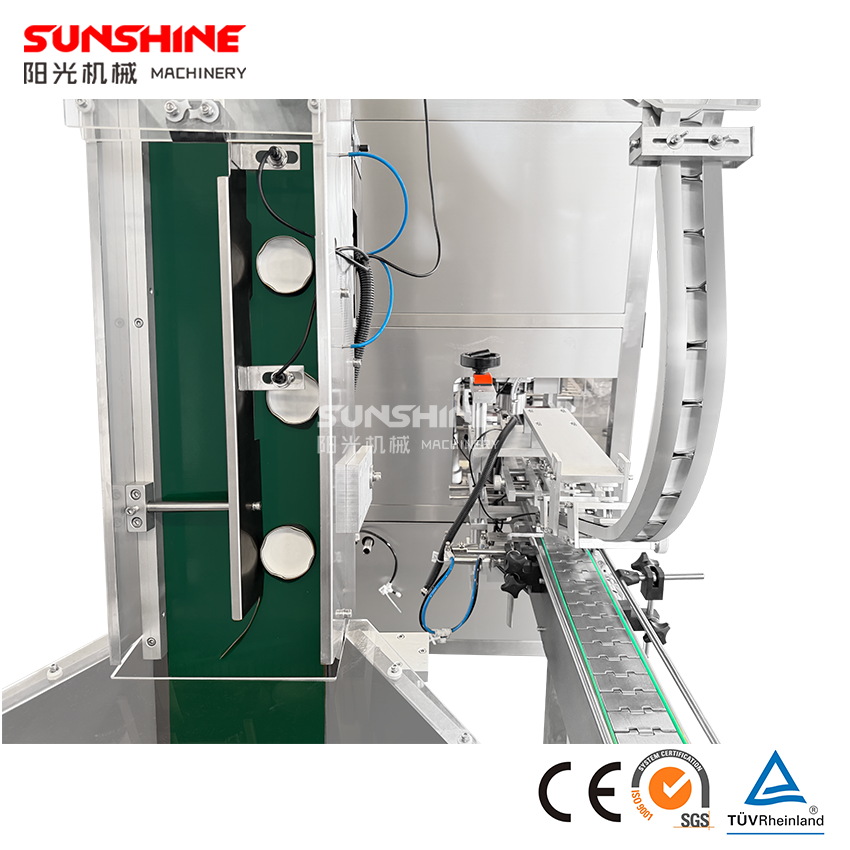

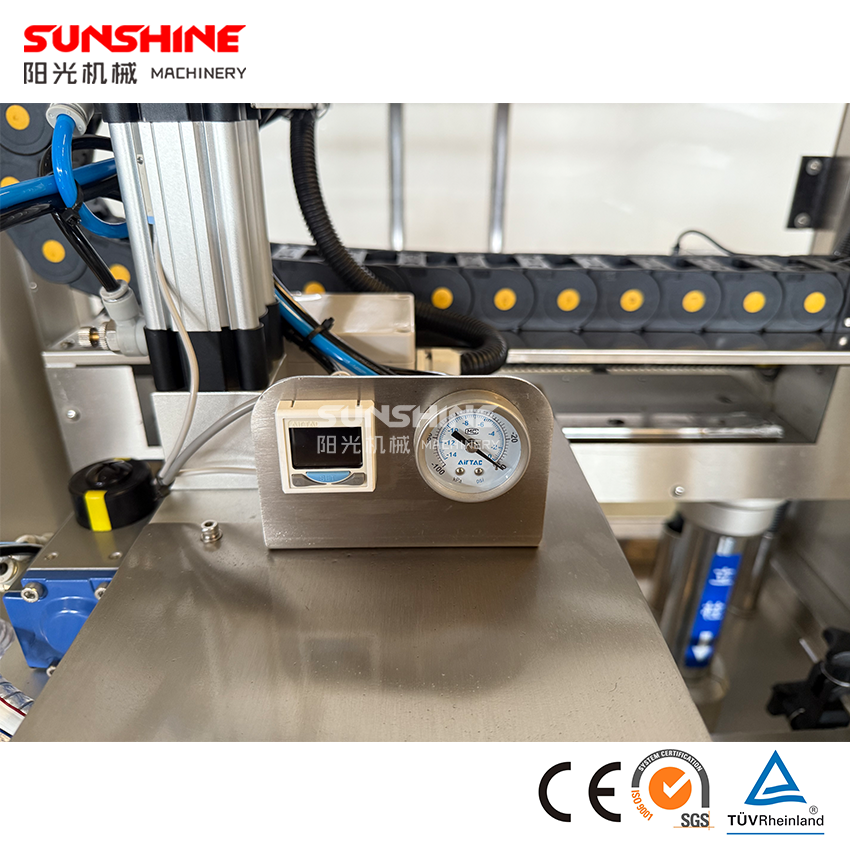

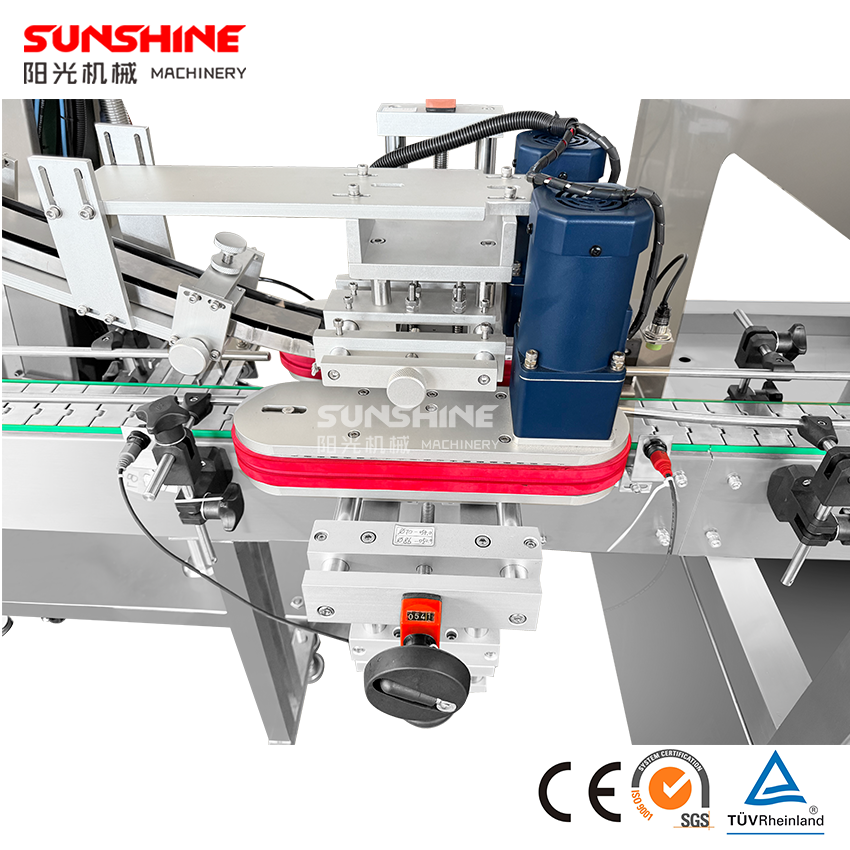

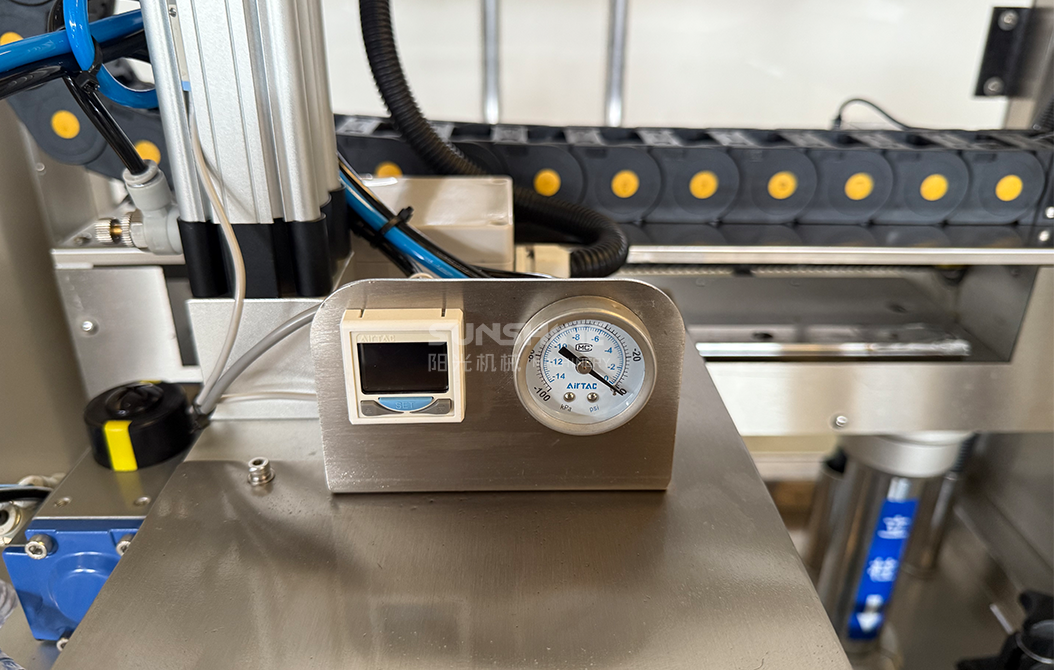

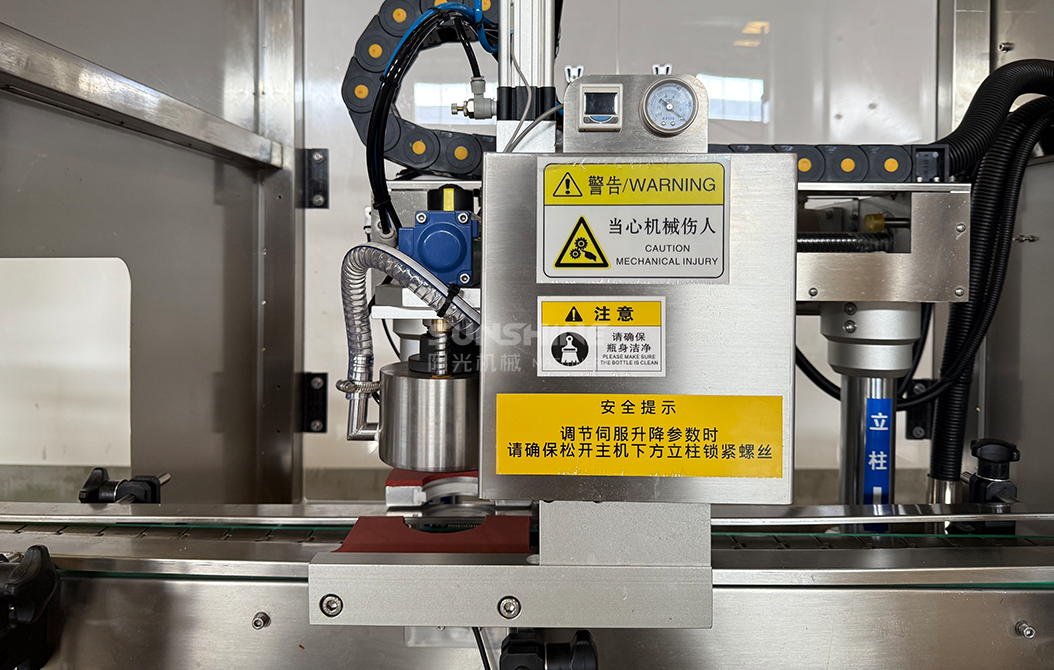

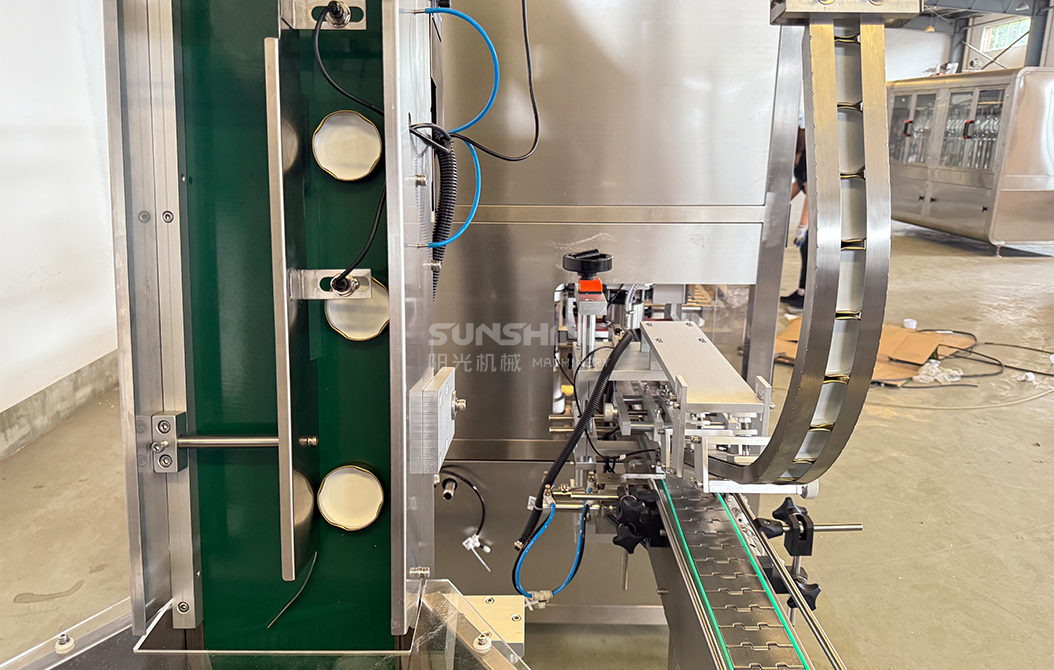

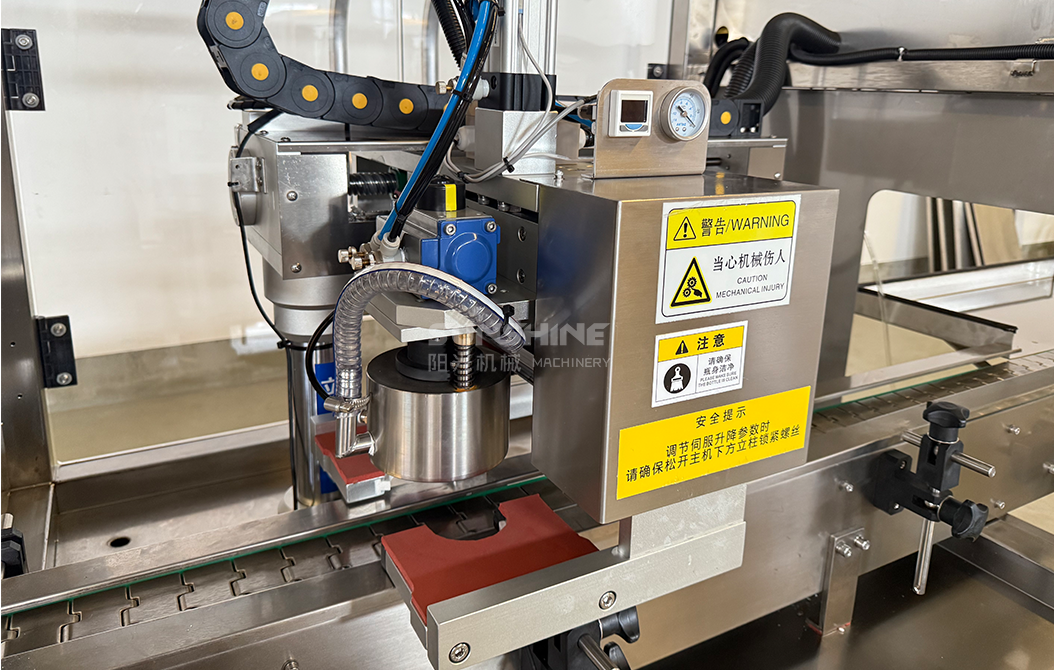

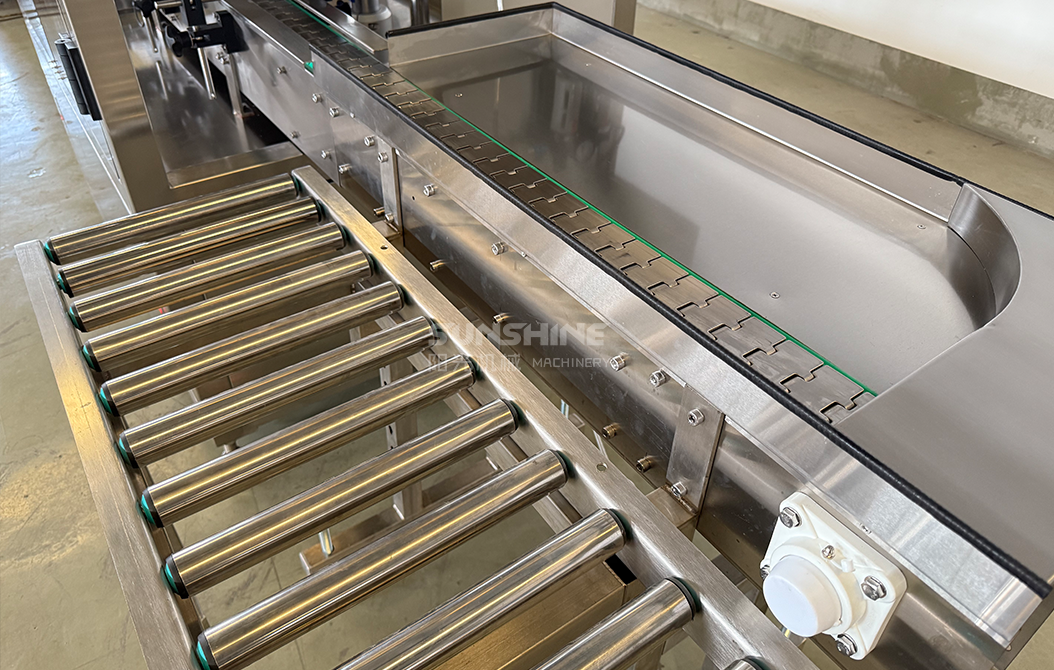

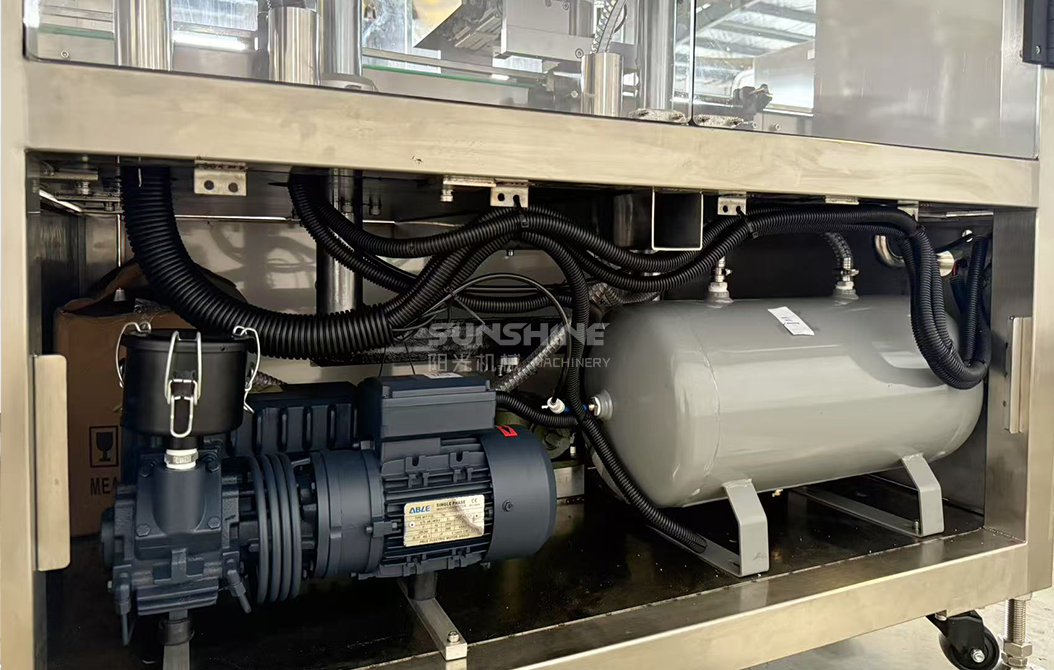

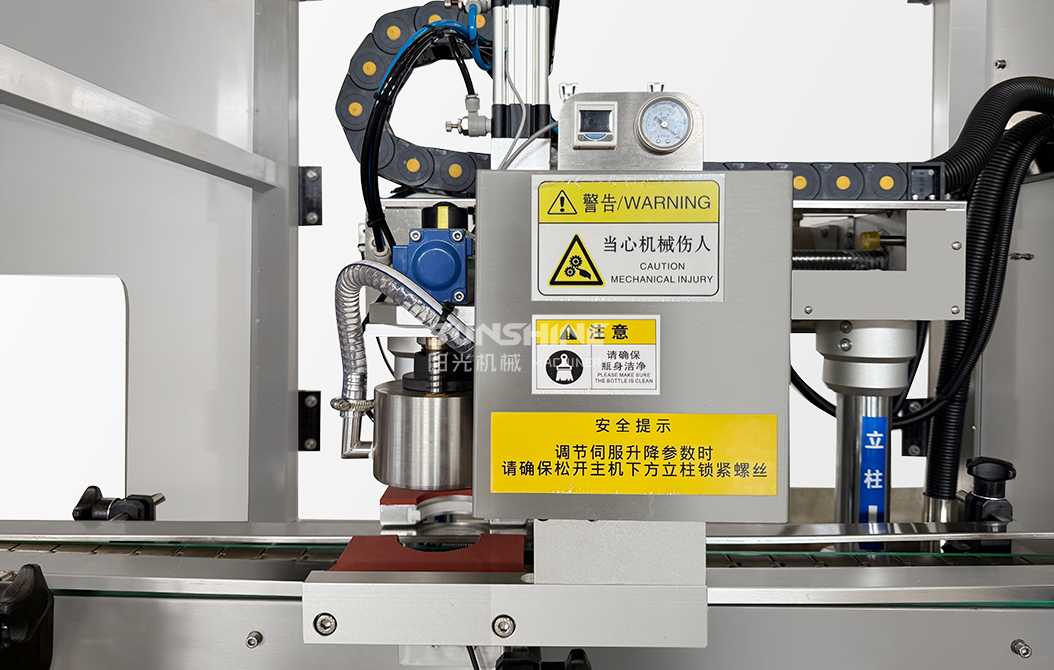

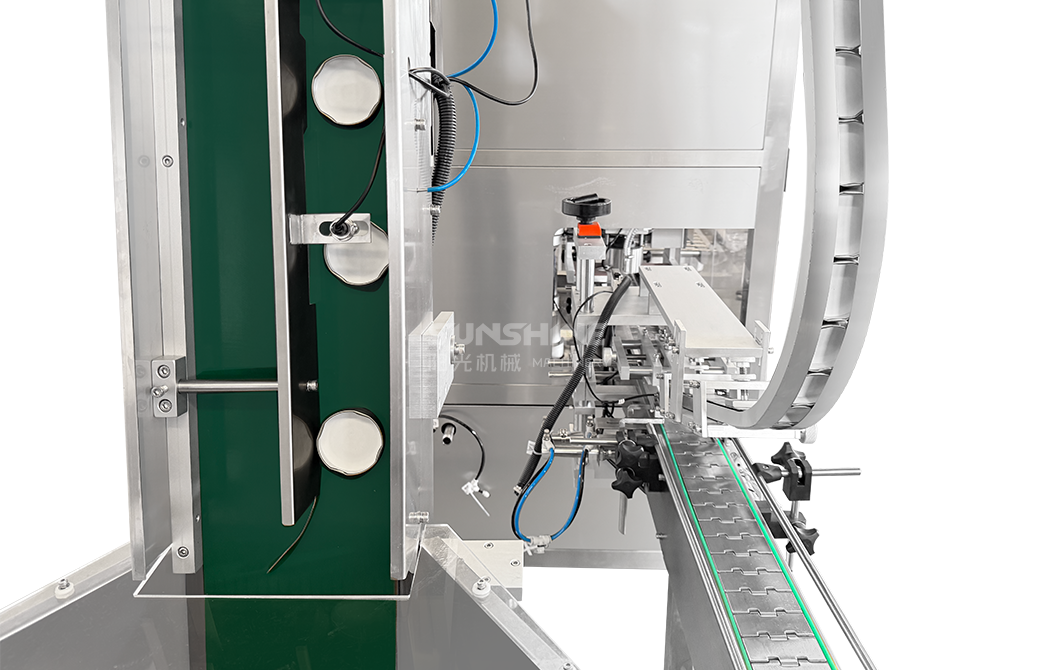

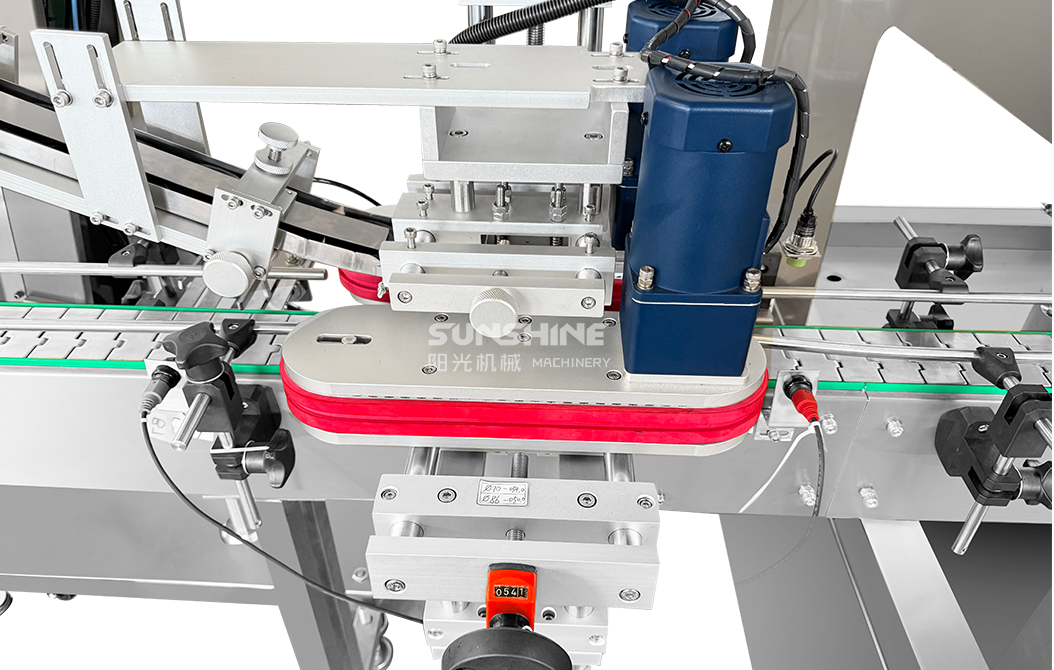

DETAILS PICTURES OF AUTOMATIC SINGLE HEAD TRACKING VACUUM CAPPING MACHINE

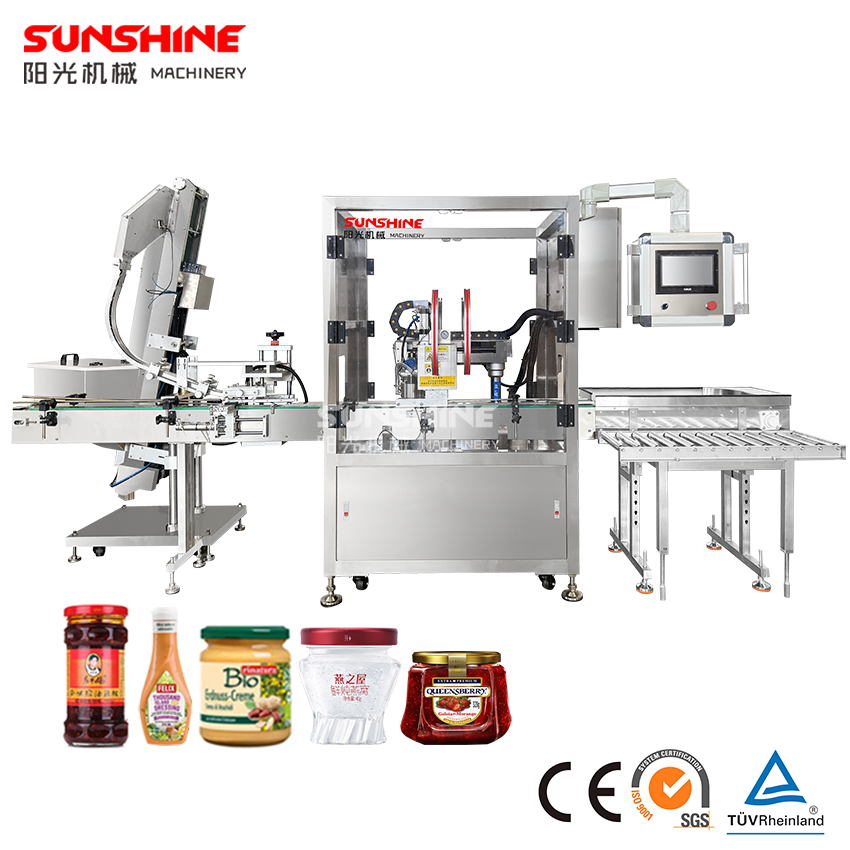

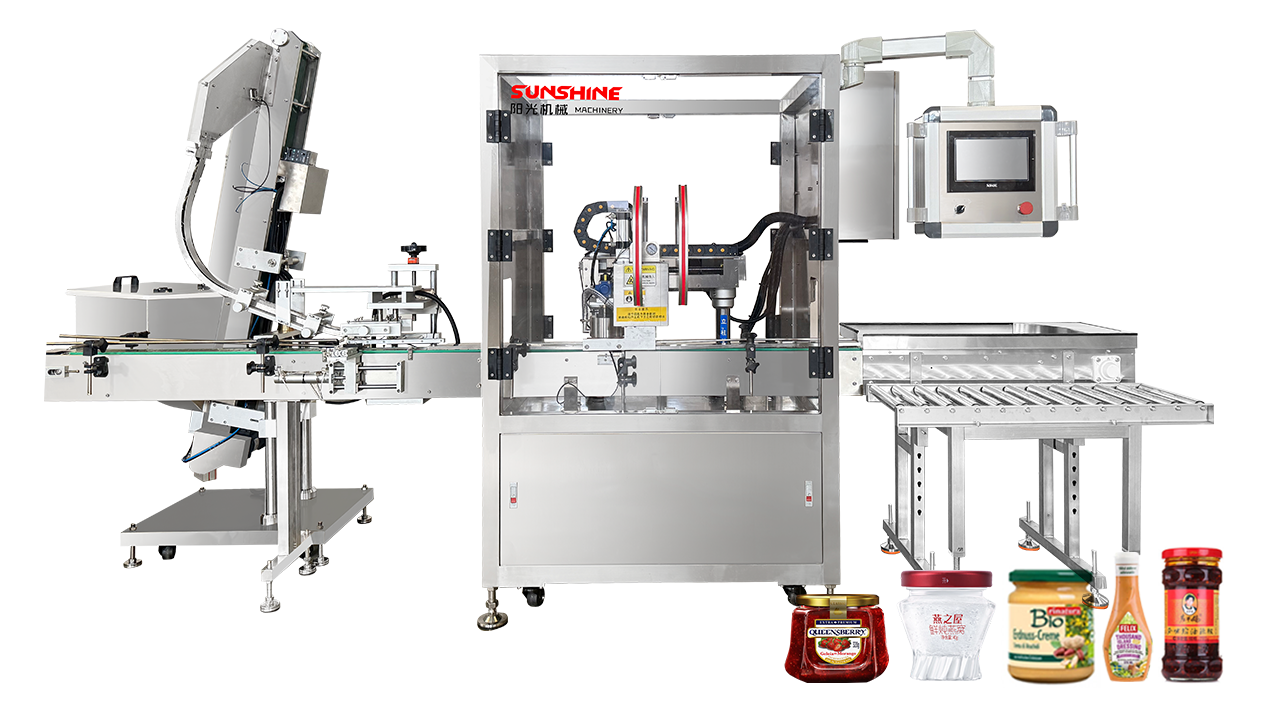

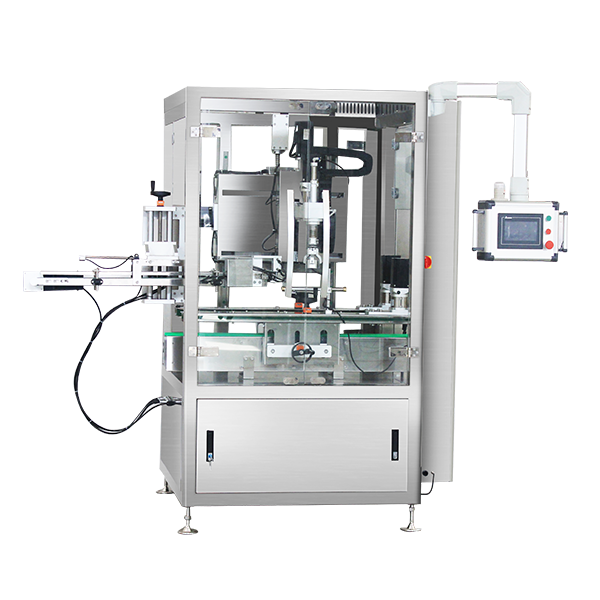

AUTOMATIC SINGLE HEAD TRACKING VACUUM CAPPING MACHINE

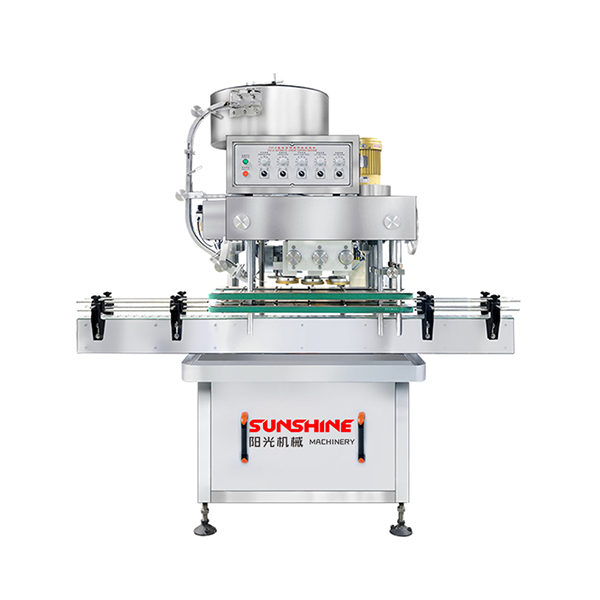

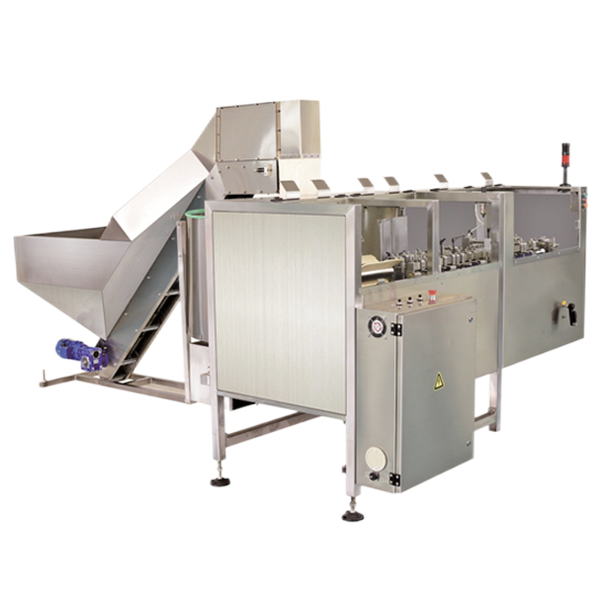

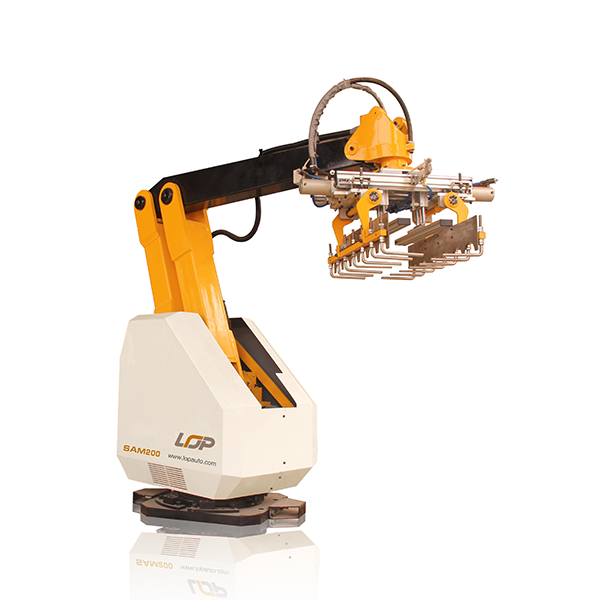

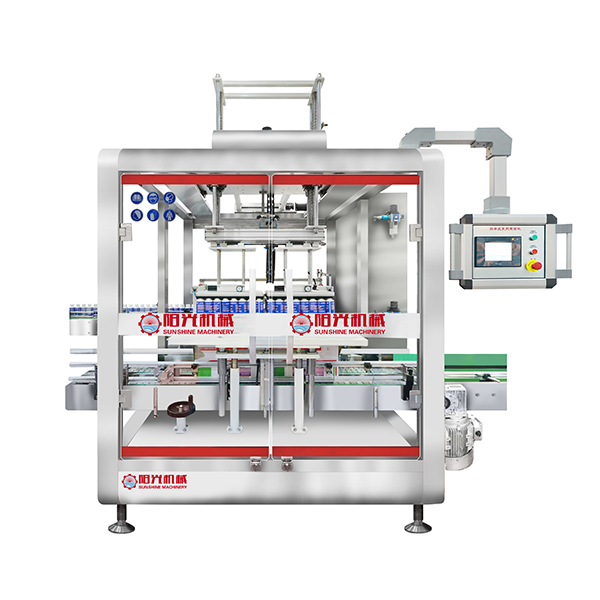

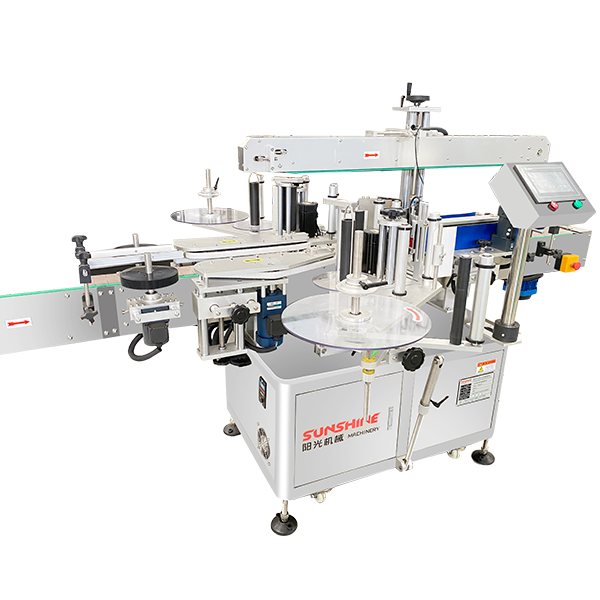

RELATE MACHINES OF AUTOMATIC SINGLE HEAD TRACKING VACUUM CAPPING MACHINE

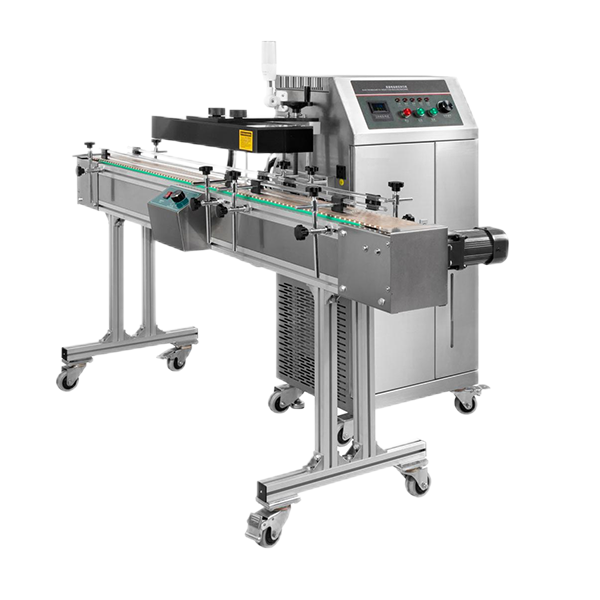

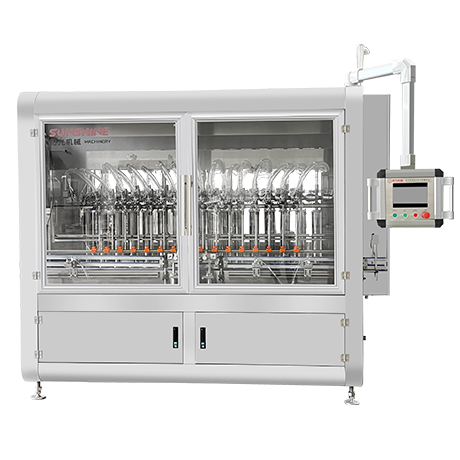

Here are some machines we can working together with single head Tracking Vacuum Capping Machine.All the equipment can be connected and used together to complete the entire line production of various bottles and glass jars.
