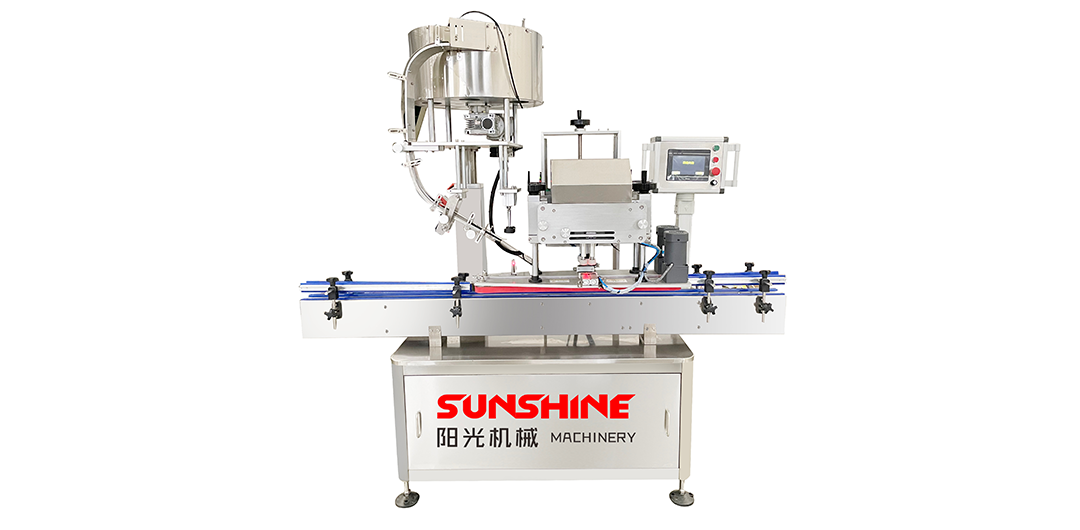

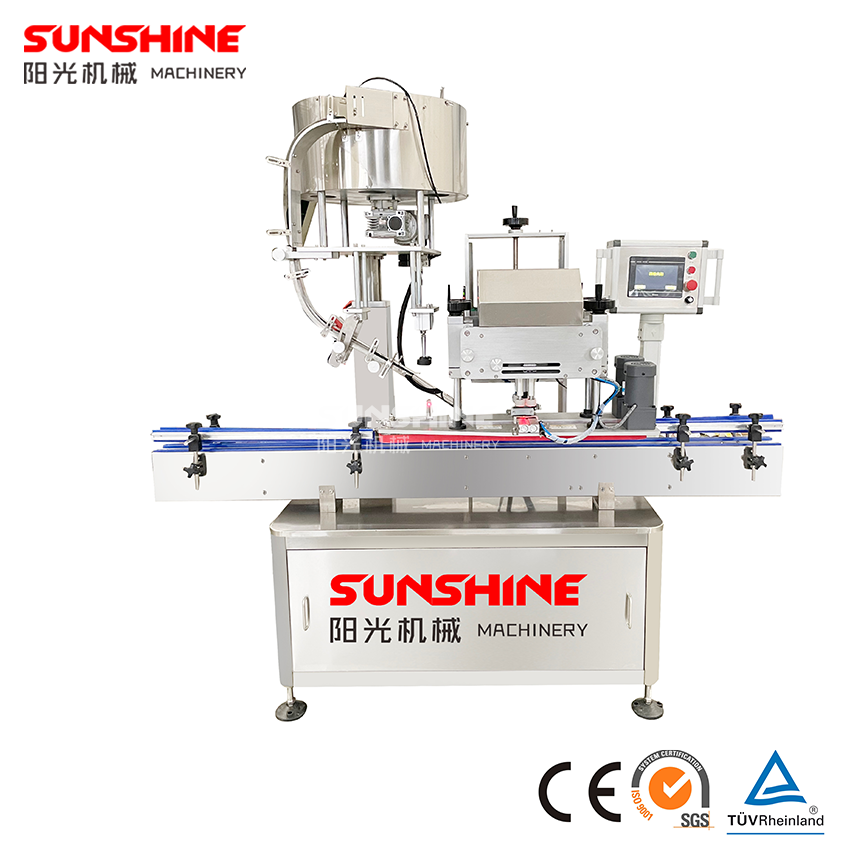

4 Wheels Screw Capping Machine

AUTOMATIC 4 WHEELS SCREW CAPPING MACHINE VIDEOS

FEATURES OF 4 WHEELS SCREW CAPPING MACHINE

Automatic 4 Wheels Screw capping machine,suitable for all kinds of round caps, courtesy caps, spray gun caps, spray caps and other caps capping work.
The whole machine is made of 304 stainless steel, good quality and beautiful appearance. All adjustable parts are adjusted by rocker, and it is convenient and simple to change the bottle type.

Convenient Adjustment：

1.The operating panel is operated by buttons and knobs. Conveyor speed, synchronous belt speed, rolling wheel speed, capping belt speed and capping machine speed can be adjusted by simple knobs, which is quick and easy to adjust.

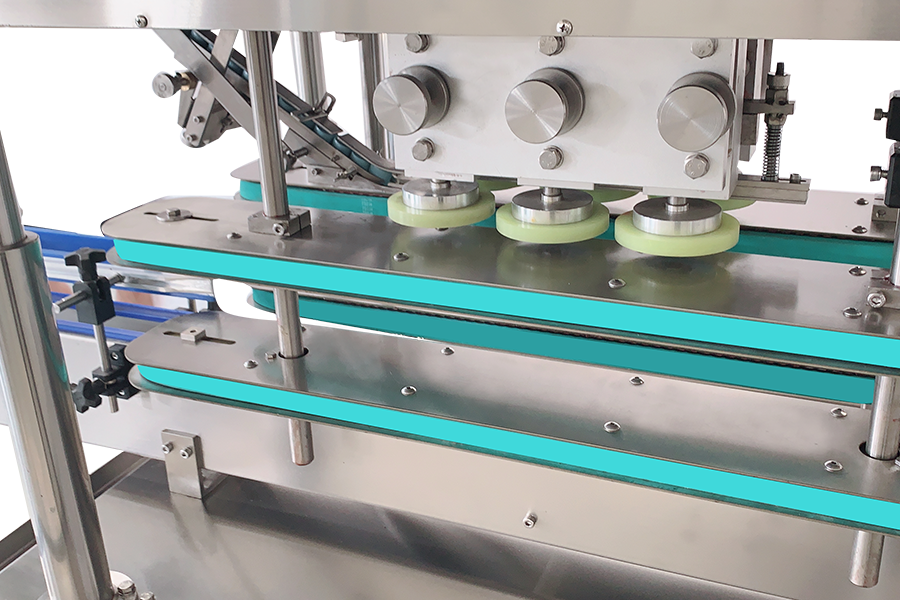

2.All rubbing wheels are made of silicone with a smooth surface that won't damage the cap.The three sets of rolling wheels are designed as upper, middle and lower layers to screw the top, middle and bottom parts of the lid respectively, ensuring that the lid can be screwed to the bottom.Wheel spacing can be adjusted with a separate rocker for each group.

3.The lid track can be adapted to round lids of unused sizes with simple adjustments, the height can be adjusted and the bottle will automatically hang the lid as it passes through.

Brand Electrical Appliances：

All electrical components are international brands, long service life, good quality, can be purchased in the local market accessories

Customised services：

Capping machines can be customised according to different production requirements of customers.
1.In order to accommodate a wide range of different types of caps, our capping machines can be equipped with a variety of different cap feeders,Rotary cap sorting machines, Vibratory plate cap sorting machines.

2.If there is a requirement for explosion-proof category, we can use explosion-proof grade electrical components for our motors, photoelectrics, electrical components, etc. We have installed explosion-proof electrical cabinets and explosion-proof buttons to ensure safety.

APPLICATION OF 4 WHEELS SCREW CAPPING MACHINE



Edible oil



Lubricating oil



Food & Sacue




Personal Care & Daily Chemical



Pesticide & Agro Chemical

TECHNICAL PARAMATERS OF 4 WHEELS SCREW CAPPING MACHINE

DETIALS PICTURES OF 4 WHEELS SCREW CAPPING MACHINE

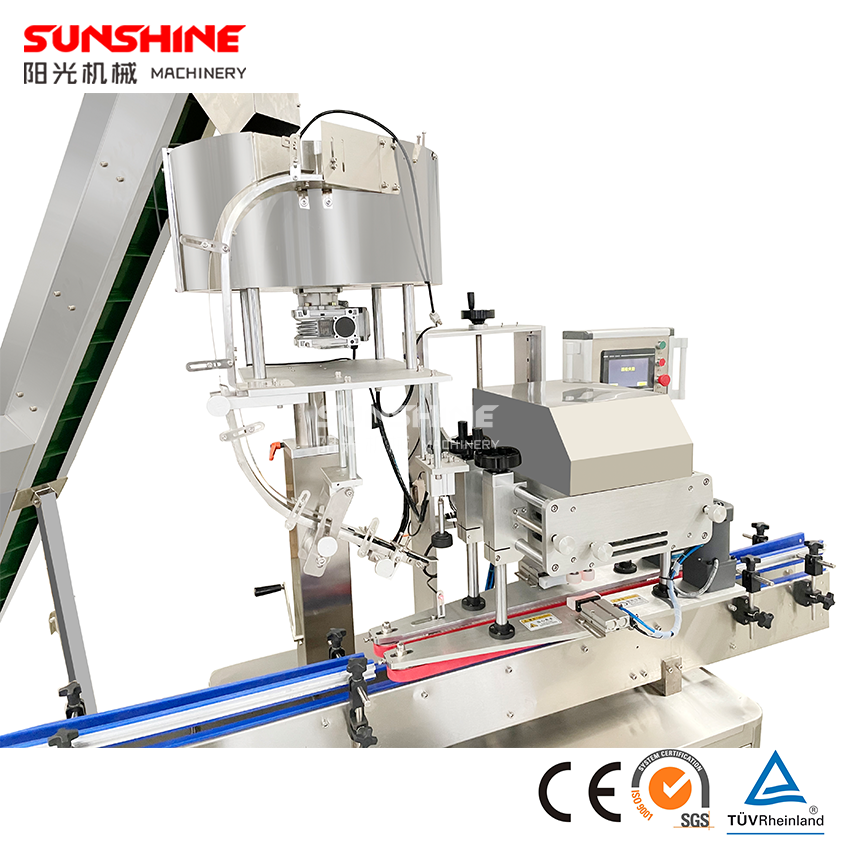

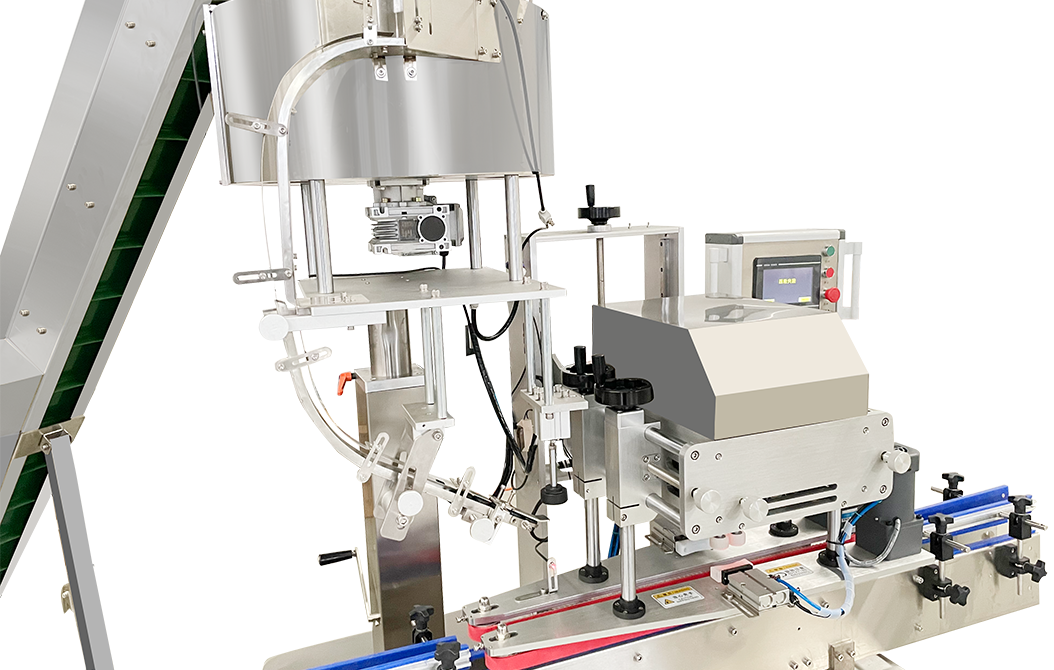

 4 Wheels Screw Capping Machine

1.Touch screen control capping machine, easy and convenient operation

2.Cap feeding railway,the pitch and height of the bottle clamping belt can be adjusted by the rocker arm,the adjustment is simple.

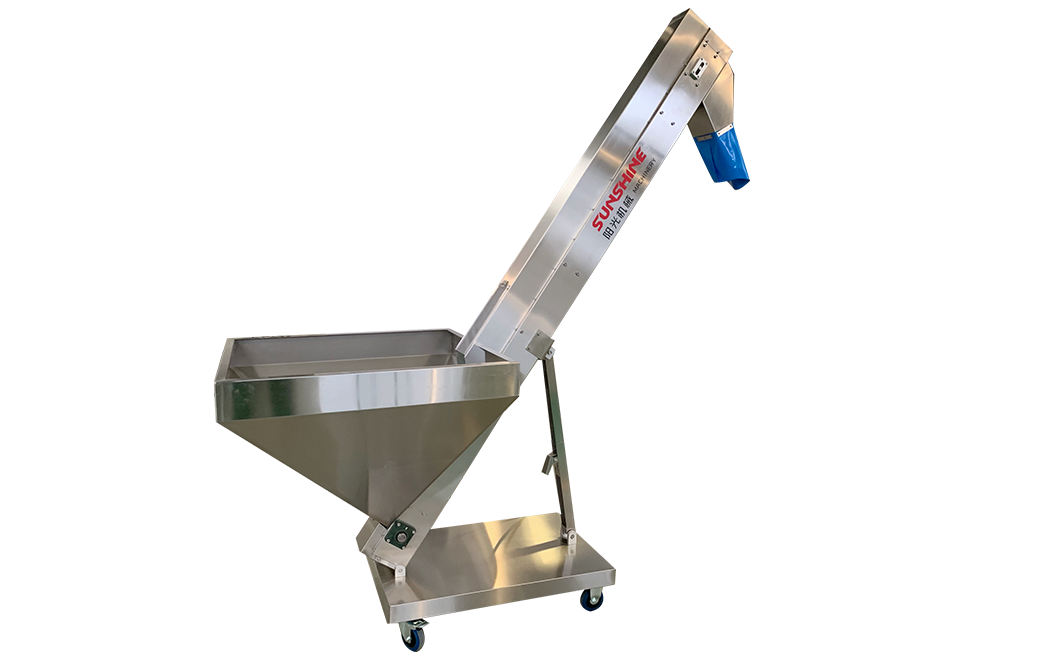

Linear Cap Sorting Machine

1.Automatic Linear cap sorting machine feed the cap automatic.
2.It can store 500-600 pieces caps for one time.



Brand Electric Component

Electrical components are all world brands, using Schneider's inverter and low-voltage electrical components, stable machine operation and long service life.



Screw Capping  Machine

1.The machine can be customised as a capping machine, which is suitable for screw capping all kinds of bottles.etc.
2.Silicone rollers screw the cap.





OPTIONAL MACHINE CONFIGURATIONS FOR 4 WHEELS SCREW CAPPING MACHINE



Brand Electronic Component



1.The capper is designed to replenish the top lidder, which is equipped with a photoelectric sensor that automatically opens the capper when there is a lack of lids. When the top is full of lids, it will stop automatically.
2.The storage capacity of the capper is about 500-600 caps.





Customizable Cap Feeding Mechanism

1.In order to accommodate a wide range of different types of caps, our capping machines can be equipped with a variety of different cap feeders,Rotary cap sorting machines, Vibratory plate cap sorting machines.
2.Rotary cap sorting machine:Rotary cap sorting machines is suitable for bottle round cap, edible oil bottle pressure cap, sterilized water bottle cap and other caps. By simply adjusting the size of the cap rail, it can be applied to a wide range of bottle caps.
3.Vibratory plate cap sorting machine:Suitable for shaped bottle caps, detergent bottle caps, laundry detergent bottle caps, pesticide caps and other special shaped caps. With customized vibration discs, it can meet the feeding work of many kinds of special caps.



Explosion-Proof Electrical Control Cabinet

1.We also have a lot of requirement for the machine explosion-proof level of customers, we will make the machine explosion-proof.
2.All electrical components are explosion-proof, such as explosion-proof photoelectricity, explosion-proof sensors and so on.
3.At the same time, there is a positive pressure electrical explosion-proof cabinet, all the buttons, switches, touch screen, alarms, etc. to meet the explosion-proof requirements.

RELATE MACHINES OF 4 WHEELS SCREW CAPPING MACHINE

Here are some machines we can working together with Weighing filling machine.All the equipment can be connected and used together to complete the entire line production of various pail/drum types.



Bottle Unscrambler



Anti-Corrosion Filling Machine



Tracking Capping Machine



   Screw Capping Machine



Duck-Neck-Capping-Machine



Bottle Labeling Machine



Carton Packing Machine



Automatic Palletizer Machine
