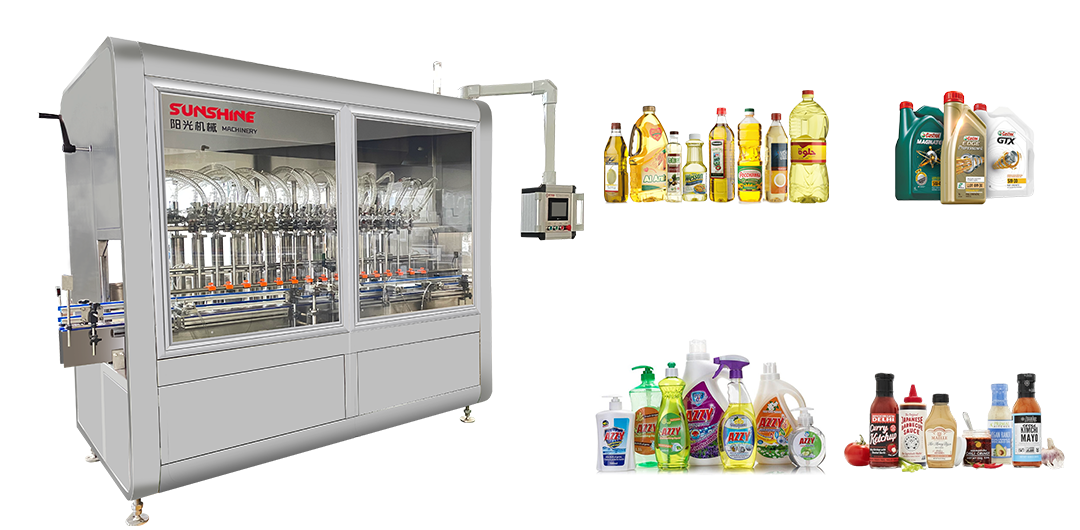

Volumetric Piston Filler

Automatic Volumetric Piston Filler  Video

Product Introduction

The Volumetric Piston Filler is a precision filling machine designed to deliver consistent and repeatable volume-based filling for both liquid and high-viscosity products. Using a piston-cylinder mechanism, the machine accurately draws and dispenses a preset volume of product into each container.

This filling solution is ideal for manufacturers requiring high accuracy, minimal variation, and reliable performance across a wide range of product types—from thin liquids to thick creams and pastes.

Product Description

The Volumetric Piston Filler is engineered to provide stable, accurate, and efficient filling performance in modern production environments.

Precision Volumetric Filling System

The piston mechanism controls the exact volume of product dispensed during each cycle. This ensures uniform filling levels and excellent repeatability, even during continuous production.

Suitable for Viscous and Semi-Viscous Products

Unlike gravity filling systems, piston fillers are ideal for thick or viscous products such as sauces, creams, gels, and pastes. The system maintains smooth and controlled dispensing regardless of product density.

Adjustable Filling Volume

The filling volume can be easily adjusted through the control system or mechanical adjustment, depending on configuration. This allows flexibility when switching between different product sizes.

Multiple Head Configurations

The machine is available in single-head, double-head, and multi-head configurations to match different production capacity requirements.

Hygienic and Durable Construction

All product-contact parts are made from high-quality stainless steel or food-grade materials, ensuring compliance with hygiene standards for food, cosmetic, and pharmaceutical industries.

Easy Cleaning and Maintenance

The piston system is designed for easy disassembly and cleaning. Optional CIP (Clean-In-Place) systems can be integrated for enhanced sanitation efficiency.

Typical Applications

• Sauces, ketchup, mayonnaise

• Creams, lotions, and gels

• Shampoo and conditioner

• Honey and syrup

• Chemical pastes and viscous liquids

Technical Parameters of Volumetric Piston Filler

Detail Pictures of Volumetric Piston Filler

Filling Nozzles

1.The filling nozzels diameter of the edible oil filling machine can be customized accoridng to the size of the bottle mouth.
2.The filling nozzle is installed on the ground floor to prevent the bottle from being contaminated during filling.
3.The filling nozzle can be lifted and lowered by a servo motor to reduce the amount of foaming during filling. It is suitable for filling liquids that are prone to foaming.

Servo Motro Control Pistons

1.All the pistons are made of SUS304/316 food grade material.The piston ring is also made of food grade material. Wear and corrosion resistant
2.The inner wall of the piston cylinder is smooth, ensuring no residue after filling and high filling accuracy.
3.With cylinder removal function, the piston ring can be lowered out of the piston cylinder for easy cleaning.

Servo Motor

1.Adopt high-power Panasonic brand servo motor, stable operation and high precision.
2.It adopts double-screw structure and chain drive, which can transmit sufficient power to drive the piston ring, with stable structure and high operation precision.
3.Equipped with high and low position protection to prevent the piston ring from falling out of the piston cylinder, without causing leakage, high safety.

 CIP Material Tank

1.E oil filling machine can be equipped with  tank,The internal pipelines of the filling machine can be perfectly cleaned with CIP cleaning fluid, from the material box to the piston cylinder to the filling nozzle, with no dead angles.
2.The material box can be equipped with heating, stirring, high and low level gauges and other functions, suitable for a variety of different liquids filling.

Optional Configurations For Volumetric Piston Filler

FDA Certified Food Grade Filling Pipe

Our Edible Oil Filling Machine can used FDA certified food grade filling pipe.
All filling tubes are quick-connect, easy to disassemble and clean.No residue when filling various edible oils, sauces and other liquids.

Servo Motor Diving Nozzle

Servo motor can be used to raise and lower the brake fluid filling machine nozzles, which can rise while filling, so that the liquid is always under the filling nozzle to reduce the generation of bubbles.

CIP Material Tank

The top of the brake fluid filling machine can be replaced with a CIP storage tank, which can be equipped with heating, stirring, high and low liquid level display, CIP interface and other functions
