Bleach Filling Machine

AUTOMATIC BLEACH FILLING MACHINE VIDEO

FEATURES OF BLEACH FILLING MACHINE

The Bleach Filling Machine is a fully automatic liquid filling system specially engineered for sodium hypochlorite (bleach), chlorine-based disinfectants, and other highly corrosive liquids. Designed with chemical-resistant materials and precise dosing technology, it ensures safe, accurate, and efficient filling while protecting both operators and equipment.

This machine is widely used in the household cleaning, chemical, sanitation, and water treatment industries, helping manufacturers achieve stable output, reduced waste, and consistent packaging quality.

High Filling Accuracy

• Servo-driven piston or flowmeter filling system

• Filling accuracy up to ±0.5%

• Stable and repeatable filling performance

Advanced Anti-Corrosion Structure

• Liquid-contact parts made of SUS316L stainless steel, PP, or PVC

• Resistant to strong oxidizing and corrosive bleach liquids

• Long service life even under continuous operation

Fully Automatic & Intelligent Control

• Automatic bottle feeding, filling, and discharge

• PLC + touchscreen control system for easy operation

• Parameter memory for different bottle sizes and products

Wide Bottle Compatibility

• Suitable for HDPE, PET, and other chemical-resistant plastic bottles

• Filling volume range: 50ml – 5000ml (customizable)

• Quick and tool-free changeover

Safe & Clean Filling Process

• Anti-drip filling nozzles to prevent leakage and splashing

• Optional exhaust and ventilation system for chlorine fumes

• Operator-friendly and environmentally safe design

WHAT IS A BLEACH FILLING MACHINE?

A Bleach Filling Machine is specialized equipment used to automatically fill bleach liquids into chemical-resistant bottles. Due to the strong corrosive and oxidizing properties of bleach, the machine is built with anti-corrosion materials, sealed filling systems, and reliable safety designs.

Suitable for filling:

• Sodium hypochlorite solutions

• Liquid chlorine disinfectants

• Household bleach cleaners

• Industrial bleaching solutions

• Sanitation and water treatment chemicals

APPLICATION OF BLEACH FILLING MACHINE

The Bleach Filling Machine is ideal for:

• Household bleach manufacturers

• Cleaning and sanitation product factories

• Industrial chemical producers

• Water treatment chemical suppliers

TECHNICAL PARAMETERS OF BLEACH FILLING MACHINE

DETIALS PICTURES OF BLEACH FILLING MACHINE

Duck Neck Bottle Filling Nozzles

1.All parts in contact with liquid are coated with Teflon.
2.Non-drip filling nozzle design with collection tank underneath the filling nozzle to prevent dripping liquid from contaminating the roller conveyor.
3.The rise and fall of the filling nozzle is controlled by a frequency conversion motor, and the rise speed and time delay can be set in the touch screen to control the filling nozzle to always fill below the liquid surface. It can be very effective in reducing foam for liquids that are easy to foam.

Straight Filling Nozzles

1.The load cell adopts Germany HBM, with high detection accuracy.
2.The weighing module will be connected to the PLC, which will control the filling speed and the opening time of the fast and slow valves, working jointly to improve the filling accuracy.
3.A separate load cell will be installed underneath each filling nozzle and underneath the roller station.

Weight Scale

1.Filling will be a combination of fast and slow speeds to improve accuracy. AIRTAC valves will complete the fast and slow valve opening action.
2.At the beginning, the filling machine is filled in a fast filling mode, and when it is close to the target accuracy of 2KG, it opens the slow filling mode, which makes the filling accuracy greatly improved by the combination of fast and slow filling.

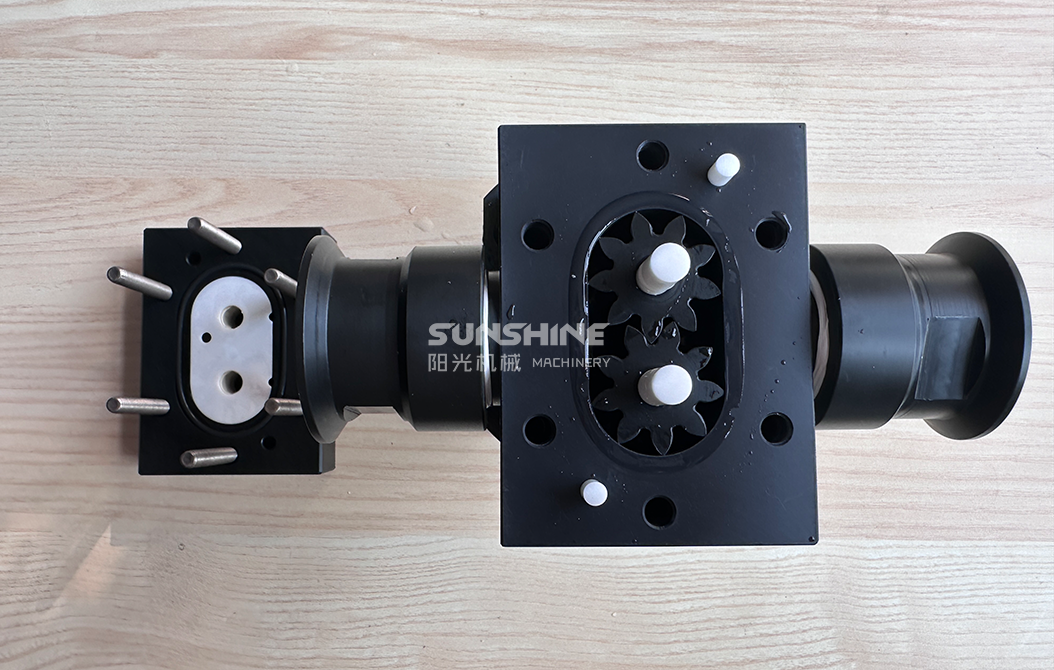

 Anti-Corrosion Magnetic Pump

1.Corrosion-resistant magnetic drive pump, maximum rotational speed 2000 revolutions per minute
2.All black components are manufactured from Teflon material, effectively preventing liquid corrosion.
3.The gear section utilises ceramic materials, offering high strength and corrosion resistance.

OPTIONAL CONFIGURATIONS FOR BLEACH FILLING MACHINE

Brand Electronic Component

Our weighing and filling machines can be equipped with different grades of connecting hoses, chemical grade, food grade, pharmaceutical grade, depending on the customer's materials.All hoses have quick-connect ports for easy removal and washing.

Anti-corrosion Magnetic Pump Filling

1.The pump will be controlled by a servo motor to control the speed and number of revolutions, effectively controlling the accuracy to within 0.1%.
2.Featuring corrosion-resistant magnetic drive pumps with speeds up to 2000 revolutions per minute, delivering rapid filling speeds with high precision.

PP Material Material Tank

1.170-200L large-capacity material hoppers, all constructed from corrosion-resistant polypropylene.
2.Fitted with corrosion-inhibiting level control agents and corrosion-resistant imported valves and piping.
