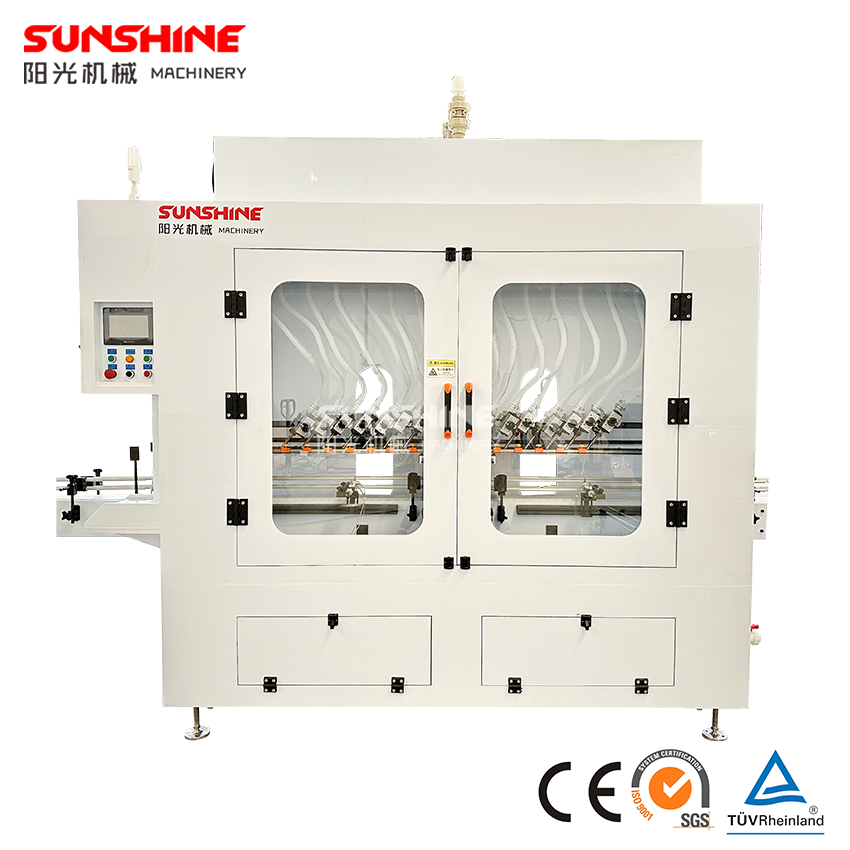

Anti-Corrosion Filling Machine
SUNSHINE
YG-F
Siemens/Schneider/Mitsubishi/AirTac/Delta/Can be customized
100-1000ml,1000-5000ml,10L
1000-4500 Bottles/Hour
toilet cleaner,bleaching water,disinfectant water and so on
One Year and Life-Long Technical Support
PP Material,Teflon,Aluminum Alloy
Engineers Available to Service Overseas

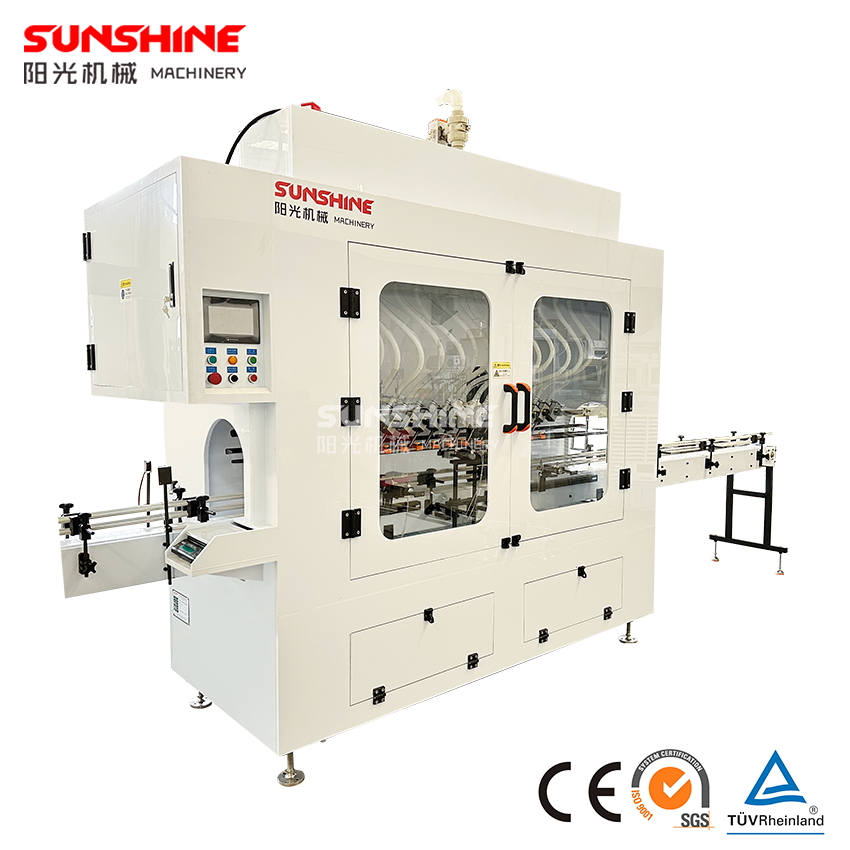

FEATURES OF TOILET CLEANER FILLING MACHINE
This toilet cleaner filling machine is special made for filling corrosive liquid such as toilet cleaner,bleaching water, sulphuric acid, 84 disinfectant,etc.

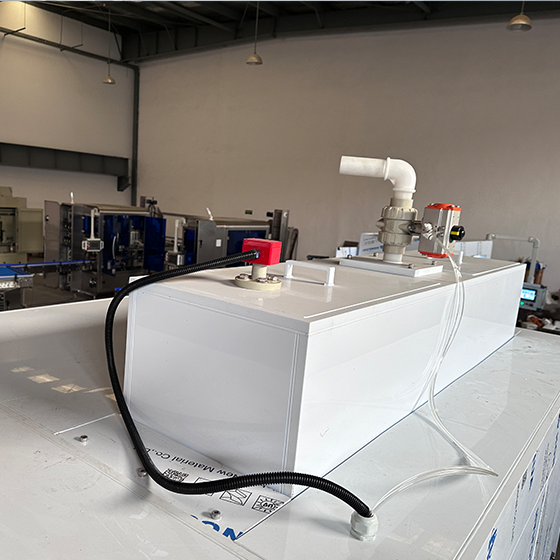

The whole machine is composed of pp anti-corrosive material frame, Teflon bellows, Teflon spraying surface, titanium alloy filling nozzle and Japanese anti-corrosive ball valve.

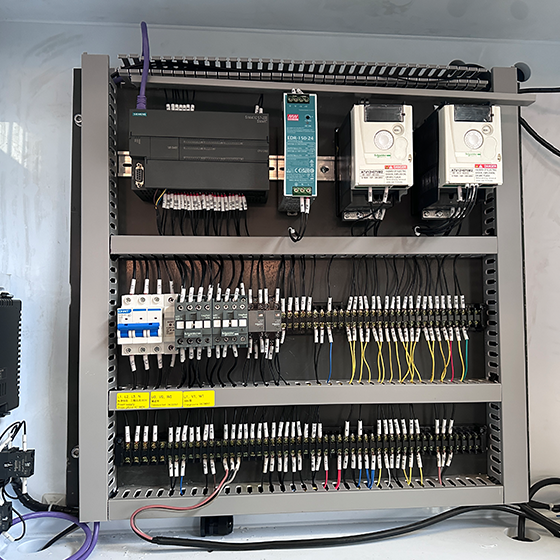

The filling machine is controlled by brand PLC, touch screen, all electrical components are separated from the filling part to prevent gas corrosion.
Filling speed:

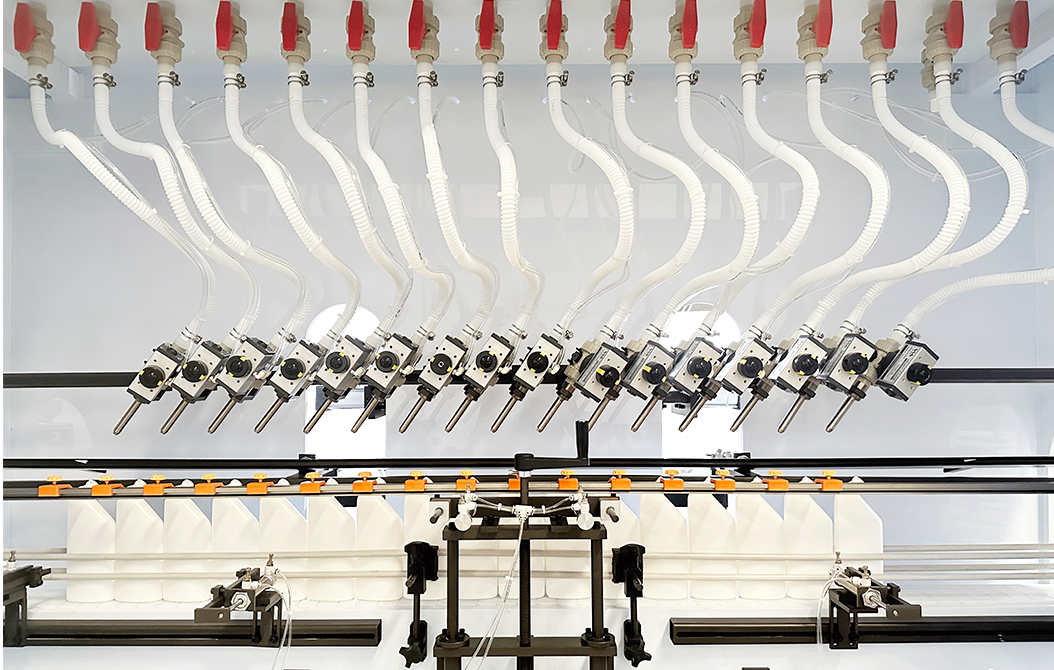

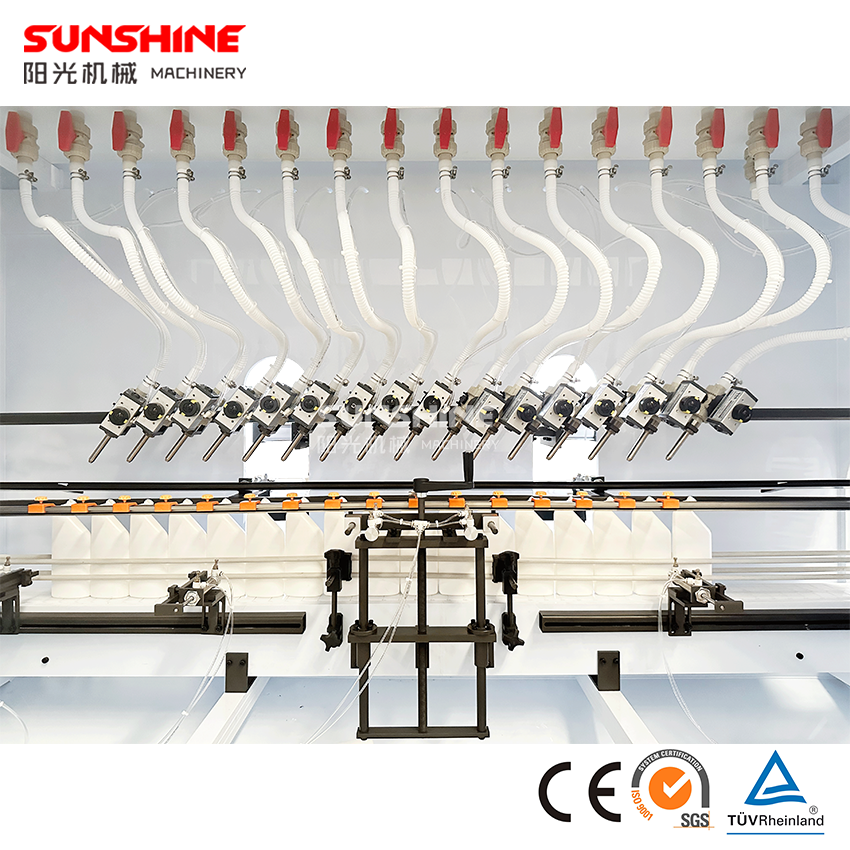

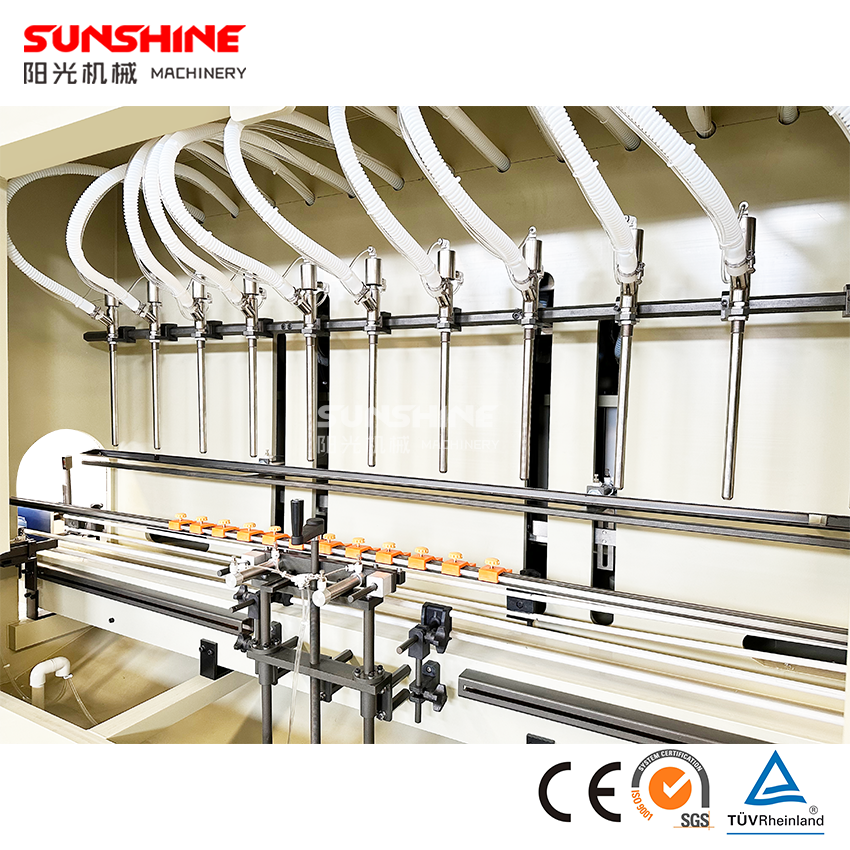

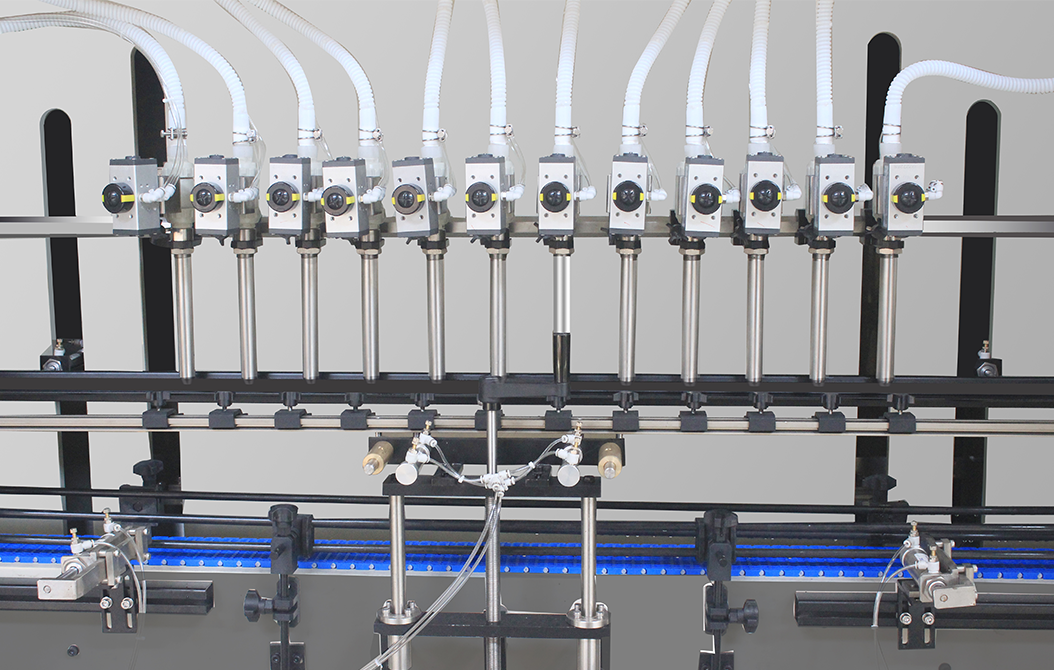

The filling nozzles can be 6/8/10/12/16/20 numbers.The filling nozzles are made of titanium alloy, which is the best corrosion-resistant material and can be used for a lifetime.The filling range can be from 500ml-5000ml, 10L, 20L and so on. Filling speed range is: 1000-4500 bottles per hour
Filling method:
There are many filling methods to choose from, atmospheric pressure filling, anti-corrosion magnetic pump filling, filling accuracy up to 0.1%.
Suitable material:
Bleach, acid liquid, 84 disinfectant, gel water, toilet cleaner, especially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal.
Edible oil
Lubricating oil
Food & Sacue
Personal Care & Daily Chemical
Pesticide & Agro Chemical
| Heads | 4 heads | 6 heads | 8 heads | 12 heads | 16 heads | 20 heads |
| Production Speed (Bottles/hour) | 1L:800-900 BPH 5L:500-600 BPH | 1L:1000-1200 BPH 5L:900-1000 BPH | 1L:1500-1600 BPH 5L:1400-1500 BPH | 1L:2000-2200 BPH 5L:1800-2000 BPH | 1L:3000-3200 BPH | 1L:4000-4500 BPH |
| Machine Dimension (Length x Wide x Height)mm | 1800 x 1300 x 2250 mm | 1800 x 1300 x 2250 mm | 2000 x 1300 x 2250 mm | 2400 x 1300 x 2250 mm | 2600 x 1500 x 2250 mm | 2800 x 1500 x 2250 mm |
| Suitable Bottles | Round Bottles,Falt Bottles,Square Bottles(Can be customized) | |||||
| Filling Accuracy | ≤±0.2-0.3% | |||||
| Filling Volume | 100-5000ml(Can be customized) | |||||
| Power Supply | 220 / 380 / 415V ; 50 / 60HZ (Can be customized) | |||||
| Air Supply | 0.6-0.8Mpa clean air | |||||
Brand Electronic Component
Our weighing and filling machines can be equipped with different grades of connecting hoses, chemical grade, food grade, pharmaceutical grade, depending on the customer's materials.All hoses have quick-connect ports for easy removal and washing.

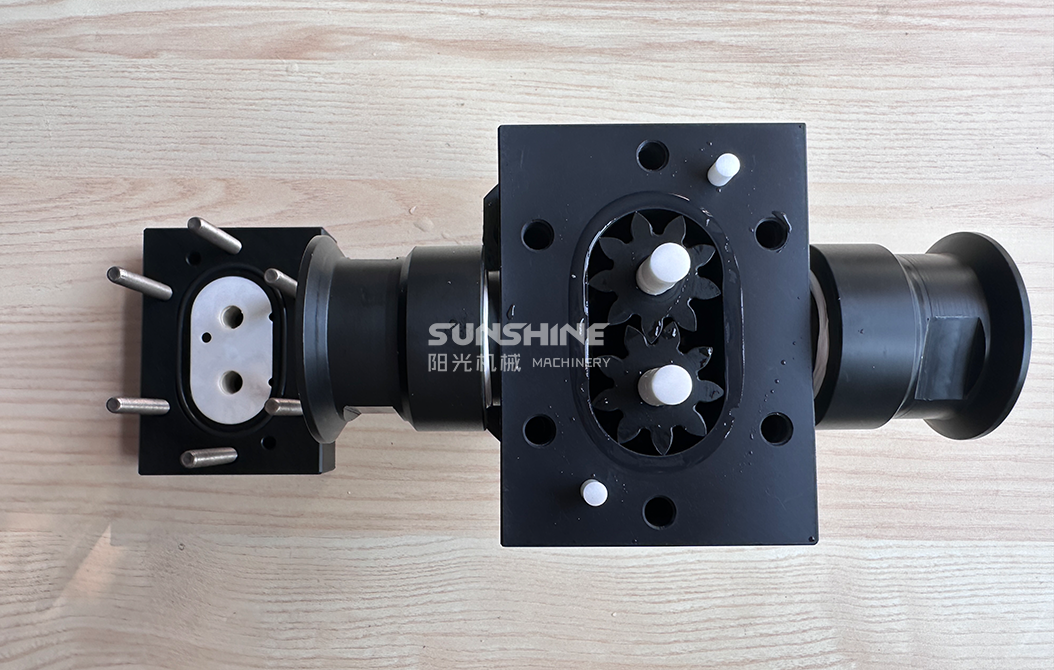

Rotor/Magnetic Pump Filling

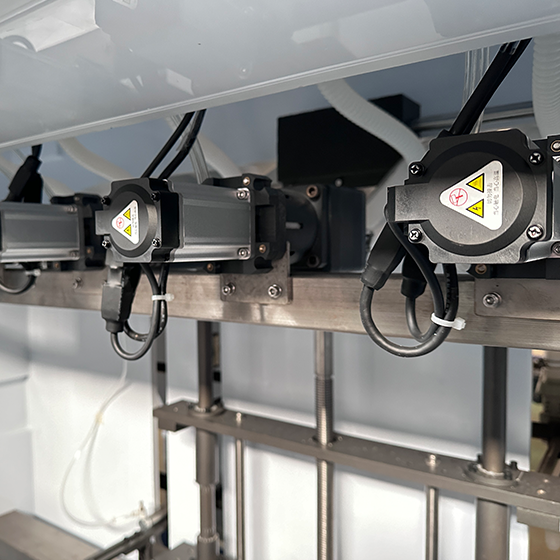

Not only do we have single pump filling, we can also install rotary or magnetic pumps for each filling nozzle. The pump will be controlled by a servo motor to control the speed and number of revolutions, effectively controlling the accuracy to within 0.1%.
Explosion-Proof Electrical Control Cabinet
We also have a lot of lubricating oil Chemical industry, there is a requirement for the machine explosion-proof level of customers, we will make the machine explosion-proof. All electrical components are explosion-proof, such as explosion-proof photoelectricity, explosion-proof sensors and so on. At the same time, there is a positive pressure electrical explosion-proof cabinet, all the buttons, switches, touch screen, alarms, etc. to meet the explosion-proof requirements.
Here are some machines we can working together with Weighing filling machine.All the equipment can be connected and used together to complete the entire line production of various pail/drum types.

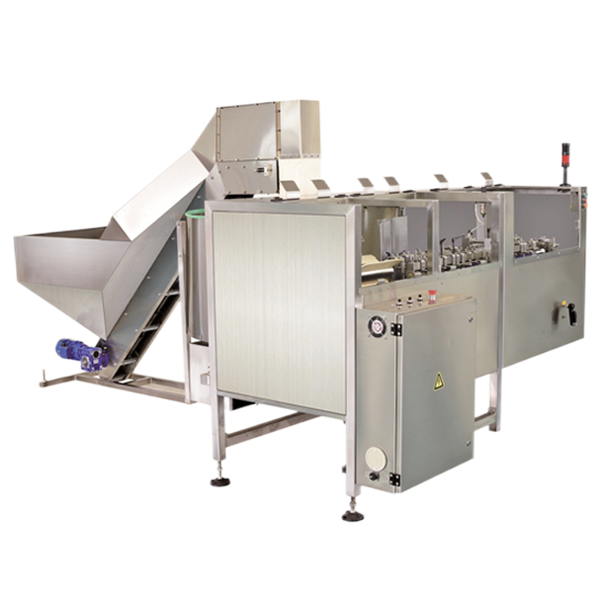

Bottle Unscrambler

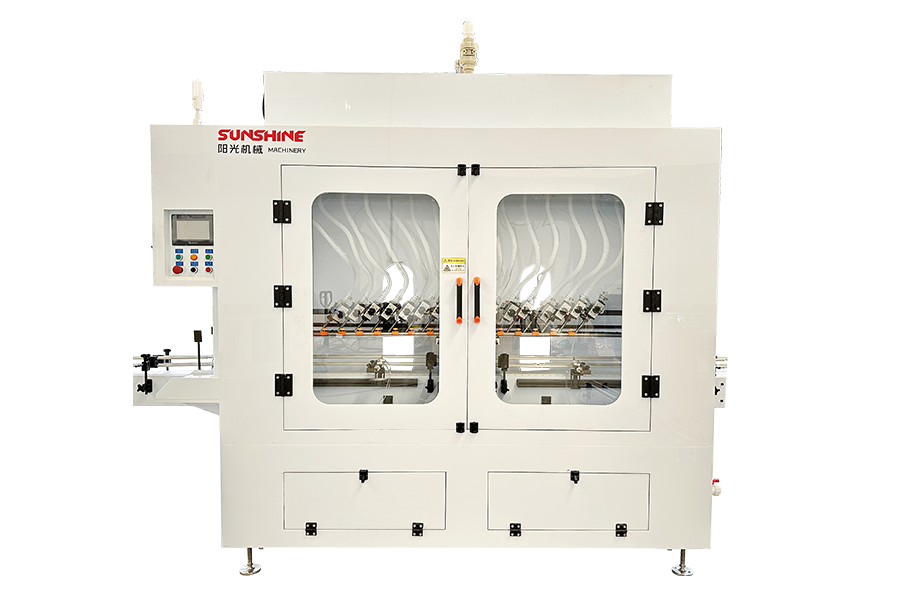

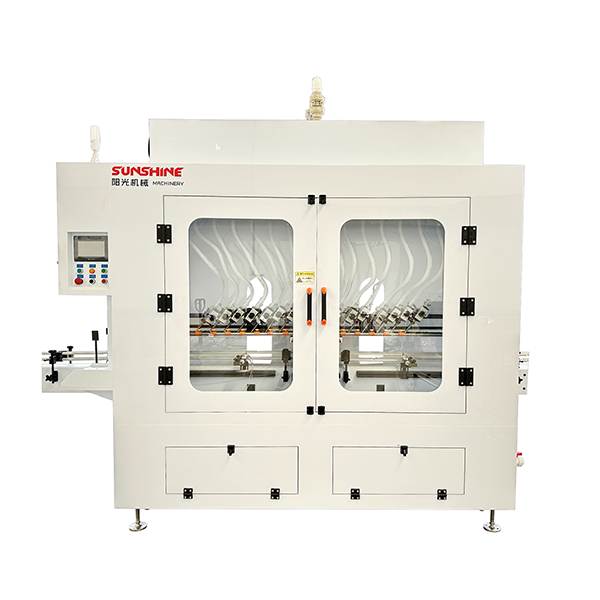

Anti-Corrosion Filling Machine

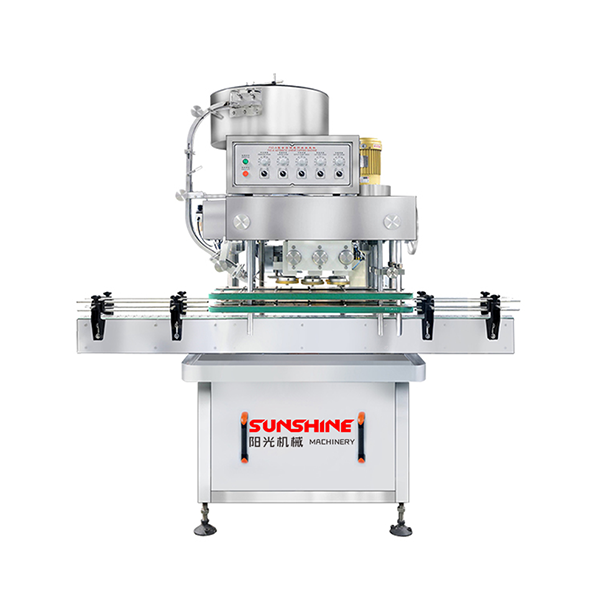

Tracking Capping Machine
Can Capping Machine

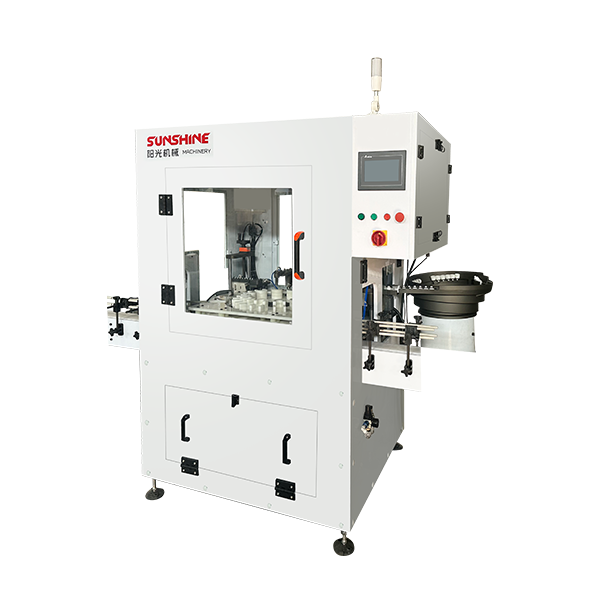

Duck-Neck-Capping-Machine

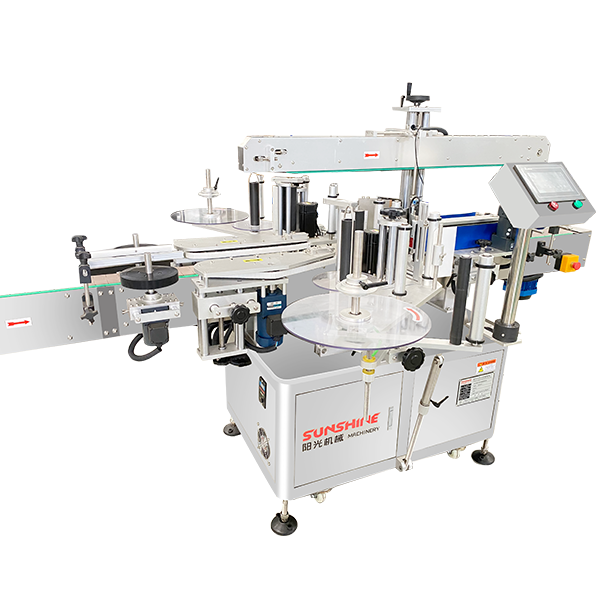

Bottle Labeling Machine

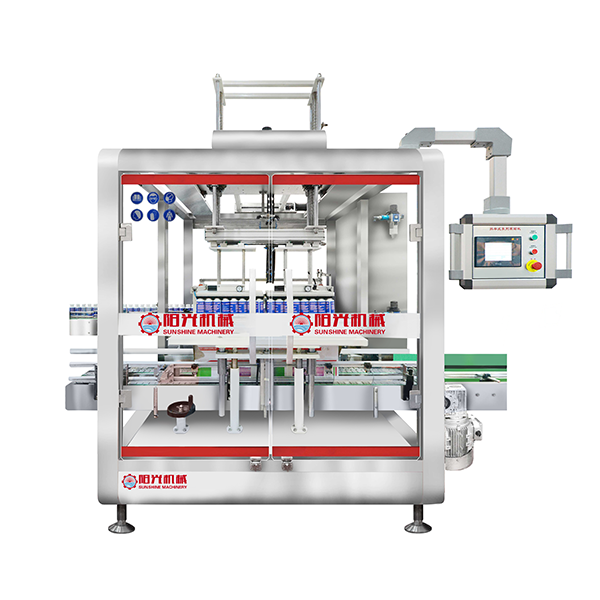

Carton Packing Machine
Automatic Palletizer Machine

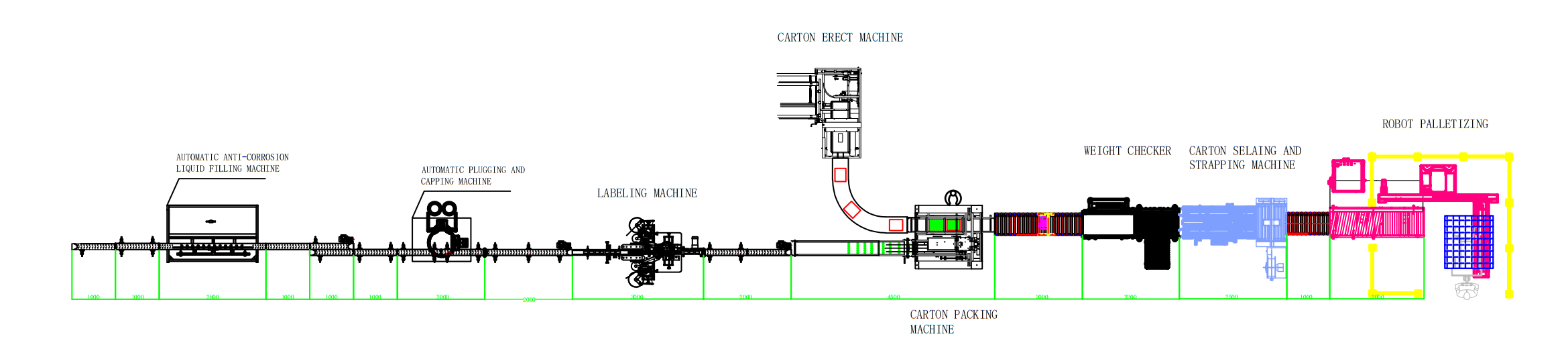

100-1000ML 5000BPH Toilet Cleaner Filling Capping Lableing Palletizer Machine Line
Production Speed: 1000-5000 Bottles Per Hour Filling Range:100-1000ml
Suitable Liquid: Toilet cleaner,bleaching water, sulphuric acid, 84 disinfectant,etc.
As a high-quality Toilet Cleaner filling machine manufacturer from China, we can provide customers with one-stop service. We can provide customers with filling machines, capping machines, labeling machines, liquid nitrogen filling machines, and carton unpacking machines. Packing machines, film wrapping machines, palletizers and other equipment. For different bottle types and caps, we have a variety of equipment to choose from, suitable for different products, and connect them into an efficient Toilet Cleaner Filling Machine Production Line to achieve safe and stable fully automated production.
Below we have two types of filling lines for commonly used detergent products. In-line lines and Circular lines:

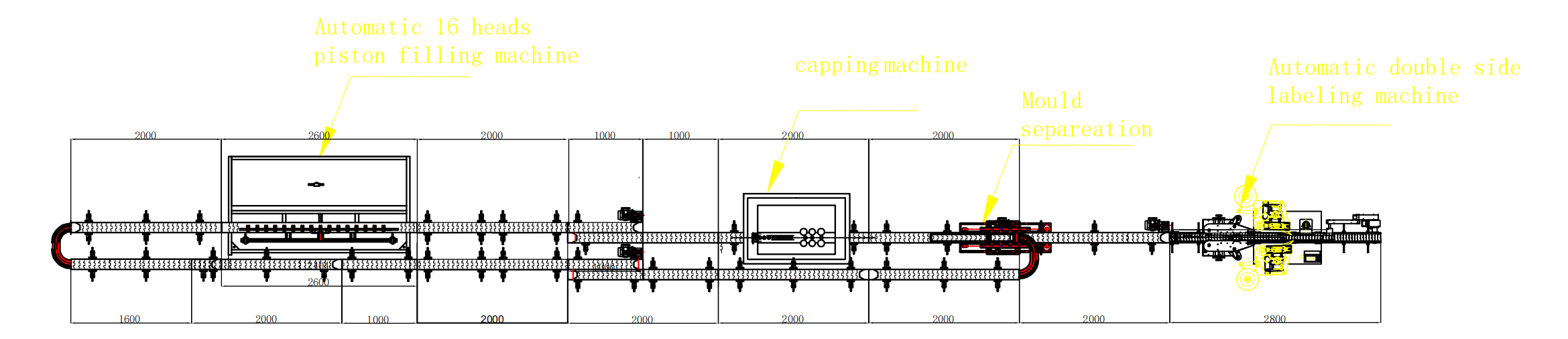

The Circular Line is suitable for toilet bowl cleaner products with commonly used duckbill caps. By customizing the bottle drag mold, the bottle is placed in the mold to achieve the operation of turning the slanted filling nozzle into a straight filling nozzle. This will make the subsequent operation of adding the inner stopper and screwing the outer cap much easier.
After completing the work of filling and capping, the bottle and the bottle drag mold will be separated automatically under the action of the separating device, and the bottle will continue to enter the next step of labeling, packaging and other processes.
After separated, the bottle drag molds will return to the front of the filling machine along the circular conveyor line for recycling.
THE Linear Lines will be simpler compared to circular line. There is no need to use a bottle drag mold.
The filling nozzle of the filling machine will use the slant nozzle filling method, the capping machine will use the rotary capping machine, in the customized turntable, the bottle will lie down slowly in the predetermined direction, the bottle mouth direction will become vertical upward, the work of adding the inner cork and screwing the outer cap will be done in one machine.
After completing the capping work, the bottle will automatically stand up when it is discharged. Enter the subsequent labeling, packing work.
| Drum/Pail Feeder | The bottle unscrambler is for fully automatic arrange the oil bottle according to the direction and send it to the conveyor line.Wide range of applications, can be customized for different sizes and shapes of bottles. |
Weighing filling Machine | Weighing filling machine, magnetic pump filling machine, rotor pump filling machine, all kinds of filling machines can meet 4-50KG,200-300KG,1000KG or more of different capacity filling. |
| Capping Machine | According to the design of different oil bottles, capping machine and capping machine will complete the capping and capping sealing work of various bottles. |
| Labeling Machine | Suitable for all kinds of round bottles, flat bottles, square bottles, shaped bottles single-sided, double-sided, multi-sided labeling work. |
| Robot Palletizing Machine | Through the palletizing robot, the packaged cartons are automatically palletized, improving work efficiency and freeing workers from tired physical work |
| Conveyor System | We provide custom conveyor systems designed to seamlessly transport containers to and from the filling machine. These systems are engineered for reliability and optimize the flow of your production. |
Bottle Unscrambler
Toilet Cleaner Filling Machine
Linear Screw Capping Machine
Duck Neck Capping Machine
Labeling Machine
Robot Palletizing Machine

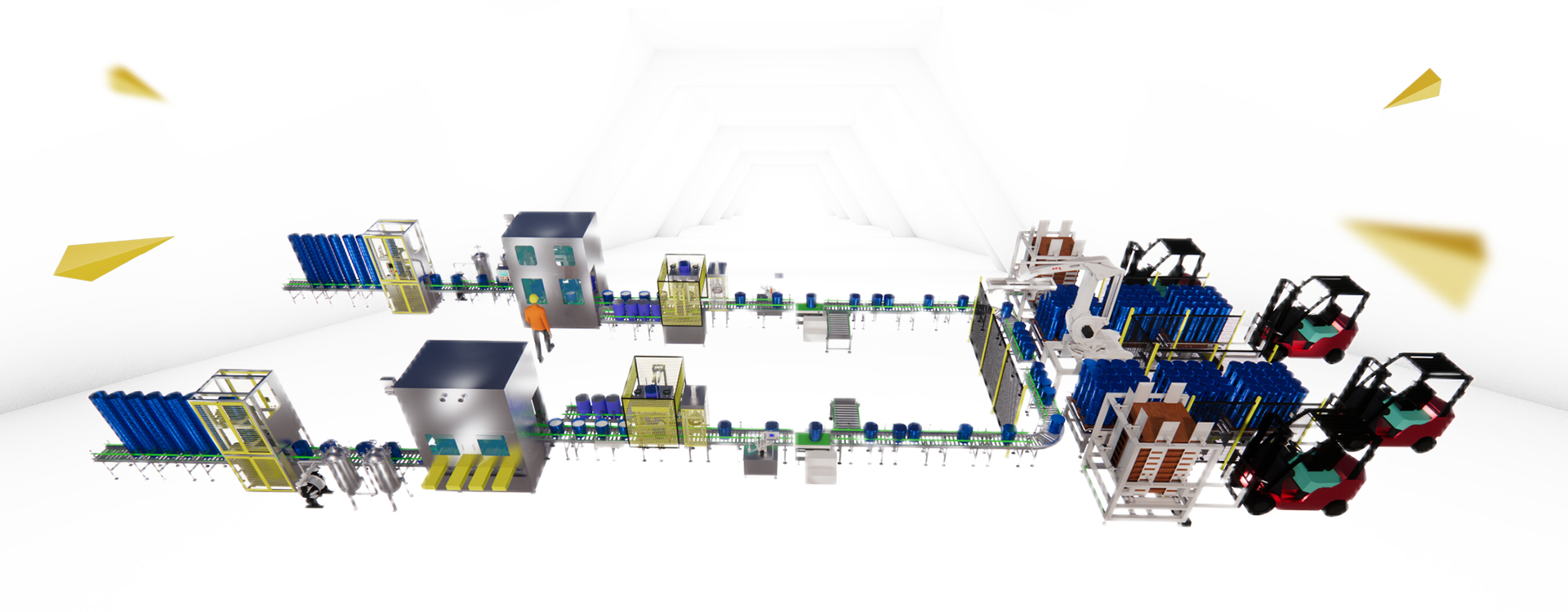

5-20L Anti-corrosion Liquid Filling Capping Labeling Production Line
5-50 Liter liquid packaging production line, the whole line includes Weighing filling machine, Capping machine, Carton packing machine, Carton sealing machine and other equipment.
Production Speed: 100-800 Bottles per hour

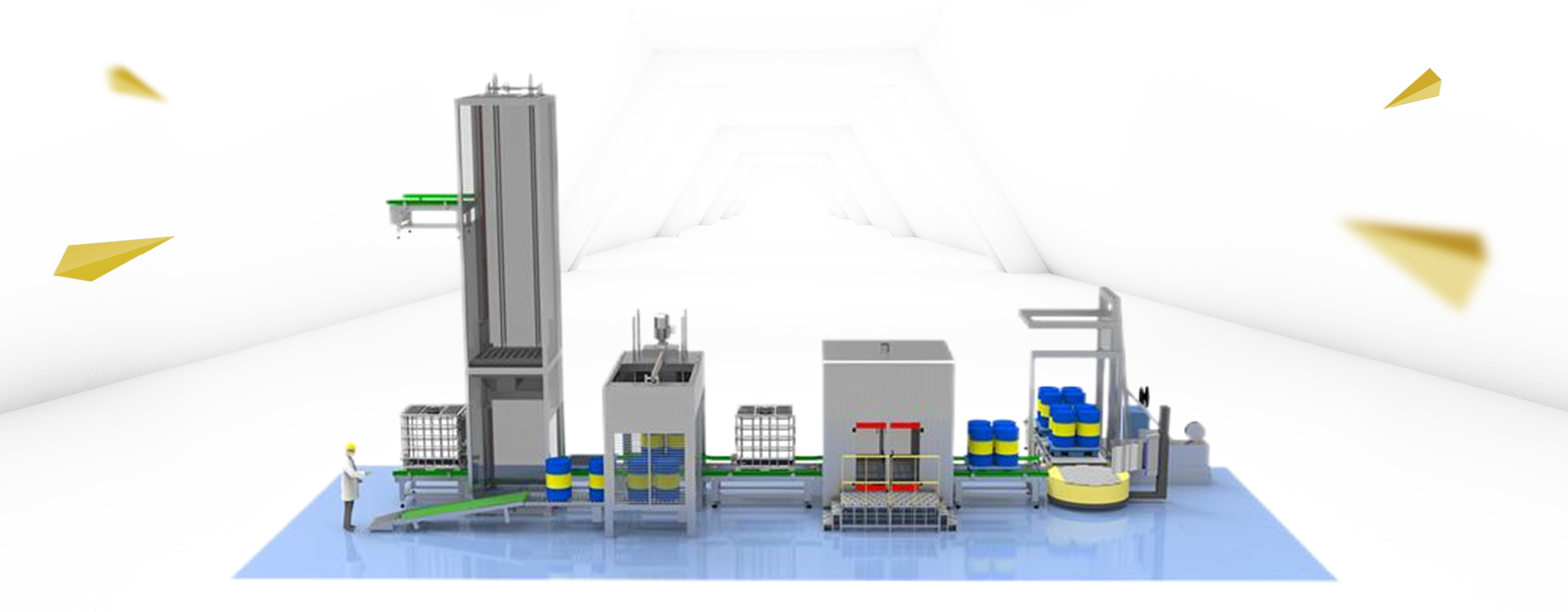

200-1000 Liter Anti-corrosion Liquid Filling Production Line
200-1000 Liter Fully automatic liquid packaging production line, this production line is for 50-200 Liter Steal and Plastic Drum,and 1000 Liter IBC Drum Filling .
Production Speed: 200Liter:50-52 Drums per hour
1000 Liter:10 Drums per hour
Filling Range: 200-1000Liter
