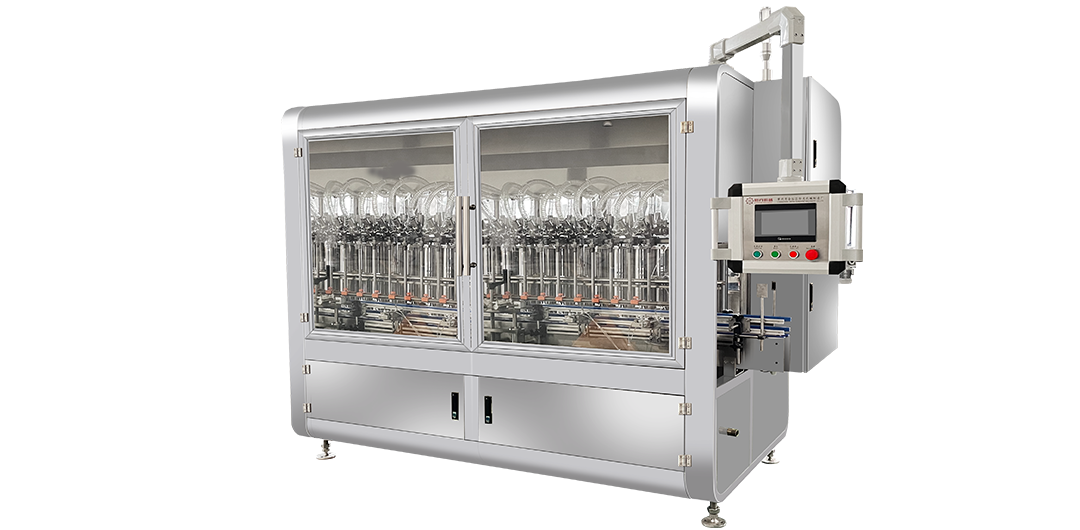

SERVO PISTON FILLER

SUNSHINE Edible oil filling machine designed to cater to the unique requirements of the food industry,Whether you are bottling vegetable oil, olive oil, sunflower oil, or any other type of edible oil, our machines are tailored to meet the demands of modern production facilities.

Request A Quick Quote

FAST SPEED FILLING

HIGH FILLING ACCURACY

FLEXIBLE PRODUCTION

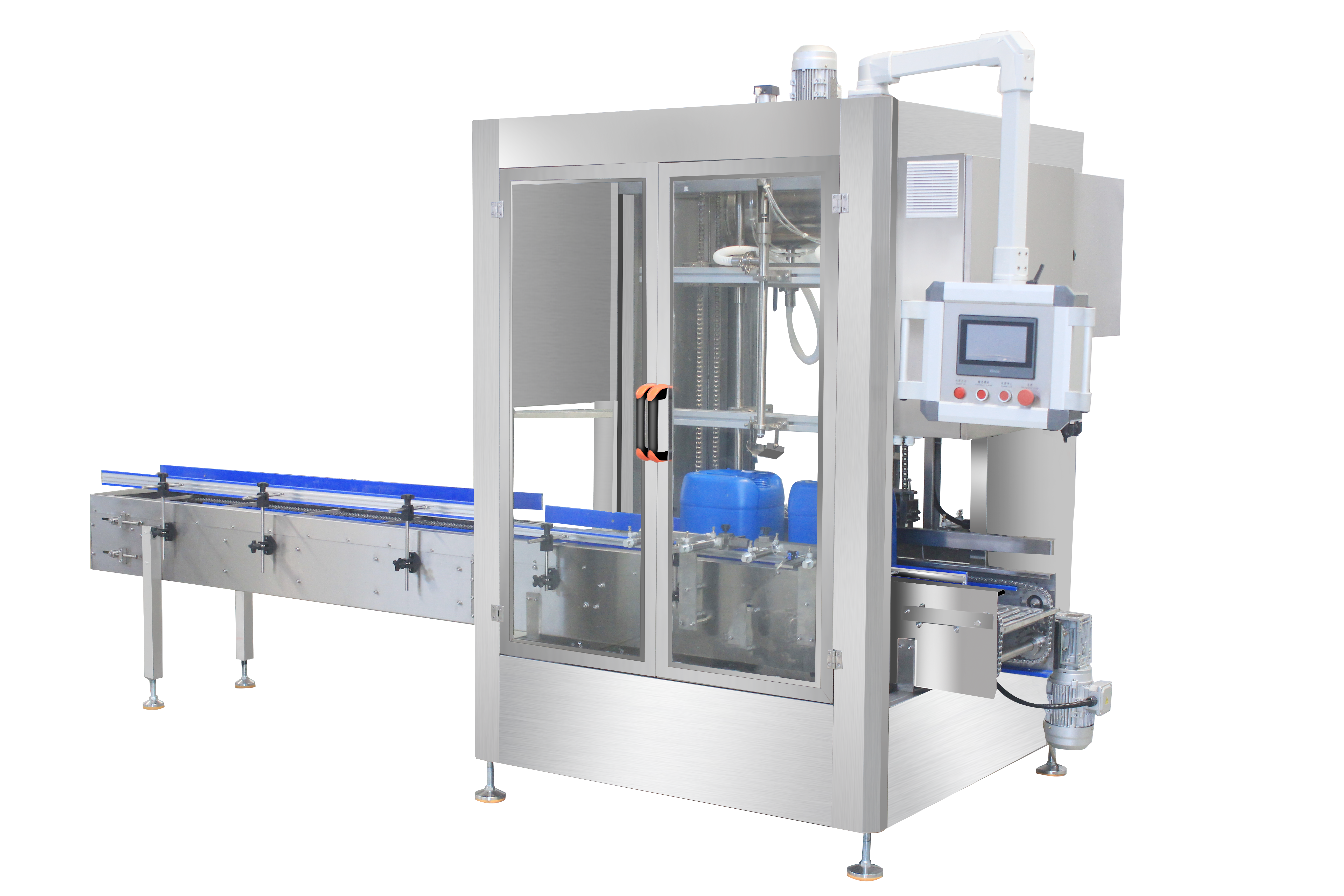

5-50KG Edible Oil
Weighing Filling Machine

Videos Display

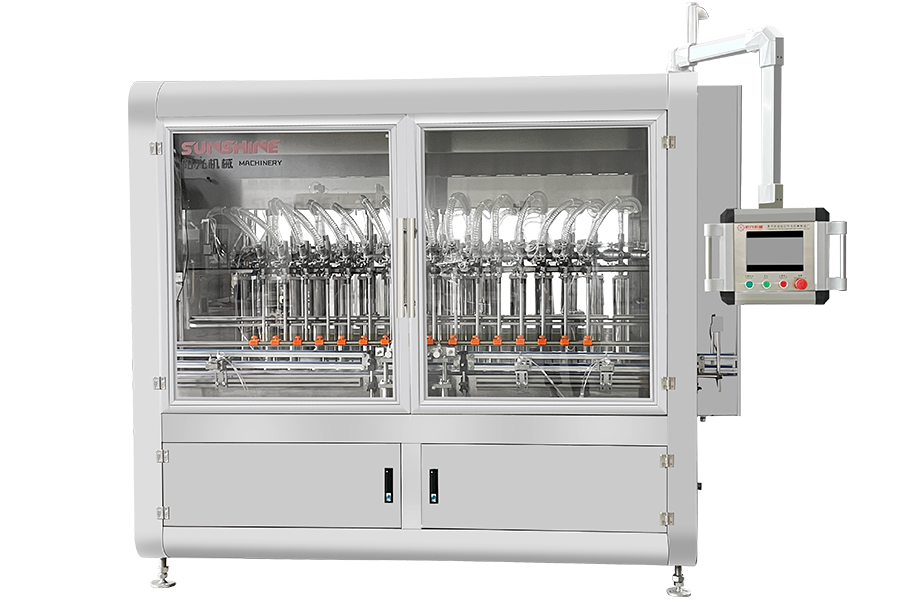

Machine Introduction

Edible oil filling machines and cooking oil filling machines are widely used in the food and beverage industry, particularly in the production of vegetable oil, olive oil, soybean oil, canola oil, and other edible oils. The edible oil packaging machine and vegetable oil filling machine are also commonly used in the pharmaceutical and chemical industries for filling oils, syrups, and other liquid products. Whatever small oil filling machine or large scale oil filling machine, SUNSHINE provides comprehensive machine and service for you.

Consult Sunshine Expert

TECHNICAL PARAMETERS OF EDIBLE OIL FILLING MACHINE

Heads	4 Heads	6 Heads	8 Heads	12 Heads	16 Heads	20 Heads
Production Speed (Bottles/hour)	1L:800-900 BPH 5L:500-600 BPH	1L:1000-1200 BPH 5L:900-1000 BPH	1L:1500-1600 BPH 5L:1400-1500 BPH	1L:2000-2200 BPH 5L:1800-2000 BPH	1L:3000-3200 BPH	1L:4000-4500 BPH
Machine Dimension (Length x Wide x Height)mm	1800 x 1300 x 2250 mm	1800 x 1300 x 2250 mm	2000 x 1300 x 2250 mm	2400 x 1300 x 2250 mm	2600 x 1500 x 2250 mm	2800 x 1500 x 2250 mm
Suitable Bottles	Round Bottles,Falt Bottles,Square Bottles(Can be customized)
Filling Accuracy	≤±0.1%
Filling Volume	100-5000ml(Can be customized)
Power Supply	220 / 380 / 415V ; 50 / 60HZ (Can be customized)
Air Supply	0.6-0.8Mpa clean air

Machine Introduction

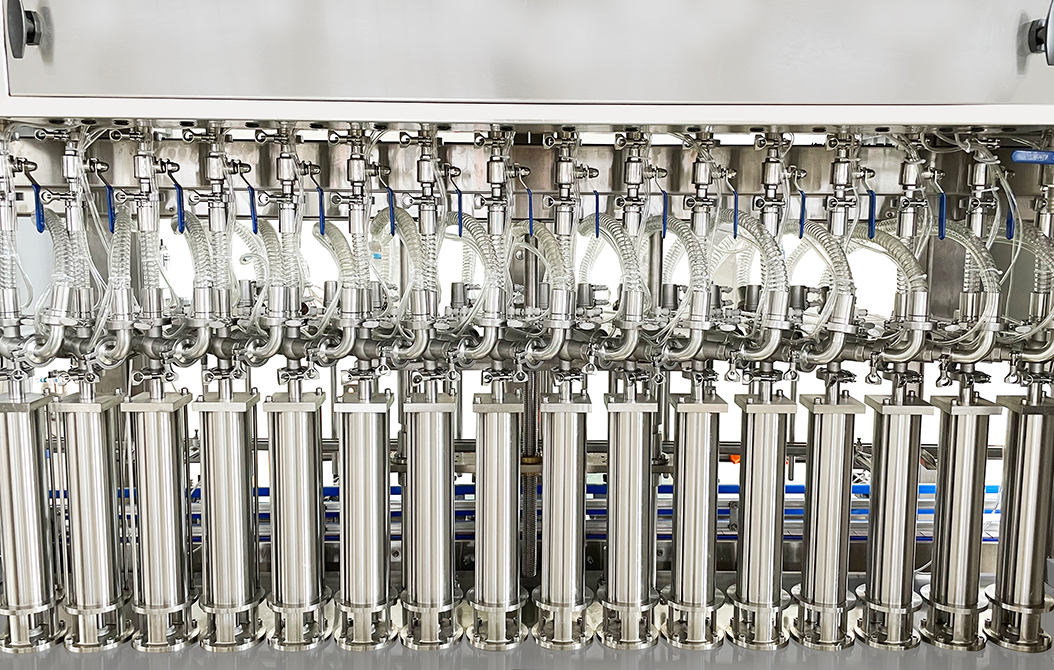

SUS 304/316 Piston Cylinder

1.All the pistons are made of SUS304/316 food grade material.The piston ring is also made of food grade material. Wear and corrosion resistant
2.The inner wall of the piston cylinder is smooth, ensuring no residue after filling and high filling accuracy.
3.With cylinder removal function, the piston ring can be lowered out of the piston cylinder for easy cleaning.

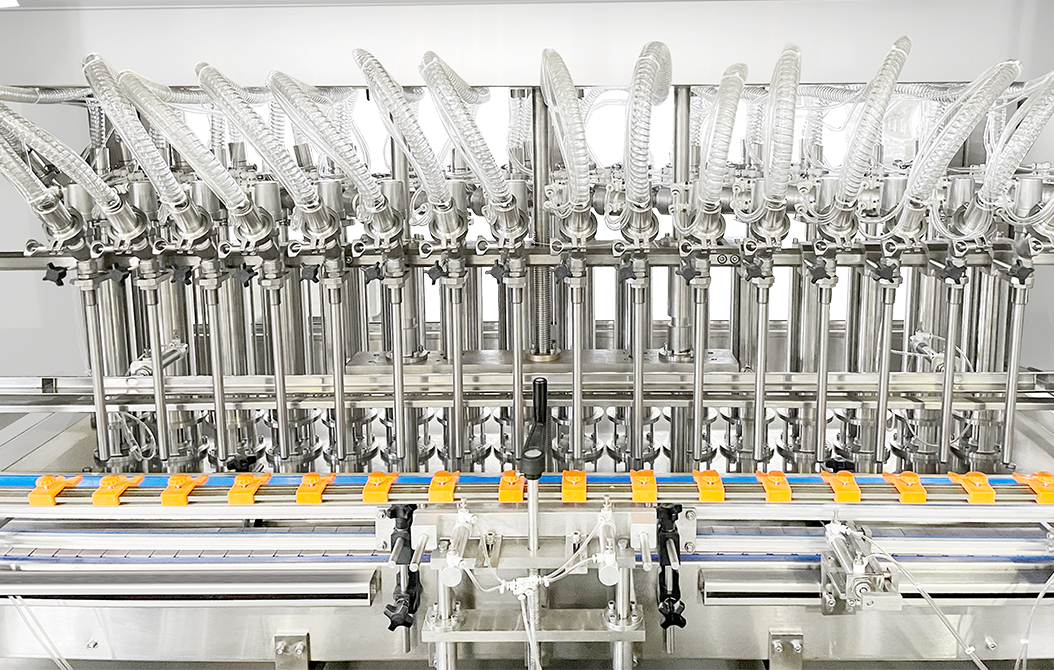

Drip-proof Filling Nozzles

1.The filling nozzels diameter of the edible oil filling machine can be customized accoridng to the size of the bottle mouth.
2.The filling nozzle is installed drip-proof parts to prevent the bottle from being contaminated during filling.
3.The filling nozzle can be lifted and lowered by a servo motor to reduce the amount of foaming during filling. It is suitable for filling liquids that are prone to foaming.

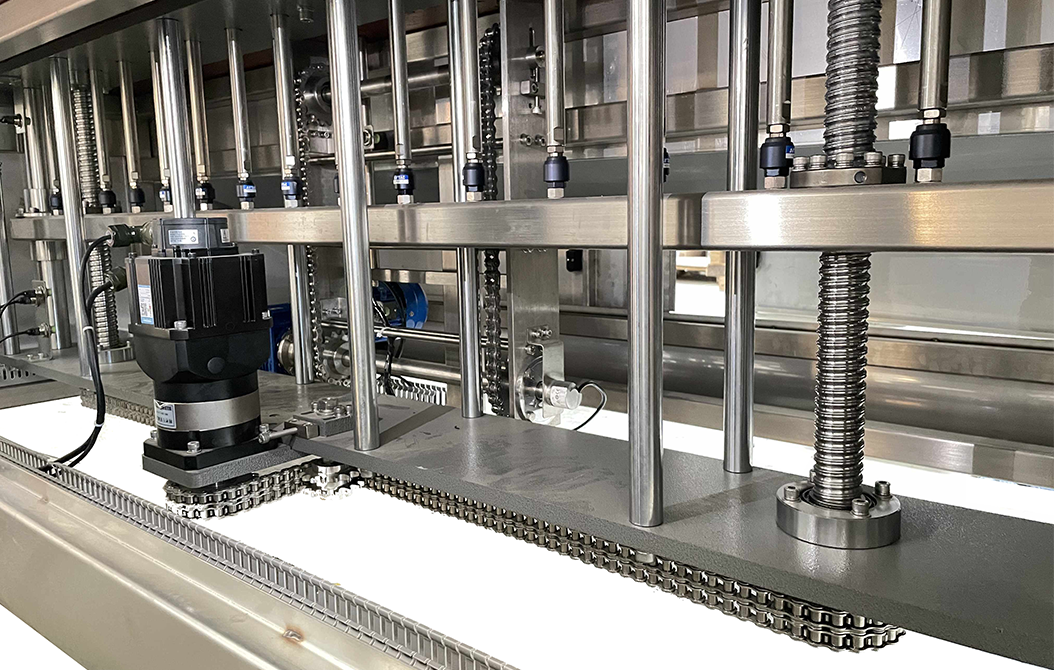

BRAND SERVO MOTOR

1.Adopt high-power Panasonic brand servo motor, stable operation and high precision.
2.It adopts double-screw structure and chain drive, which can transmit sufficient power to drive the piston ring, with stable structure and high operation precision.
3.Equipped with high and low position protection to prevent the piston ring from falling out of the piston cylinder, without causing leakage, high safety.

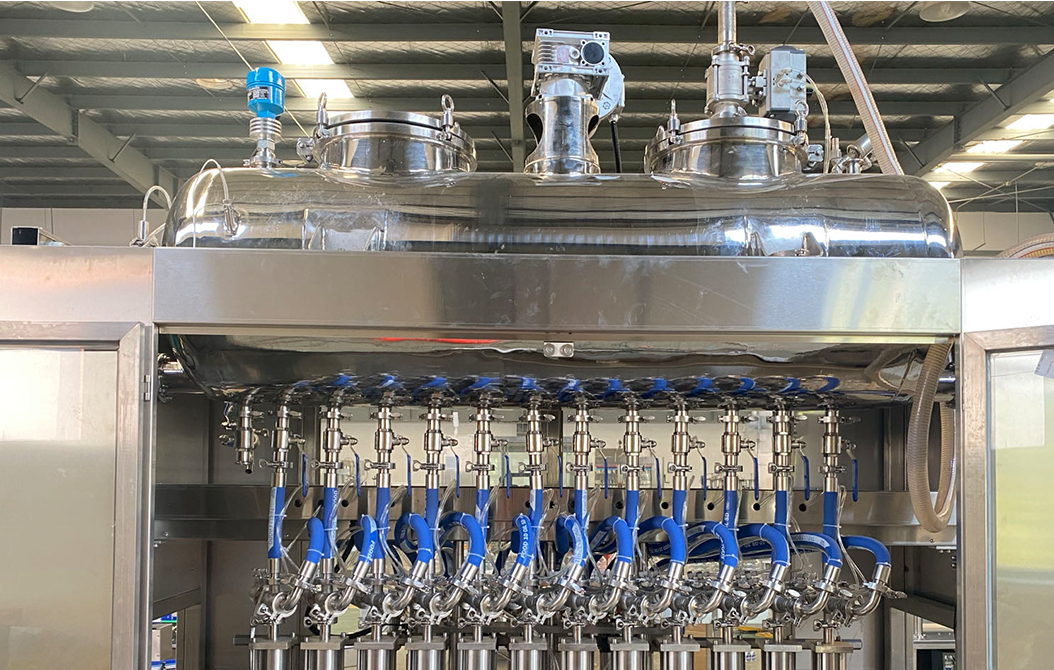

CIP CLEANING SYSTEM

1.Edible oil filling machine can be equipped with CIP tank,The internal pipelines of the filling machine can be perfectly cleaned with CIP cleaning fluid, from the material box to the piston cylinder to the filling nozzle, with no dead angles.
2.The material box can be equipped with heating, stirring, high and low level gauges and other functions, suitable for a variety of different liquids filling.

Hygienic and safe

In the design and manufacturing process, full consideration is given to hygiene and safety requirements. Liquid filling machines are usually made of corrosion-resistant and easy-to-clean materials such as stainless steel to ensure that the parts in contact with liquid products meet hygiene standards. At the same time, the equipment is also equipped with sealing devices and disinfection systems to prevent liquid products from being contaminated and ensure product quality and safety.

Easy operation

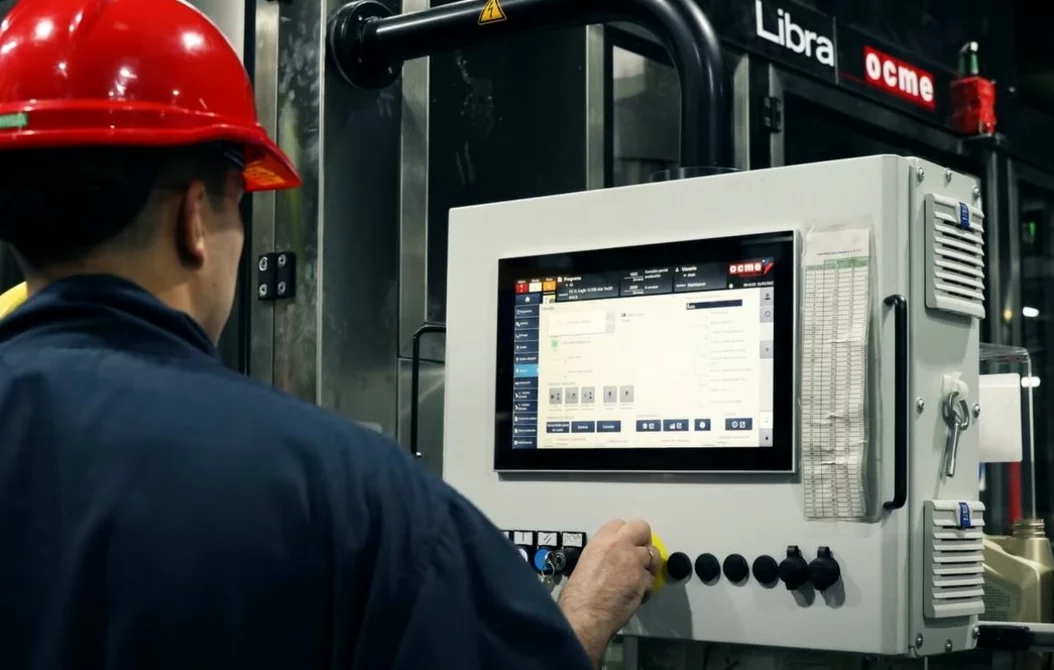

It has a user-friendly operation interface and a simple and easy-to-understand operation process. Operators can master the operation method of the equipment proficiently after simple training. Some liquid filling machines are also equipped with touch screen control systems to facilitate operators to set parameters and monitor the production process.
