Lube Oil Filling Machine Line

A lube oil filling machine line is a complete packaging system designed for lubricating oil, engine oil, motor oil, gear oil, hydraulic oil, transmission oil, and other oil-based products. Unlike a single filling machine, a full lube oil filling line usually includes container feeding, automatic filling, cap feeding, capping, aluminum foil sealing, labeling, coding, case packing, and palletizing systems.

For lubricant manufacturers, the main value of an automatic lube oil filling machine line is not only filling speed, but also filling accuracy, clean bottle appearance, reduced oil waste, stable cap sealing, and consistent packaging quality. The line can be customized for small bottles, 5L jerrycans, 20L pails, 200L drums, and 1000L IBC containers.

A professional lube oil filling machine line can handle many types of lubricant and oil products, including engine oil, motor oil, gear oil, hydraulic oil, brake oil, transmission oil, compressor oil, cutting oil, industrial lubricants, synthetic oil, semi-synthetic oil, and mineral oil.

Different oil products may have different viscosity, foaming behavior, flow characteristics, and temperature sensitivity. Therefore, the filling system should be selected according to the actual product. For example, high-viscosity gear oil may require a stronger pump system or servo piston filling structure, while large-volume hydraulic oil packaging may be better suited for a weighing filling system.

A lube oil filling line can be customized for a wide range of container sizes, from small bottles to bulk industrial packaging. Common filling ranges include:

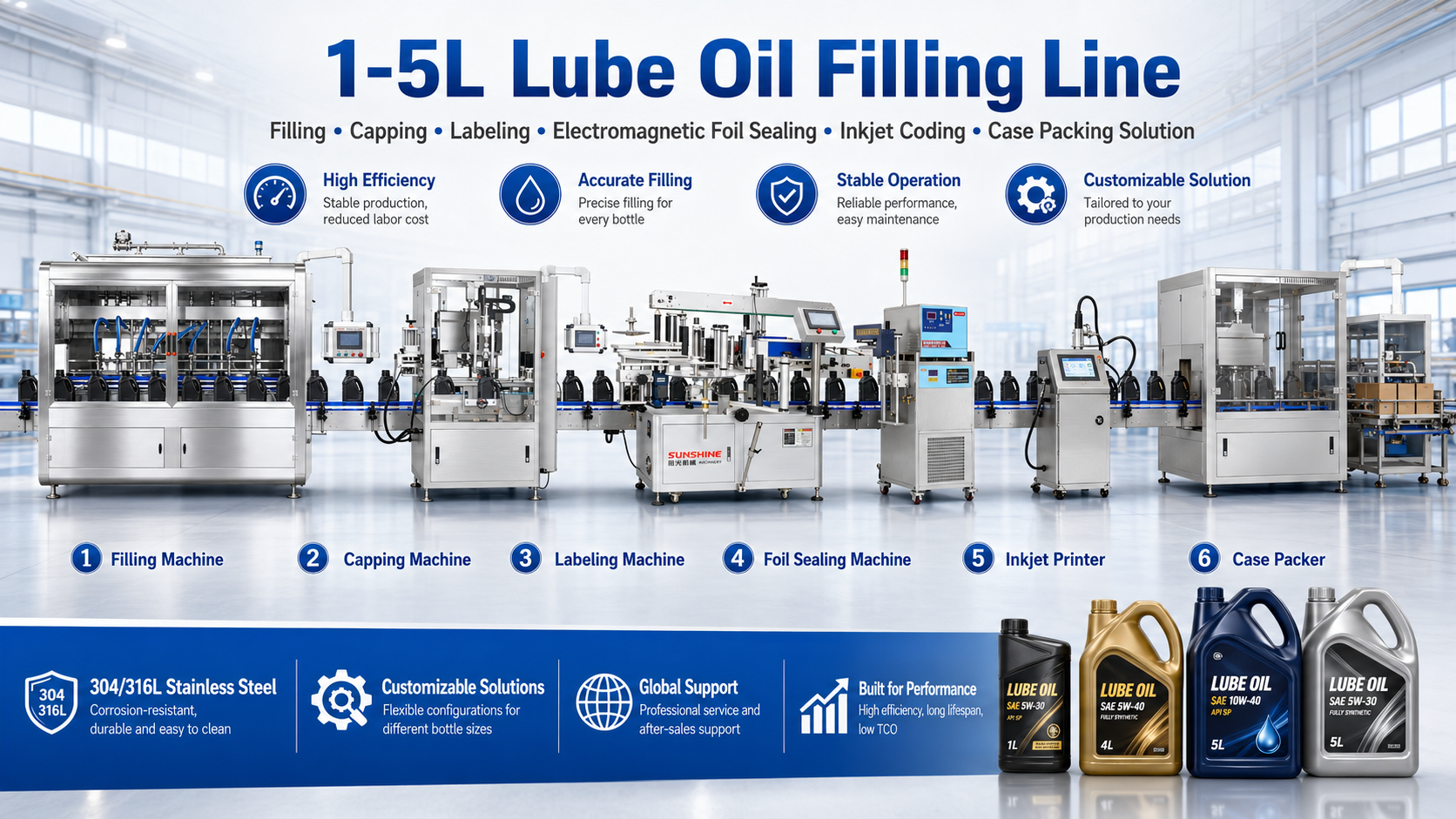

500ml, 1L, 4L, 5L bottles

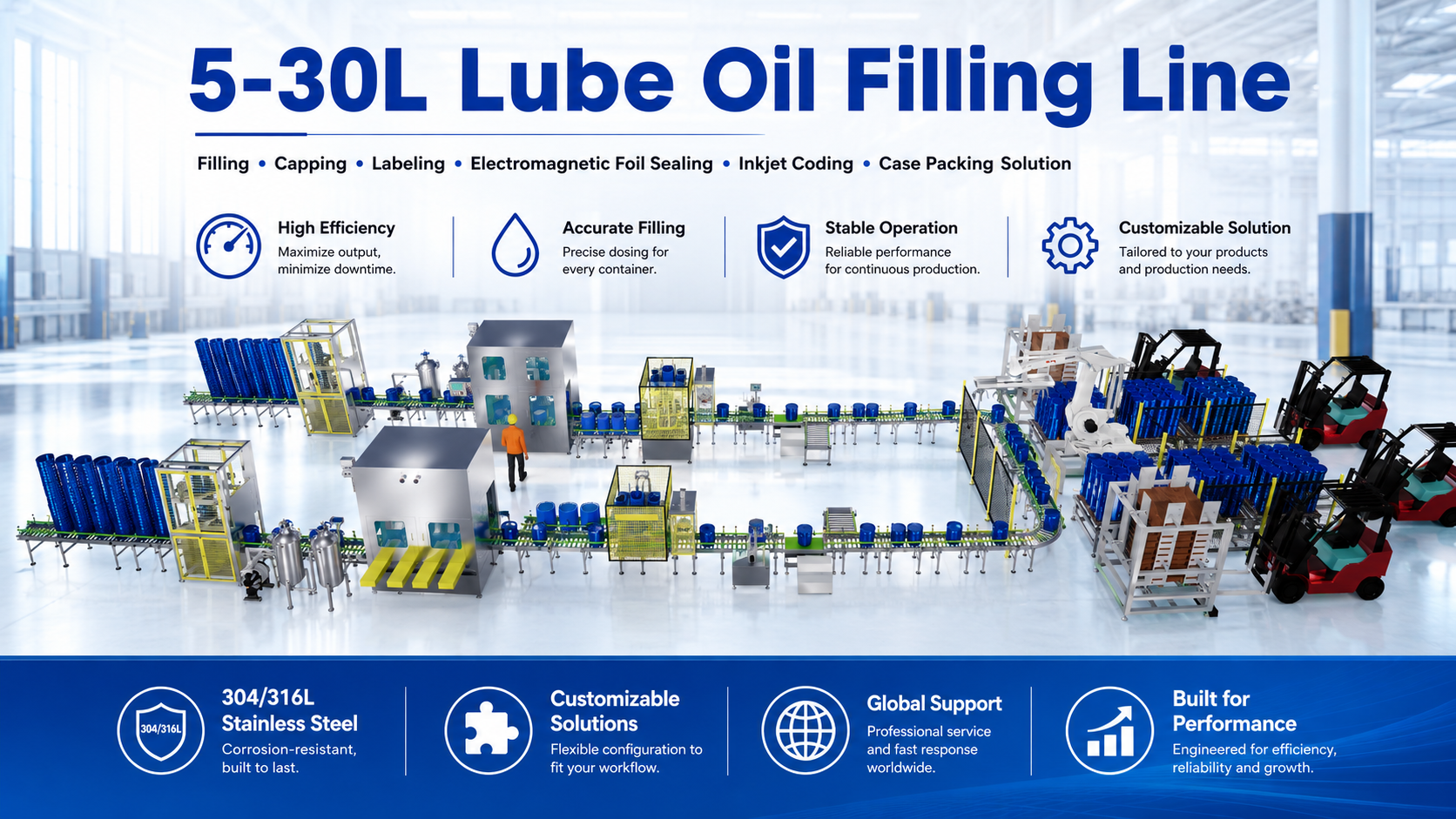

5L, 10L, 20L, 25L, 30L jerrycans or pails

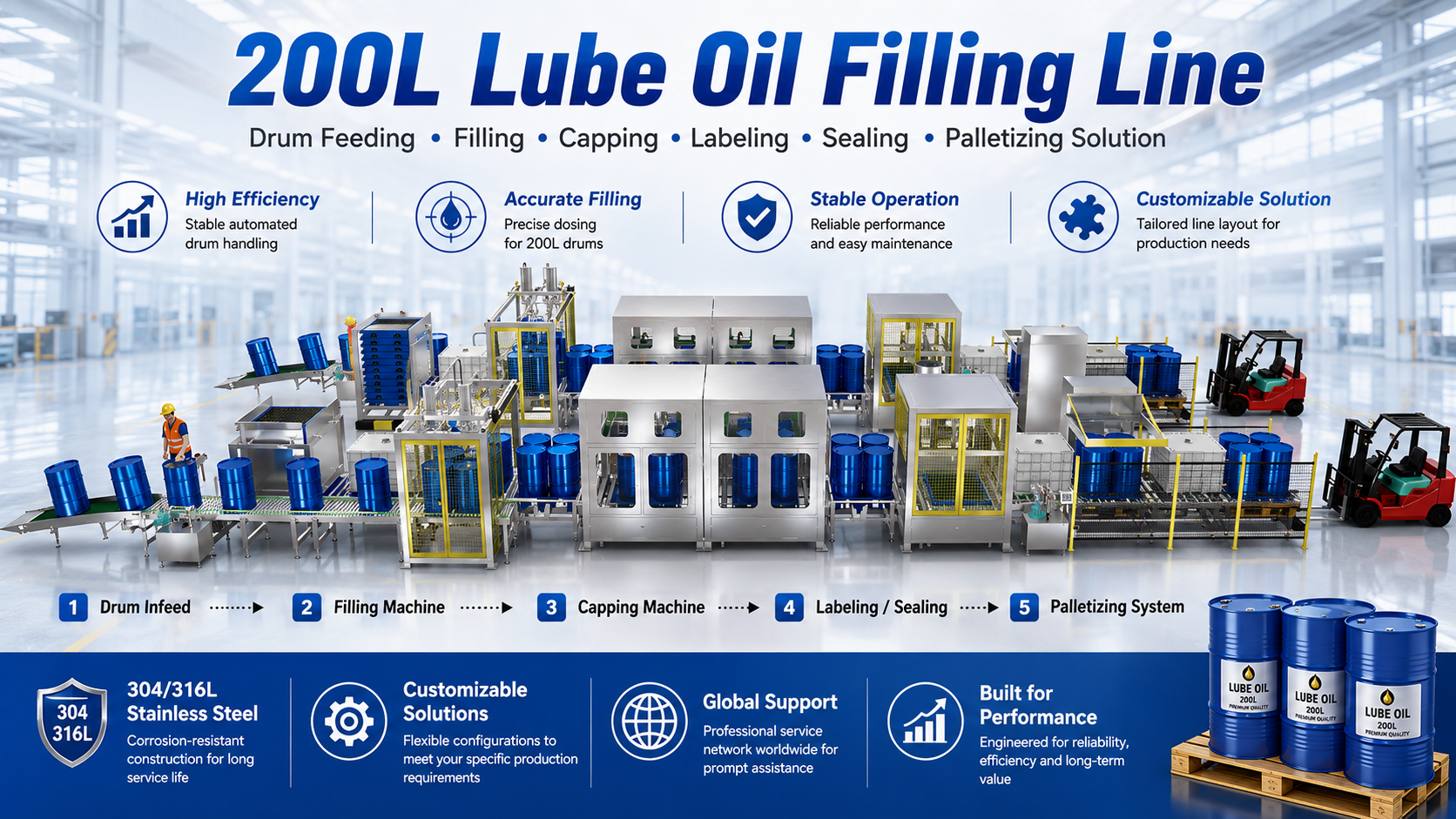

200L steel drums or plastic drums

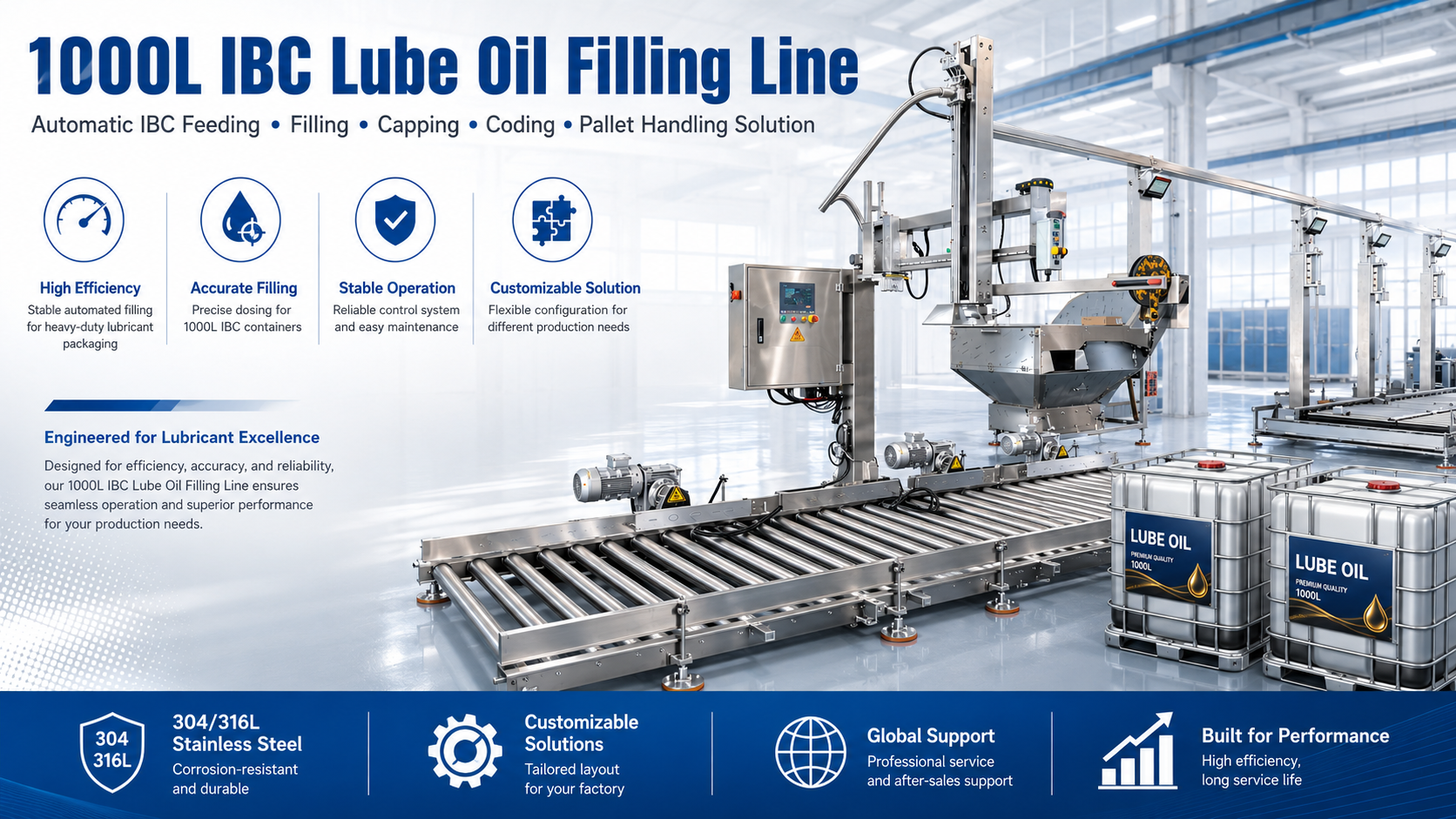

1000L IBC tanks

For 500ml–5L bottles, speed and filling accuracy are usually the main concerns. For 5–30L containers, the equipment must consider container stability, conveyor load capacity, cap handling, and accurate filling. For 200L drum filling and 1000L IBC filling, the system should focus on net weight accuracy, heavy-duty structure, safe positioning, and efficient material transfer.

The best lube oil filling machine depends on filling volume, oil viscosity, accuracy requirement, production speed, and container type. For small and medium bottles, a servo piston filling machine is widely used because it offers stable volumetric filling, high precision, and flexible adjustment for different bottle sizes.

For larger containers such as 20L pails, 200L drums, and 1000L IBC tanks, a weighing filling machine is often recommended. Net weight filling is more suitable for large-volume lubricant packaging because it measures the actual filling weight and helps reduce filling error caused by viscosity, temperature, or flow variation.

In many lubricant factories, different filling technologies are used for different packaging formats. For example, a company may use servo piston filling for 1L and 4L bottles, while using weighing filling machines for 20L pails and 200L drums.

Filling accuracy directly affects production cost, brand consistency, and customer satisfaction. Lubricating oil products are usually higher in value than ordinary water-based liquids, so even a small overfilling percentage can cause significant material loss over long-term production.

For example, if each bottle is overfilled by only a few grams, the accumulated oil waste can become a major cost when producing thousands of bottles per day. On the other hand, underfilling may lead to customer complaints or compliance issues. A high-quality automatic lube oil filling machine helps control filling deviation, improve consistency, and reduce unnecessary oil loss.

Yes. A lube oil filling machine can be designed for medium and high-viscosity oil products. However, the machine configuration should match the oil viscosity. High-viscosity lubricants may require larger-diameter pipelines, servo-driven piston systems, high-viscosity pumps, pressurized feeding, heated pipelines, or buffer tanks.

Anti-drip filling nozzles are also very important for oil filling. Because lubricating oil is sticky and slow-flowing, poor nozzle design can cause dripping, bottle contamination, and messy packaging. A well-designed filling system should ensure smooth filling, clean cut-off, and stable operation even when handling thick oil products.

A complete lube oil filling machine line can include the following equipment:

Automatic bottle unscrambler or container feeding system
Servo piston filling machine or weighing filling machine
Cap elevator and automatic cap feeding system
Automatic capping machine
Electromagnetic induction aluminum foil sealing machine
Self-adhesive labeling machine or double-side labeling machine
Inkjet printer or laser coding machine
Heavy-duty conveyor system
Case packer or carton packing machine
Carton sealing machine
Palletizing system

The final configuration depends on the customer’s packaging format, production capacity, factory layout, and budget. For small bottles, the line usually focuses on speed and automation. For large pails, drums, or IBC tanks, the line needs stronger conveying, accurate weighing, and safer container handling.

Servo piston filling and weighing filling are both common choices for lubricating oil filling machines, but they are suitable for different applications.

A servo piston filling machine is a good choice for small and medium containers, especially 500ml to 5L bottles. It provides accurate volume control, fast filling speed, and easy adjustment through the touch screen. It is suitable for engine oil, motor oil, and other retail packaging formats.

A weighing filling machine is more suitable for large-volume packaging, such as 5–30L containers, 200L drums, and 1000L IBC tanks. Since the system fills by net weight, it can provide better accuracy for bulk lubricant packaging and reduce the influence of viscosity and temperature changes.

The capacity of a lube oil filling machine line depends on several factors, including filling volume, number of filling heads, oil viscosity, container shape, cap type, labeling method, conveyor design, and operator efficiency.

For small bottles, increasing the number of filling heads can significantly improve output. Common configurations include 4-head, 6-head, 8-head, 10-head, 12-head, and 16-head filling machines. For large containers such as 200L drums or 1000L IBC tanks, capacity is more related to flow rate, weighing speed, container positioning, and loading method rather than the number of filling heads alone.

A truly efficient lube oil filling line should balance filling, capping, labeling, and packing speed. If one machine is much slower than the others, it becomes the bottleneck of the whole line.

Yes. A customized lube oil filling line can be designed to handle multiple bottle sizes or container formats. However, the flexibility depends on the machine structure and changeover design. For example, a line for 1L, 4L, and 5L bottles can usually share the same filling and capping system with adjustable guides, filling parameters, and labeling positions.

For very different containers, such as small bottles and 20L pails, the line may need stronger conveyors, different cap feeding systems, or different labeling solutions. If the customer has many bottle sizes, the machine should be designed with quick-change parts, recipe storage, adjustable filling heads, and easy-to-adjust conveyor guides.

Dripping is one of the most common problems in lubricating oil filling. A professional automatic lube oil filling machine can use anti-drip filling nozzles, suck-back control, servo filling adjustment, bottom-up filling, and optimized pipeline design to reduce oil residue at the nozzle outlet.

For high-viscosity oil, nozzle design is especially important. If the cut-off is not clean, oil may drip onto the bottle mouth, cap area, conveyor, or machine surface. This not only affects product appearance but also increases cleaning work and may reduce packaging quality. Good anti-drip performance is a key indicator when evaluating a lube oil filling machine supplier.

When choosing a lube oil filling machine manufacturer, customers should consider whether the supplier understands lubricant product characteristics, high-viscosity filling, anti-drip design, weighing accuracy, cap handling, labeling requirements, and complete line integration.

A reliable manufacturer should not only provide a filling machine, but also offer a complete packaging solution based on real production needs. Important evaluation points include machine structure, filling accuracy, material compatibility, automation level, after-sales support, spare parts supply, and experience with similar lube oil filling projects. For long-term production, choosing the right supplier is often more important than choosing the lowest initial price.
