In the modern packaging industry, the demand for efficient, precise, and versatile filling technology has been rising steadily. From food and beverage factories producing viscous sauces, to cosmetics manufacturers dealing with creams and lotions, and even to pharmaceutical companies filling syrups or gels—businesses need equipment that can handle a wide variety of liquid products with accuracy and reliability.
One of the most effective solutions to these challenges is the rotor pump filling machine, also known as a rotary lobe pump filling machine. It has quickly become an industry favorite because of its ability to manage high-viscosity, shear-sensitive, and particle-containing products with ease.
This article provides a comprehensive explanation of the rotor pump filling machine, including its working principle, its unique advantages compared to traditional piston filling systems, and its most important features.
A rotor pump filling machine is a type of automatic or semi-automatic liquid filling equipment that uses rotary lobe (rotor) pumps to accurately measure and dispense liquid products into containers. Unlike piston fillers, which operate using a suction-and-expulsion mechanism, rotor pumps rely on positive displacement technology. This ensures consistent filling volumes regardless of product viscosity.

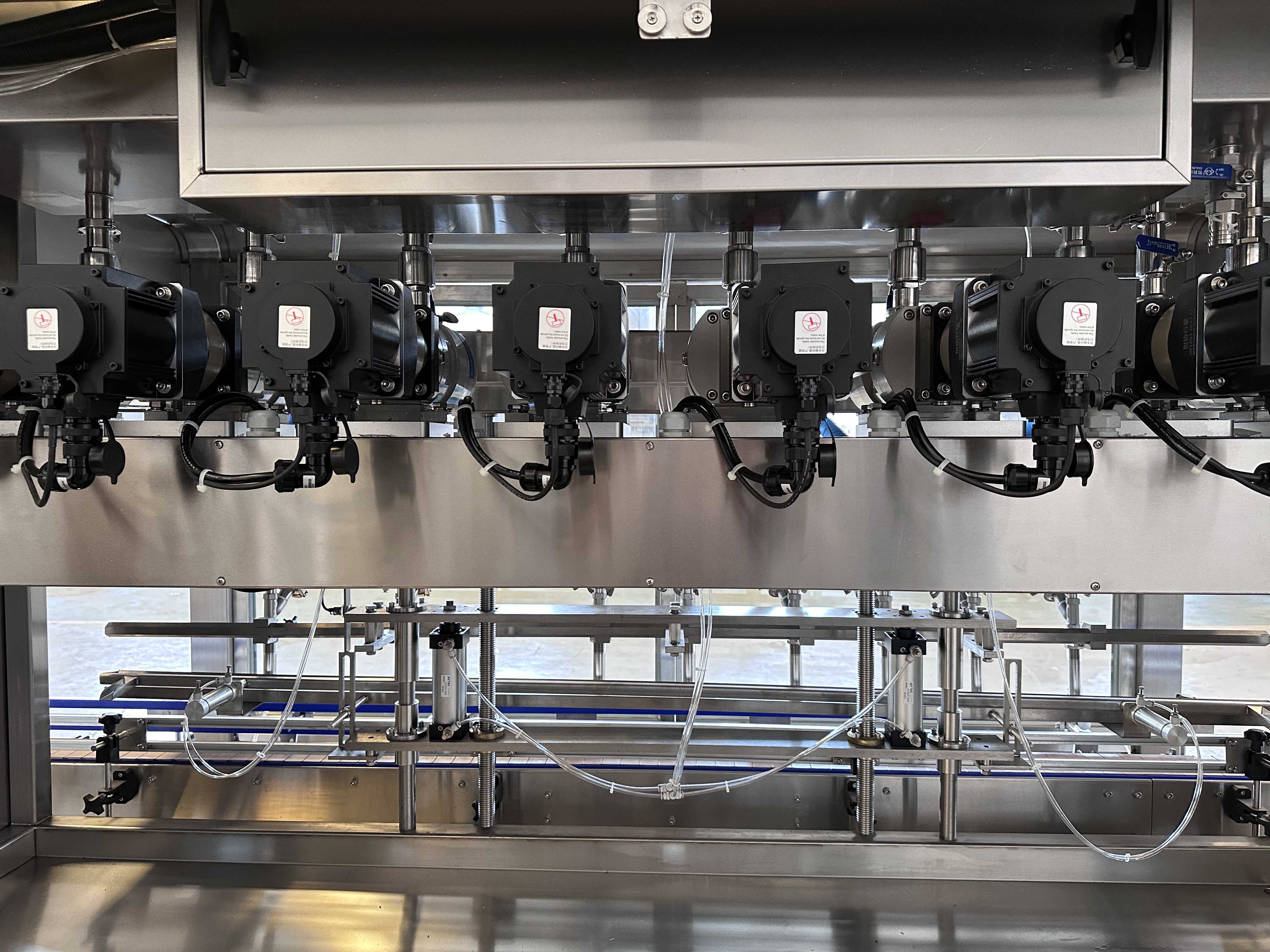

Rotor pump filling machines are commonly designed with multi-head configurations (2-head, 4-head, 6-head, 8-head, or more) to improve production efficiency, making them ideal for medium to large-scale manufacturing operations.
The rotor pump filling machine operates on a simple yet highly effective positive displacement principle. Here is a step-by-step breakdown:
Suction Phase
The pump contains two synchronized rotors (lobes) inside a casing.
As these rotors rotate in opposite directions, they create an expanding cavity on the suction side.
This action generates a vacuum, pulling liquid into the pump chamber.
Product Trapping
The liquid is trapped in the space between the rotors and the casing.
Each rotation of the rotors traps a specific, fixed volume of liquid.
Product Transfer
The trapped liquid is carried around the pump casing as the rotors continue to turn.
The pump does not compress the liquid; instead, it moves smoothly along the walls of the chamber.
Discharge Phase
On the discharge side, the rotor lobes push the liquid out of the cavity.
This results in a continuous, non-pulsating flow of product toward the filling nozzles.
Controlled Filling
The machine’s PLC (Programmable Logic Controller) controls the rotor pump speed, rotation time, and number of cycles.
By adjusting these parameters, manufacturers can achieve precise, repeatable filling volumes for each container.
Because of this mechanism, rotor pump filling machines can accurately dispense even the thickest or most delicate products, making them superior to many conventional filling systems.
Rotor pumps excel at filling thick, sticky, or semi-solid materials that are difficult for piston fillers. Products like honey, jam, peanut butter, tomato paste, and creams can be filled smoothly without clogging or excessive force.
The design ensures low shear stress, which means sensitive products such as yogurt, emulsions, or cosmetic creams maintain their texture and quality during filling. Piston fillers, by contrast, can introduce turbulence and bubbles.
Because rotor pumps are positive displacement pumps, every rotor cycle delivers a fixed volume of liquid. This ensures filling accuracy typically within ±0.5%. The result is less product waste and better consistency across batches.
Many food products, like sauces with vegetable chunks or fruit jams with pulp, require filling without damaging the particulates. Rotor pumps allow particles to pass through gently, unlike piston fillers that may crush or block them.
Unlike reciprocating piston fillers, rotor pumps deliver a continuous and smooth flow, reducing issues such as foaming, dripping, or splashing during the filling process.
Most rotor pump filling machines come with PLC control, touch screen interfaces, and servo motors, allowing for easy parameter adjustments and integration with other packaging equipment like cappers, labelers, and cartoners.
Piston fillers require regular replacement of cylinder seals and other wearing parts. Rotor pumps, however, are more durable, with fewer parts subject to wear and tear, leading to lower maintenance costs over time.
Rotor pump fillers are often made from stainless steel (SS304 or SS316L) and are compatible with CIP (Clean-In-Place) and SIP (Sterilize-In-Place) systems. This makes them compliant with the strict hygiene standards of the food, pharmaceutical, and cosmetics industries.
Multi-Head Configurations
Available with multiple filling nozzles to achieve high production capacity.
Each pump head is independently controlled but synchronized for efficiency.
Wide Product Range
Capable of filling thin liquids (like oils), medium-viscosity products (like syrups), and thick pastes (like peanut butter).
Touch Screen & PLC Controls
Operators can easily set parameters like fill volume, speed, and cycle count.
Recipe storage allows quick changeovers for different products.
Precision Engineering
Volumetric accuracy up to ±0.5%.
Adjustable filling range from small bottles to large containers.
Hygienic Construction
Stainless steel contact parts for food-grade and pharmaceutical use.
Sealed pump housing to prevent contamination.
User-Friendly Operation
Quick dismantling and assembly of pumps for cleaning.
Minimal training required for operators.
Rotor pump filling machines are extremely versatile, making them suitable across multiple industries:
Food & Beverage Industry: Honey, sauces, peanut butter, jams, yogurt, ketchup, edible oils, salad dressings, chocolate spreads.
Pharmaceutical Industry: Syrups, oral suspensions, medicinal gels, ointments, nutraceutical pastes.
Cosmetics & Personal Care: Lotions, creams, shampoos, conditioners, gels, toothpaste.
Chemical Industry: Detergents, adhesives, lubricants, paints, resins, waxes.
This versatility makes rotor pump fillers a valuable long-term investment for manufacturers producing a wide product portfolio.
| Aspect | Rotor Pump Filling Machine | Piston Filling Machine |
|---|---|---|
| Filling Mechanism | Positive displacement via rotating lobes | Reciprocating piston suction and expulsion |
| Viscosity Handling | Excellent for high-viscosity and particulate products | Better for low- to medium-viscosity liquids |
| Shear Sensitivity | Gentle, low-shear transfer | Higher shear, may damage delicate products |
| Flow Type | Continuous, smooth, non-pulsating | Pulsating, may cause bubbles or foaming |
| Accuracy | ±0.5% or better | ±1% (subject to wear of seals) |
| Maintenance | Fewer wear parts, easier to clean | Requires regular replacement of seals and pistons |
| Applications | Food pastes, creams, thick sauces, pharmaceuticals, cosmetics | Water-like liquids, light syrups, solvents |
In today’s competitive manufacturing environment, precision, efficiency, and flexibility are crucial. Rotor pump filling machines deliver on all these fronts. They provide:
Better adaptability to a wide range of products
Higher hygiene standards and easier cleaning
Lower maintenance costs
Improved product quality preservation
Faster and more reliable production
For businesses dealing with thick, sticky, or delicate products, investing in a rotor pump filling machine is not just an upgrade—it is a strategic advantage that improves both productivity and profitability.
The rotor pump filling machine represents a modern solution for manufacturers who demand high precision, versatility, and durability from their filling equipment. With its ability to handle viscous and particle-containing products, its gentle product treatment, and its seamless integration into automated production lines, it has proven to be a superior alternative to traditional piston filling machines.
Whether in food, pharmaceuticals, cosmetics, or chemicals, rotor pump filling technology ensures that businesses can meet production demands while maintaining product integrity and reducing operational costs.
For companies aiming to stay ahead in efficiency, hygiene, and flexibility, the rotor pump filling machine is undoubtedly a wise investment.
